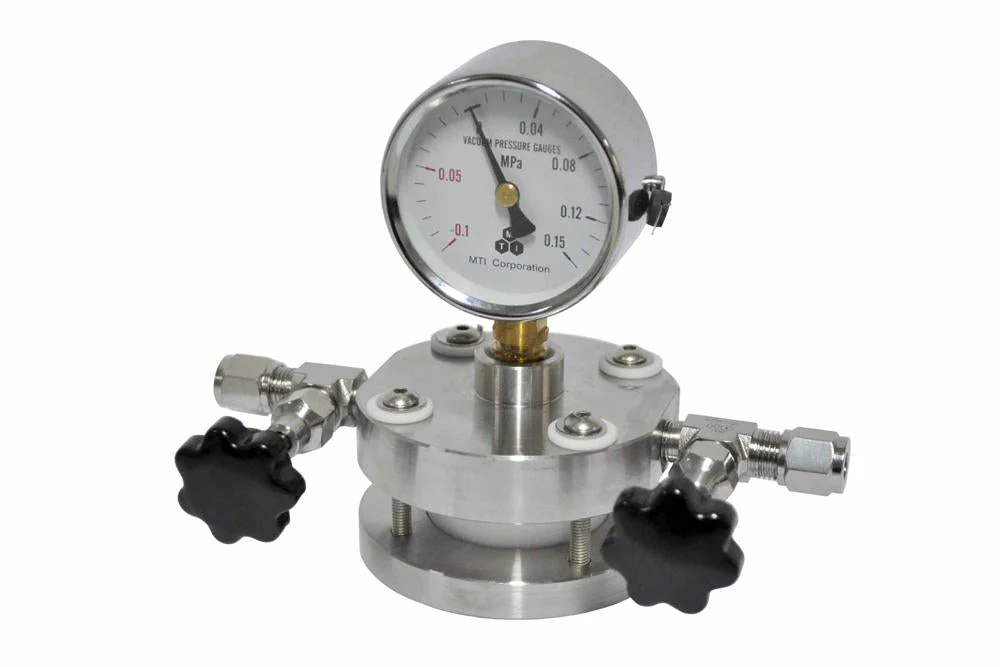

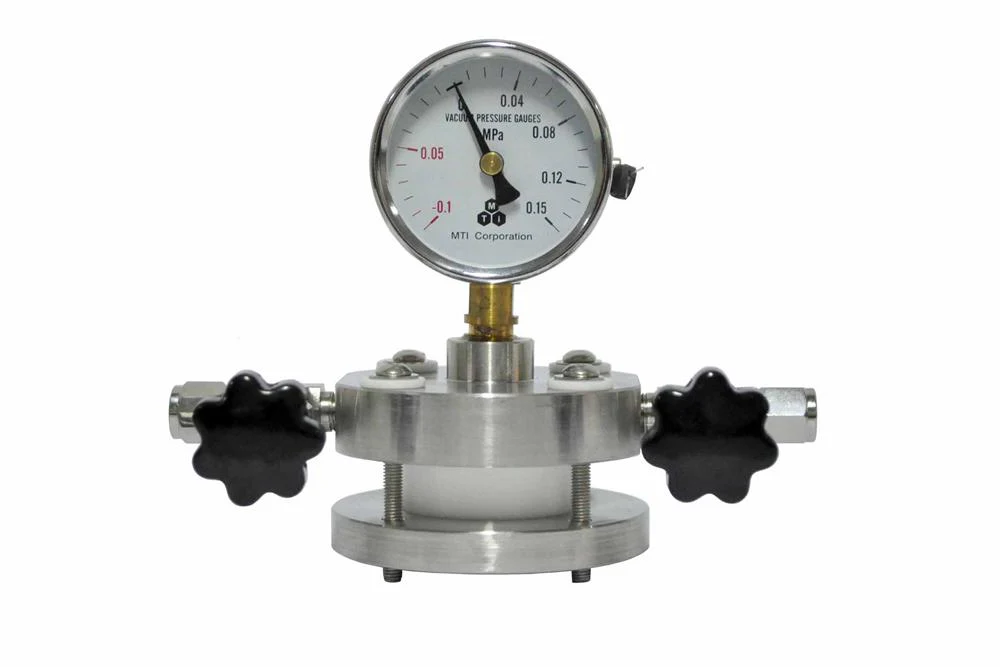

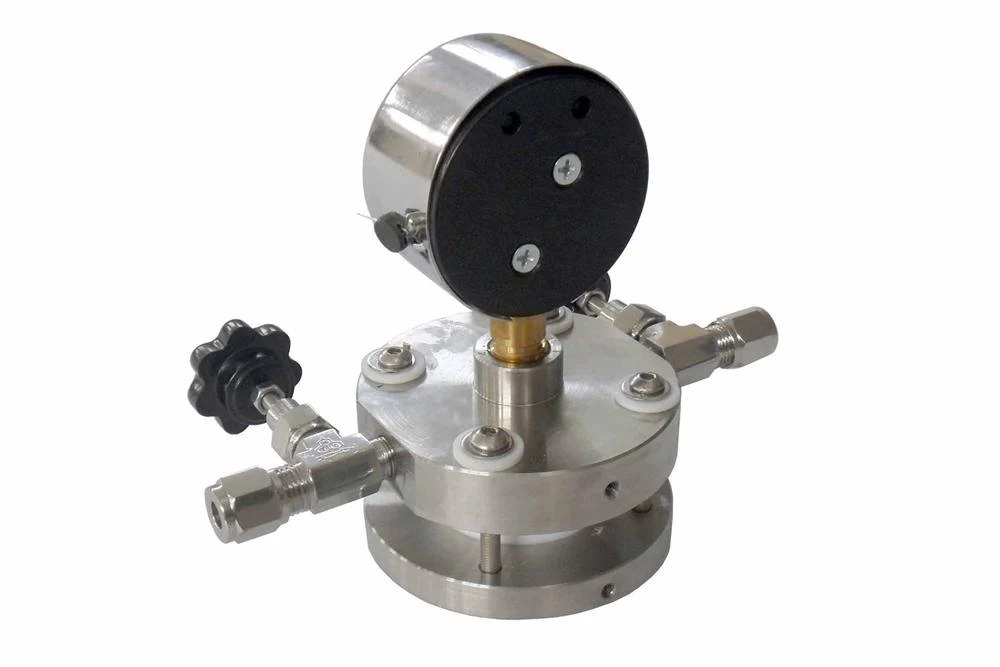

Split Test Cell for Lithium Air Battery Research - EQ-STC-AIR-1

The EQ-STC-LI-AIR is a Split Test Cell for Lithium-Air Battery Research. You can control airflow pressure and test various anode and cathode materials.

• This cell has been successfully demonstrated in the Science paper of "A room temperature rechargeable Li2O-based lithium-air battery enabled by a solid electrolyte".

SPECIFICATIONS:

Structure	SS304 steel Structure with internal Silver-Clad surface treatment ensures high electrical conductivity and good corrosion protection Two electrodes design Electrolyte corrosive-proof PEEK Guide Sleeve and Sealing O-rings The compact design fits in any benchtop glove boxes
Cell Thickness	1~3mm (cathode + separator + anode)
Bottom Recess Area	20 mm Diam.
Max. Working Temperature	200°C (The default PEEK sleeve works well in this temperature range)
Pressure Gauge	Mechanical pressure gauge with a display range from -0.1~0.15Mpa
Valves & Fittings	Two Stainless Steel needle valves with 1/4" O.D Tube Fittings
