Splitable Pouch Cell with Quartz Window for In-situ Analysis of Battery -SPCW

EQ-SPCW is splitable pouch cells with a double quartz window for X-ray or Raman in-situ analysis. The split pouch cell is made of Nylon or Peek with an inside dimension of 19x18 mm.  Its detachable design allows you to test the pouch cell behavior as well as structural changes of electrodes easily, quickly, and cost-effectively.
MTI has granted the patent 2016205320316 for a Split-able Pouch Cell with Quartz Window - EQ-SPCW since June 2016.

Specifications

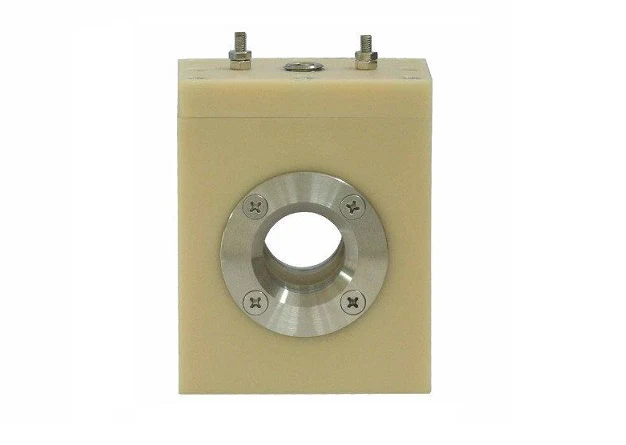

Design Features	30 mm diameter quartz window installed on two sides of pouch cell for transparency measurement The pouch cell is sealed by a PTFE O-ring without liquid and gas leaking One pressure gauge was installed on top to monitor pressure.  You may remove the gauge and use 1/4 female port to inject electrolyte into the pouch cell The pouch cell is easy to assemble by only four cap mounting screws It is easy to separate after test for microstructure analysis Space-saving, compact design allows you to put it into the glove box
Material (Please select at options bar)	Nylon or PEEK (Poly Ether Ether Ketone) is selectable from the product options bar Body: Electrolyte corrosive-proof Nylon which can sustain temperatures up to 80ºC and O-ring: Sealed by electrolyte corrosive-proof PTFE O-rings Body: PEEK (Poly Ether Ether Ketone), which is a semicrystalline thermoplastic with excellent mechanical and chemical resistance properties that are retained to high temperatures and O-ring: Sealed by electrolyte corrosive-proof FKM O-rings

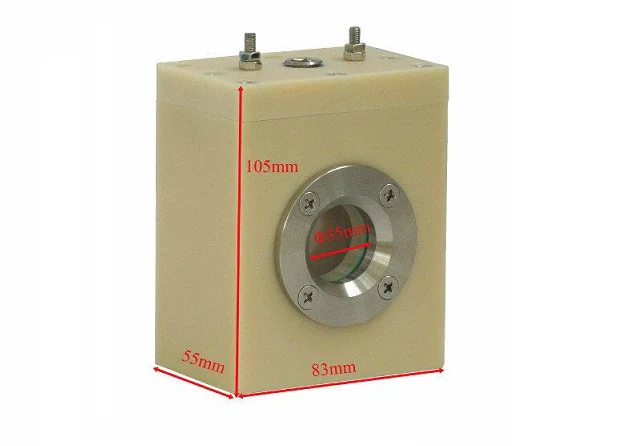

Cell Dimension	Inside dimension:   48 mm x 18 mm
Electrode Sheet dimension	Standard size:   Cathode Die: 57mm (L) x 44mm (W). with 10mm (L) x 10mm (W) protruding current collector Anode Die: 58mm (L) x 45mm (W). with 10mm (L) protruding current collector  Customized size pouch cell is available upon request
Application Note	In order to make a metal-air pouch cell, you can drill holes in the case. We can help you do that at an extra cost You may use an MTI die cutter to prepare electrodes layer by layer or make winding-type pouch cell electrodes (click the picture below to see the machine) You may need an ultrasonic welder to weld electrode tape to connect to the split cell    Die Cutter  Ultrasonic Welder Winding Machine   Pre-coated Electrode
