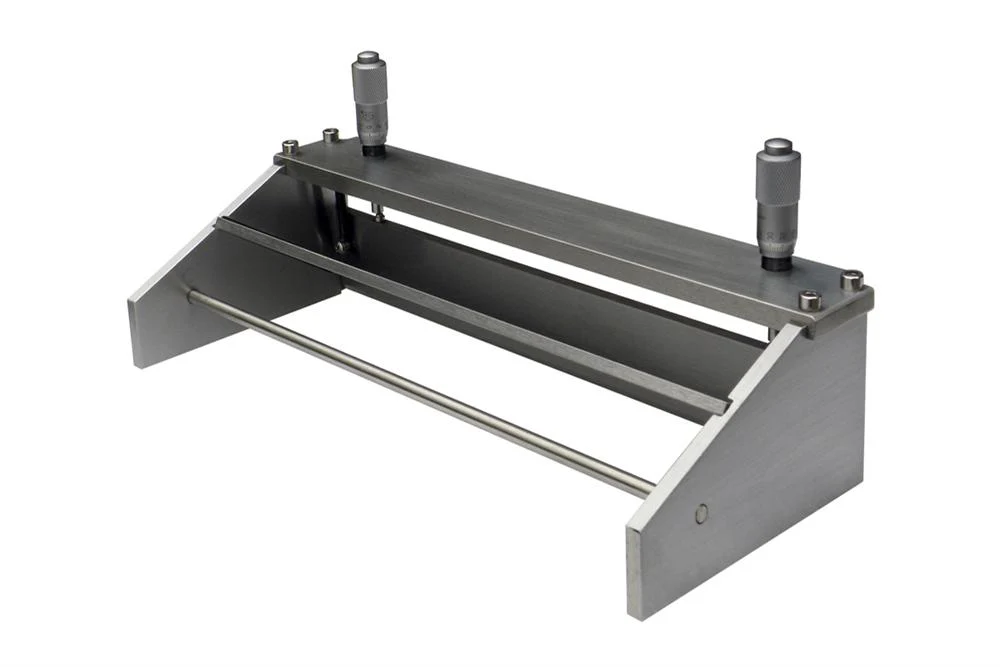

Micrometer Adjustable Film Applicator - 300 mm (film casting doctor blade) -SeKTQ300

Adjustable Film Applicator -This unique wet film applicator features micrometer heads for knife blade adjustment.
The operator sets the blade clearance by adjusting the micrometers. This is an excellent tool to make quality film for material research laboratories to make ceramic tape casting, battery electrodes, and various coating at a lower cost. Stainless steel knife blade with a precision ground edge.

SPECIFICATIONS:

Features	300 mm standard width. Built-in a slurry guiding plate to make coating material evenly distributed ahead blade. Make wet film thickness between 0 - 5000 microns. The micrometer head's controllable accuracy is 10 microns. Slurry Capacity: 150 ml.

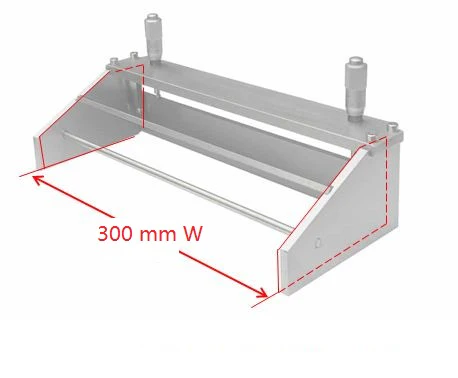

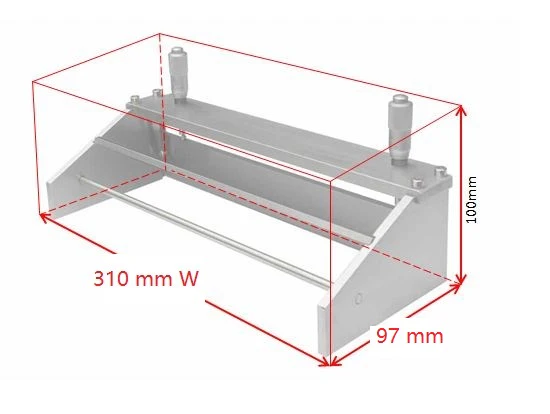

Structure & Dimension
Replacement	Purchase spare springs or micrometer heads for the replacement here.
Optional	Upgrade to the digital micrometers for better accuracy. NOT naturally compatible film applicator, but could customize our film applicator width above 100mm to fit. Please email us first to order a customized doctor blade, the separate order would not fit. Digital Micrometer  Specifications Digital Micrometer Head 1" Travel Reads to 0.001 mm (50 millionths of an inch)  0.003 mm accuracy Instant inch/millimeter conversion

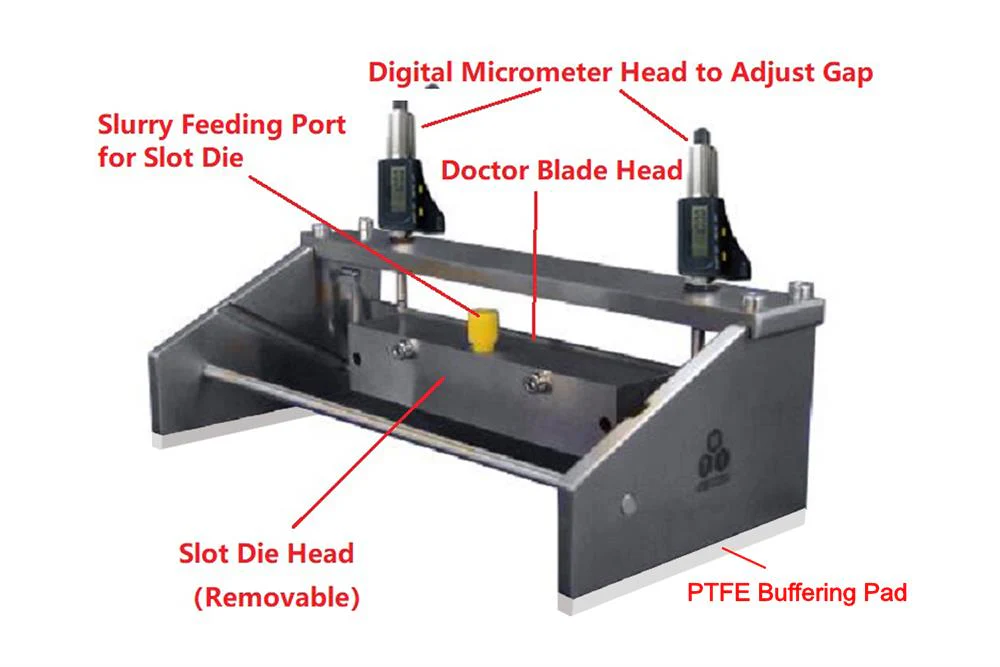

Related Products	More Film applicators Slurry Mixing  Tape Casting Coaters Hybrid Film Applicator Doctor Blade +Slot Die
