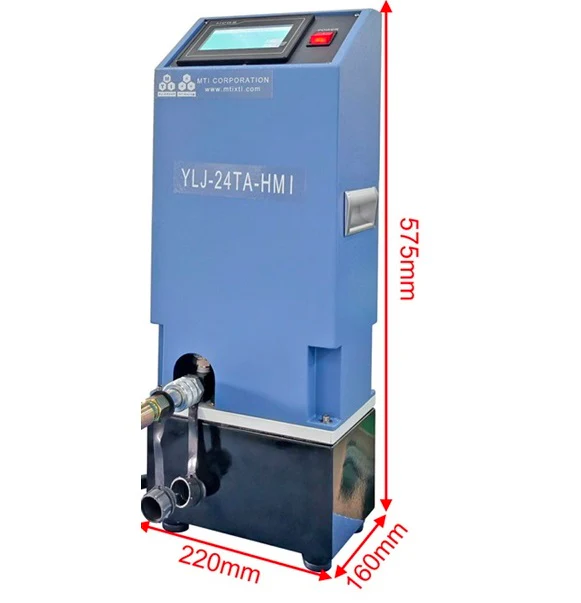

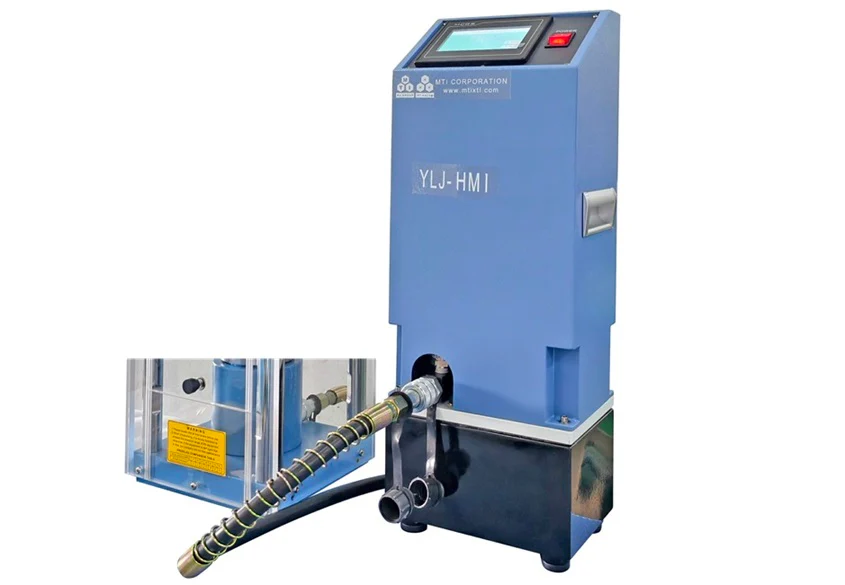

Touch Screen Programmable Hydraulic Pump with Hydraulic Pipe up to 65 MPa for MTI Press - YLJ-HMI

YLJ-HMI  is a motorized hydraulic pump with programmable pressure control and a touch screen panel up to 65 MPa.  It can calculate and control the pressure according to the interdiameter of the pressing die directly.   It is designed to upgrade the MTI manual hydraulic pump to keep a constant dwelling pressure.

Power	208-240VAC, 50/60Hz (110V version is available via 500W transformer) 150 W AC motor.
Controller	Touch screen controller to set the inter-diameter of pressing the die,  target pressure, and pressing time, then touch the button to go RS-485 port is built-in  to connect a PC for operation PC control software based on LabVIEW is included. (Please inform us in advance if you would like to purchase a PC as well. We suggest you purchase a laptop from us for the pre-test.
Pressure	Up to 65 MPa ±0.2 MPa during dwelling
Hydraulic oil	ISO46, 1.5 L
Operation Temperature	10 - 40°C
High-Pressure Pipe	One 1-meter hydraulic flexible pipe with KF40 feedthrough is included The connectors are ZG3/8. If other types (like JIC) of the connector are needed, please contact us to specify the requirement.
Compliance	CE Certified NRTL certification is available upon request
Warranty	The pressing machine was quality inspected in the USA, and lifetime support is provided One-year limited standard warranty (Extended warranty is available up to 5 years at extra cost).
