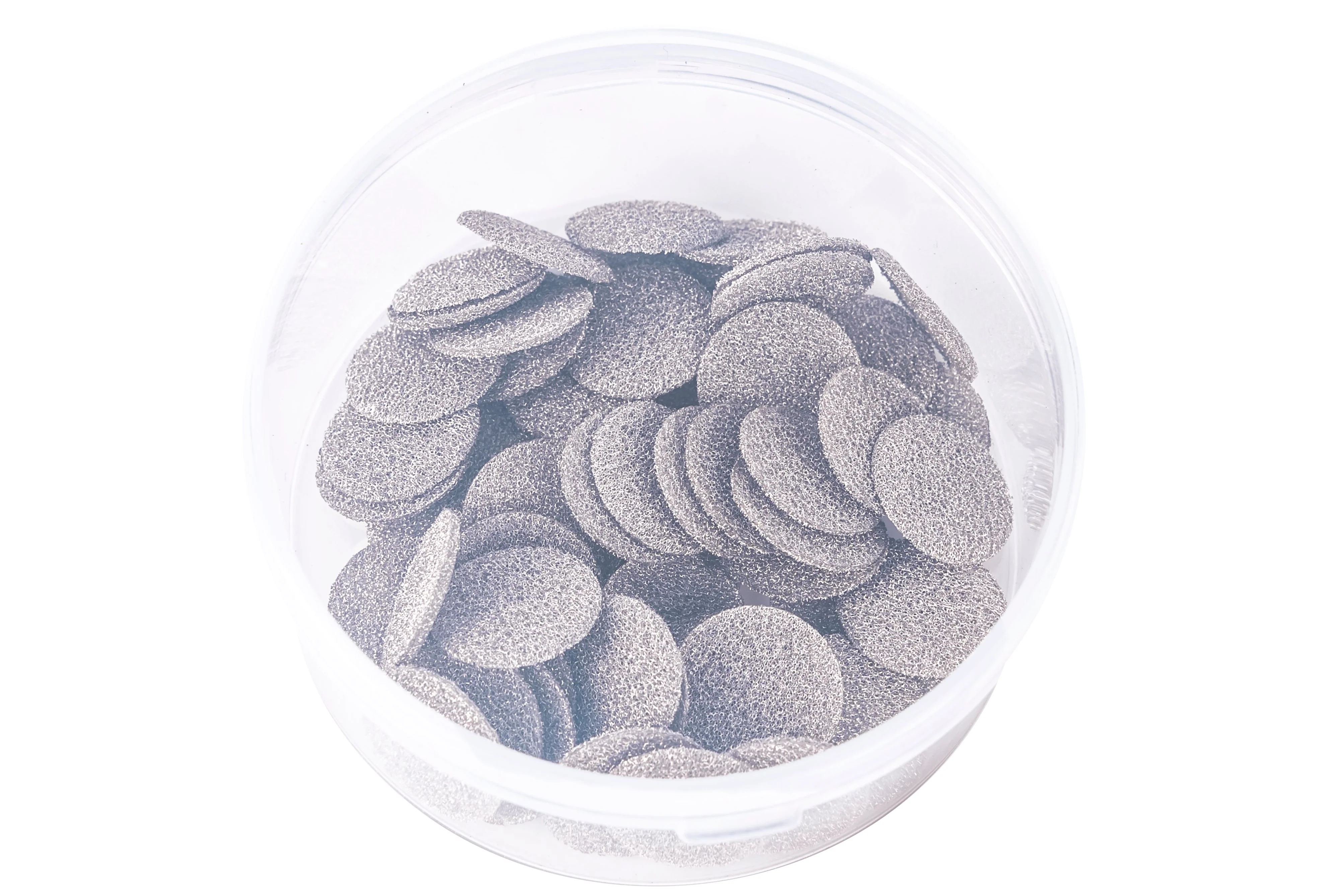

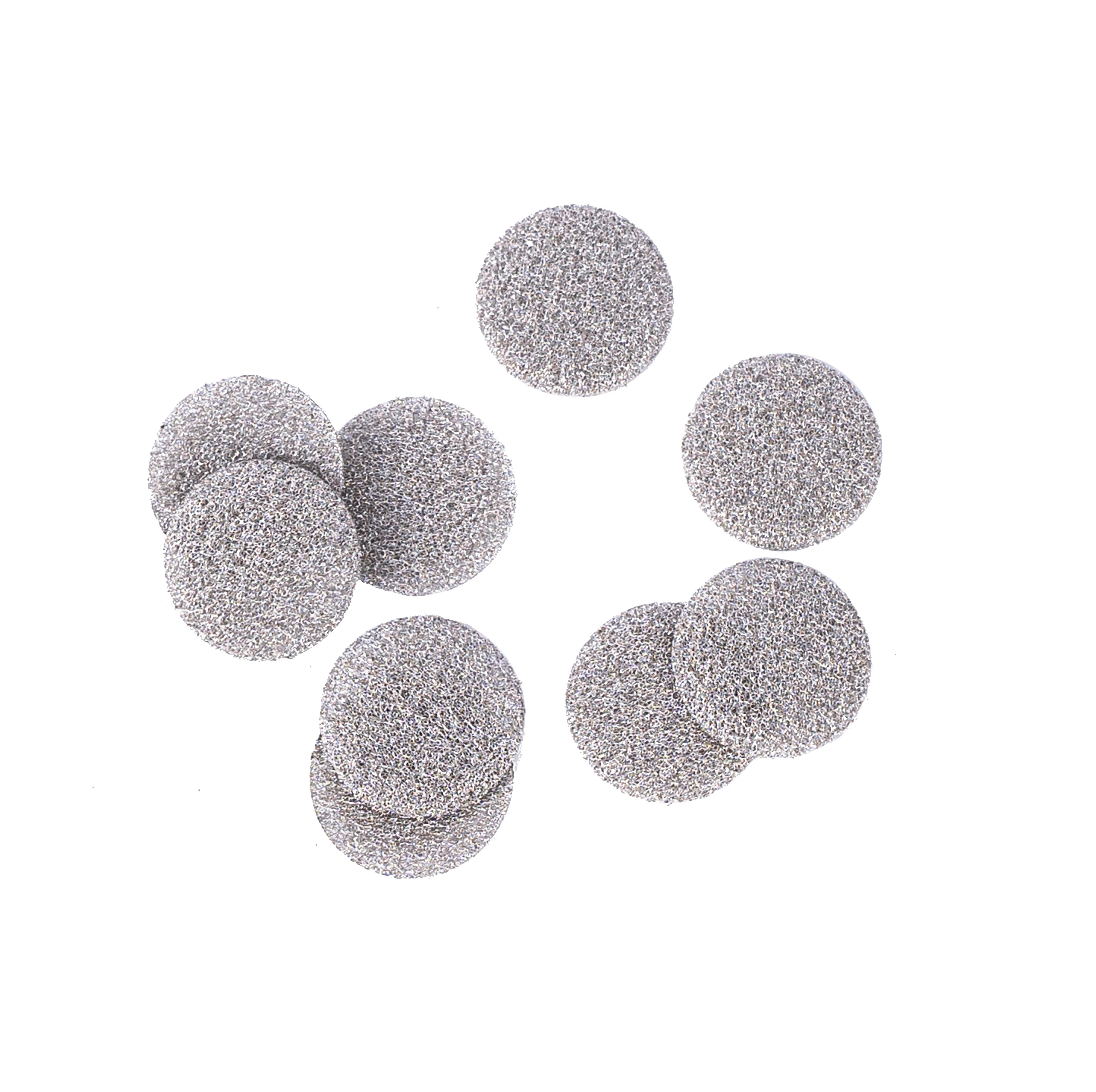

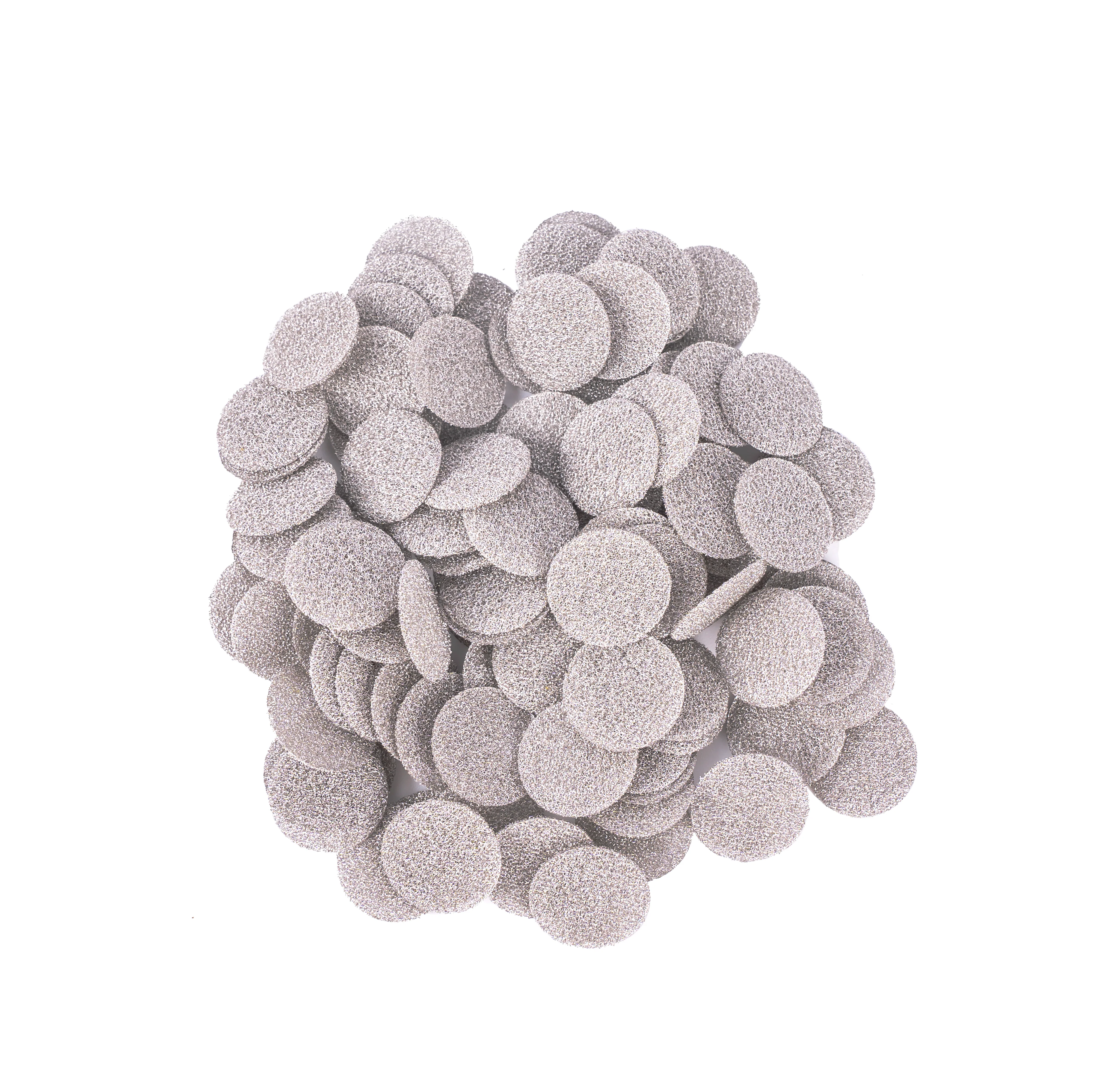

Nickel Foam Disk (Φ=16 or 20 mm) as Electrode Substrates or Solid-State Electrolyte Support for CR20XX Coin Cells, 200 pcs/ pack - Lib-NFD

Nickel Foam Disk (Φ=16 or 20 mm) as Electrode Substrates or Solid-State Electrolyte Support for CR20XX Coin Cells, 200 pcs/ pack - Lib-NFD

Nickel Foam Disk (Φ=16 or 20 mm) as Electrode Substrates or Solid-State Electrolyte Support for CR20XX Coin Cells, 200 pcs/ pack - Lib-NFD

Nickel Foam Disc with a three-dimensional metal structure, which can be used as electrode substrates for active material coatings, as well as solid support for solid-state electrolyte applications.

SPECIFICATIONS:

Purity (Main Component)	≥99.9%
Impurity	C≤200、S≤80、Fe≤100、Cu≤100、Si≤50 ppm
Diameter	16 mm (1.6 mm thickness) and 20 mm (2.3 mm thickness)
Porosity	≥96%
Pore Numbers	PPI110±10PPI
Area Density	350±25 g/m2
Longitudinal Resistivity	≥33.6 N/cm2
Transverse Resistivity	≥22.4 N/2cm
Longitudinal Extension	≥5%
Transverse Extension	≥10%
Note	This product is not manufactured by MTI. We only sell small quantities to research for developing new materials. If you have any questions on IP conflict, we will forward your inquiry to the manufacturer.
SDS

Select Diameter

From $31.15

Original: $89.00

-65%

Nickel Foam Disk (Φ=16 or 20 mm) as Electrode Substrates or Solid-State Electrolyte Support for CR20XX Coin Cells, 200 pcs/ pack - Lib-NFD—

$89.00

$31.15

More Images

Nickel Foam Disk (Φ=16 or 20 mm) as Electrode Substrates or Solid-State Electrolyte Support for CR20XX Coin Cells, 200 pcs/ pack - Lib-NFD - Image 2

Nickel Foam Disk (Φ=16 or 20 mm) as Electrode Substrates or Solid-State Electrolyte Support for CR20XX Coin Cells, 200 pcs/ pack - Lib-NFD - Image 3

Nickel Foam Disk (Φ=16 or 20 mm) as Electrode Substrates or Solid-State Electrolyte Support for CR20XX Coin Cells, 200 pcs/ pack - Lib-NFD

Nickel Foam Disc with a three-dimensional metal structure, which can be used as electrode substrates for active material coatings, as well as solid support for solid-state electrolyte applications.

SPECIFICATIONS:

Purity (Main Component)	≥99.9%
Impurity	C≤200、S≤80、Fe≤100、Cu≤100、Si≤50 ppm
Diameter	16 mm (1.6 mm thickness) and 20 mm (2.3 mm thickness)
Porosity	≥96%
Pore Numbers	PPI110±10PPI
Area Density	350±25 g/m2
Longitudinal Resistivity	≥33.6 N/cm2
Transverse Resistivity	≥22.4 N/2cm
Longitudinal Extension	≥5%
Transverse Extension	≥10%
Note	This product is not manufactured by MTI. We only sell small quantities to research for developing new materials. If you have any questions on IP conflict, we will forward your inquiry to the manufacturer.
SDS
