Automatic Liquid Phase Reactor with Heating & pH Control for Ternary Precipitation , optional 3,5,10 L - MSK-SFM-53

MSK-SFM-53 is a lab-scale ternary liquid phase reactor with automatic temperature and pH control, which can continue to prepare the liquid phase from the ternary liquid system for co-precipitation. It is an ideal reactor to prepare uniform ternary system battery powder or complex compounds via the wet method.

SPECIFICATIONS

Features	Choice of 3 L, 5 L, and 10 L SS 316 reactor with a mechanical stirring. Recirculating hot water bath to variate the reactor temperature (R.T. to 90°C) Three digital peristaltic pumps deliver different solutions as programmed for pH control Automatic pH control via a Mettler pH transmitter.  7" color touch screen control panel, which will control pH valve by adding or reducing acid or alkaline flow amount, and set/ record stirring speed, liquid flow rate, flow amount, and temperature. The reactor can continuously feed and drain the liquids for co-precipitation based on pregramma.
Power	208 - 240 VAC, single phase, 50/60 Hz Total power: 2000 W A power cable is included without a plug is not included.  110 VAC is available via a 3000W transformer

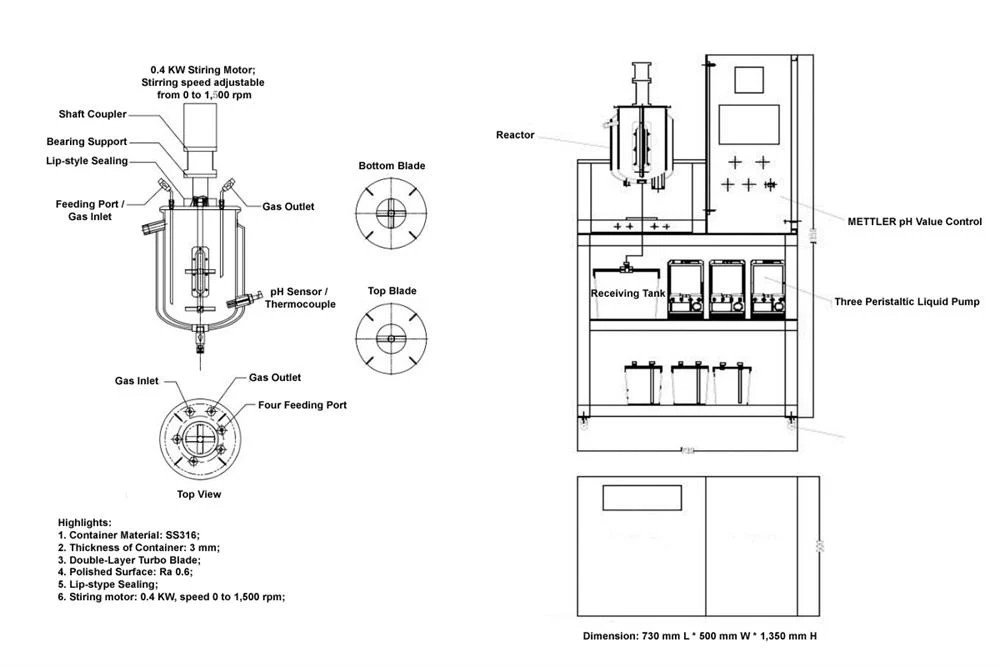

Reactor	Double-layer stainless steel reactor Reactor: SS 316; Cooling jacket: SS 304 Inner dimensions: 3 L Ø153×170 mm; 5L Ø179 × 240 mm With pH transmitter, temperature sensor, sampling port, and drainage.  Additional ports: 4 feeding ports, gas inlet, and gas outlet
Temperature Control	Thermocouple: PT 100 Recirculating water bath Temperature accuracy: +/- 0.5°C Maximum temperature: 90°C
Stirring	Stirring blades: SS 316L  Speed: 0 - 1200 rpm Adjustable positions of the stirring blades
Peristaltic Pump	Rate: 0 - 2.3 L/h Accuracy: 2% F.S.
pH Sensor	METTLER precision pH sensor (InPro4260i/SG/120) made in Germany  pH value accuracy: +/- 0.01 pH value is automatically controlled by the dynamic flow from peristaltic pumps.
Required device	Need three containers to connect the peristaltic pump to feed liquid into the reactor, which is not included. Need one container to connect the reactor to drain the solution, which is not included.
Compliance	CE Certified NRTL or CSA Certification is available upon request at extra cost
