16 mm Dia. Polypropylene (PP) Disk as Battery Separator for CR20XX Coin Cells -100 pcs/pack-Lib-PP16
HomeStore

16 mm Dia. Polypropylene (PP) Disk as Battery Separator for CR20XX Coin Cells -100 pcs/pack-Lib-PP16

16 mm Dia. Polypropylene (PP) Disk as Battery Separator for CR20XX Coin Cells -100 pcs/pack-Lib-PP16

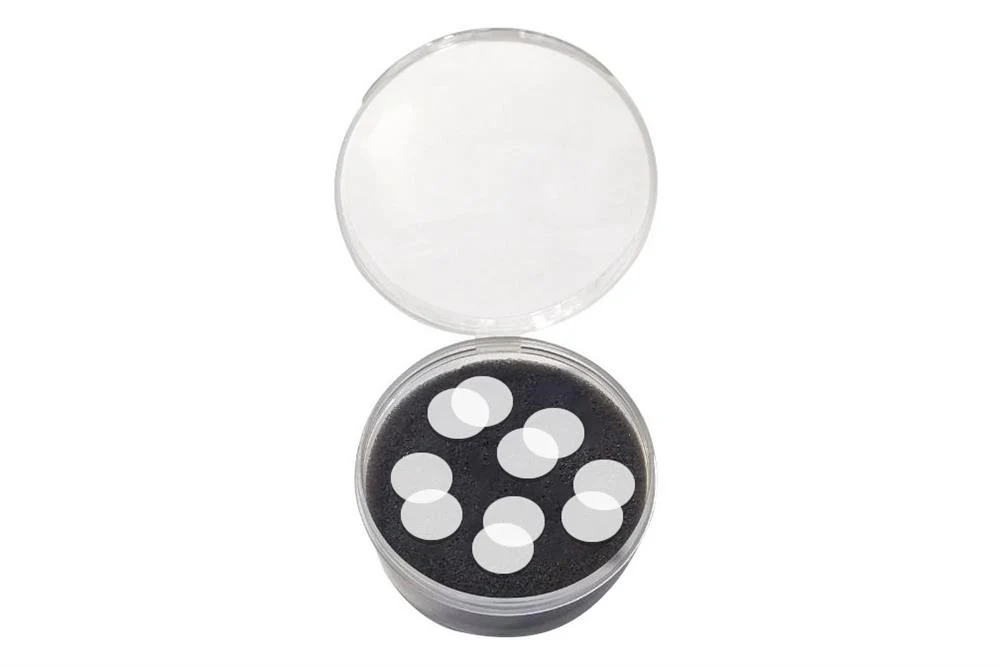

EQ-Lib-PP16 is a pre-cut Polypropylene PP round disc with a diameter of 16.2 mm for CR20XX coin cell battery R&D and split testing cells.

SPECIFICATIONS:
Material
  • Polypropylene (PP)
Thickness
  • 16 +/- 1.5 um
Air Permeability
  • 310 +/- 50 s / 100 ml
Porosity
  • 35 +/- 4 %
TD Shrinkage
  • <= 0.5% at 120 Celcius degrees / 1 H
MD Shrinkage
  • <= 8.0% at 120 Celcius degrees / 1 H
Puncture strength
  • >= 220 G
MD Tensile Strength
  • >= 1,200 kgf/ cm^2
TD Tensile Strength
  • >= 100 kgf/ cm^2
Operation
  • The package must be open inside a glove box with Argon Gas and moisture less than 2%RH.
Note
  • This product is not manufactured by MTI. We only sell small quantities to research for developing new materials. If you have any questions on IP conflict, we will forward your inquiry to the manufacturer.



$29.75

Original: $85.00

-65%
16 mm Dia. Polypropylene (PP) Disk as Battery Separator for CR20XX Coin Cells -100 pcs/pack-Lib-PP16—

$85.00

$29.75

More Images

16 mm Dia. Polypropylene (PP) Disk as Battery Separator for CR20XX Coin Cells -100 pcs/pack-Lib-PP16 - Image 2
16 mm Dia. Polypropylene (PP) Disk as Battery Separator for CR20XX Coin Cells -100 pcs/pack-Lib-PP16 - Image 3
16 mm Dia. Polypropylene (PP) Disk as Battery Separator for CR20XX Coin Cells -100 pcs/pack-Lib-PP16 - Image 4

16 mm Dia. Polypropylene (PP) Disk as Battery Separator for CR20XX Coin Cells -100 pcs/pack-Lib-PP16

EQ-Lib-PP16 is a pre-cut Polypropylene PP round disc with a diameter of 16.2 mm for CR20XX coin cell battery R&D and split testing cells.

SPECIFICATIONS:
Material
  • Polypropylene (PP)
Thickness
  • 16 +/- 1.5 um
Air Permeability
  • 310 +/- 50 s / 100 ml
Porosity
  • 35 +/- 4 %
TD Shrinkage
  • <= 0.5% at 120 Celcius degrees / 1 H
MD Shrinkage
  • <= 8.0% at 120 Celcius degrees / 1 H
Puncture strength
  • >= 220 G
MD Tensile Strength
  • >= 1,200 kgf/ cm^2
TD Tensile Strength
  • >= 100 kgf/ cm^2
Operation
  • The package must be open inside a glove box with Argon Gas and moisture less than 2%RH.
Note
  • This product is not manufactured by MTI. We only sell small quantities to research for developing new materials. If you have any questions on IP conflict, we will forward your inquiry to the manufacturer.



Product Information

Shipping & Returns

Description

EQ-Lib-PP16 is a pre-cut Polypropylene PP round disc with a diameter of 16.2 mm for CR20XX coin cell battery R&D and split testing cells.

SPECIFICATIONS:
Material
  • Polypropylene (PP)
Thickness
  • 16 +/- 1.5 um
Air Permeability
  • 310 +/- 50 s / 100 ml
Porosity
  • 35 +/- 4 %
TD Shrinkage
  • <= 0.5% at 120 Celcius degrees / 1 H
MD Shrinkage
  • <= 8.0% at 120 Celcius degrees / 1 H
Puncture strength
  • >= 220 G
MD Tensile Strength
  • >= 1,200 kgf/ cm^2
TD Tensile Strength
  • >= 100 kgf/ cm^2
Operation
  • The package must be open inside a glove box with Argon Gas and moisture less than 2%RH.
Note
  • This product is not manufactured by MTI. We only sell small quantities to research for developing new materials. If you have any questions on IP conflict, we will forward your inquiry to the manufacturer.
