Poly(ethylene oxide, PEO ) Powder as Solid-State Electrolyte for Battery R&D, 200 g/bag - Lib-PEO

Poly(ethylene oxide) ( PEO) is a water-soluble polymer that can be mixed with Li salt (eg: LiPF6 or LiTFSI) to form a polymer composite, which is widely used as solid-state electrolyte for Li-Metal battery.

Specifications:

• Appearance:                     White to off white
• Melting Point:                    66 - 70 oC
• Density:                            1.11 - 1.2 kg/Liter
• Flash Point:                       423 - 425 oC
• Gravimetric analysis:         0.3 -0.8  wt% ( SiO2 )
• Brittle Point:                      - 50oC
• Viscosity: (mpa.s )             497 - 536 ( 5% aq at 25oC

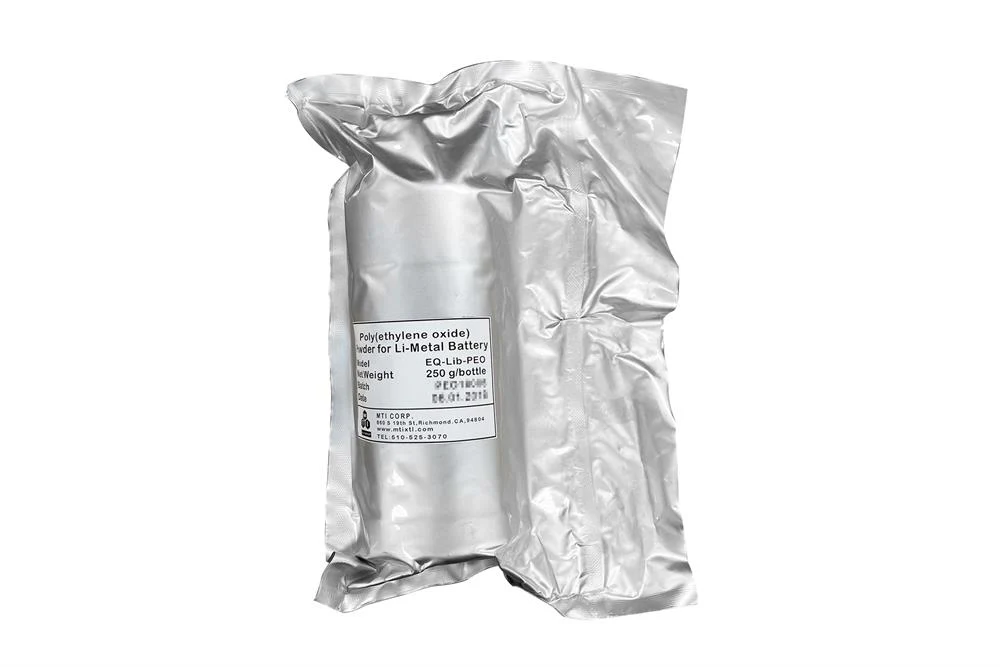

• Packing:                           250g per bag sealed in vacuum (moisture content<2%RH)
• Average Molecular Weight (Mv): 700000

 Material Safety Data Sheet

Reference article:

• How to prepare PEO LiTFSI solid polymer electrolyte
• Super Soft All-Ethylene Oxide Polymer Electrolyte for Safe All-Solid Lithium Batteries
• Distinct charge dynamics in battery electrodes revealed by in situ and operando soft X-ray spectroscopy
