Li-Ion Battery Electrode Strips ( (885-1000mm L x 59.5-62.5mm W x 0.15mm T) for 21700 Cylindrical Cell, (5 anode + 5 cathode)/pack - Lib-ES21700
HomeStore

Li-Ion Battery Electrode Strips ( (885-1000mm L x 59.5-62.5mm W x 0.15mm T) for 21700 Cylindrical Cell, (5 anode + 5 cathode)/pack - Lib-ES21700

Li-Ion Battery Electrode Strips ( (885-1000mm L x 59.5-62.5mm W x 0.15mm T) for 21700 Cylindrical Cell, (5 anode + 5 cathode)/pack - Lib-ES21700

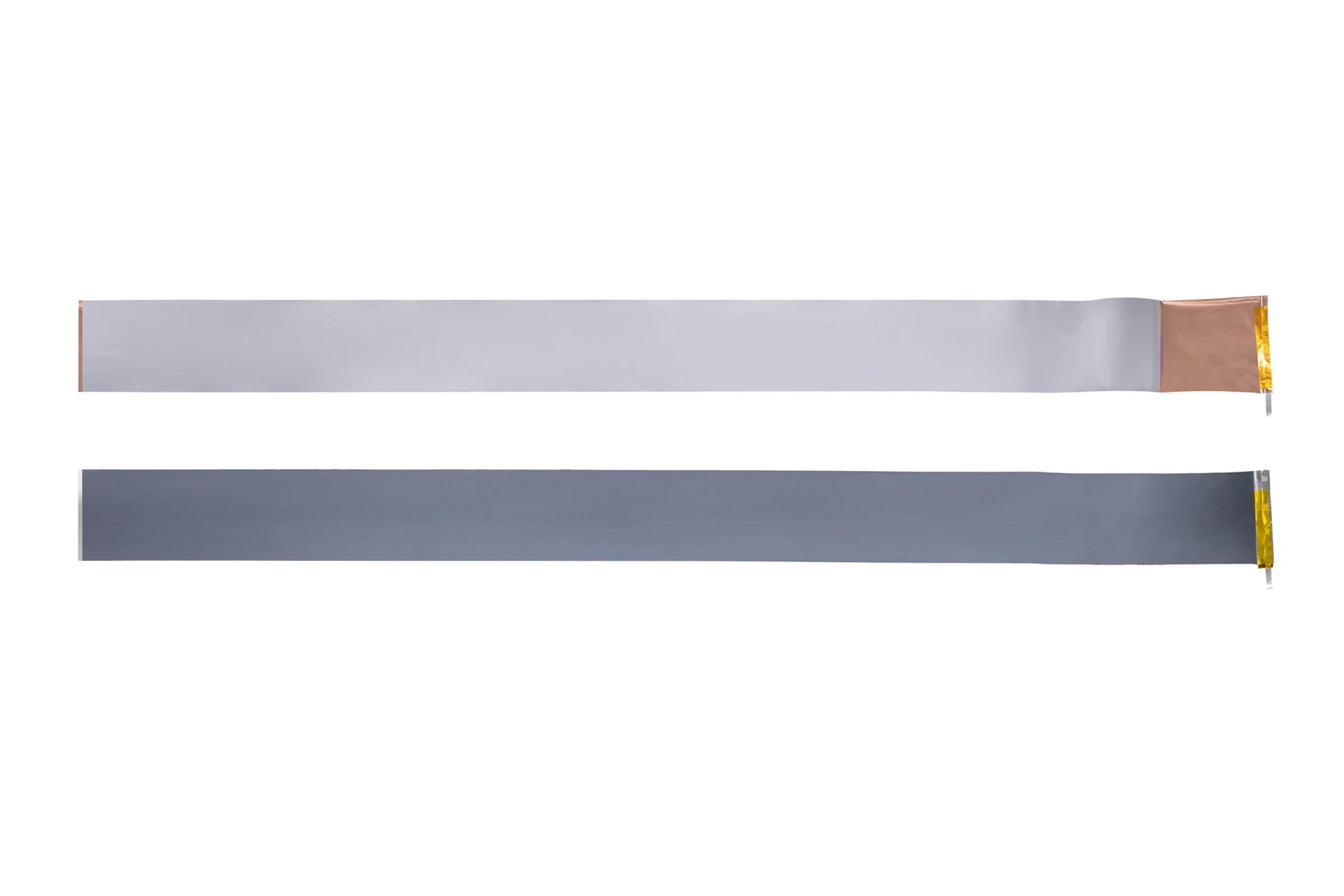

Lib-ES21700 is a class of electrode strips with various types of materials, such as graphite anode, as well as LFP, NCM111, NCM523, NCM622, and NCM811 cathodes, which is designed for 21700 cylindrical cell winding.

Specifications

Current Collector (Substrate)
  • Copper foil (9 um) for anode and aluminum foil (16 um) for cathode
Anode/Cathode material
  • Graphite, LiFePO4, NCM111, NCM523, NCM622, NCM811
  • Double-sided coating on copper or aluminum foil
Dimensions
  • Anode: 885mm(L) x 62.5mm(W) x 0.15mm(T)
  • Cathode: 1000mm(L) x 59.5mm(W) x 0.145mm(T)
  • For various anode + cathode combinations, the anode and cathode length may vary a little bitter to ensure the winding cell can be inserted into 21700 cylindrical cell case.
Active Material Proportion in Powder
  • Anode: 95.4%
  • Cathode: 93.2%
Area Density (double-sided)
  • Anode: 13.6 mg/cm2
  • Cathode: 29.0 mg/cm2
Capacity
  • Graphite:   330mAh/g
  • LFP:           150 mAh/g
  • NCM111:   150 mAh/g
  • NCM523:  155 mAh/g
  • NCM622:   170 mAh/g
  • NCM811:  170 mAh/g







Select Material Types
From $498.00
Li-Ion Battery Electrode Strips ( (885-1000mm L x 59.5-62.5mm W x 0.15mm T) for 21700 Cylindrical Cell, (5 anode + 5 cathode)/pack - Lib-ES21700—
$498.00

Li-Ion Battery Electrode Strips ( (885-1000mm L x 59.5-62.5mm W x 0.15mm T) for 21700 Cylindrical Cell, (5 anode + 5 cathode)/pack - Lib-ES21700

Lib-ES21700 is a class of electrode strips with various types of materials, such as graphite anode, as well as LFP, NCM111, NCM523, NCM622, and NCM811 cathodes, which is designed for 21700 cylindrical cell winding.

Specifications

Current Collector (Substrate)
  • Copper foil (9 um) for anode and aluminum foil (16 um) for cathode
Anode/Cathode material
  • Graphite, LiFePO4, NCM111, NCM523, NCM622, NCM811
  • Double-sided coating on copper or aluminum foil
Dimensions
  • Anode: 885mm(L) x 62.5mm(W) x 0.15mm(T)
  • Cathode: 1000mm(L) x 59.5mm(W) x 0.145mm(T)
  • For various anode + cathode combinations, the anode and cathode length may vary a little bitter to ensure the winding cell can be inserted into 21700 cylindrical cell case.
Active Material Proportion in Powder
  • Anode: 95.4%
  • Cathode: 93.2%
Area Density (double-sided)
  • Anode: 13.6 mg/cm2
  • Cathode: 29.0 mg/cm2
Capacity
  • Graphite:   330mAh/g
  • LFP:           150 mAh/g
  • NCM111:   150 mAh/g
  • NCM523:  155 mAh/g
  • NCM622:   170 mAh/g
  • NCM811:  170 mAh/g







Product Information

Shipping & Returns

Description

Lib-ES21700 is a class of electrode strips with various types of materials, such as graphite anode, as well as LFP, NCM111, NCM523, NCM622, and NCM811 cathodes, which is designed for 21700 cylindrical cell winding.

Specifications

Current Collector (Substrate)
  • Copper foil (9 um) for anode and aluminum foil (16 um) for cathode
Anode/Cathode material
  • Graphite, LiFePO4, NCM111, NCM523, NCM622, NCM811
  • Double-sided coating on copper or aluminum foil
Dimensions
  • Anode: 885mm(L) x 62.5mm(W) x 0.15mm(T)
  • Cathode: 1000mm(L) x 59.5mm(W) x 0.145mm(T)
  • For various anode + cathode combinations, the anode and cathode length may vary a little bitter to ensure the winding cell can be inserted into 21700 cylindrical cell case.
Active Material Proportion in Powder
  • Anode: 95.4%
  • Cathode: 93.2%
Area Density (double-sided)
  • Anode: 13.6 mg/cm2
  • Cathode: 29.0 mg/cm2
Capacity
  • Graphite:   330mAh/g
  • LFP:           150 mAh/g
  • NCM111:   150 mAh/g
  • NCM523:  155 mAh/g
  • NCM622:   170 mAh/g
  • NCM811:  170 mAh/g
