Automatic Hot Mounting Press up to 200oC and 2.3 T for Metallographic Samples - HXQ50

Automatic Hot Mounting Press up to 200oC and 2.3 T for Metallographic Samples - HXQ50

Automatic Hot Mounting Press up to 200oC and 2.3 T for Metallographic Samples - HXQ50

HXQ-50 is an automatic mounting press designed to encapsulate samples into round discs up to 200ºC and 2 metric tons for 50mm for SEM or metallographic samples. 4 sets of mounting dies are included with 25 mm, 30 mm, 40 mm and 50 mm. The touchscreen panel makes operation at ease.

SPECIFICATIONS:

Power	220VAC 50Hz or 60Hz (Please specify frequency upon purchasing) For AC 110V power supply please order a 1500W voltage transformer 1200W (10A air breaker required)
Pressing Die	Four sets of mounting dies are included with an ID of 25, 30, 40, and 50 mm Each Die Set include: Die Sleeve: OD 60 mm, Height ~135 mm Upper Pressing Rod: Height ~26 mm Lower Pressing Rod: Height ~26 mm Separating Plate: Height: 8 mm
Control Panel	5" Touch Screen Digital control for setting parameters: Max. 470 Bar for 25 mm die Max: 326 Bar for 30 mm die Max. 183 bar for 40 mm die Max. 118 Bar for 50 mm die Temperature: 100 - 200^oC Heating and dwell time: 1 - 999 minute Loading: 200 - 2306 kg ( via hydraulic cylindrical ) Pressure: depended on mounting die diameter
Machine Dimension
Machine Net weight	200 Lb.
Shipping Weight & Dimensions	250 lbs 40" x 30" x 28"
Optional	Please order Compression Mounting Powder (5 Lb) optional color of Black, Red, Green - EQ-HM-Powder5L at the related product below A cooling water is required to protect pressing die, You may use recirculating pump as the link below
Compliance	CE Marked NRTL certification is available upon request at extra cost
Warranty	One-year limited warranty with lifetime support

$9,985.00

Automatic Hot Mounting Press up to 200oC and 2.3 T for Metallographic Samples - HXQ50—

$9,985.00

More Images

Automatic Hot Mounting Press up to 200oC and 2.3 T for Metallographic Samples - HXQ50 - Image 2

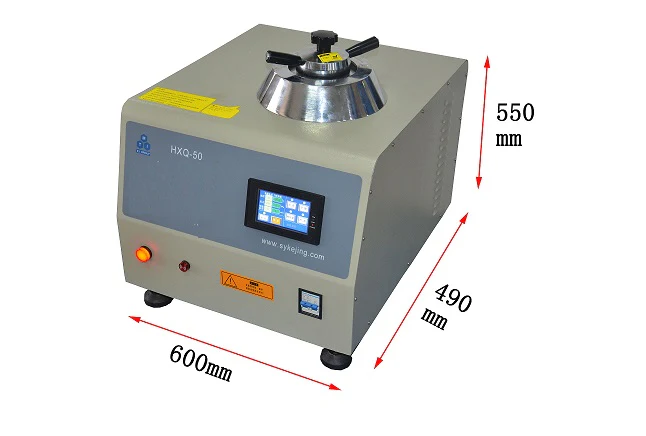

Automatic Hot Mounting Press up to 200oC and 2.3 T for Metallographic Samples - HXQ50 - Image 3
