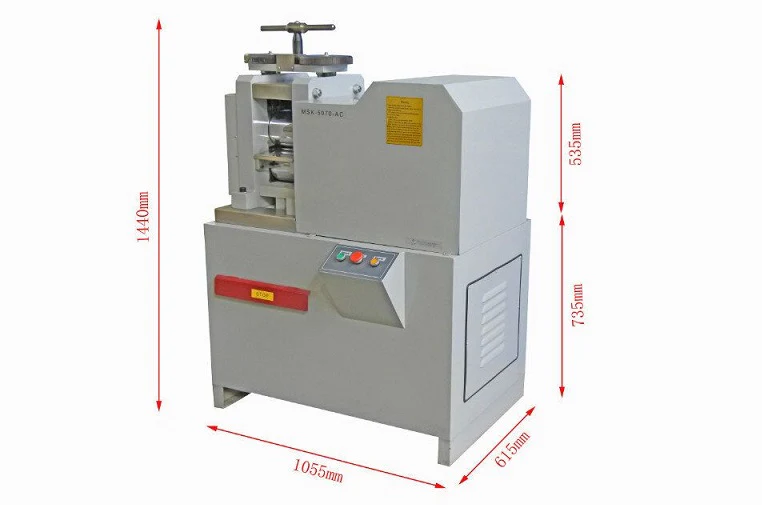

Heavy Duty Rolling Press (180Wx132D, mm ) w/ Variable Speed For Metallic Materials - MSK-5070-AC

MSK-5070-AC is a 180mm width ( 7.1 ") heavy-duty rolling mill with 7.5 horsepower and variable speed, which is designed for rolling metallic material ( < Rc 50) up to 20 mm thickness, such as copper, stainless steel, Nickel alloy, etc.

SPECIFICATIONS:

Power	Input Voltage: 208- 240VAC Three Phase, 50/60Hz, 20 A 5.5KVA
Rollers	Roller materials: Hardening Cr12MoV  Roller size: 132 mm dia. x 180 mm width (~ 5" Dia x 7" width ) Recommended sample size < 60 mm wide Hardness: HRC 60-62 Rolling thickness: 0.02 - 20 mm adjustable     30 mm gap between two rollers is available upon request Gap accuracy: +/- 0.05 mm Min. thickness is dependent on the materials. The below is based on our experience: Au: > 0.1 mm
Rolling Speed	0 - 18 rpm adjustable, up to 7 m/min line speed.
Compliance	NRTL certification is available upon request at the extra cost.
Application Note	Never roll materials with hardness > 50HRC The thickness of each time pressing is depending on material thickness. The harder material shall be less press thickness, which customers shall test by themselves for the best parameters For some material that is easy work hardening, you may need to anneal it by furnace after each rolling. For continuous rolling, please find the schematics below.
