Oxygen Transmitter for VGB6-Series Glove Box - GNL120
HomeStore

Oxygen Transmitter for VGB6-Series Glove Box - GNL120

Oxygen Transmitter for VGB6-Series Glove Box - GNL120

GNL120 is an oxygen Transmitter equipped for the VGB-6 Glovebox to monitor the real-time oxygen concentration inside the glovebox. The oxygen transmitter is installed and secured via the KF40 Flange on the top of the Glovebox, and it is compatible with the usage of Nitrogen gas or inert gas.

Specification

Working Voltage
  • 24VDC±10%
Power Output
  • 500mA
Working Temperature Range
  • -10 - 500°C
Oxygen Detecting Range
  • 0 -1000 PPM Oxygen under Ar
Accuracy
  • 0 ~1000 PPM, ± 1% FS
  • 0 ~ 100 PPM, ± 2% FS
  • 0 ~ 10 PPM, ± 3% FS
Working Pressure Range
  • 800-1200 mbar
Reading Resolution
  • 0.1 PPM
Response Time
  • < 15 seconds
Communication
  • RS485 Communication Port
Warm-up
  • 10 min (~6 hour if <10 ppm)
Product Dimensions
  • 80mm x 80mm x 190mm (L x W x H)
Oxygen Sensor Probe Dimensions
  • Ø 26mm x 45 mm Length
Net Weight
  • 0.7kg
Lifespan
  • ＞ 4 years







$3,198.00
Oxygen Transmitter for VGB6-Series Glove Box - GNL120—
$3,198.00

More Images

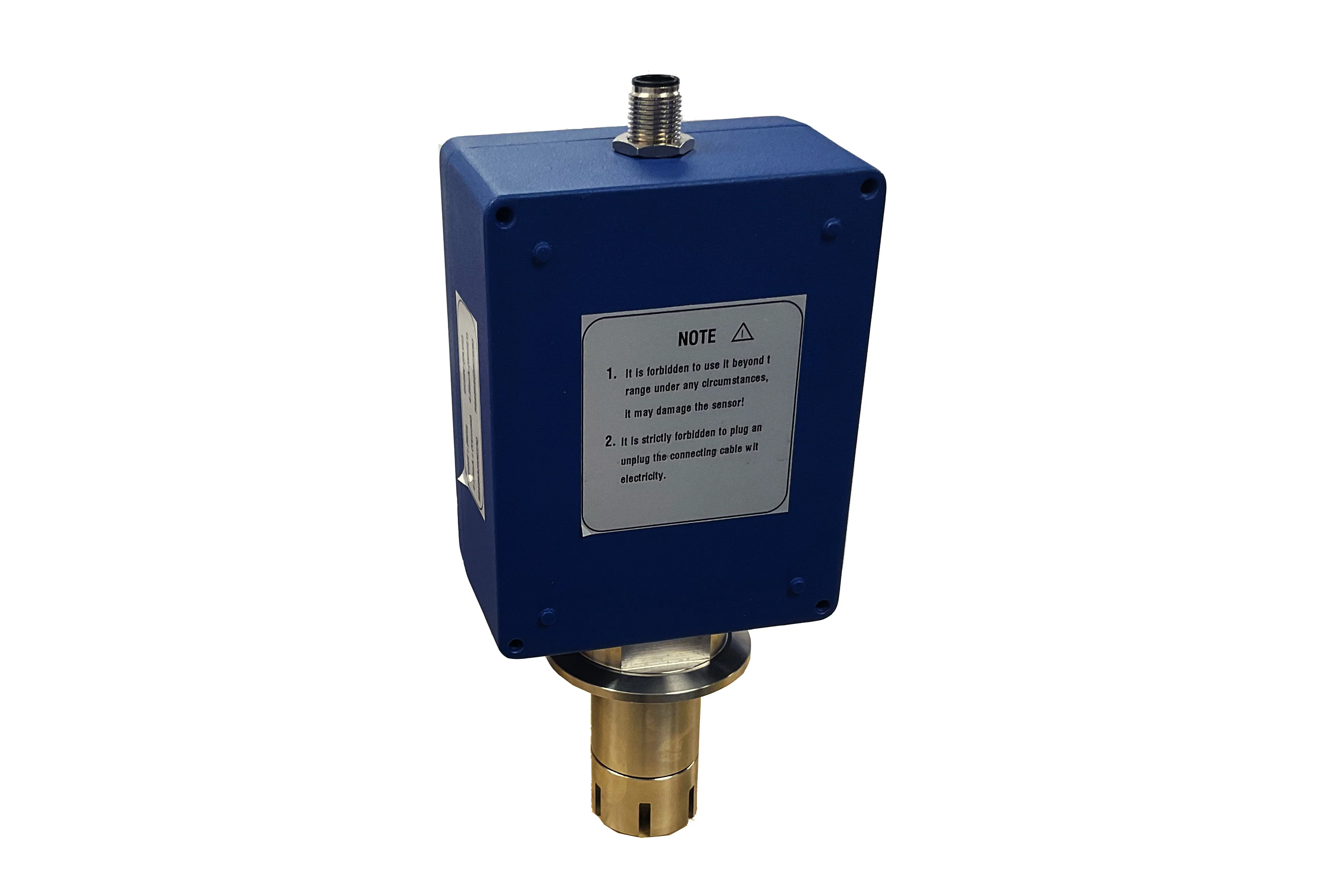

Oxygen Transmitter for VGB6-Series Glove Box - GNL120 - Image 2

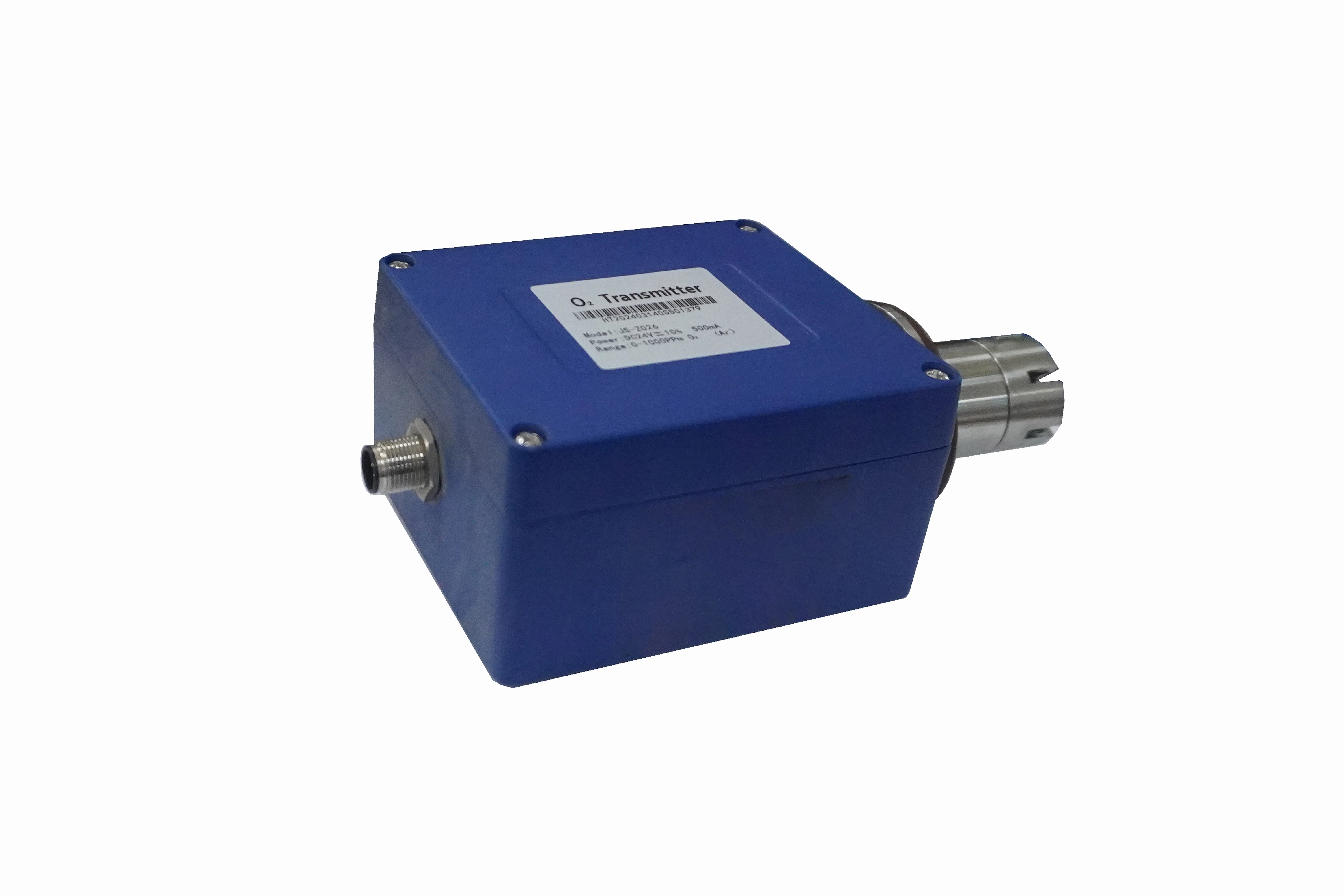

Oxygen Transmitter for VGB6-Series Glove Box - GNL120 - Image 3

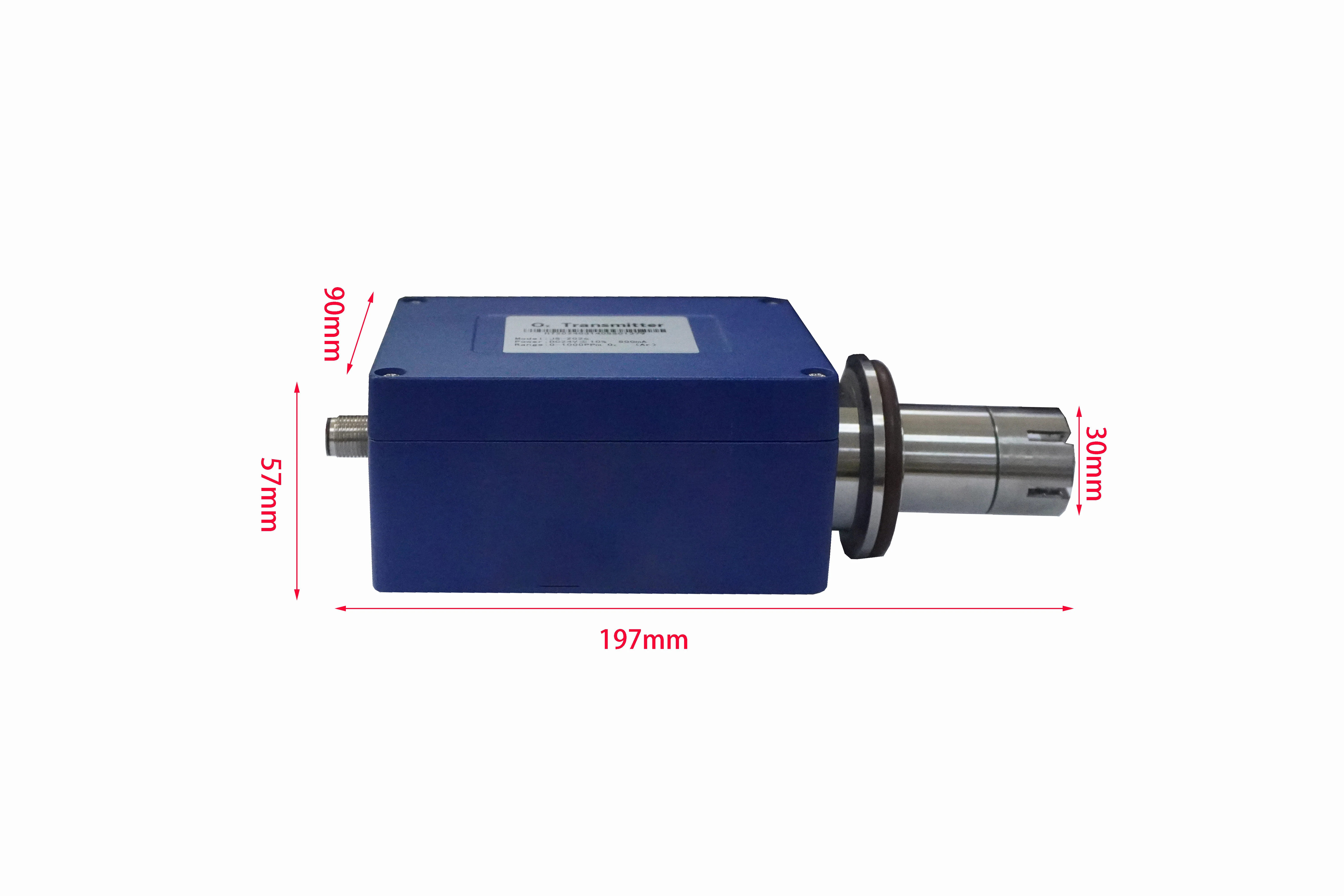

Oxygen Transmitter for VGB6-Series Glove Box - GNL120 - Image 4

Oxygen Transmitter for VGB6-Series Glove Box - GNL120

GNL120 is an oxygen Transmitter equipped for the VGB-6 Glovebox to monitor the real-time oxygen concentration inside the glovebox. The oxygen transmitter is installed and secured via the KF40 Flange on the top of the Glovebox, and it is compatible with the usage of Nitrogen gas or inert gas.

Specification

Working Voltage
  • 24VDC±10%
Power Output
  • 500mA
Working Temperature Range
  • -10 - 500°C
Oxygen Detecting Range
  • 0 -1000 PPM Oxygen under Ar
Accuracy
  • 0 ~1000 PPM, ± 1% FS
  • 0 ~ 100 PPM, ± 2% FS
  • 0 ~ 10 PPM, ± 3% FS
Working Pressure Range
  • 800-1200 mbar
Reading Resolution
  • 0.1 PPM
Response Time
  • < 15 seconds
Communication
  • RS485 Communication Port
Warm-up
  • 10 min (~6 hour if <10 ppm)
Product Dimensions
  • 80mm x 80mm x 190mm (L x W x H)
Oxygen Sensor Probe Dimensions
  • Ø 26mm x 45 mm Length
Net Weight
  • 0.7kg
Lifespan
  • ＞ 4 years







Product Information

Shipping & Returns

Description

GNL120 is an oxygen Transmitter equipped for the VGB-6 Glovebox to monitor the real-time oxygen concentration inside the glovebox. The oxygen transmitter is installed and secured via the KF40 Flange on the top of the Glovebox, and it is compatible with the usage of Nitrogen gas or inert gas.

Specification

Working Voltage
  • 24VDC±10%
Power Output
  • 500mA
Working Temperature Range
  • -10 - 500°C
Oxygen Detecting Range
  • 0 -1000 PPM Oxygen under Ar
Accuracy
  • 0 ~1000 PPM, ± 1% FS
  • 0 ~ 100 PPM, ± 2% FS
  • 0 ~ 10 PPM, ± 3% FS
Working Pressure Range
  • 800-1200 mbar
Reading Resolution
  • 0.1 PPM
Response Time
  • < 15 seconds
Communication
  • RS485 Communication Port
Warm-up
  • 10 min (~6 hour if <10 ppm)
Product Dimensions
  • 80mm x 80mm x 190mm (L x W x H)
Oxygen Sensor Probe Dimensions
  • Ø 26mm x 45 mm Length
Net Weight
  • 0.7kg
Lifespan
  • ＞ 4 years
