🚚 Free Worldwide Shipping on All Orders!Shop Now
1600°C, 100 MPa Hot Pellet Press in a Glovebox with Rapid Heating and Cooling - GBF1700RHP4
HomeStore

1600°C, 100 MPa Hot Pellet Press in a Glovebox with Rapid Heating and Cooling - GBF1700RHP4

1600°C, 100 MPa Hot Pellet Press in a Glovebox with Rapid Heating and Cooling - GBF1700RHP4

GBF-1700-RHP4 is a rapid hot press (RHP) in a glovebox with a fast cooling function. The sample is inductively heated at ~ 1°C/ second up to 1600°C and pressed to Max. 100 MPa using a 5-ton electric press. Then, the sample and graphite die are quickly cooled by two water-cooled copper clamps by direct contact with a cooling speed up to 10°C/s

Specifications

Power
  • Induction power supply
    • 208-240VAC, 3 phase-3 wire, 50-60Hz, 15kVA,
  • Glovebox
    • 120 or 208-240 VAC, 1 phase, 50-60Hz, 1.5 kVA
  • Control Panel
    • 120 VAC, 1 phase, 0.5 kVA
  • Different working voltages are available upon request for international customers.

Working Gas
  • 4N nitrogen or argon gas, 40-80 psig (not included)

Electric Press
  • Motorized pellet press with an oilless design.
  • Programmable settings for pressure and dwelling time
  • Force: 100 - 5000 ± 3 kgf
  • Power: 24VDC 90W with a 120 - 240 VAC AC-DC power adaptor.

Pellet Pressing Die
  • 1/2" graphite pellet pressing die
  • < 100 MPa

Induction Heater
  • 15 kVA induction power supply.
  • Output current 7-70 A
  • Frequency: 30 ~ 80 kHz (fixed)
  • Duty cycle: 100%

Temperature Controller

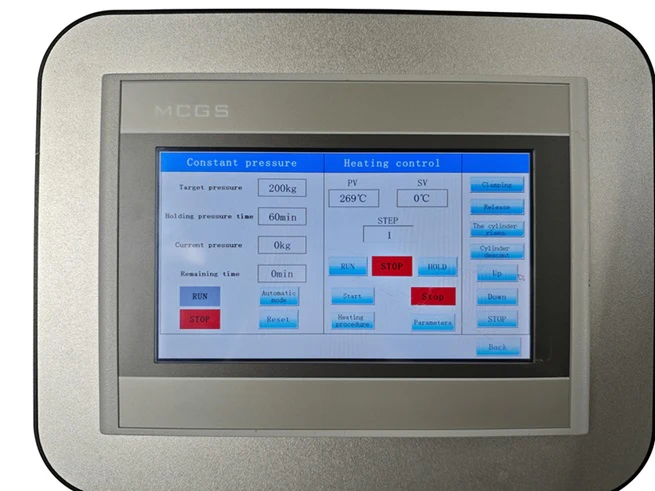

  • Digital PID temperature controller via a touch-screen panel
  • Programmable 30 segments for heating, dwelling, and cooling
  • Overheating and thermocouple failure protection
  • Temperature accuracy: ± 5ºC
  • B-type thermocouple with tungsten or molybdenum sheath
  • Continuous working temperature range: 1000 ~1600ºC
  • Maximum heating rate in a vacuum for a 0.5" ID graphite pressing die without any thermal block
    • 5℃/s   （RT-500℃）
    • 2.5℃/s（500℃-1000℃）
    • 1.5℃/s（1000℃-1200℃）
    • 1.1℃/s（1200℃-1300℃）
    • 1℃/s   （1300℃-1400℃）
    • 0.8℃/s（1400℃-1500℃）
    • 0.7℃/s（1500℃-1600℃）
  • The experimental cooling rate via the water cold clamp
    • 7℃/s  （1600℃-1500℃）
    • 10℃/s（1500℃-1400℃）
    • 7℃/s（1400℃-1300℃）
    • 5.5℃/s  （1300℃-1200℃）
    • 4℃/s （1200℃-1100℃）
    • 3℃/s （1100℃-1000℃）
    • 1℃/s （1000℃-500℃）
Glove Box
  • A standard glovebox with a gas purification system with < 1 ppm oxygen and moisture.
  • All feedthroughs for power, thermocouple, induction coils, and communications are included.
  • For details of the MTI glovebox, please kindly review the link.
Water Chiller (Optional)
  • Water-cooling is required for the induction heating coils, power supply, copper clamps, and glove box circulation system
    • Water flow rate > 8 L/min
    • Water pressure > 0.2 MPa
    • Water temperature 5 - 30°C
  • KJ5300 for short-term operation
  • KJ6200 for long-term heating
On-site Service
  • On-site installation is required but not included for the glove box and the hot press
Compliance
  • CE certified
  • NRTL certification (UL 1450) is available upon request at an extra cost
$159,980.00
1600°C, 100 MPa Hot Pellet Press in a Glovebox with Rapid Heating and Cooling - GBF1700RHP4—
$159,980.00

More Images

1600°C, 100 MPa Hot Pellet Press in a Glovebox with Rapid Heating and Cooling - GBF1700RHP4 - Image 2

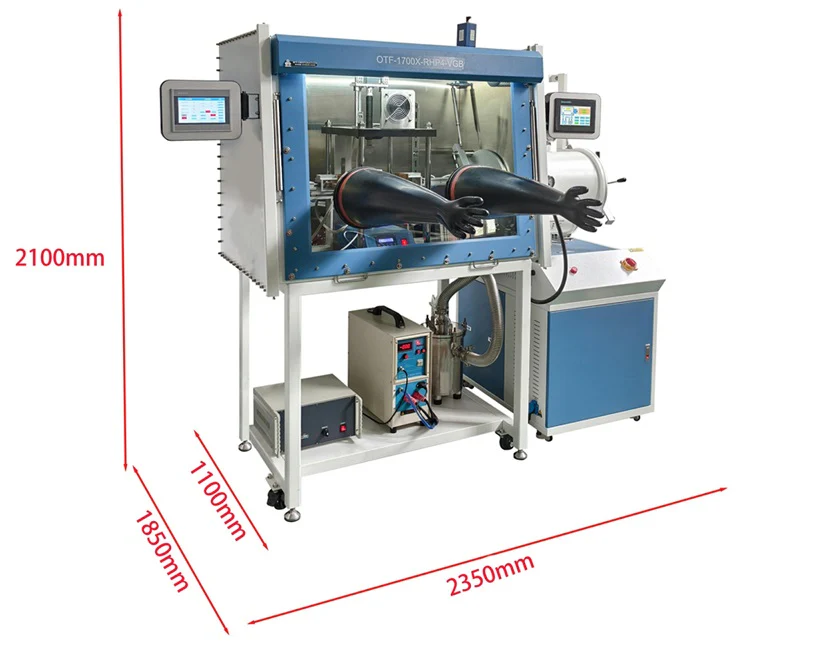

1600°C, 100 MPa Hot Pellet Press in a Glovebox with Rapid Heating and Cooling - GBF1700RHP4 - Image 3

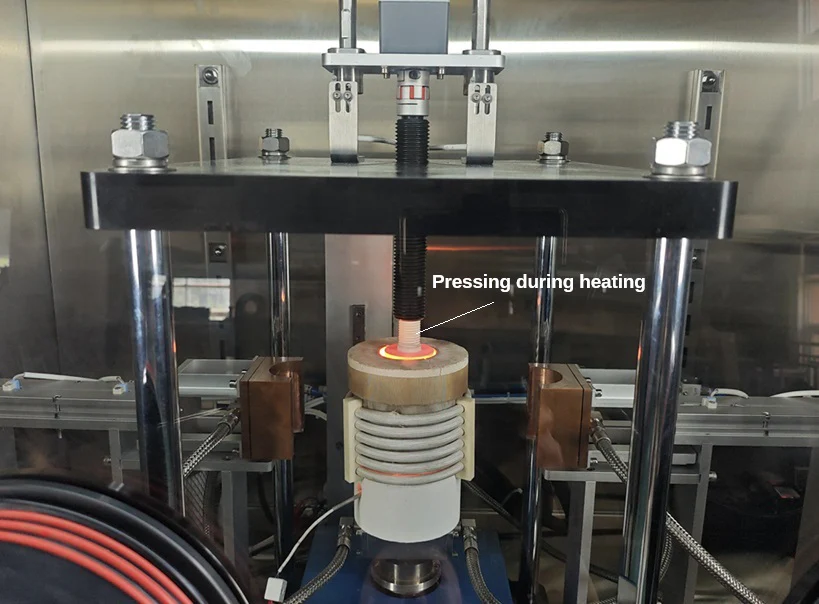

1600°C, 100 MPa Hot Pellet Press in a Glovebox with Rapid Heating and Cooling - GBF1700RHP4 - Image 4

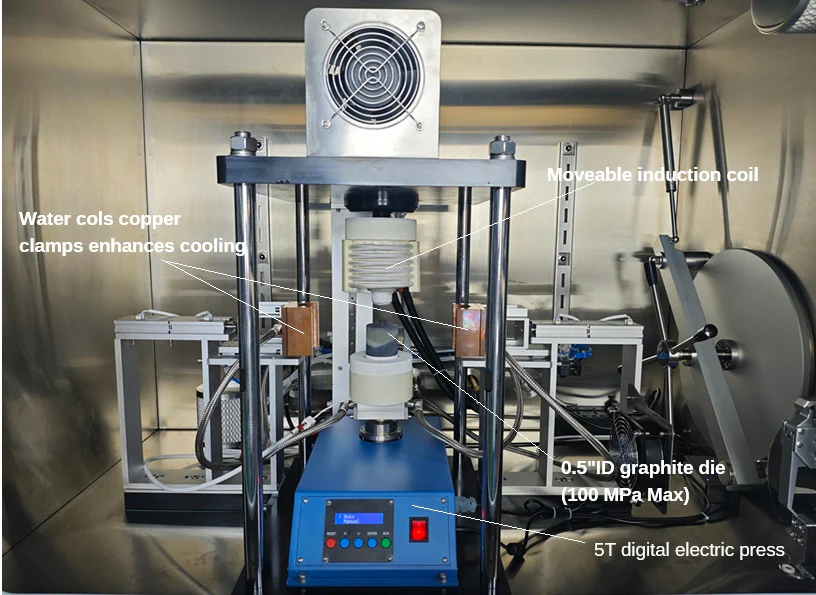

1600°C, 100 MPa Hot Pellet Press in a Glovebox with Rapid Heating and Cooling - GBF1700RHP4 - Image 5
1600°C, 100 MPa Hot Pellet Press in a Glovebox with Rapid Heating and Cooling - GBF1700RHP4 - Image 6
1600°C, 100 MPa Hot Pellet Press in a Glovebox with Rapid Heating and Cooling - GBF1700RHP4 - Image 7

1600°C, 100 MPa Hot Pellet Press in a Glovebox with Rapid Heating and Cooling - GBF1700RHP4

GBF-1700-RHP4 is a rapid hot press (RHP) in a glovebox with a fast cooling function. The sample is inductively heated at ~ 1°C/ second up to 1600°C and pressed to Max. 100 MPa using a 5-ton electric press. Then, the sample and graphite die are quickly cooled by two water-cooled copper clamps by direct contact with a cooling speed up to 10°C/s

Specifications

Power
  • Induction power supply
    • 208-240VAC, 3 phase-3 wire, 50-60Hz, 15kVA,
  • Glovebox
    • 120 or 208-240 VAC, 1 phase, 50-60Hz, 1.5 kVA
  • Control Panel
    • 120 VAC, 1 phase, 0.5 kVA
  • Different working voltages are available upon request for international customers.

Working Gas
  • 4N nitrogen or argon gas, 40-80 psig (not included)

Electric Press
  • Motorized pellet press with an oilless design.
  • Programmable settings for pressure and dwelling time
  • Force: 100 - 5000 ± 3 kgf
  • Power: 24VDC 90W with a 120 - 240 VAC AC-DC power adaptor.

Pellet Pressing Die
  • 1/2" graphite pellet pressing die
  • < 100 MPa

Induction Heater
  • 15 kVA induction power supply.
  • Output current 7-70 A
  • Frequency: 30 ~ 80 kHz (fixed)
  • Duty cycle: 100%

Temperature Controller
  • Digital PID temperature controller via a touch-screen panel
  • Programmable 30 segments for heating, dwelling, and cooling
  • Overheating and thermocouple failure protection
  • Temperature accuracy: ± 5ºC
  • B-type thermocouple with tungsten or molybdenum sheath
  • Continuous working temperature range: 1000 ~1600ºC
  • Maximum heating rate in a vacuum for a 0.5" ID graphite pressing die without any thermal block
    • 5℃/s   （RT-500℃）
    • 2.5℃/s（500℃-1000℃）
    • 1.5℃/s（1000℃-1200℃）
    • 1.1℃/s（1200℃-1300℃）
    • 1℃/s   （1300℃-1400℃）
    • 0.8℃/s（1400℃-1500℃）
    • 0.7℃/s（1500℃-1600℃）
  • The experimental cooling rate via the water cold clamp
    • 7℃/s  （1600℃-1500℃）
    • 10℃/s（1500℃-1400℃）
    • 7℃/s（1400℃-1300℃）
    • 5.5℃/s  （1300℃-1200℃）
    • 4℃/s （1200℃-1100℃）
    • 3℃/s （1100℃-1000℃）
    • 1℃/s （1000℃-500℃）
Glove Box
  • A standard glovebox with a gas purification system with < 1 ppm oxygen and moisture.
  • All feedthroughs for power, thermocouple, induction coils, and communications are included.
  • For details of the MTI glovebox, please kindly review the link.
Water Chiller (Optional)
  • Water-cooling is required for the induction heating coils, power supply, copper clamps, and glove box circulation system
    • Water flow rate > 8 L/min
    • Water pressure > 0.2 MPa
    • Water temperature 5 - 30°C
  • KJ5300 for short-term operation
  • KJ6200 for long-term heating
On-site Service
  • On-site installation is required but not included for the glove box and the hot press
Compliance
  • CE certified
  • NRTL certification (UL 1450) is available upon request at an extra cost

Product Information

Shipping & Returns

Description

GBF-1700-RHP4 is a rapid hot press (RHP) in a glovebox with a fast cooling function. The sample is inductively heated at ~ 1°C/ second up to 1600°C and pressed to Max. 100 MPa using a 5-ton electric press. Then, the sample and graphite die are quickly cooled by two water-cooled copper clamps by direct contact with a cooling speed up to 10°C/s

Specifications

Power
  • Induction power supply
    • 208-240VAC, 3 phase-3 wire, 50-60Hz, 15kVA,
  • Glovebox
    • 120 or 208-240 VAC, 1 phase, 50-60Hz, 1.5 kVA
  • Control Panel
    • 120 VAC, 1 phase, 0.5 kVA
  • Different working voltages are available upon request for international customers.

Working Gas
  • 4N nitrogen or argon gas, 40-80 psig (not included)

Electric Press
  • Motorized pellet press with an oilless design.
  • Programmable settings for pressure and dwelling time
  • Force: 100 - 5000 ± 3 kgf
  • Power: 24VDC 90W with a 120 - 240 VAC AC-DC power adaptor.

Pellet Pressing Die
  • 1/2" graphite pellet pressing die
  • < 100 MPa

Induction Heater
  • 15 kVA induction power supply.
  • Output current 7-70 A
  • Frequency: 30 ~ 80 kHz (fixed)
  • Duty cycle: 100%

Temperature Controller
  • Digital PID temperature controller via a touch-screen panel
  • Programmable 30 segments for heating, dwelling, and cooling
  • Overheating and thermocouple failure protection
  • Temperature accuracy: ± 5ºC
  • B-type thermocouple with tungsten or molybdenum sheath
  • Continuous working temperature range: 1000 ~1600ºC
  • Maximum heating rate in a vacuum for a 0.5" ID graphite pressing die without any thermal block
    • 5℃/s   （RT-500℃）
    • 2.5℃/s（500℃-1000℃）
    • 1.5℃/s（1000℃-1200℃）
    • 1.1℃/s（1200℃-1300℃）
    • 1℃/s   （1300℃-1400℃）
    • 0.8℃/s（1400℃-1500℃）
    • 0.7℃/s（1500℃-1600℃）
  • The experimental cooling rate via the water cold clamp
    • 7℃/s  （1600℃-1500℃）
    • 10℃/s（1500℃-1400℃）
    • 7℃/s（1400℃-1300℃）
    • 5.5℃/s  （1300℃-1200℃）
    • 4℃/s （1200℃-1100℃）
    • 3℃/s （1100℃-1000℃）
    • 1℃/s （1000℃-500℃）
Glove Box
  • A standard glovebox with a gas purification system with < 1 ppm oxygen and moisture.
  • All feedthroughs for power, thermocouple, induction coils, and communications are included.
  • For details of the MTI glovebox, please kindly review the link.
Water Chiller (Optional)
  • Water-cooling is required for the induction heating coils, power supply, copper clamps, and glove box circulation system
    • Water flow rate > 8 L/min
    • Water pressure > 0.2 MPa
    • Water temperature 5 - 30°C
  • KJ5300 for short-term operation
  • KJ6200 for long-term heating
On-site Service
  • On-site installation is required but not included for the glove box and the hot press
Compliance
  • CE certified
  • NRTL certification (UL 1450) is available upon request at an extra cost
