Ti-Coated CR2032 Coin Cell Case (20d x 3.2mm) for Li-ion Battery - 10 sets/pack - CR2032-CASE-Ti
HomeStore

Ti-Coated CR2032 Coin Cell Case (20d x 3.2mm) for Li-ion Battery - 10 sets/pack - CR2032-CASE-Ti

Ti-Coated CR2032 Coin Cell Case (20d x 3.2mm) for Li-ion Battery - 10 sets/pack - CR2032-CASE-Ti

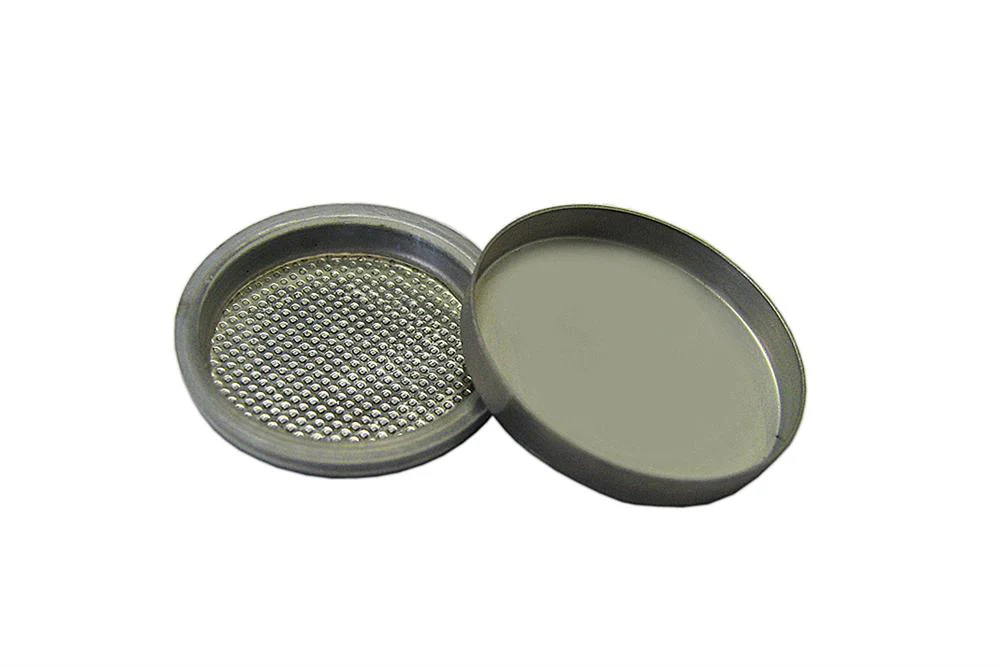

This is a special CR2032 coin cell case with pure titanium coated on the inside and outside of the positive can (10 sets/pack). It can tolerate polarization of higher voltages due to the passivation by electrolyte component (especially LiPF6 based electrolyte system).

Specifications
Material
  • Stainless Steel 304 with pure titanium coating:
  • Titanium coatings on both inside and outside of the POSITIVE case (bottom part, larger, connects to the Cathode with Al current collector), to prevent electrolyte from reacting with steel during high voltage charging/discharging
  • Negative case (the top part with insulating O-ring, smaller, connects to Anode with Cu current collector): made of SS304, you may need to put Spring/Spacer in between this case and anode.
  • Sealing Gasket: PP
  • Max. working temperature: 80oC
Titanium coating thickness
  • 0.8 um with 99.7% purity
Optional  Please click the picture below to order Al spacer and spring


Application
  • Warning： Please never use water clean Al clad case to avoid Aluminium coating oxidization. Please keep the case in the vacuum or glove box if not used for a long time.
  • Do not clean the Ti coated case with ultrasonic cleaners. Please clean with alcohol if cleaning is needed.
  • We only promise MTI crimper makes good sealing on these cell cases, no guaranty for the other brand crimper
Options



Gold-Coated Button Cell Case


Pt Coated Button Cell Case


CR2016 coin cell case for
in-situ XRD analysis
CR2016 Coin Cell Case (20d x 1.6 mm) with SS304 and SS316 Option, 100 pcs/pck - EQ-CR2016-CASE
Pls click picture to find other size coin cell
