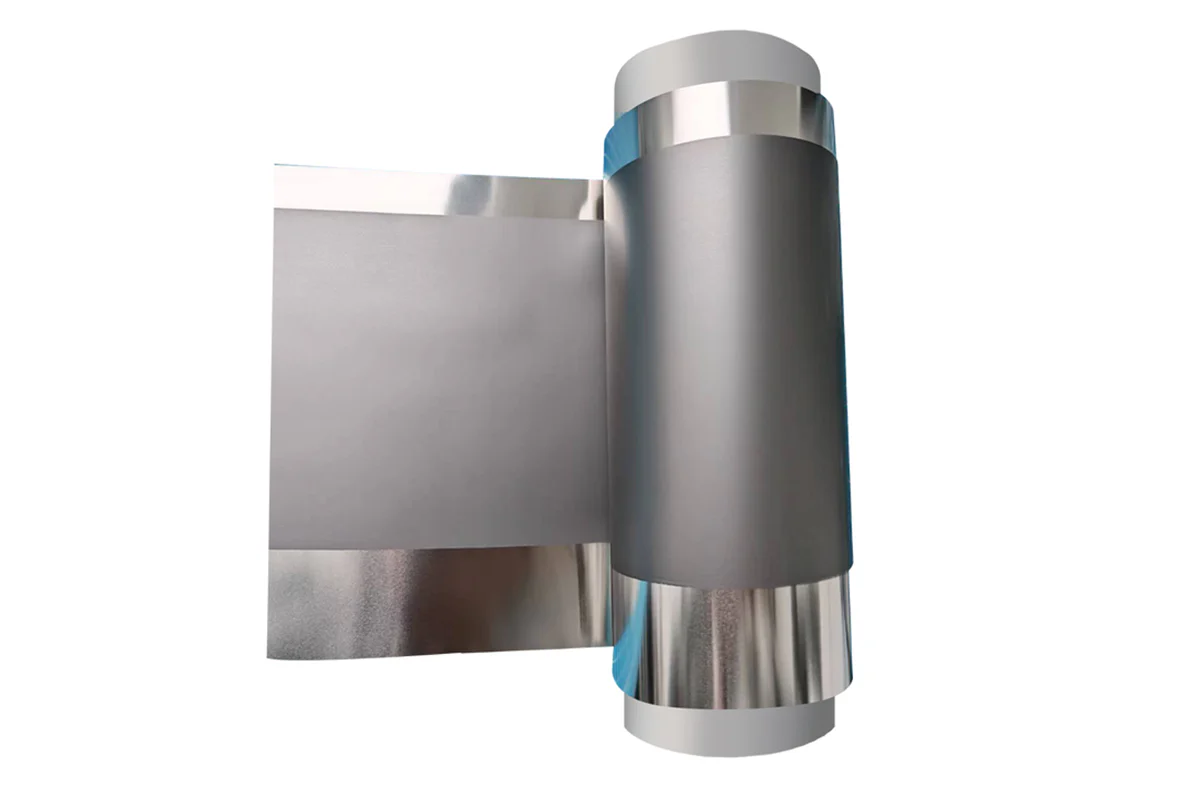

Single Side Conductive Carbon Coated Stainless Steel (SS316L) Foil for Aqueous Battery Cathode Current Collector (W180 mm x T31 um), 1 kg/roll, CCSS-30u180ss

Conductive carbon coated Stainless Steel (SS316L) can be used as excellent aqueous battery cathode current collector

• Better electrical conductivity and less internal resistivity
• Better electrochemical corrosion-resistance
• Better mechanical strength and toughness to avoid short circuit caused by dendrite growth
• Improved adhesion to the electrode material
• Provides larger discharging capability and longer service life for aqueous batteries

SPECIFICATIONS:

• Conductive carbon coating
  • Single-sided coating with 1-micron thickness
  • Binder: Modified acrylate adhesive (water based)
• Core Inner Diameter: 76 ± 1 mm
• The substrate of stainless steel (SS316L)
  • Purity > 99.9%
  • Thickness: 30 ± 1 um
• Key Parameters
  • 180 ± 1 mm (Width) SS316 substrate, coating width is 152 mm, blank area on each side is 14 mm)
  • Total Length: 20-21 m
  • Total Thickness: 31 ± 1 um
  • Carbon Coating Compact Density: 0.6 ± 0.1 g/m^2
  • Total Areal Density: 235 ± 15 g/m^2
  • Substrate Surface Resistance: ≤35mΩ
  • Carbon Coated Surface Resistance: ≤5mΩ
  • Core Size: 76 mm (3 inch)
• Shipped in the vacuum bag
• Application Note:
  • This product is not manufactured by MTI. We only provide small quantity to research to develop a new generation battery, MTI is not responsible for any IP issues. If anyone feels the product conflict your IP, please inform us, we may stop selling at any time or pay you a loyalty fee.
