Carbon Cloth with Hydrophilic or Hydrophobic Surface (32cm*16cm) as Conductive Substrate for Electrolyzers, Fuel Cells, or Batteries, EFC-CC

Carbon Cloth with Hydrophilic or Hydrophobic Surface (32cm*16cm) as Conductive Substrate for Electrolyzers, Fuel Cells, or Batteries, EFC-CC

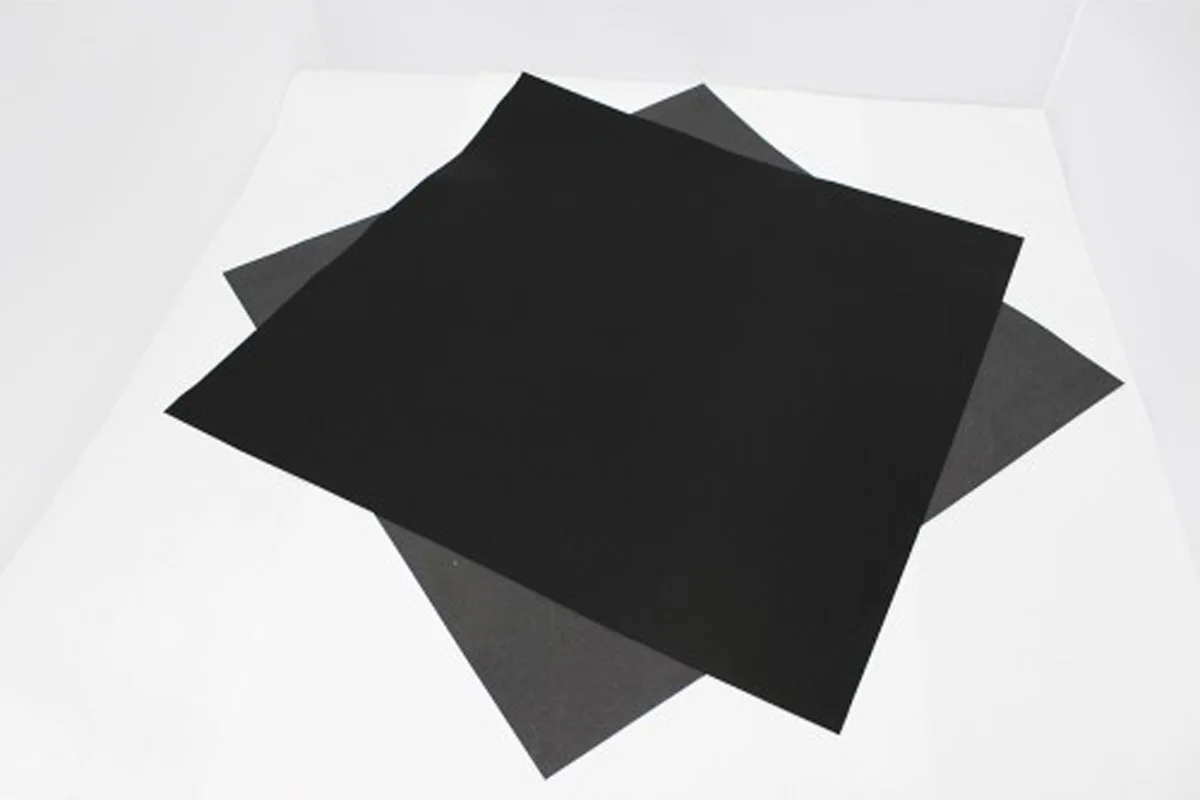

The carbon cloth with either hydrophilic or hydrophobic is a woven carbon fiber without a Microporous Layer (MPL). It has a total thickness of 360 um. It is a great low-cost alternative to conventional woven carbon cloth Gas Diffusion Layer (GDL) materials.

Specifications:

Part Number
  • EFC-CC-PHI or EFC-CC-PHO
Sheet SizeĀ
  • 32cm *16cm
Thickness
  • 300 um for hydrophilic and 350 um for hydrophobic
Basic Weight
  • 150-190 g/cm2 for hydrophilic and 160-200 g/cm2 for hydrophobic
Electrical Resistivity (through plane)
  • ~1.1 mĪ© cm2 for hydrophilic o
  • ~2 mĪ© cm2 for hydrophobic
Microporous Layer (MPL)
  • No
SDS




Select Surface Property
From $40.25

Original: $115.00

-65%
Carbon Cloth with Hydrophilic or Hydrophobic Surface (32cm*16cm) as Conductive Substrate for Electrolyzers, Fuel Cells, or Batteries, EFC-CCā€”

$115.00

$40.25

Carbon Cloth with Hydrophilic or Hydrophobic Surface (32cm*16cm) as Conductive Substrate for Electrolyzers, Fuel Cells, or Batteries, EFC-CC

The carbon cloth with either hydrophilic or hydrophobic is a woven carbon fiber without a Microporous Layer (MPL). It has a total thickness of 360 um. It is a great low-cost alternative to conventional woven carbon cloth Gas Diffusion Layer (GDL) materials.

Specifications:

Part Number
  • EFC-CC-PHI or EFC-CC-PHO
Sheet SizeĀ
  • 32cm *16cm
Thickness
  • 300 um for hydrophilic and 350 um for hydrophobic
Basic Weight
  • 150-190 g/cm2 for hydrophilic and 160-200 g/cm2 for hydrophobic
Electrical Resistivity (through plane)
  • ~1.1 mĪ© cm2 for hydrophilic o
  • ~2 mĪ© cm2 for hydrophobic
Microporous Layer (MPL)
  • No
SDS




Product Information

Shipping & Returns

Description

The carbon cloth with either hydrophilic or hydrophobic is a woven carbon fiber without a Microporous Layer (MPL). It has a total thickness of 360 um. It is a great low-cost alternative to conventional woven carbon cloth Gas Diffusion Layer (GDL) materials.

Specifications:

Part Number
  • EFC-CC-PHI or EFC-CC-PHO
Sheet SizeĀ
  • 32cm *16cm
Thickness
  • 300 um for hydrophilic and 350 um for hydrophobic
Basic Weight
  • 150-190 g/cm2 for hydrophilic and 160-200 g/cm2 for hydrophobic
Electrical Resistivity (through plane)
  • ~1.1 mĪ© cm2 for hydrophilic o
  • ~2 mĪ© cm2 for hydrophobic
Microporous Layer (MPL)
  • No
SDS
