Lab Scale High-Efficiency Cyclone for Jet Mill - BPM-CL

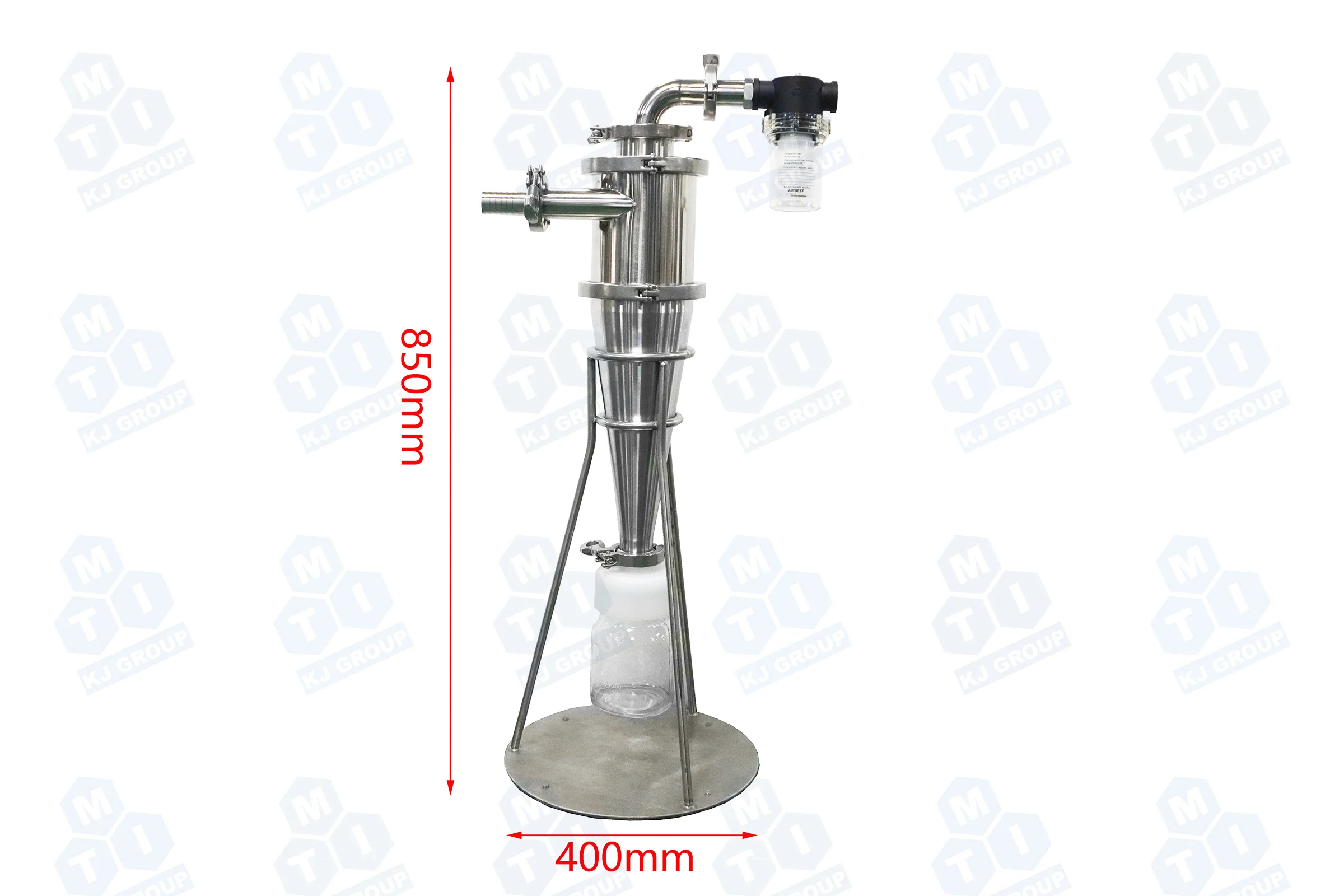

BPM-CL is a lab-scale powder cyclone that is used with the MTI Jet Mill and offers optimum recovery of sub-micron fines. Undersize sieve fractions are directed through an anti-static vacuum hose through the Cyclone and collected in a threaded glass receiving bottle. Material contact parts are constructed of stainless steel or glass. Support stand allows for stand-alone operation, or the unit can be mounted to the base of an Air Jet Sieve.

Specification

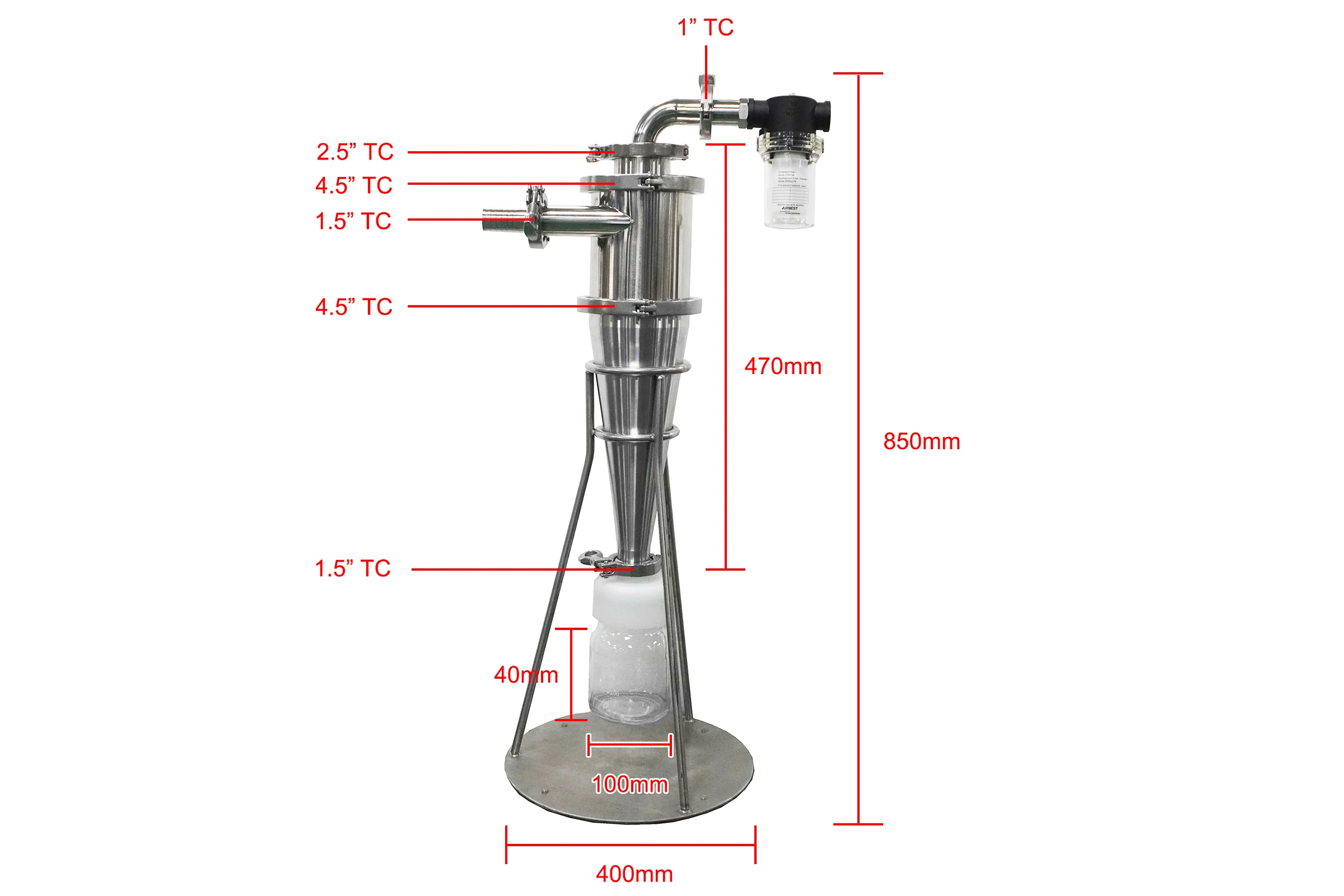

Features	The estimated collection efficiency: 85% - 90% Can operate as a stand-alone unit or when mounted to a Jet Mill Assemble by using tri-clamp connection

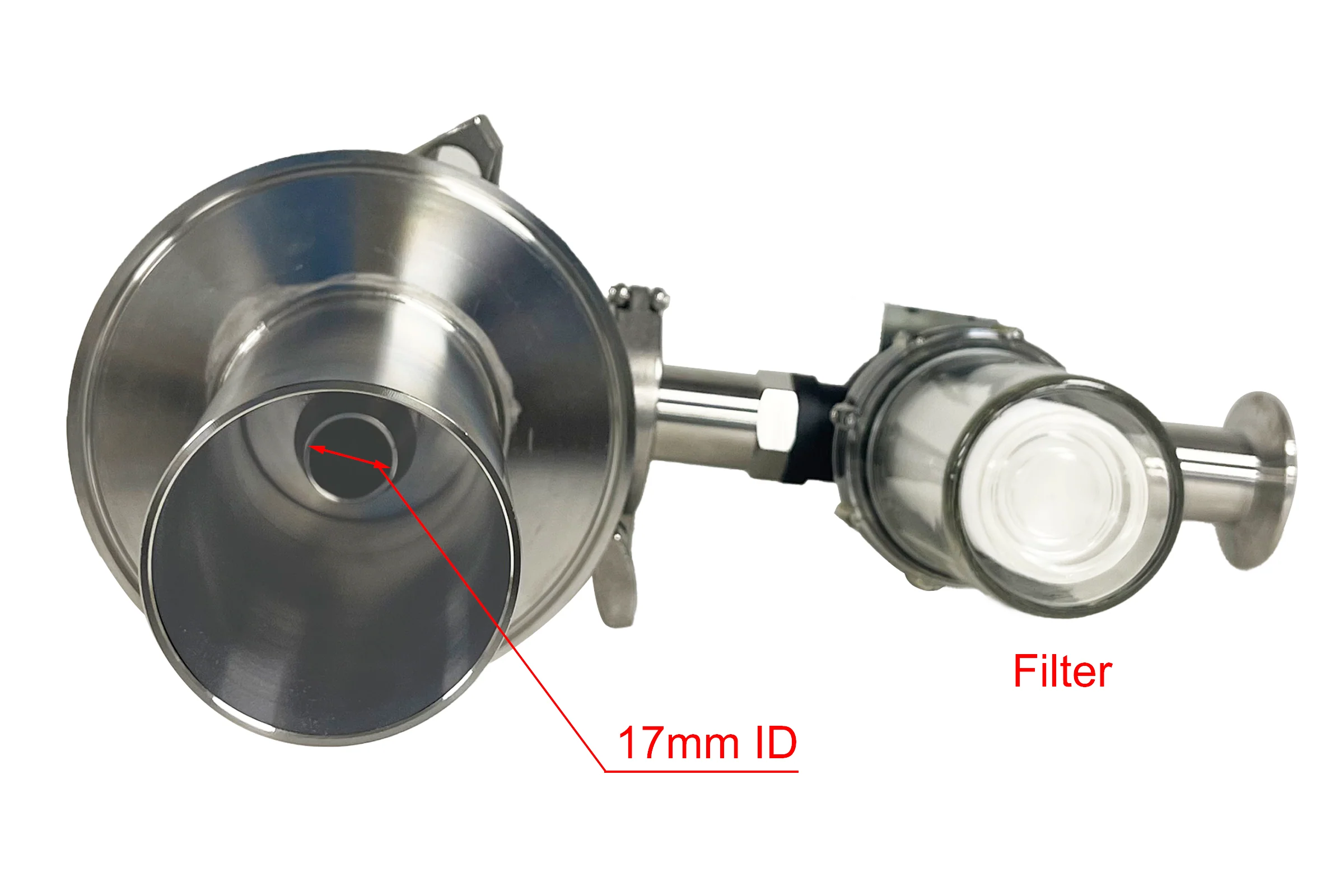

Item Included	1* Collection Bottle(500ml) 1* Stainless Steel Cyclone 1* Filter(10um mesh) for ≈2um powder collection.
Note:	Large-size cyclone is available upon request. (Pic. 1) It is designed for an MTI jet mill (Pic. 2) A customized cyclone collector equipped with a 90mL collection tank and two CF50 ports is available upon request. (Pic.3) Pic.1 Pic.2Pic.3
Particle Size Distribution	Material: Graphite Original Powder Size: D50=20um One-time Jet-milling Powder Size in Collection Bottle: D50=5.4um One-time Jet-milling Powder Size in Filter: D50=1.94um
