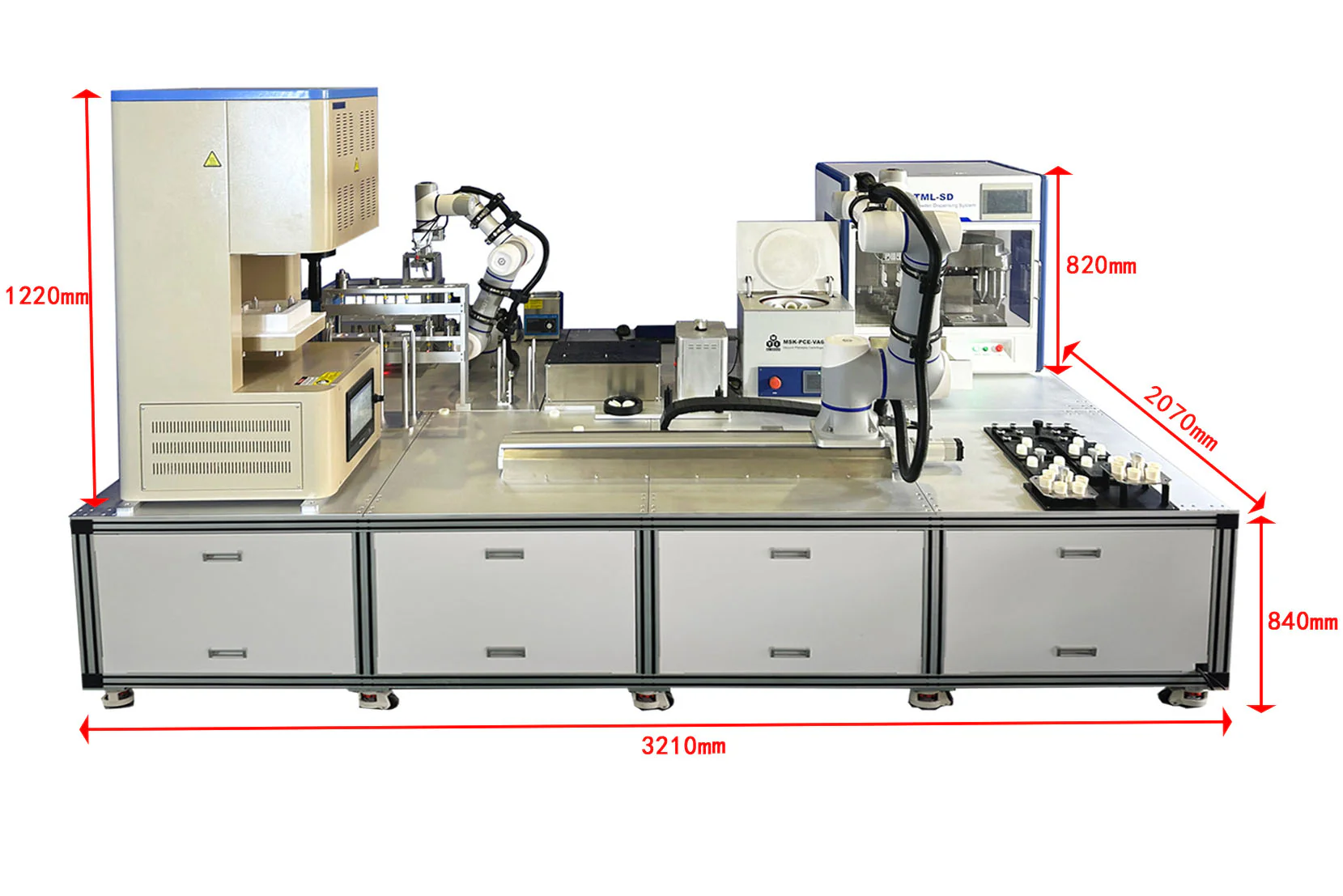

Autonomous Platform for Solid-State Material Synthesis – AM-SP02

Power

208-240 VAC, 50/60 Hz, single phase, up to 15 kVA

Automated Powder Dispensing

Up to 6 kinds of powder materials can be dispensed into 6 containers in custom ratios

· Balance Range: 20 mg to 13,000 mg

· Dispensing Accuracy: ±2 mg

· Minimum dispensing amount: 10 mg

· Material Container Volume: 50 mL (each)

Automated Centrifugal Ball Milling/Mixing

· Number of stations: 6

· Ball Mill Jar Dimensions: Ø20 mm × 25 mm (H)

· Maximum Rotation Speed: 2,000 rpm

· Maximum Centrifugal Acceleration: 438 g

Automated Pellet Pressing

Automatic Loading, Die Assembly, Pressing, and Ejection

· Maximum Hydraulic Pressure: 8 T

· 12 Sets of Dies with Φ10 mm Core Size (Customizable at Extra Cost)

Automated Bottom-Loading Box Furnace

· Maximum Operating Temperature: 1,700 °C (<1 Hour)

· Continuous Operating Temperature: 1,600 °C

· Chamber Dimensions: 200 × 200 × 200 mm

· Chamber Volume: 8 L

· Constant Temperature Zone: 150 × 150 × 150 mm (±5 °C)

(Optional)

Fully Automated

Vertical Vibration Crushing/Ball Milling/Mixing

Adjustable Milling Time, Static Cooling Time, and Speed

· Vibration Amplitude: Up to 16 mm

· Frequency: 1,500 Cycles/Minute

· Maximum Feed Size: ≤20 mm

· Output Particle Size: ~0.1–5 µm (Depending on Material Properties)

· Number of Samples per Run: 6
