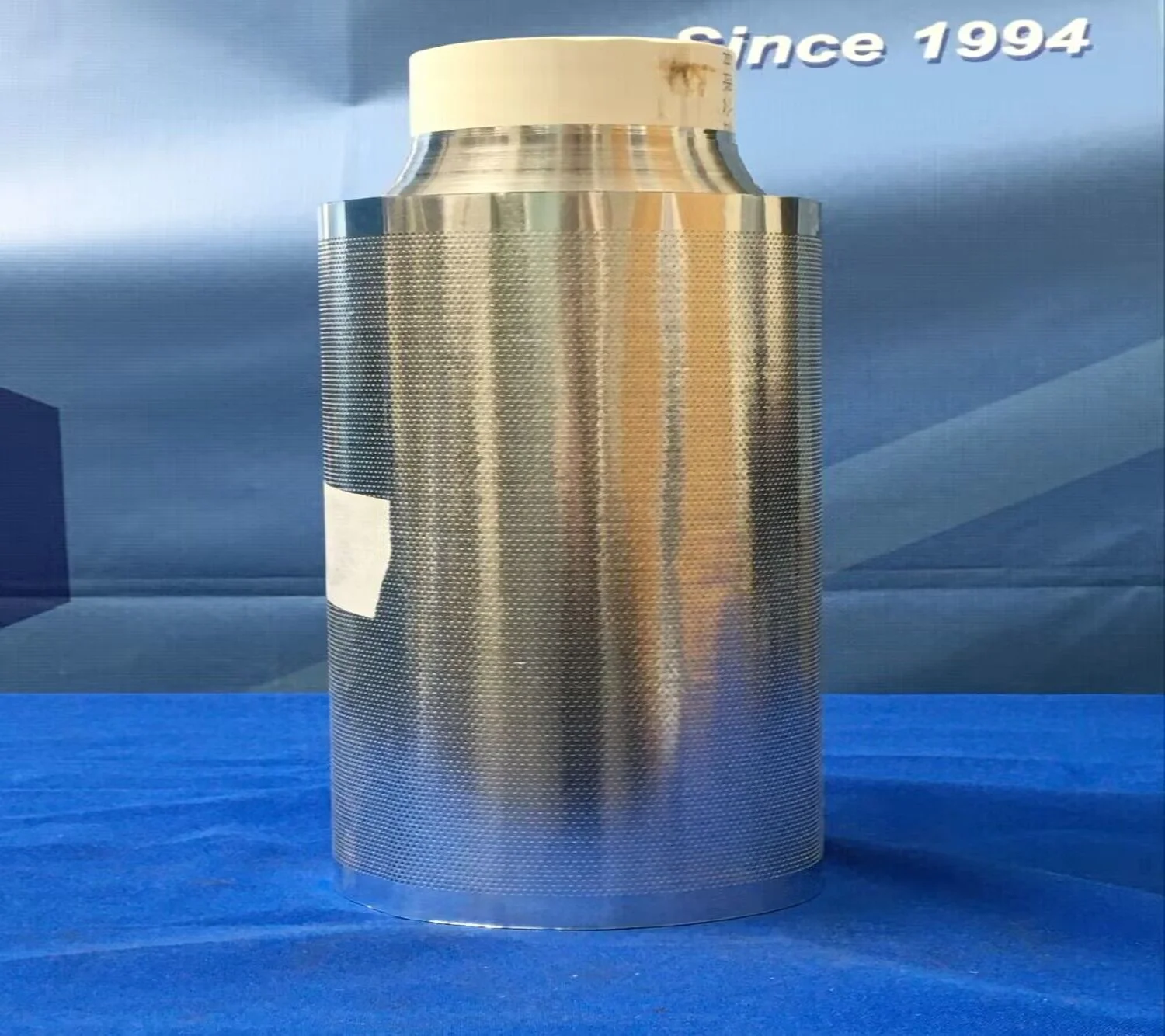

Aluminum Mesh Foil Roll for Battery Cathode Substrate (130m L x 265mm W x 20um T) - EQ-bcanf-20u

This aluminum mesh foil (20um thick) is used as substrate for coating cathode materials in Li-Ion rechargeable battery research. Mesh aluminum foil is 40% less weight than solid foil and can accept more electrode materials.

Please select the length of foil in option bar.

Specifications

Item Number	EQ-bcanf-20u-12
Net Weight of Foil (kg)	about 1.2 kg
Length of Foil (Meter) (Estimated by weight : 0.85 g each 100 mm Length )	~130 m
Material	Aluminum, Purity> 99.99%

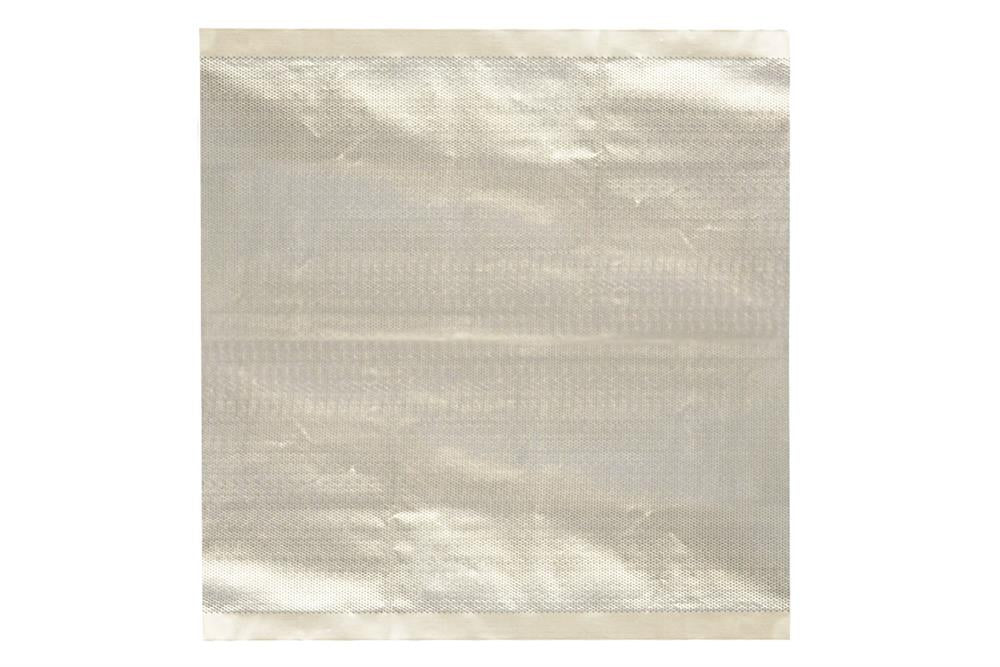

Width	265mm ( 237mm mesh pattern area and 14mm flat margin on each side, click the image in below for details)
Thickness	20 um
Pore Size	Φ1.5 mm
Open area	~45% for meshed area
Package	Sold in roll only Shipped in vacuum bag
Application Video	Click the video below to see the battery anode coated by MTI's Film coater MSK-AFA-II-VC
Warning	Consumable items are not returnable, except for defective as receiving.  Storage conditions: Environment temperature < 28°C Humidity < 60% Air-free
SDS	Please click to view the Safety Data Sheet
