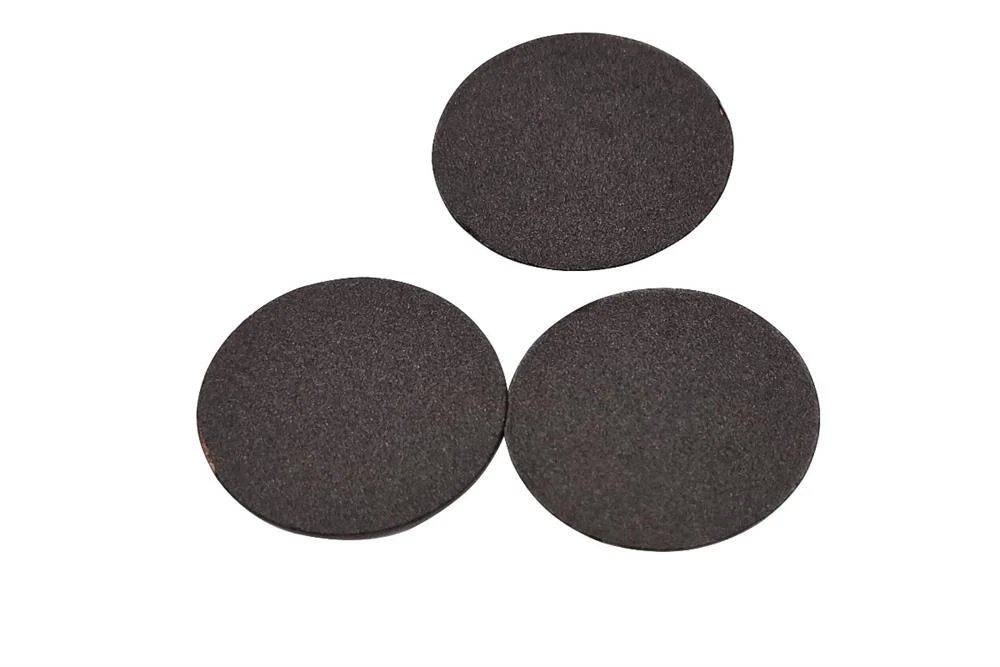

15 mm Dia LiNiCoMnO2 (Ni:Co:Mn=6:2:2, NCM622) Single Side Coated Cathode Electrode Disk for CR20XX Coin Cells 100 pcs/pack - bcaf-NCM622-D15
15 mm Dia LiNiCoMnO2 (Ni:Co:Mn=6:2:2, NCM622) Single Side Coated Cathode Electrode Disk for CR20XX Coin Cells 100 pcs/pack - bcaf-NCM622-D15
This electrode sheet is based on Aluminum foil coated by Lithium Nickel Manganese Cobalt Oxide (NCM622) on a single side and can be used as the cathode of Li-Ion battery -- 5 sheets /bag
SPECIFICATIONS
- Material: LiNiCoMnO2 (6:2:2)
- Current collector (substrate): Aluminum foil (15-16 microns, area density of 4.22mg/cm2)
- Coated Area: 241mm L x 175mm W. The edge width of blank area is 12.5 mm for each side.
- Single sides area density: 11 ± 0.20 mg/cm2
- Compaction density: 2.9 ± 0.1 g/cm3
- Coating Thickness: ~38 um
- Total Thickness: ~54 um
- Active Material Proportion in Powder: 97.5% (PVDF and Super P is and 1% and 1.5% , respectively)
- Specific Capacity: 170 mAh/g
-
Note: The electrode sheet shall be stored in a vacuum box, a vacuum oven or a glove box to avoid degradation.
for NCM- for Aluminum
Original: $298.00
-65%$298.00
$104.3015 mm Dia LiNiCoMnO2 (Ni:Co:Mn=6:2:2, NCM622) Single Side Coated Cathode Electrode Disk for CR20XX Coin Cells 100 pcs/pack - bcaf-NCM622-D15
This electrode sheet is based on Aluminum foil coated by Lithium Nickel Manganese Cobalt Oxide (NCM622) on a single side and can be used as the cathode of Li-Ion battery -- 5 sheets /bag
SPECIFICATIONS
- Material: LiNiCoMnO2 (6:2:2)
- Current collector (substrate): Aluminum foil (15-16 microns, area density of 4.22mg/cm2)
- Coated Area: 241mm L x 175mm W. The edge width of blank area is 12.5 mm for each side.
- Single sides area density: 11 ± 0.20 mg/cm2
- Compaction density: 2.9 ± 0.1 g/cm3
- Coating Thickness: ~38 um
- Total Thickness: ~54 um
- Active Material Proportion in Powder: 97.5% (PVDF and Super P is and 1% and 1.5% , respectively)
- Specific Capacity: 170 mAh/g
-
Note: The electrode sheet shall be stored in a vacuum box, a vacuum oven or a glove box to avoid degradation.
- for NCM
- for Aluminum
