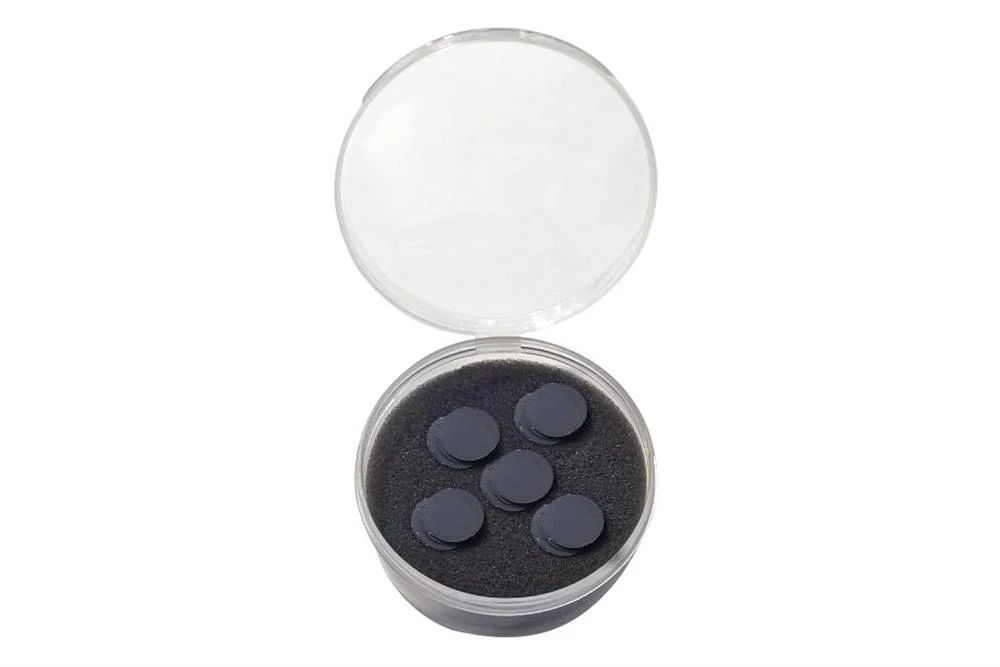

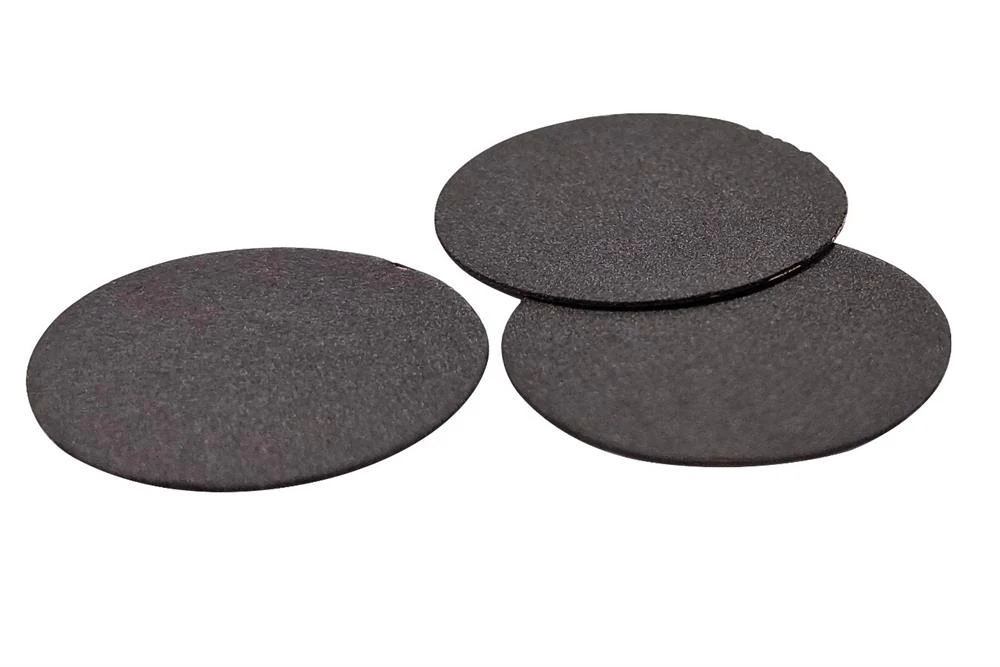

15 mm Dia LiMn0.6Fe0.4PO4 (LMFP) Single Side Coated Cathode Disk for CR20XX Coin Cells, 100 pcs/pack - bcaf-LMFP15

bcaf-LMFP15 is a pre-cut LiMn0.6Fe0.4PO4 (LFMP) single-side coated cathode disc for CR20XX coin cell battery R&D and split testing.

Material	LiMn0.6Fe0.4PO4 (LMFP)
Diameter	15 mm
Coating Thickness	32 um (total thickness with Al foil is ~48 um)
Coating	Single side coating
Aluminum foil	Thickness 16 um
Coating Area Density	14.0 ± 0.2 mg/cm2
Compaction Density	1.9 g/cm3
Active materials Mass Proportion	95.4% (PVDF and Super P is 2% and 2.6%, respectively)
Capacity	154 mAh/g (Area Capacity: 2.025 mAh/cm2); 0.1 C; 2.5-3.7 V; Electrolyte: 1.0M LiPF6 in EC:DMC: EMC=1:1:1 Vol% with 1.0%VC
Operation	The package must be opened inside a glove box with Argon Gas and moisture less than 2%RH.
