100L/S High Speed Turbo Station Pump with Touch Screen Controller - EQ-GZK-103G-LD

100L/S High Speed Turbo Station Pump with Touch Screen Controller - EQ-GZK-103G-LD

100L/S High Speed Turbo Station Pump with Touch Screen Controller - EQ-GZK-103G-LD

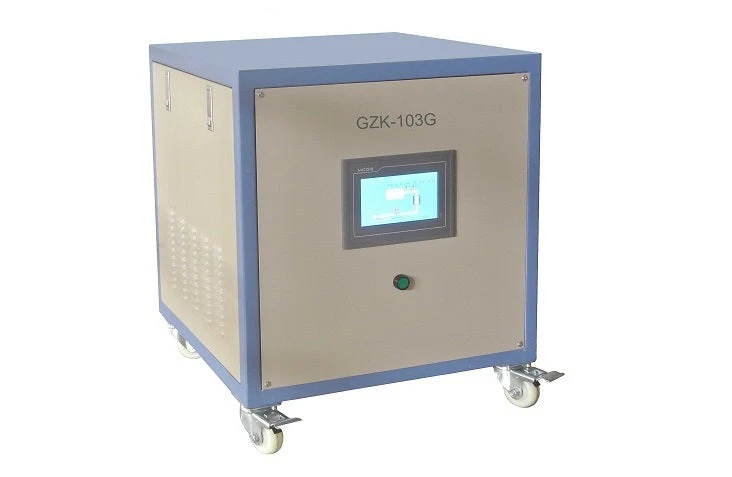

GZK-103G-LD is a high-speed turbopump station, which provides a faster speed up to 100 L/s. Large LCD digital can display the instant pressure reading and the information pump's running condition. Such a plug-and-play system brings the customers with a vacuum range from 1E-3 to 1E-6 mbar. 600mm x 600m top table can withstand any types of equipment up to 600 Lbs. It is an ideal tool for most of MTI's tube furnaces to achieve high vacuum >10-4 torr

Specifications

Mobile Cart Structure	Mobile cart size: 600 (L) x 600 (W) x 700(W), mm Max. Loading: 600 Lbs on top Molecular pump control Panel: LCD digital Inside: Turo pump with rotary pump with vacuum pressure sensors and auto shut off valve
Power	Standard power 208 - 240VAC, 50/60Hz Optional: 110VAC version is available upon request with 1500W transformer 1000W power consumption
Pumping Speed & Vacuum Limit	Turbopump 100 L/S Vacuum pressure: 7.5E-6Torr (1E-3Pa)
Accessories	KF40 port to connect equipment Two KF-40 Quick Clamp with Rubber O-Ring and one KF-40 SS Vacuum Bellows (1000mm) are included for immediate use
Start-up Time	2 Min.
Working Range	From 750Torr to <7.5E-7Torr (1E5Pa ~ <1E-4Pa)
Weight	50 Kg
Warranty	One year manufacturer warranty.(Attention: Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed to be all use for purposes deviating from those mentioned in below, especially: Pumping of corrosive or explosive media. Pumping of condensing vapors. Pumping of liquids. Pumping of dust. Operation with improper high levels of insulated heat input. Operation in potentially explosive areas.)
Application Notes	To protect the environment & human health, please use Traps & Filters to minimize exhaust. To protect the vacuum pump from damage by condensed vapors or small particles, please connect a cold trap or particle trap to the pump ( click on the pictures below for details ).
Compliance	CE Certified

$4,549.30

Original: $12,998.00

-65%

100L/S High Speed Turbo Station Pump with Touch Screen Controller - EQ-GZK-103G-LD—

$12,998.00

$4,549.30

100L/S High Speed Turbo Station Pump with Touch Screen Controller - EQ-GZK-103G-LD

GZK-103G-LD is a high-speed turbopump station, which provides a faster speed up to 100 L/s. Large LCD digital can display the instant pressure reading and the information pump's running condition. Such a plug-and-play system brings the customers with a vacuum range from 1E-3 to 1E-6 mbar. 600mm x 600m top table can withstand any types of equipment up to 600 Lbs. It is an ideal tool for most of MTI's tube furnaces to achieve high vacuum >10-4 torr

Specifications

Mobile Cart Structure	Mobile cart size: 600 (L) x 600 (W) x 700(W), mm Max. Loading: 600 Lbs on top Molecular pump control Panel: LCD digital Inside: Turo pump with rotary pump with vacuum pressure sensors and auto shut off valve
Power	Standard power 208 - 240VAC, 50/60Hz Optional: 110VAC version is available upon request with 1500W transformer 1000W power consumption
Pumping Speed & Vacuum Limit	Turbopump 100 L/S Vacuum pressure: 7.5E-6Torr (1E-3Pa)
Accessories	KF40 port to connect equipment Two KF-40 Quick Clamp with Rubber O-Ring and one KF-40 SS Vacuum Bellows (1000mm) are included for immediate use
Start-up Time	2 Min.
Working Range	From 750Torr to <7.5E-7Torr (1E5Pa ~ <1E-4Pa)
Weight	50 Kg
Warranty	One year manufacturer warranty.(Attention: Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed to be all use for purposes deviating from those mentioned in below, especially: Pumping of corrosive or explosive media. Pumping of condensing vapors. Pumping of liquids. Pumping of dust. Operation with improper high levels of insulated heat input. Operation in potentially explosive areas.)
Application Notes	To protect the environment & human health, please use Traps & Filters to minimize exhaust. To protect the vacuum pump from damage by condensed vapors or small particles, please connect a cold trap or particle trap to the pump ( click on the pictures below for details ).
Compliance	CE Certified
