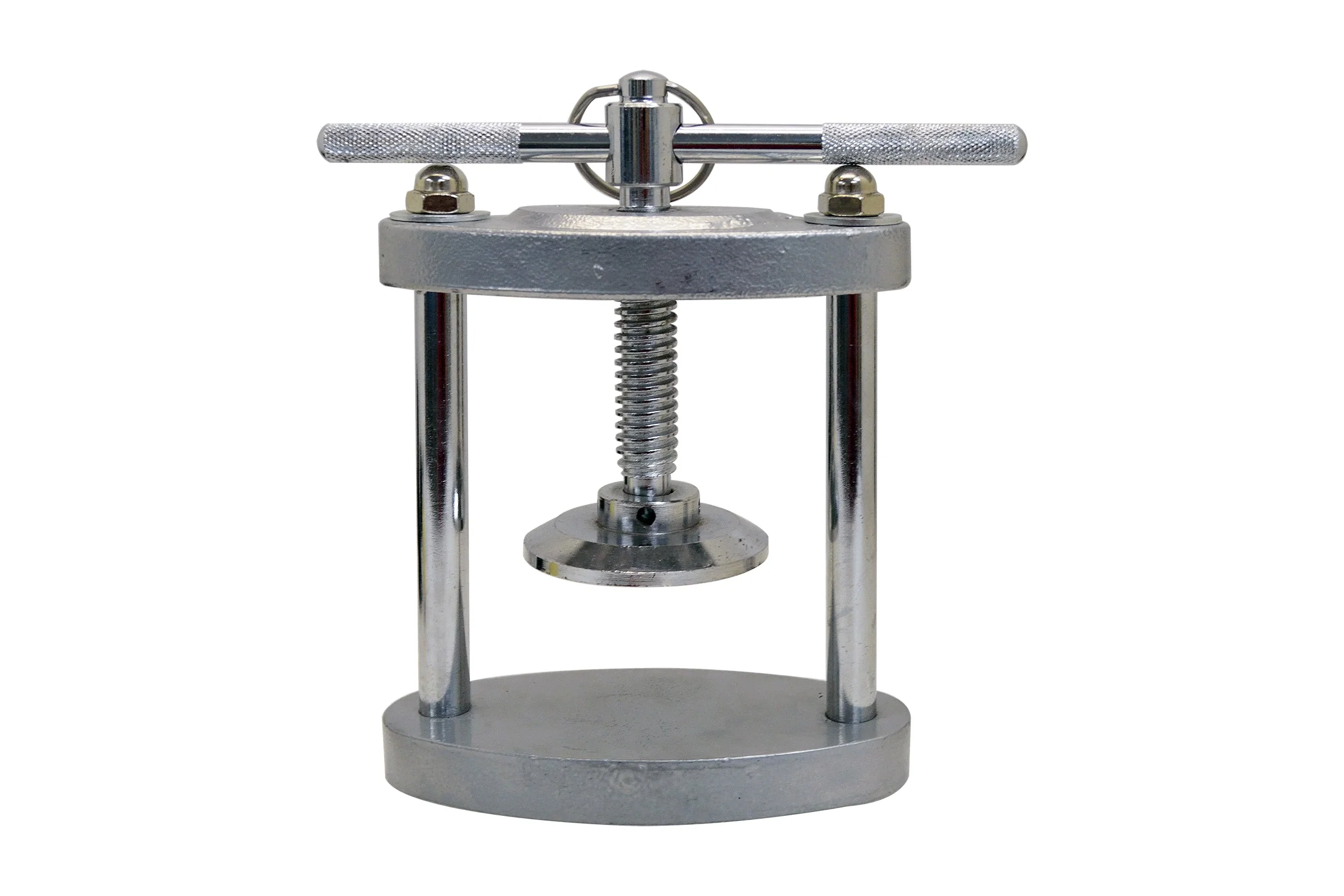

100Kg Manual Screw Press or Compressing Jig - YLJ-SP

EQ-YLJ-SP is a manually hand compressing press (jig) designed for small pressing sample in glove box up to 0.1 metric ton or compressing split coin cell. This jig features for hand press that prevents the loss of compression force on the coin cell, a major advantage over other compressing jigs where the clamping force of the coin cell weakens once the jack loses pressure.

SPECIFICATION:

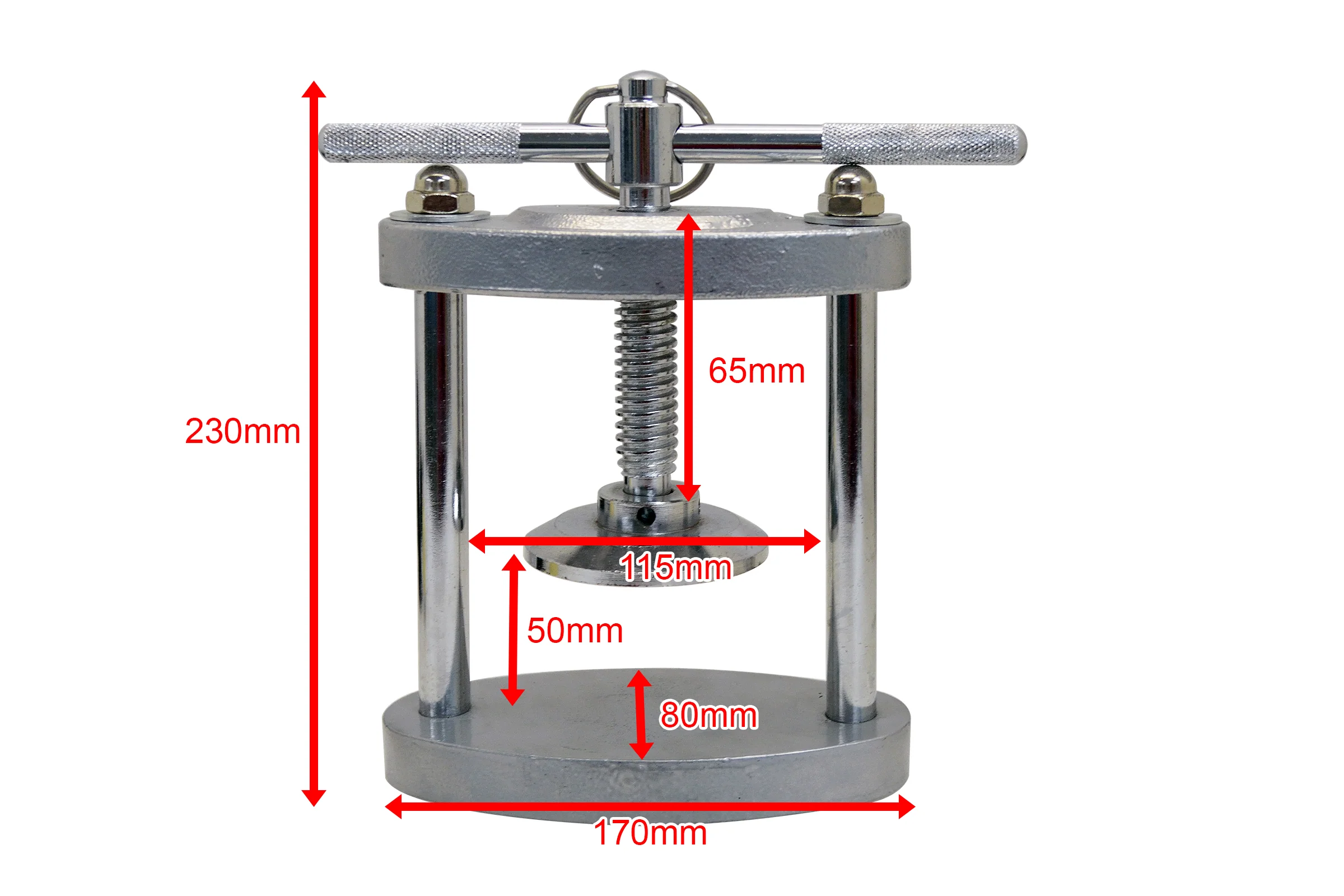

Compress Function	Max. compress die size is 115mm L x 115 H between the base to the top of the upper pressing die. The minimum gap between the upper pressing die to the base is 55mm H. Any sample shorter than this height will not work.

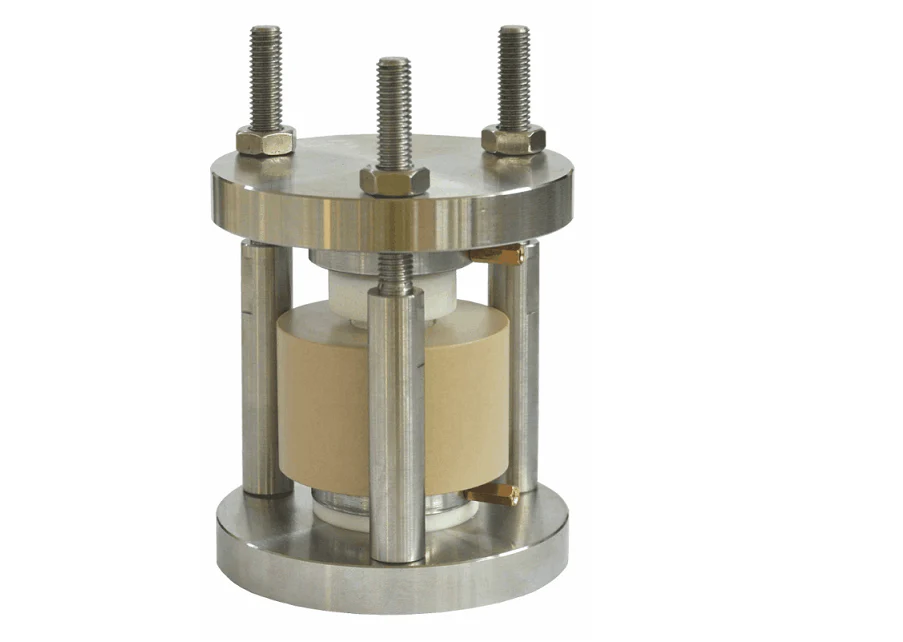

Split Coin Cell (Optional)	Split Coin Cell with various diameters is sold separately at extra cost. Please contact us for more information.
Pressure Calibration Kit (Optional)	You may add a 50Kg load cell kit to measure pressure digitally
