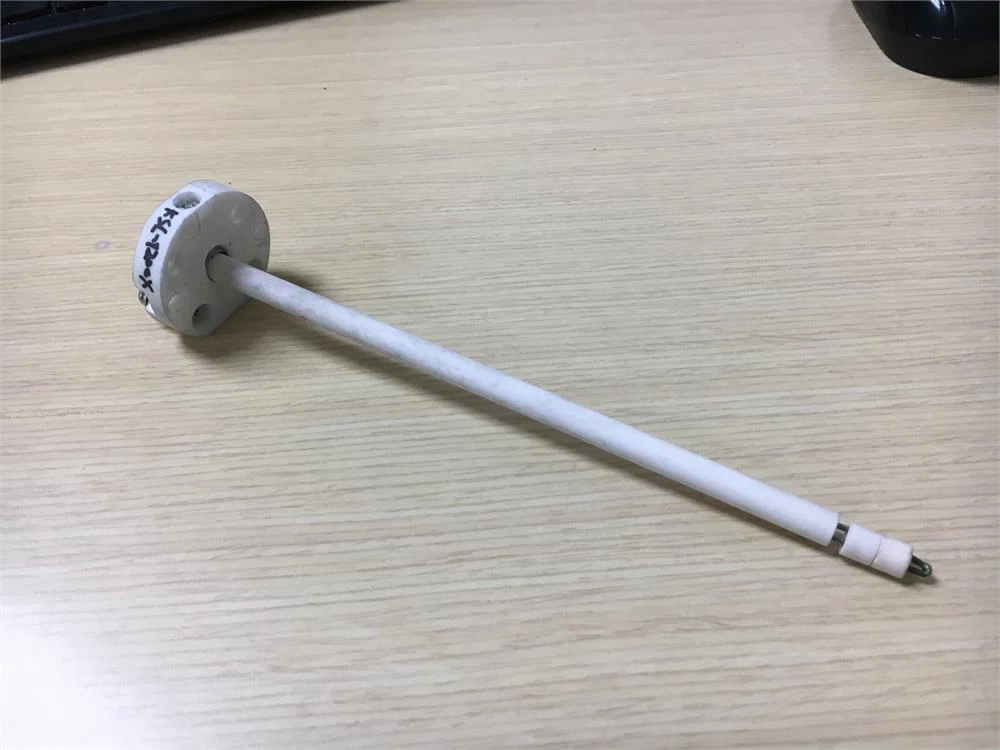

Thermocouple: K type for KSL1200XM / KSL1200XL - EQ-TCK200
Features:
- K type thermocouple for high heat applications at temperatures up to 1250oC
- Measures room temperature - 1250oC, Suitable for KSL-1200X-M / KSL-1200X-L
- Thermocouple Length: 160mm (6.25")
- Ceramic end holder with screws to connect TC with temperature controller
Application Note:
-
If necessary, please check out K type thermocouple extension wire with mini male plug. Using compensating wires is equivalent to stretching them to keep them operating at a constant temperature. The advantages of using compensating cables are saving material costs and solving the problem of constant temperature, etc.
- There are 2 polarities for K type thermocouple: positive and negative. Please check the polarity of K type thermocouple before use. Wrong polarity may cause temperature measuring error.
- It is also easy to test the polarity of K type thermocouples. The negative wire is MORE magnetic than the positive wire. Just put a magnet up to each wire. One will be more magnetic than the other.
$48.65
Original: $139.00
-65%Thermocouple: K type for KSL1200XM / KSL1200XL - EQ-TCK200—
$139.00
$48.65More Images
Thermocouple: K type for KSL1200XM / KSL1200XL - EQ-TCK200
Features:
- K type thermocouple for high heat applications at temperatures up to 1250oC
- Measures room temperature - 1250oC, Suitable for KSL-1200X-M / KSL-1200X-L
- Thermocouple Length: 160mm (6.25")
- Ceramic end holder with screws to connect TC with temperature controller
Application Note:
-
If necessary, please check out K type thermocouple extension wire with mini male plug. Using compensating wires is equivalent to stretching them to keep them operating at a constant temperature. The advantages of using compensating cables are saving material costs and solving the problem of constant temperature, etc.
- There are 2 polarities for K type thermocouple: positive and negative. Please check the polarity of K type thermocouple before use. Wrong polarity may cause temperature measuring error.
- It is also easy to test the polarity of K type thermocouples. The negative wire is MORE magnetic than the positive wire. Just put a magnet up to each wire. One will be more magnetic than the other.
