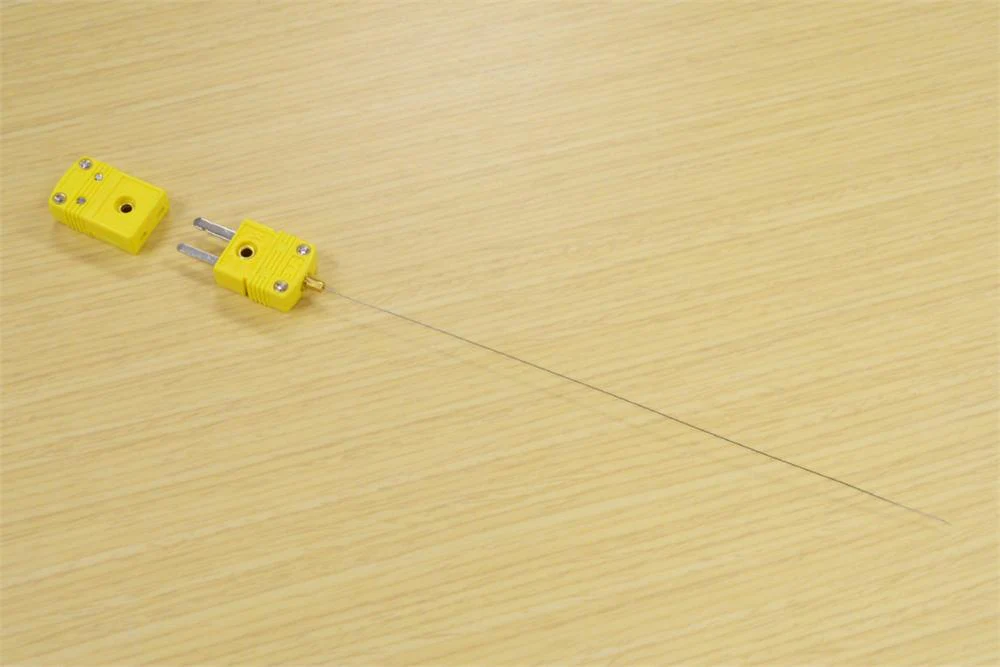

Thermocouple: K type 0.032" (0.8mm) OD x 6" L with Male Plug for Calibration - TCK6S1
Thermocouple: K type 0.032" (0.8mm) OD x 6" L with Male Plug for Calibration - TCK6S1
Ā
Features
Super Accurate, Super Stable, Super Value
For Use with Temperatures Up to 1200Ā oCĀ (2192Ā oĀ F)
Excellent Long Term Stability at High Temperature
Nickel-Chrome Based Super-alloy Sheathing Provides Excellent High Temperature Performance
Excellent Oxidation, Carburization and Chlorination Resistance
Made with materials of Special Limits of Error. Perfect for calibrating MTI tube furnaces using a precision temperature calibratorĀ
Length
Ā 6"
DiameterĀ of sheath
0.32" ( 0.81 mm )diameter
Dimension
Positive Material
Ni-Cr
NegativeĀ Material
Ni-Al
Highest Temperature
1200 oC
Lowest Temperature
-200Ā oC
Application Note
If necessary, please check outĀ K type thermocouple extension wire with mini male plug. Using compensating wires is equivalent to stretching them to keep them operating at a constant temperature. The advantages of using compensating cables are saving material costs and solving the problem of constant temperature, etc.
There are 2 polarities for K type thermocouple: positive and negative. Please check polarity of K type thermocouple before use. Wrong polarity may cause temperature measuring error.
It is also easy to test the polarity of K type thermocouples. The negative wire is MORE magnetic than the positive wire. Just put a magnet up to each wire. One will be more magnetic than the other.
Ā
$34.30
Original: $98.00
-65%
Thermocouple: K type 0.032" (0.8mm) OD x 6" L with Male Plug for Calibration - TCK6S1ā
$98.00
$34.30
Thermocouple: K type 0.032" (0.8mm) OD x 6" L with Male Plug for Calibration - TCK6S1
Ā
Features
Super Accurate, Super Stable, Super Value
For Use with Temperatures Up to 1200Ā oCĀ (2192Ā oĀ F)
Excellent Long Term Stability at High Temperature
Nickel-Chrome Based Super-alloy Sheathing Provides Excellent High Temperature Performance
Excellent Oxidation, Carburization and Chlorination Resistance
Made with materials of Special Limits of Error. Perfect for calibrating MTI tube furnaces using a precision temperature calibratorĀ
Length
Ā 6"
DiameterĀ of sheath
0.32" ( 0.81 mm )diameter
Dimension
Positive Material
Ni-Cr
NegativeĀ Material
Ni-Al
Highest Temperature
1200 oC
Lowest Temperature
-200Ā oC
Application Note
If necessary, please check outĀ K type thermocouple extension wire with mini male plug. Using compensating wires is equivalent to stretching them to keep them operating at a constant temperature. The advantages of using compensating cables are saving material costs and solving the problem of constant temperature, etc.
There are 2 polarities for K type thermocouple: positive and negative. Please check polarity of K type thermocouple before use. Wrong polarity may cause temperature measuring error.
It is also easy to test the polarity of K type thermocouples. The negative wire is MORE magnetic than the positive wire. Just put a magnet up to each wire. One will be more magnetic than the other.
Ā
Product Information
Shipping & Returns
Description
Ā
Features
Super Accurate, Super Stable, Super Value
For Use with Temperatures Up to 1200Ā oCĀ (2192Ā oĀ F)
Excellent Long Term Stability at High Temperature
Nickel-Chrome Based Super-alloy Sheathing Provides Excellent High Temperature Performance
Excellent Oxidation, Carburization and Chlorination Resistance
Made with materials of Special Limits of Error. Perfect for calibrating MTI tube furnaces using a precision temperature calibratorĀ
Length
Ā 6"
DiameterĀ of sheath
0.32" ( 0.81 mm )diameter
Dimension
Positive Material
Ni-Cr
NegativeĀ Material
Ni-Al
Highest Temperature
1200 oC
Lowest Temperature
-200Ā oC
Application Note
If necessary, please check outĀ K type thermocouple extension wire with mini male plug. Using compensating wires is equivalent to stretching them to keep them operating at a constant temperature. The advantages of using compensating cables are saving material costs and solving the problem of constant temperature, etc.
There are 2 polarities for K type thermocouple: positive and negative. Please check polarity of K type thermocouple before use. Wrong polarity may cause temperature measuring error.
It is also easy to test the polarity of K type thermocouples. The negative wire is MORE magnetic than the positive wire. Just put a magnet up to each wire. One will be more magnetic than the other.
Ā
