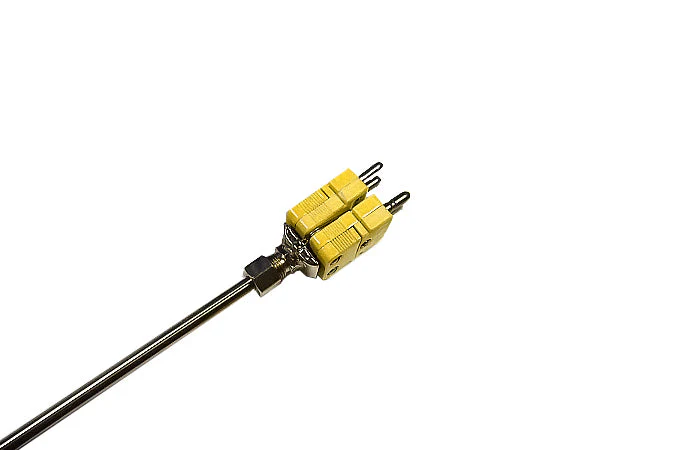

Dual Element Thermocouple: K type 12" L x 1/4" Dia - EQ-TC-K-Cali-12S-Dual-LD
HomeStore

Dual Element Thermocouple: K type 12" L x 1/4" Dia - EQ-TC-K-Cali-12S-Dual-LD

Dual Element Thermocouple: K type 12" L x 1/4" Dia - EQ-TC-K-Cali-12S-Dual-LD

This is a Dual Element K Thermocouple for use on the MTI KSL1200XL5 and KSL1200XL5ACĀ Five-Side Heating Atmosphere-Controlled Muffle Furnace

Features
  • Super Accurate, Super Stable, Super Value
  • Allows two readings at a single point
  • Built-in Backup
  • For Use with Temperatures Up to 1335Ā oCĀ (2440Ā oĀ F)
  • Excellent Long Term Stability at High Temperature
  • Nickel-Chrome Based Super-alloy Sheathing Provides Excellent High Temperature Performance
  • Excellent Oxidation, Carburization and Chlorination Resistance
Length
  • 12"
Diameter of Sheath
  • 1/4"
Material
  • Positive: Ā Ā Ni-Cr
  • Negative: Ā Ni-Al
Temperature Range
  • -200Ā oC to 1335Ā oC
Application Note
  • There are 2 polarities for K type thermocouple: positive and negative. Please check polarity of K K-type thermocouple before use. Wrong polarity may result temperature measuring error.
  • It is also easy to test the polarity of K type thermocouples. The negative wire is MORE magnetic than the positive wire.Ā Put a magnet up to each wire as one will be more magnetic than the other.

Ā

$59.46

Original: $169.89

-65%
Dual Element Thermocouple: K type 12" L x 1/4" Dia - EQ-TC-K-Cali-12S-Dual-LDā€”

$169.89

$59.46

Dual Element Thermocouple: K type 12" L x 1/4" Dia - EQ-TC-K-Cali-12S-Dual-LD

This is a Dual Element K Thermocouple for use on the MTI KSL1200XL5 and KSL1200XL5ACĀ Five-Side Heating Atmosphere-Controlled Muffle Furnace

Features
  • Super Accurate, Super Stable, Super Value
  • Allows two readings at a single point
  • Built-in Backup
  • For Use with Temperatures Up to 1335Ā oCĀ (2440Ā oĀ F)
  • Excellent Long Term Stability at High Temperature
  • Nickel-Chrome Based Super-alloy Sheathing Provides Excellent High Temperature Performance
  • Excellent Oxidation, Carburization and Chlorination Resistance
Length
  • 12"
Diameter of Sheath
  • 1/4"
Material
  • Positive: Ā Ā Ni-Cr
  • Negative: Ā Ni-Al
Temperature Range
  • -200Ā oC to 1335Ā oC
Application Note
  • There are 2 polarities for K type thermocouple: positive and negative. Please check polarity of K K-type thermocouple before use. Wrong polarity may result temperature measuring error.
  • It is also easy to test the polarity of K type thermocouples. The negative wire is MORE magnetic than the positive wire.Ā Put a magnet up to each wire as one will be more magnetic than the other.

Ā
