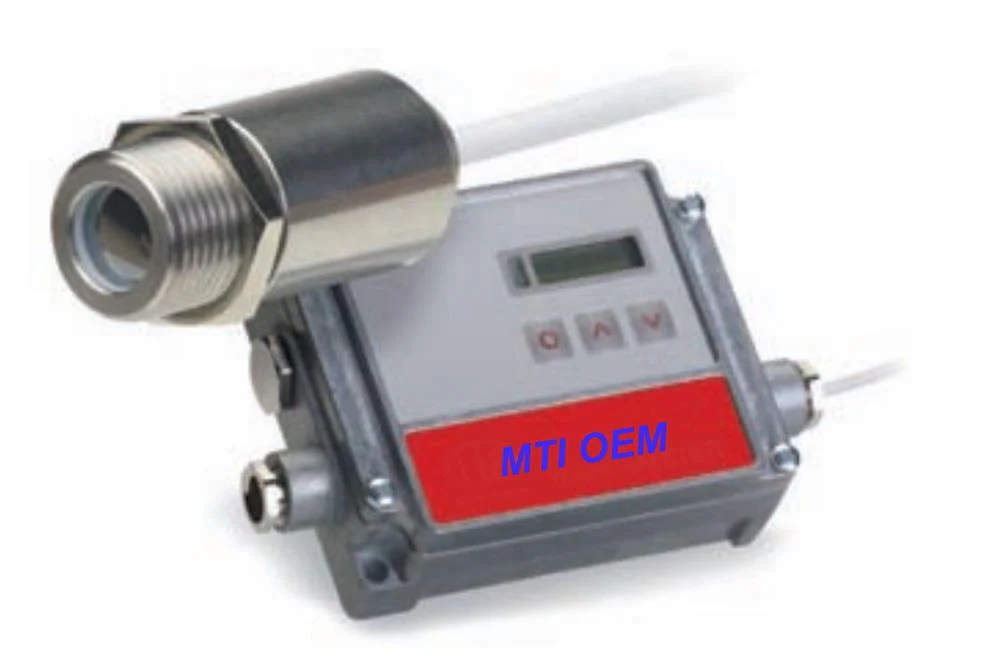

Precise Infrared Temperature Sensor with Air Cooling Collar upto 2200C for MTI Induction Heating System - EQ-METC-22-LD

Precise Infrared Temperature Sensor with Air Cooling Collar upto 2200C for MTI Induction Heating System - EQ-METC-22-LD

EQ-METC is a solution for non-contact temperature measurement and control of MTI Induction Heaters. The PID control unit has built-in function modules which can work with most IGBTs to regulate the indiction power output. The infrared sensor and its transmitter offer a high temperature range measurement upto 2200°C. Its analog feedback signals can be feed directly to the PID controller.

SPECIFICATIONS:

Power		 8 to 36 Vdc, 100 mA
Spectral Range 1um
Temperature Range 800 to 2200°C
Temperature Resolution <0.1°C
Accuracy ± (0.3% of reading  + 2°C)
Repeatability ± (0.1% of reading  + 1°C)
Spectral Response 2 to 2.5 microns
Emissivity 0.10 to 1.10
Transmissivity 0.10 to 1.10
Field of View 75 to 1
Response Time 1 ms, 90%
Display Backlit LCD
Analog Output 0/4 to 20mA, 0 to 5/10V, thermocouple J, K
Cable Length 3m
Ambient Temperature  0 to 85°C
Air Cooling Collar
  • 85°C (185°F) max temp for sensing head with air cooling collar (air fitting for 5mm O.D tube)
  • This sensor can be used through a high purity ( IR transistat ) quartz glass window
  •
Temperature Control Unit (Optional)
  • PID automatic control
  • Receives analog output from infrared pyrometer
  • 30 programmable segments for precise control of heating rate, cooling rate and dwell time.
  • Over temperature protection and alarm allows for operation without attendant(s).
  • +/- 1 ºC temperature accuracy.
  • Power Core (Cable Included), 6 Pin Connector to the SP-25AB/SP-15AB Induction heater, Pin Connector to the thermocouple (Cable Included)
  • Met certified
    • Click here to understand MET certification.
    • MET vs. UL
$1,600.00
