1200C Dual Sliding Tube Furnace with 2 Tube & Flanges for PECVD - OTF1200XSDFPESL
HomeStore

1200C Dual Sliding Tube Furnace with 2 Tube & Flanges for PECVD - OTF1200XSDFPESL

1200C Dual Sliding Tube Furnace with 2 Tube & Flanges for PECVD - OTF1200XSDFPESL

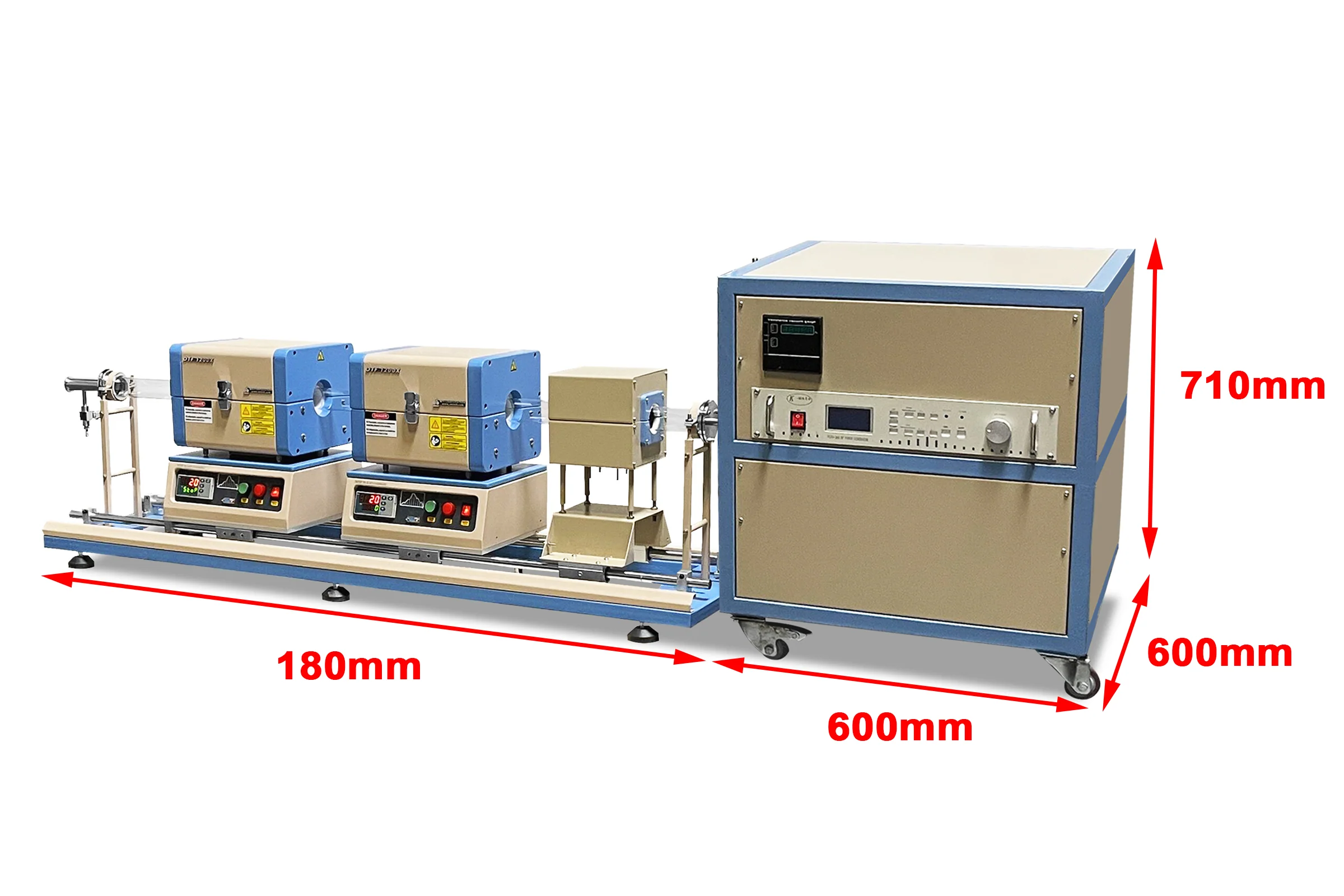

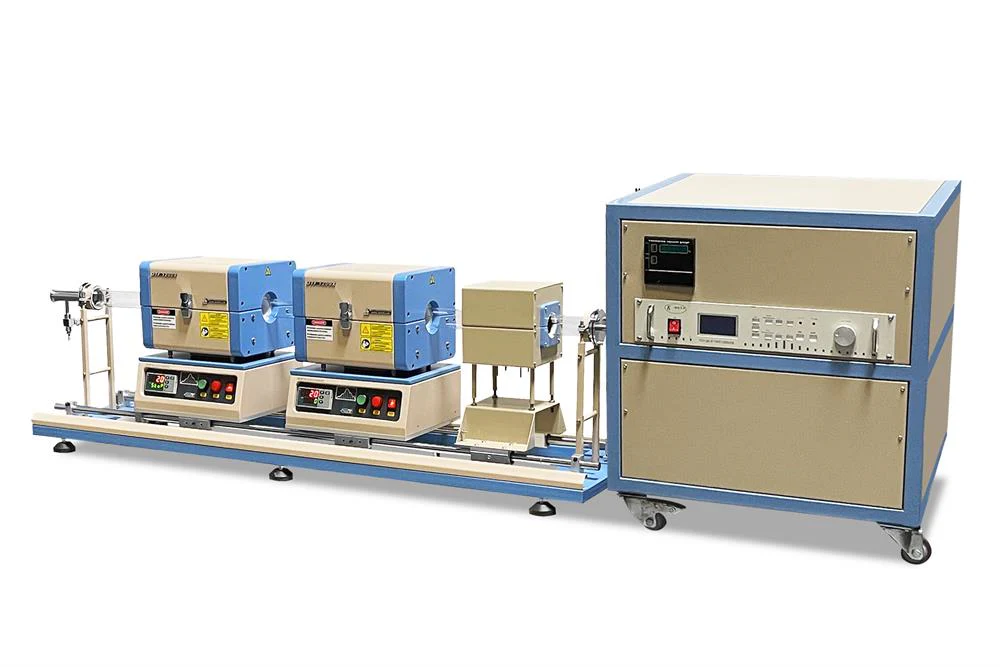

OTF1200XSDFPESL is a dual slidable PECVD (Plasma Enhanced Chemical Vapor Deposition) tube furnace system. It is a tool for PECVD with 2" ODx55"L Quartz tube & flanges and a max 1200°C achievable working temperature. Two 2" tube furnaces can be slide on the sliding rail to find positions for source materials thermal evaporation/sublimation and film deposition. Sliding the furnace from one side to another can achieve max. heating and cooling rates up to 100°C/min.

SPECIFICATIONS

Furnace Structure
  • Both furnaces are double-layer steel structures with 1200°C max. working temperature.
  • Each Furnace has a 200mm heating zone and a 60 mm long constant temperature zone.
  • One pair of sliding rails are installed on the bottom of the furnace, which allows the furnace to be manually moved from side to side with a max sliding distance 400 mm.
  • Vacuum flanges are installed for immediate use.

Power of furnace
  •  AC 120 VAC or 208-240V Single Phase, 50/60 Hz, 20 A air breaker required
  •  2.5 KW in total

Max. Temperature
  • 1200°C (<1 hour)

Continuous Temperature
  • 1100°C

Heating & Cooling Rates
Heating Rate:
 15°C/sec (RT - 150°C);
 10°C/sec (150°C - 250°C);
7°C/sec (250°C - 350°C);
4°C/sec (350°C - 500°C);
3°C/sec (350°C - 550°C);
2°C/sec (550°C - 650°C);
1°C/sec (650°C - 800°C);
 0.5°C/sec (800°C - 1000°C);
Cooling Rate:
15°C/sec (1000 - 950°C);
10°C/sec (950°C - 900°C);
7°C/sec (900°C - 850°C);
4°C/sec (850°C - 750°C);
2°C/sec (750°C - 600°C);
1.5°C/sec (600°C - 500°C);
1°C/sec (500°C - 400°C);
0.5°C/sec (400°C - 300°C);
Note:
The max heating and cooling rate is achieved by pre-heat one side of the processing tube to the target temperature and then slide the furnace to the other side. You may choose to place the sample in the pre-heat area or not.

Heating Zone Length
  • 200mm( ~8") for each furnace

Constant Temperature Zone
  • 60 mm (+/-1°C @ 400-1200°C)

Plasma RF Generator
  • Output Power: 5 -300W adjustable with ± 1% stability
  • RF frequency: 13.56 MHz ±0.005% stability
  • Reflection Power: 200W max.
  • Matching: Automatic
  • RF Output Port: 50 Ω, N-type, female
  • Noise: <50 dB.
  • Power: 208-240VAC, 50/60Hz
  • Cooling: Air cooling.

Processing Tube Size
  • High purity fused quartz tube
  • Size: 50mm O.D x 44mm I.D x1500 mm Length
  • Optional: S310 high temp alloy tube is available for higher pressure ( 100 PSI ) at the extra cost.

Temperature Controller
  • Two furnaces are PID automatic control with 30 programmable segments for precise control of heating rate, cooling rate, and dwell time.
  • Built-in over-temperature alarm and protection allow for operation without an attendant.
  • Two K-type thermal couples are included
  • Temperature Accuracy +/ - 1°C
  • Optional:
    • The furnace may be operated by a PC by installing a control module. Please order an MTS-01 control module at extra cost.
    • We recommend you order a computer (laptop) from us to avoid software installation problems.

 Vacuum Flanges
  • Optional flange with a KF25 vacuum port and digital vacuum gauge is available at extra cost ( Pic.1) and water cold flange (Pic. 2).
  •  Pic. 1 Pic. 2
 Sliding Rails / Table
  • Double sliding rail made of Cr-plated steel
  • Sliding length: 1200 mm
  • Two slide-stopping clamps are included for holding the position of the furnaces.

Optional
  • Motorized sliding is available upon request (Pic. 1)
  • 1-9 channel gas mixing and delivery models are available (Pic.2)
  • Water Chiller for the lab equipment that needs water cooling. (Pic.3)
  • Heavy duty double stage rotary vane vacuum pump to get a high vacuum level (Pic.4)
 Pic. 1 Pic. 2 Pic. 3  Pic. 4

Compliance
  • CE Certified
  • NRTL or CSA certification is available at extra cost ($3500.00 for furnace ONLY).
  • Plasma Generator is CE ONLY

Application Notes

Click here to learn the installation of a gas regulator
  • Tube furnaces with quartz tubes are designed for use under vacuum and low pressure <  0.2 bar / 3 psi / 0.02 MPa
  • Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn about the installation of a gas regulator.
  • The flow rate for gasses should be limited to < 200 SCCM (or 200 ml/min) for reducing thermal shocks to the tube
  • Vacuum limit definition for all quartz tube furnaces: * Vacuum pressures may only be safely used up to 1000°C
  • Click here to learn How to set up quartz/ ceramic tube and vacuum flange for MTI Tube furnace.

Warning
  • Fast sample cooling can be achieved by sliding the heating chamber away. Please wear protective gear such as heat resistant suit & gloves if you intend to do so. DO NOT TOUCH THE TUBE SURFACE WHEN IT IS HOT!
