1200oC Five Zones Split Vertical Tube Furnace with 4" Quartz Tube & SS Vacuum Flanges - OTF-1200X-VT-V-100

1200oC Five Zones Split Vertical Tube Furnace with 4" Quartz Tube & SS Vacuum Flanges - OTF-1200X-VT-V-100

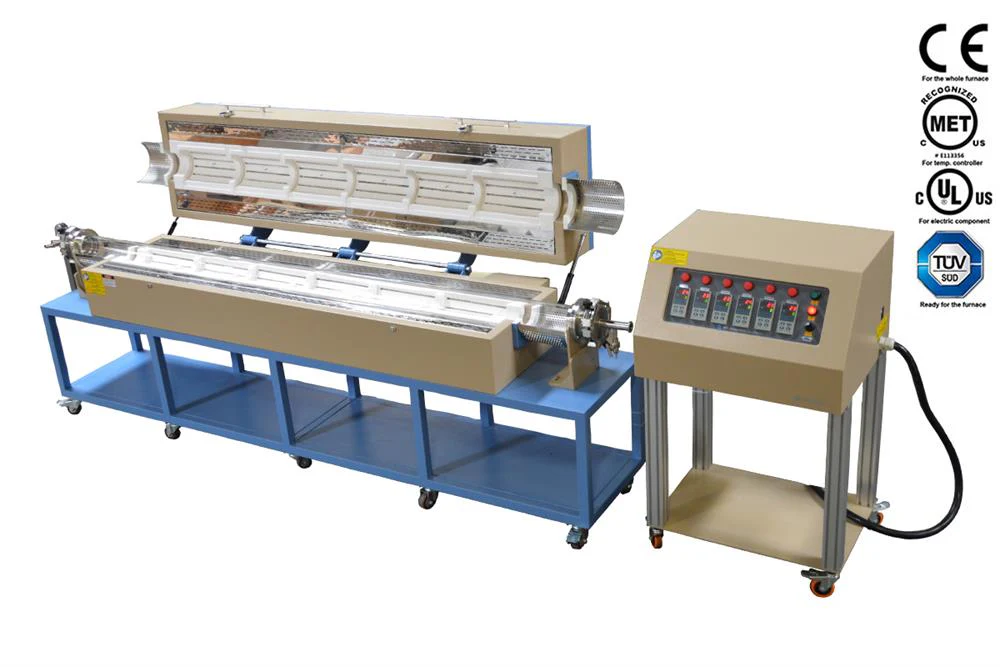

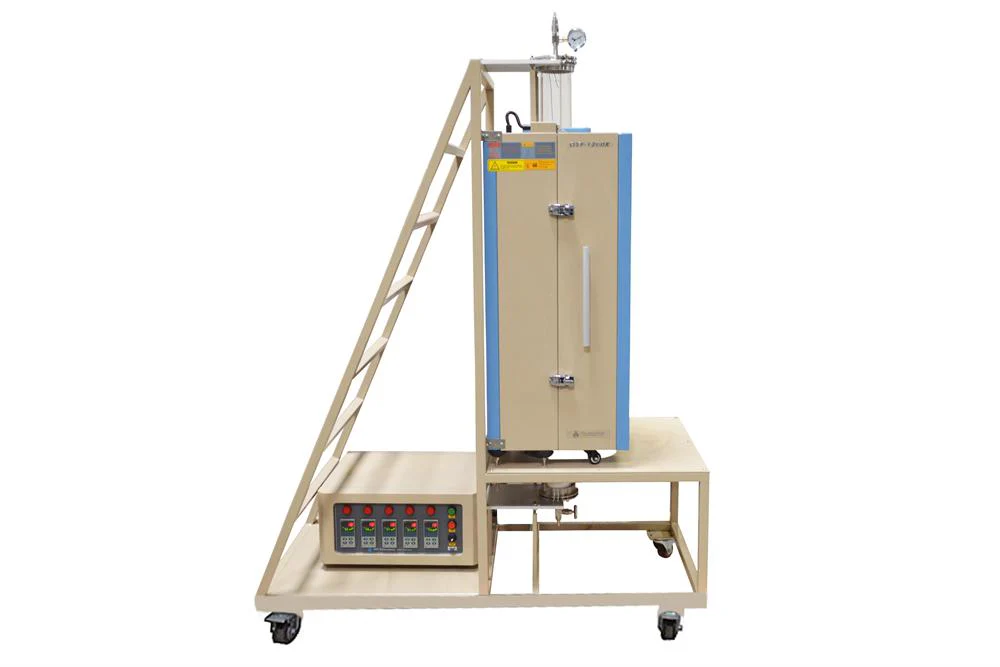

OTF-1200X-VT-V-100 is a five-zone split Vertical Tube Furnace with a vacuum-sealed 100mm (4")  diameter quartz tube, which can achieve faster sample heating and quenching under vacuum or flowing gas. Precision temperature controller can provide 30 heating and cooling segments with +/- 1 oC accuracy. It is an idea furnace for making quenching tests and nano-powder

SPECIFICATIONS

 Furnace Casing  Double layer steel structure with air cooling to keep case temperature > 65oC

Power

 6KW

 Voltage

 AC 208-240V Single Phase, 50/60 Hz

 Max. Temperature

 1200oC < 1 hrs

 Continuous Temperature

 1100oC < continuous

 Max. Heating Rate

 <= 20oC /min

 Tube Size and Materials
  •  OD:100mm ; ID:94mm ; Length: 1400mm
  •  (Quartz tube was included in the standard package)
  • 1, 2" 3", 80mm and 5" tube optional at the same cost

 Heating Zone length
  •  200mm for each single zone
  • 5 x 200mm = 1000 mm in total
 Equal temperature zone
  •  650mm (+/-1oC) if set 5 zone in same temperature

Temperature Controllers
  • MET certified 30 programmable segments for precise control of heating rate, cooling rate and dwell time.
  • Built in PID Auto-Tune function with overheating & broken thermocouple broken protection.
  • Over temperature protection and alarm allows for operation without attendant(s).
  • +/- 1 ºC temperature accuracy.
  • Five K-type thermocouples (one for each zone).
  • RS485 Communications Port.


Laptop, software & WiFi Control(Optional)
  • Brand new laptop with Microsoft Window 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
  • Labview Based Temperature Control System (MTS01)enables user to edit temperature profile, manage heat-treatment recipe, record and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters operating range.
  • Above features are available upon request at an extra cost (up to $1,000). Please contact us for more information.

  • Note:
    The software is only compatible with MTI’s Yudian Temperature Controller
 Vacuum Seal
  • Two stainless steel flanges with vacuum gauge and valves included
  • A hook ring is welded inside of the top flange for hanging sample or crucible by wire
 Fitting Ports
  • Standard 1/4‘’ Barbed fittings with needle valves.
  • For supplying high-pressure gas, you may replace the standard barbed hose fitting with the 304SS 1/4" Swagelok® Tube Fitting, please click underlined to order.
  • Optional: In order to increase the throughput and achieve high vacuum, you may replace the standard barbed hose fitting with the KF25 adapter, please click the underlined to order.
  • Optional: You may also consider using the parts in below to increase the vacuum efficiency
    • Please click here to order digital vacuum gauge for precision vacuum control up to 10-4 torr (see picture below and click to enlarge)
    • You may click here to order flow-meter and install in tube flange (see picture below)
    • KF25 Stainless steel Bellows
    • KF25 Quick Clamps

 Vacuum Level

 0.1torr (depends on the vacuum pump)

 Heating Element

 Fe-Cr-Al Alloy doped by Mo

 Compliance
  • CE Certified
  • All electric components ( >24V) are UL / MET / CSA certified
  • The furnace is ready to pass TUV(UL61010) or CSA certification at extra cost. （ please click marks below to learn details )

Application Notes

Click here to learn the installation of a gas regulator
  • In order to obtain accurate temperature inside tube furnace, you shall calibrate temperature before use, please click here to learn how.
  • Warning: The tube furnaces with quartz tube are designed for using under vacuum and low pressure <0.2 bars / 3 psi / 0.02 MPa
  • The flow rate for gasses should be limited to<200 SCCM (or 200ml/min) for reducing thermal shocks to the tube
  • Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator.
  • Vacuum limit definition for all quartz tube furnaces: * Vacuum pressures may only be safely used up to 1000°C
