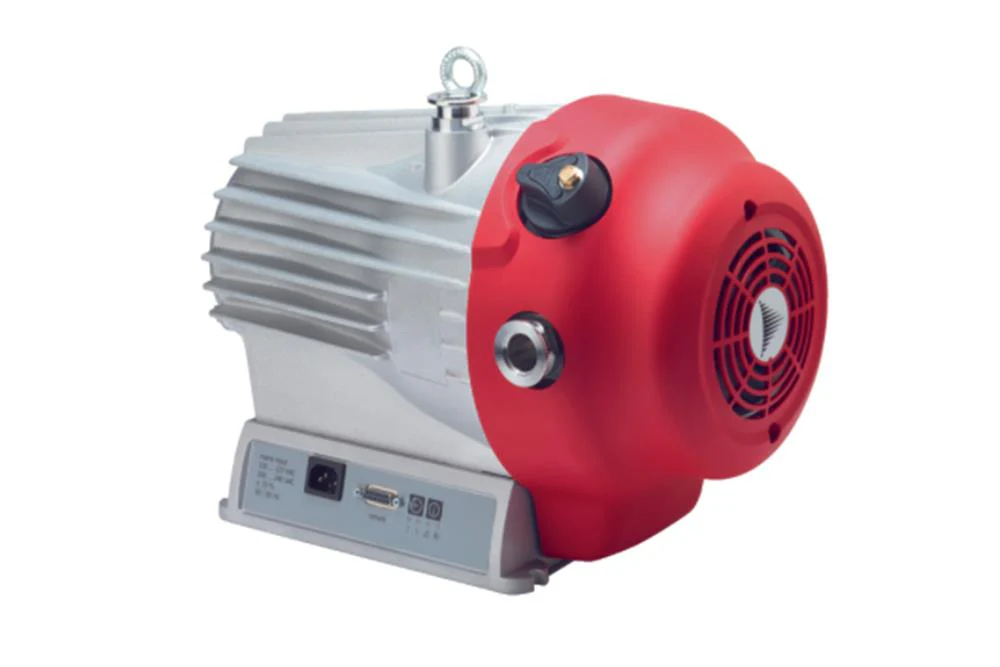

Dry & Oil-Free Scroll Pump Made in Germany, 200 L/min - OFSP12-LD
HomeStore

Dry & Oil-Free Scroll Pump Made in Germany, 200 L/min - OFSP12-LD

Dry & Oil-Free Scroll Pump Made in Germany, 200 L/min - OFSP12-LD



The OFSP12 is a completely dry & oil-free scroll vacuum pump with a 12.1 m³/h pumping speed and is suitable for all voltages worldwide. The pump meets the ATEX to safe operation due to the installed non-return valve and hermetically sealed pumping system. 15% higher efficiency of the drive system, reduced heat generation, and minimum cooling requirements.

SPECIFICATIONS:
Pumping speed 12.1 m³/h
Rated current consumption 100–127V / 200–240V AC
Current  10A Max
Ultimate pressure with gas ballast stage 1  5E-2 mbar
Ultimate pressure with gas ballast stage 2 4E-1 mbar
Ultimate pressure without gas ballast  9E-3 mbar
Features & Structure
  • Completely dry & oil-free Scroll vacuum pump
  • Compact design  and low noise and vibration
  • Safe operation: the installed non-return valve and hermetically sealed pumping system
  • Low operating costs, longer running life, and ideal also for use in laboratories
Working Ambient temperature 5-40 °C;  41-104 °F;
The cooling method Air / Forced convection
Emission sound pressure level  47 dB(A)
Exhaust pressure, max. 1,500 hPa ; 1,125 Torr ; 1,500 mbar
Connection flange (in) KF 25
Connection flange (out) KF 25
Leak rate 5E-7 Pa m³ / s
Rotation speed 624-1,870 rpm
Nominal rotation speed 1,560 rpm
Switch Yes
Temperature: Storage -10-50 °C ; 14-122 °F ; 263-323 K
Temperature: Shipping -25-55 °C ; -13-131 °F ; 248-328 K


Performance
Compliance
cTUVus certified according to UL / CSA 61010-1
Operation Instructions
Warranty One year limited with lifetime support (Attention: Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed below, especially:
  • Pumping of corrosive or explosive media.
  • Pumping of condensing vapors.
  • Pumping of liquids.
  • Pumping of dust.
  • Operation with improper high levels of insulated heat input.
  • Operation in potentially explosive areas.
Dimensions  265mm (L) × 419mm (D) × 322mm (H)
Weight 24 kg ; 52.91 lb




$2,795.10

Original: $7,986.00

-65%
Dry & Oil-Free Scroll Pump Made in Germany, 200 L/min - OFSP12-LD—

$7,986.00

$2,795.10

Dry & Oil-Free Scroll Pump Made in Germany, 200 L/min - OFSP12-LD



The OFSP12 is a completely dry & oil-free scroll vacuum pump with a 12.1 m³/h pumping speed and is suitable for all voltages worldwide. The pump meets the ATEX to safe operation due to the installed non-return valve and hermetically sealed pumping system. 15% higher efficiency of the drive system, reduced heat generation, and minimum cooling requirements.

SPECIFICATIONS:
Pumping speed 12.1 m³/h
Rated current consumption 100–127V / 200–240V AC
Current  10A Max
Ultimate pressure with gas ballast stage 1  5E-2 mbar
Ultimate pressure with gas ballast stage 2 4E-1 mbar
Ultimate pressure without gas ballast  9E-3 mbar
Features & Structure
  • Completely dry & oil-free Scroll vacuum pump
  • Compact design  and low noise and vibration
  • Safe operation: the installed non-return valve and hermetically sealed pumping system
  • Low operating costs, longer running life, and ideal also for use in laboratories
Working Ambient temperature 5-40 °C;  41-104 °F;
The cooling method Air / Forced convection
Emission sound pressure level  47 dB(A)
Exhaust pressure, max. 1,500 hPa ; 1,125 Torr ; 1,500 mbar
Connection flange (in) KF 25
Connection flange (out) KF 25
Leak rate 5E-7 Pa m³ / s
Rotation speed 624-1,870 rpm
Nominal rotation speed 1,560 rpm
Switch Yes
Temperature: Storage -10-50 °C ; 14-122 °F ; 263-323 K
Temperature: Shipping -25-55 °C ; -13-131 °F ; 248-328 K


Performance
Compliance
cTUVus certified according to UL / CSA 61010-1
Operation Instructions
Warranty One year limited with lifetime support (Attention: Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed below, especially:
  • Pumping of corrosive or explosive media.
  • Pumping of condensing vapors.
  • Pumping of liquids.
  • Pumping of dust.
  • Operation with improper high levels of insulated heat input.
  • Operation in potentially explosive areas.
Dimensions  265mm (L) × 419mm (D) × 322mm (H)
Weight 24 kg ; 52.91 lb




Product Information

Shipping & Returns

Description



The OFSP12 is a completely dry & oil-free scroll vacuum pump with a 12.1 m³/h pumping speed and is suitable for all voltages worldwide. The pump meets the ATEX to safe operation due to the installed non-return valve and hermetically sealed pumping system. 15% higher efficiency of the drive system, reduced heat generation, and minimum cooling requirements.

SPECIFICATIONS:
Pumping speed 12.1 m³/h
Rated current consumption 100–127V / 200–240V AC
Current  10A Max
Ultimate pressure with gas ballast stage 1  5E-2 mbar
Ultimate pressure with gas ballast stage 2 4E-1 mbar
Ultimate pressure without gas ballast  9E-3 mbar
Features & Structure
  • Completely dry & oil-free Scroll vacuum pump
  • Compact design  and low noise and vibration
  • Safe operation: the installed non-return valve and hermetically sealed pumping system
  • Low operating costs, longer running life, and ideal also for use in laboratories
Working Ambient temperature 5-40 °C;  41-104 °F;
The cooling method Air / Forced convection
Emission sound pressure level  47 dB(A)
Exhaust pressure, max. 1,500 hPa ; 1,125 Torr ; 1,500 mbar
Connection flange (in) KF 25
Connection flange (out) KF 25
Leak rate 5E-7 Pa m³ / s
Rotation speed 624-1,870 rpm
Nominal rotation speed 1,560 rpm
Switch Yes
Temperature: Storage -10-50 °C ; 14-122 °F ; 263-323 K
Temperature: Shipping -25-55 °C ; -13-131 °F ; 248-328 K


Performance
Compliance
cTUVus certified according to UL / CSA 61010-1
Operation Instructions
Warranty One year limited with lifetime support (Attention: Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed below, especially:
  • Pumping of corrosive or explosive media.
  • Pumping of condensing vapors.
  • Pumping of liquids.
  • Pumping of dust.
  • Operation with improper high levels of insulated heat input.
  • Operation in potentially explosive areas.
Dimensions  265mm (L) × 419mm (D) × 322mm (H)
Weight 24 kg ; 52.91 lb
