Hydraulic Sealing Machine for 46 mm x L 80 - 120 mm ( 4680, 46100 or 46120 cell) Cylindrical Cases & Option for 50100 - MSK-510L
HomeStore

Hydraulic Sealing Machine for 46 mm x L 80 - 120 mm ( 4680, 46100 or 46120 cell) Cylindrical Cases & Option for 50100 - MSK-510L

Hydraulic Sealing Machine for 46 mm x L 80 - 120 mm ( 4680, 46100 or 46120 cell) Cylindrical Cases & Option for 50100 - MSK-510L

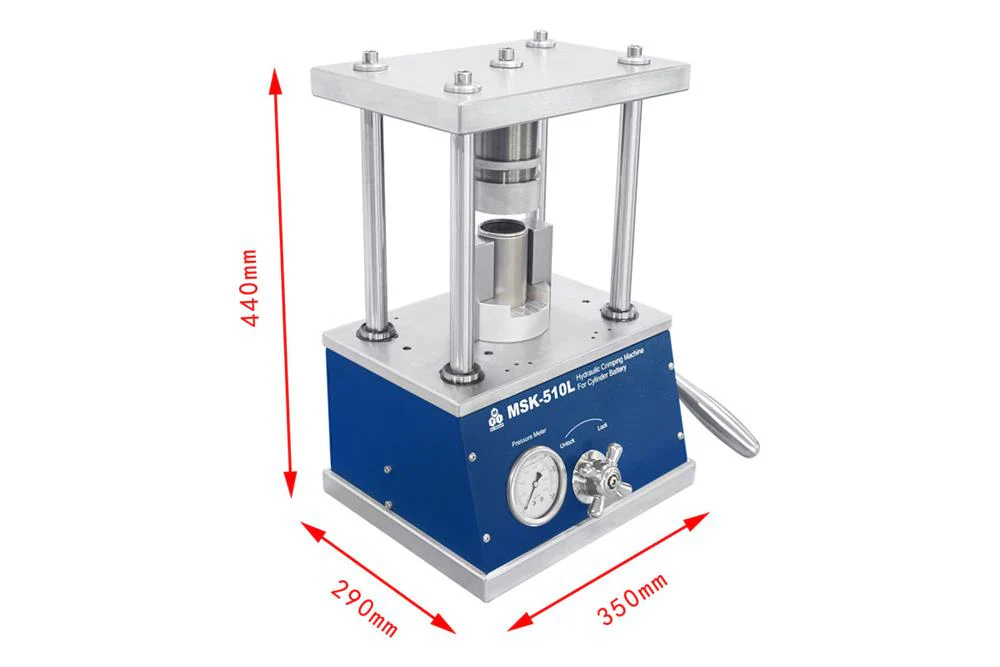

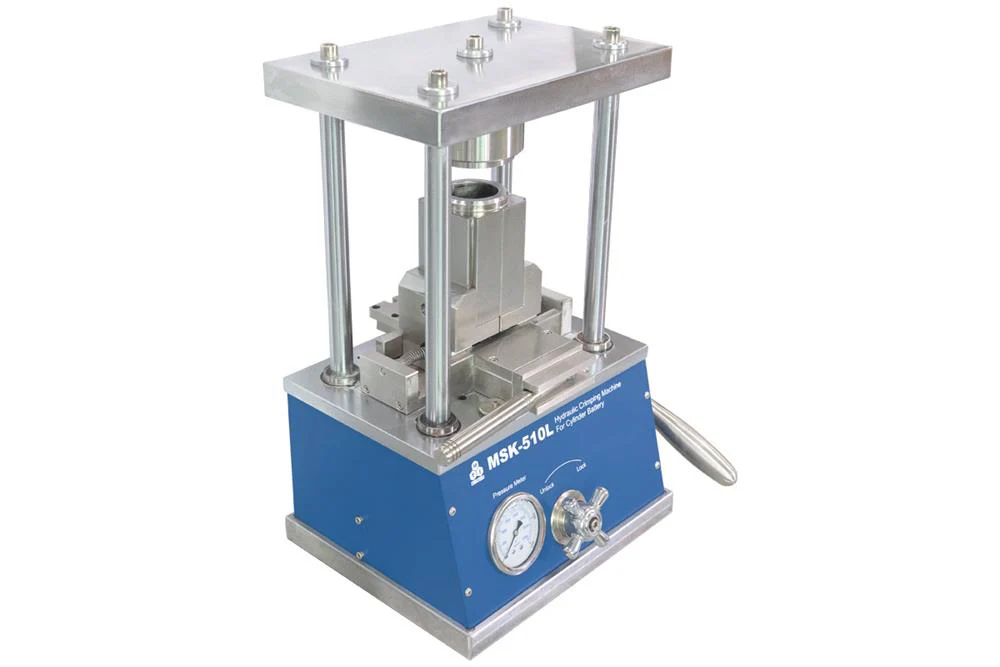

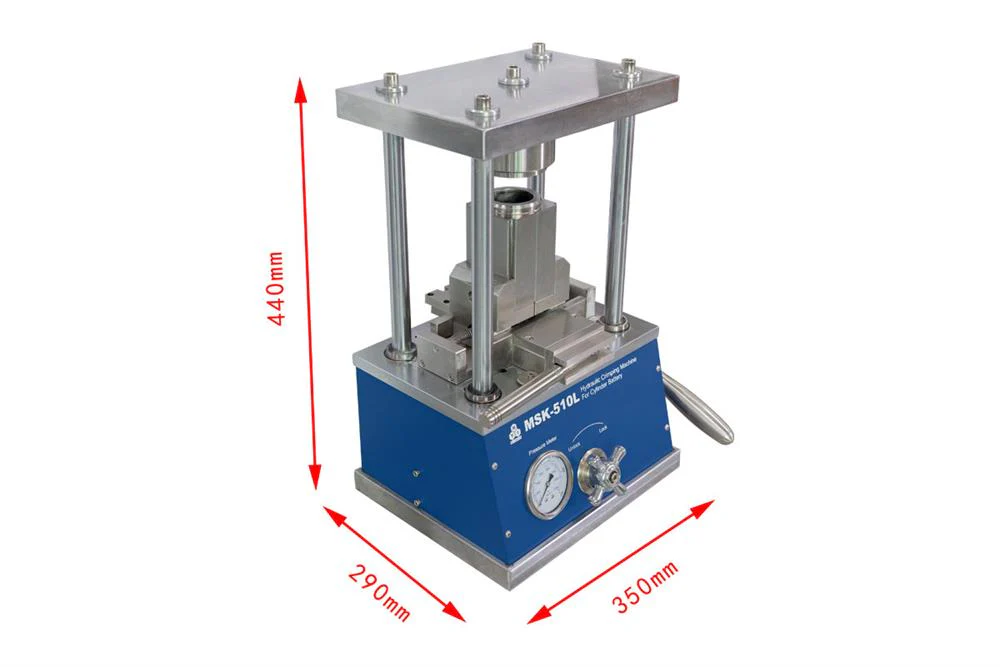

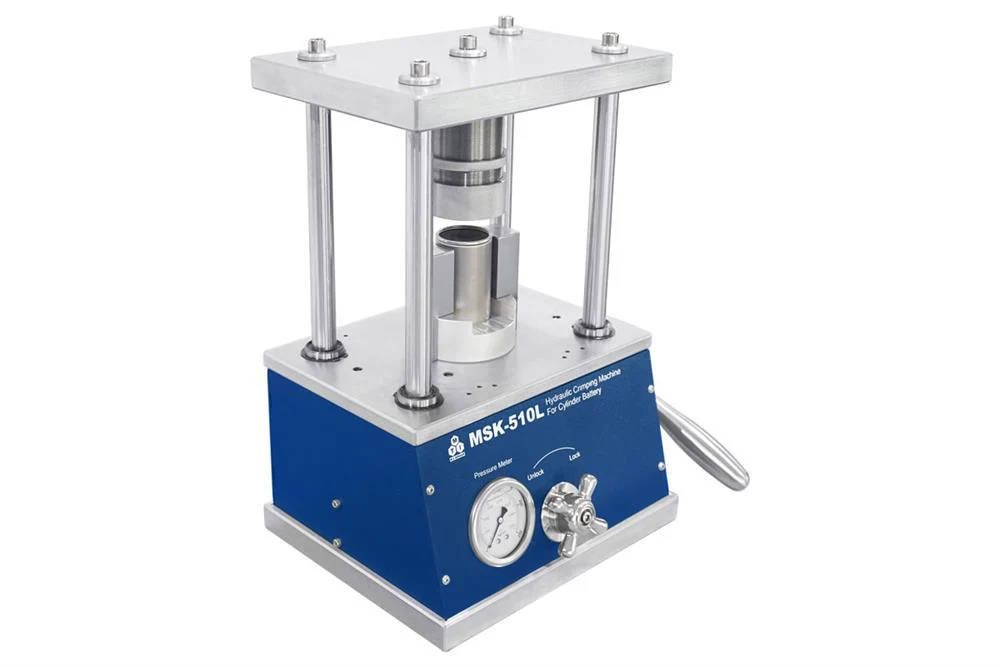

MSK-510L is one set (2 units) of hydraulic crimpers for sealing a large diameter of the cylindrical cell, such as 4680, 4695, 46100, 46120, and 50100. Two sealing machines are included for three times sealing.

Video: How Tesla make 4680 cell

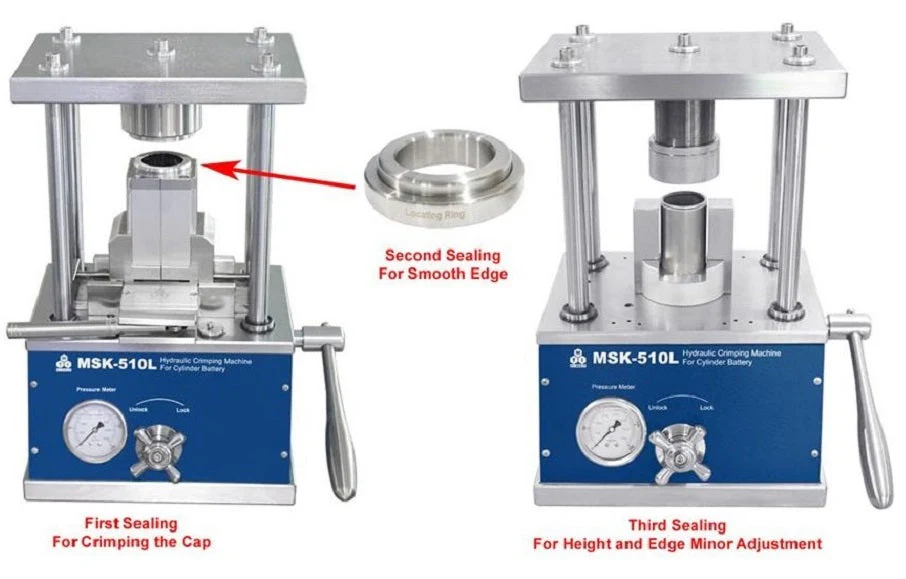

The first crimping machine is used for the cap crimping and smooth edges
The second crimping machine is used for height and edge adjustment, which will make perfect sealing for cylindrical cells.
The compact design allows it to be easily placed inside a glove box and thus preventing contamination of the electrolyte materials during cell assembly.
Simple operation with a safety protection feature allows customers to master the sealing procedure within 5 minutes.

SPECIFICATIONS:

Sealing Process
  • First Sealing Procedure Second Sealing Procedure Third Sealing Procedure
Driving Force
  • Manual hydraulic pressingup to 5T
Crimping Pressure
  • 80 kg/cm^2 - 1,000 kg/cm^2 Adjustable
Crimping Die Set
  • Hardness >= HRC 58
  • Material: SUS 304
  • Standard Crimping Die for 50100 Cylindrical Battery
  • You order a customized for Dia. 46 mm x L 80 - 120 mm ( 4680, 4610 or 46120 cell)
Maximum Crimping Distance
  • 40 mm
Optional
  • Please click the link below to order 4680 case and cap
Compliance
  • CE certified
  • NRTL certification is not required because of no electricity
  • Patten Number: ZL-2011-2-0463653.7
Application Notes
  • It is necessary to groove the opening end of the cylindrical case by using the MSK-500L grooving machine before sealing the cap
  • Each type of cylinder cell can only be sealed specifically by a certain model of this equipment. Please select the type of cylinder cell in the Product Options drop box to check the model number and price for the corresponding crimping die of each cylinder cell type.
