Heating Sealer for Sealing Laminated Aluminum Case of Pouch Cells Optional up to 370mm Width - MSK-140 & MSK-140L
HomeStore

Heating Sealer for Sealing Laminated Aluminum Case of Pouch Cells Optional up to 370mm Width - MSK-140 & MSK-140L

Heating Sealer for Sealing Laminated Aluminum Case of Pouch Cells Optional up to 370mm Width - MSK-140 & MSK-140L

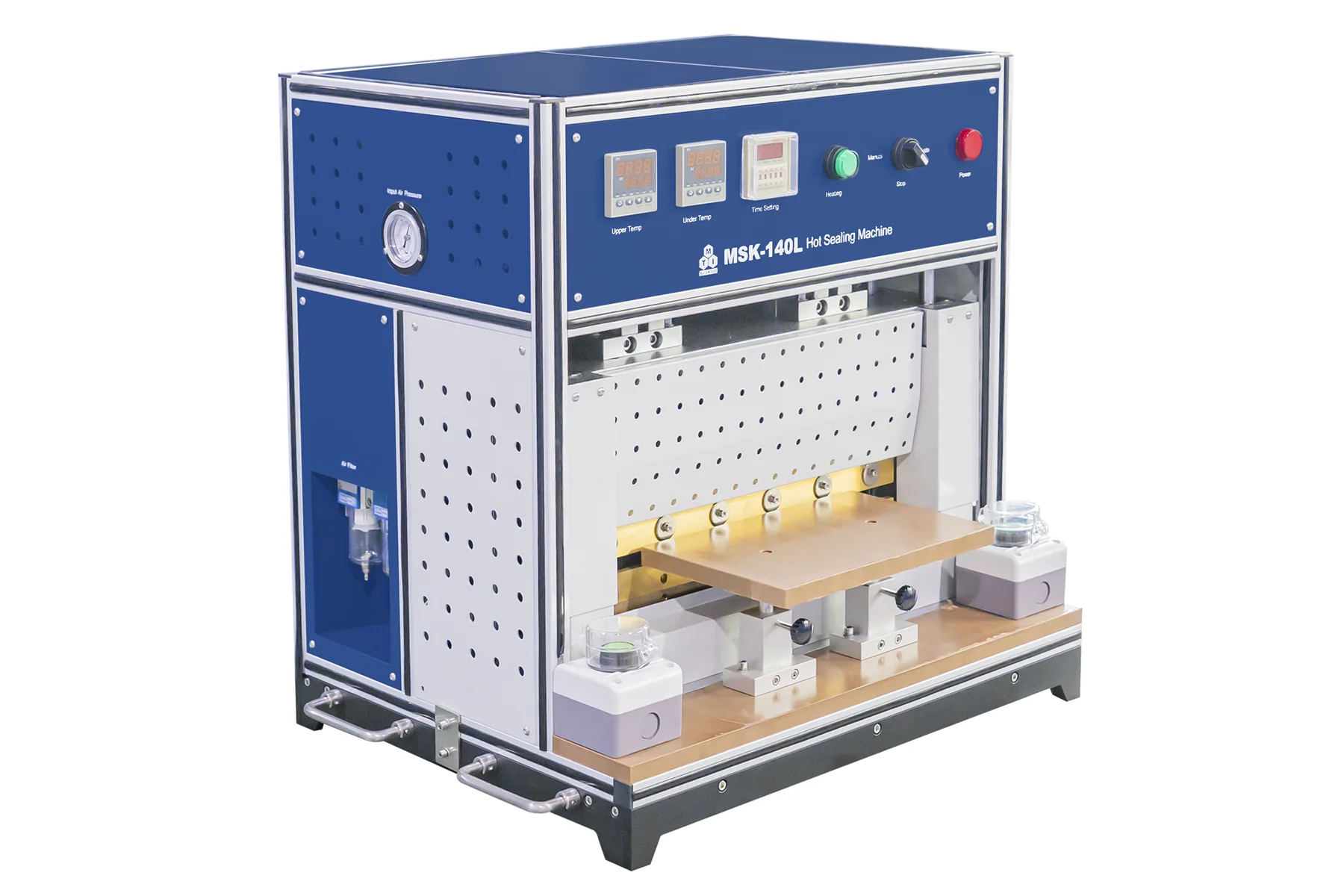

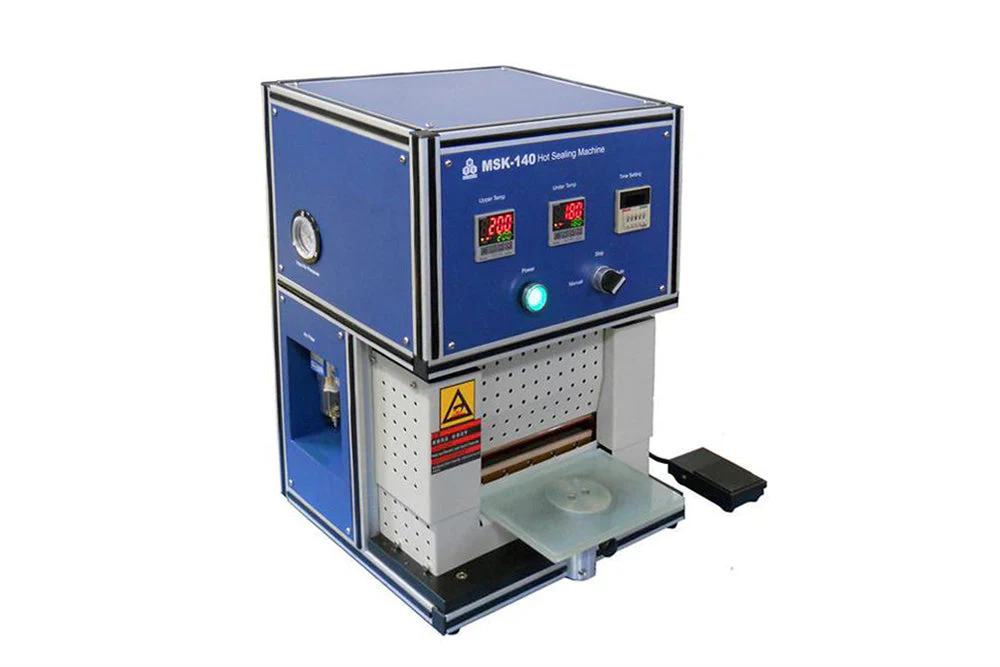

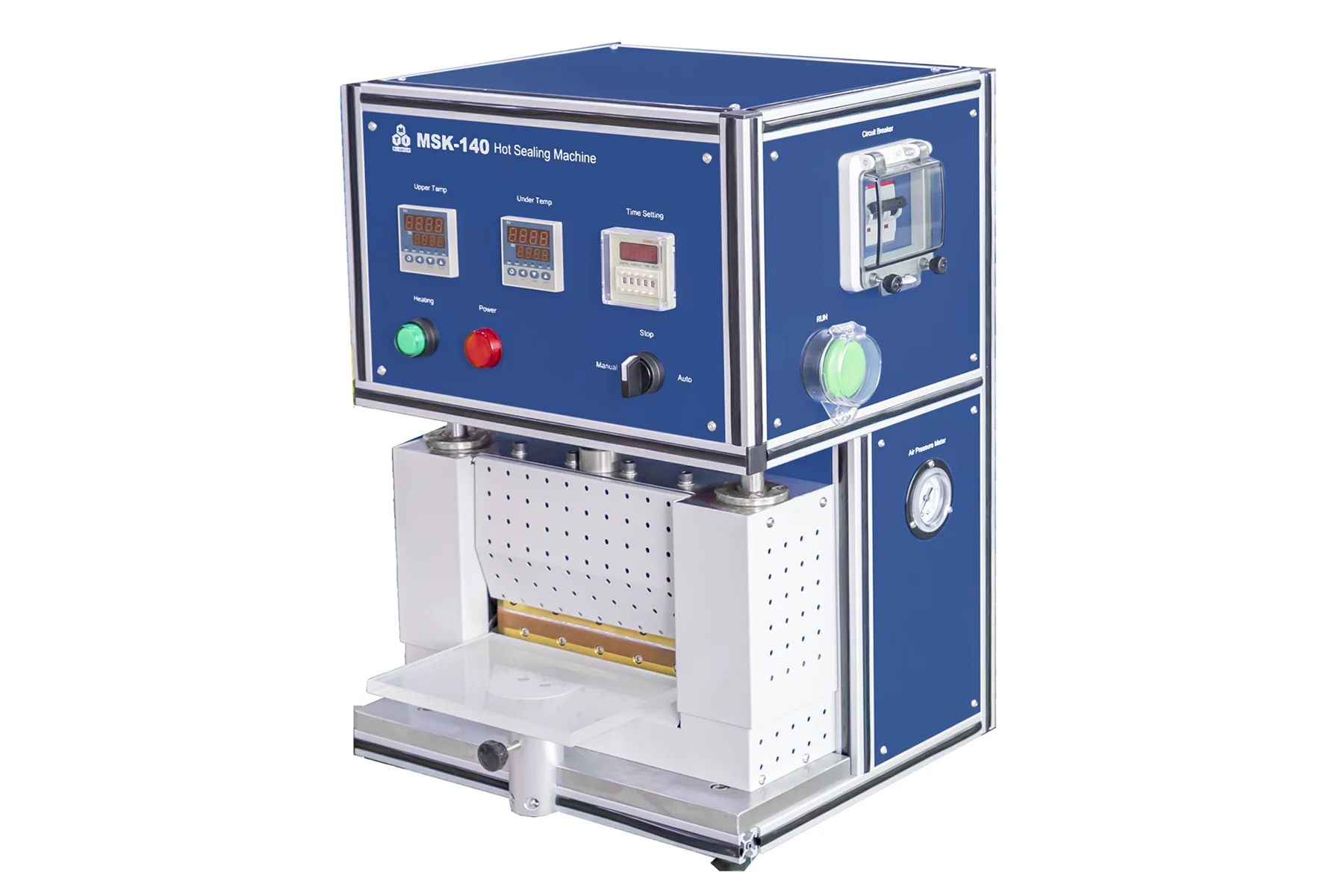

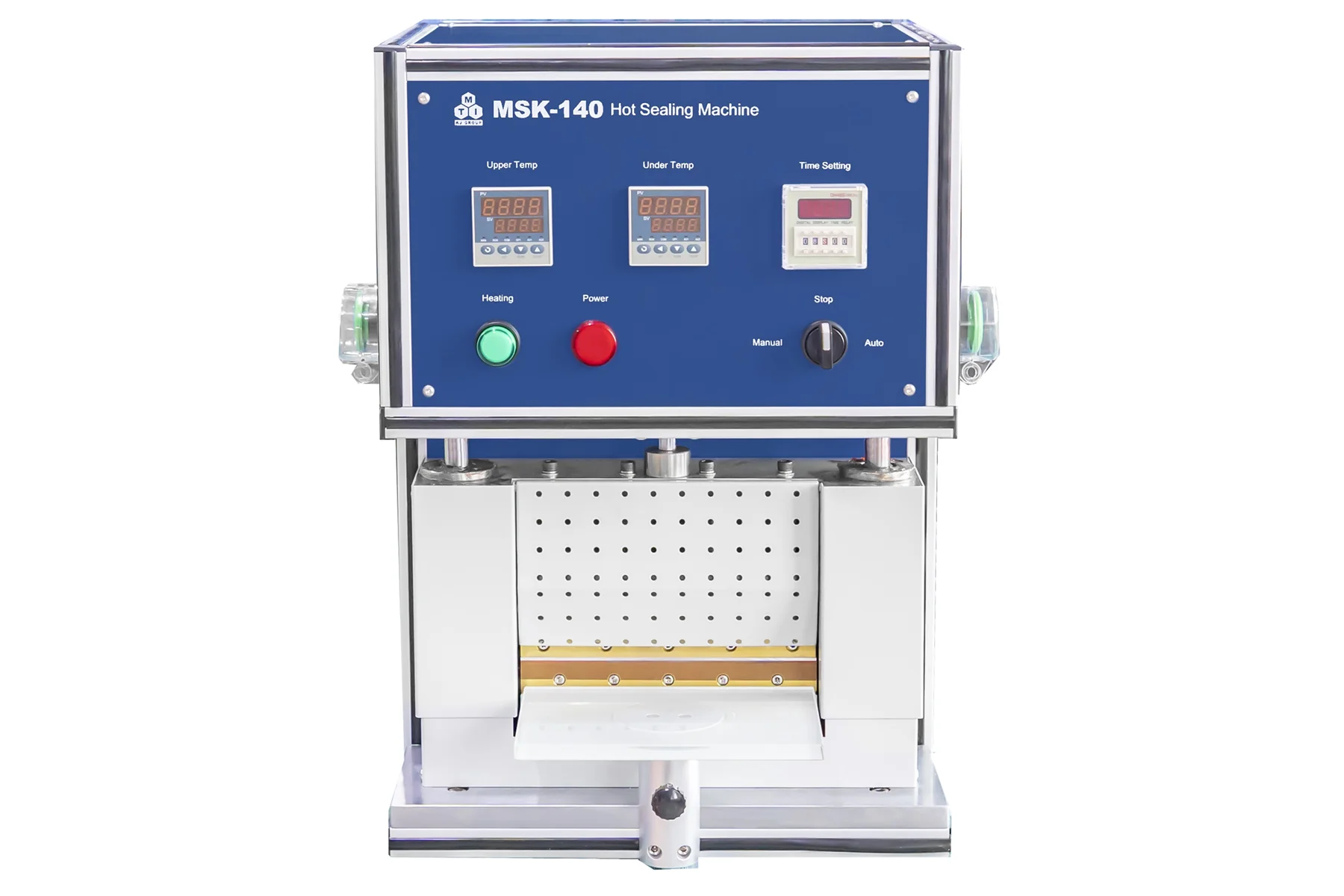

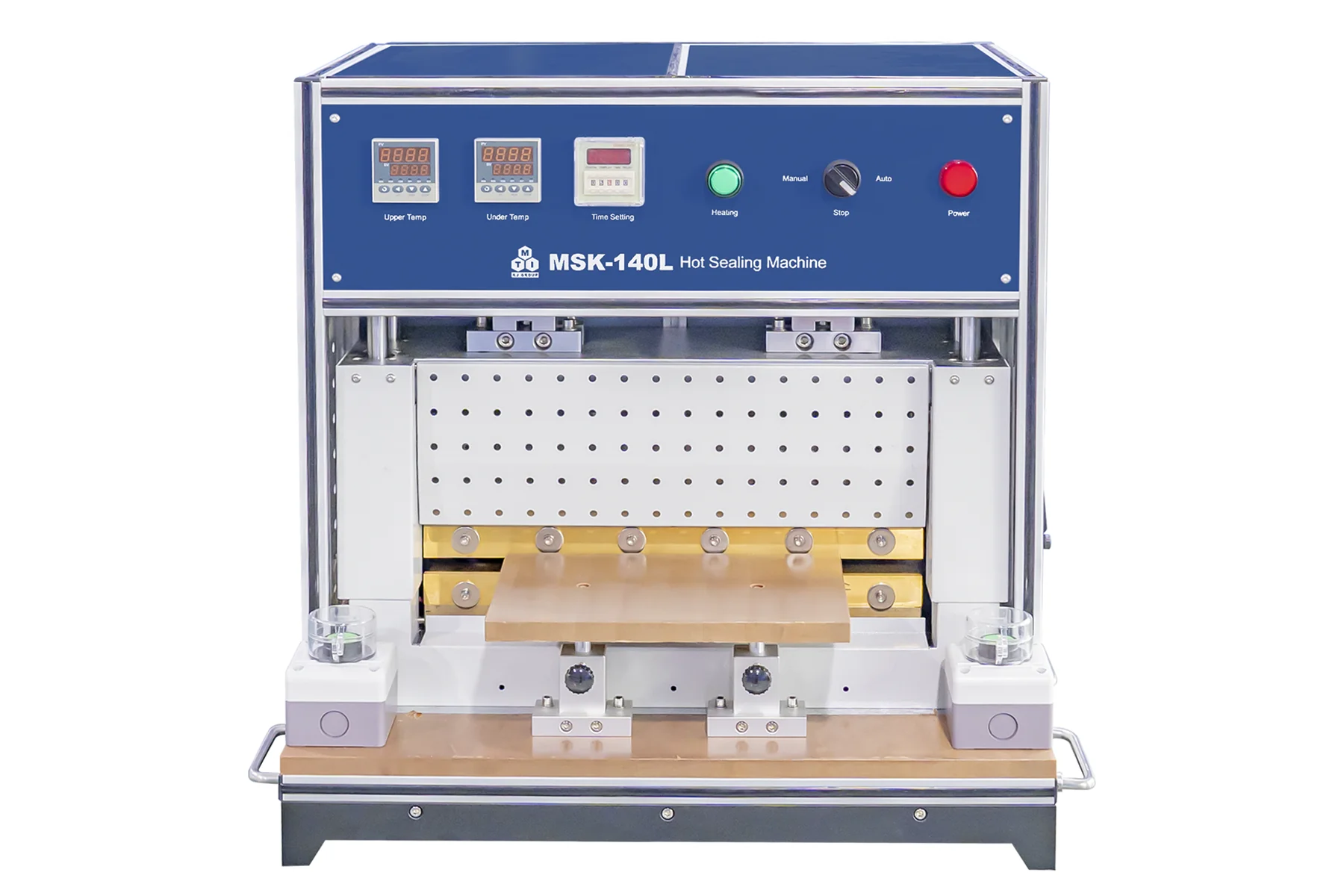

MSK-140 (upgraded from MSK-113A) is a CE Certified compact heating sealer for sealing aluminum-laminated films during pouch cell case preparation. It is used for sealing the side and top of the pouch cell with the tab before injecting electrolyte at the outside of glove box. A new version MSK-140L with a large working area is available now!

SPECIFICATIONS:
Model
 MSK-140
 MSK-140L
Power Supply 110/220V 50/60Hz Single Phase (Please select in options bar) 100V or 220V 50/60Hz
Sealing Length 190 mm Max. 370mm Max.
Sealing Width 3.2 mm (Can be customized up to 8mm upon request with an extra charge of $1000) 6 mm (Can be customized up to 10mm upon request with an extra charge of $1000)
Max. Power 900W 1200W
Seal Thickness 0 - 0.5 mm
Die Opening 25mm *(140mm back clearance)
Cell Fixture

The cell fixture is included.


Sealing Pressure

  • 0 - 0.7 MPa (0 - 99 psi) adjustable
  • Air compressor tube size is 8.
  • (An air compressor is required, but not included. pls order at your store or the related product below )
  • Note: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
Sealing Temperature 50 - 250 °C adjustable with controlling accuracy +/-2 °C [However, the suggested temperature for top and bottom blade is 200°C and 180°C, respectively]
Sealing Blade Type Soft sealing blade (blade with rubber, good for Al case sealing and case with tab in between)
Air Consumption 0.09 L / Sealing
Heating Timer 0 - 99 Seconds Adjustable
Certification CE Certified
NRTL or CSA certification is available upon request at the extra cost.
Warranty One Year limited warranty with lifetime support
Operation Manual & Video


Application Notes

Please click the images to see how it fits in a glove box.
  • Suggested Sealing Parameter:
    • Upper Heating Blade Temperature: 200°C
    • Lower Heating Blade Temperature: 180°C
    • Pressure: 40 psi
    • Duration: 3 seconds
  • Please wait until both dies reached the Setting temperature, then begin to operate.
  • The compact design enables the operation inside the glove box with Ar atmosphere where Lithium-Sulfur, Lithium Air, Lithium Solid-State, or Li-ion half cell will be assembled.
Sealing Die Tape
 Please click here to order our sealing die tape for repair/spare use.
Product Dimensions 320mm(L) x 320mm(W) x 485mm(H) 550mm(L) x 350mm(W) x 523mm(H)
Net Weight 70 lbs 200 lbs
Shipping Weight
& Dimension		 120 lbs 275 lbs
48" x 40" x 36"


Select Model&Power Input
From $4,998.00
