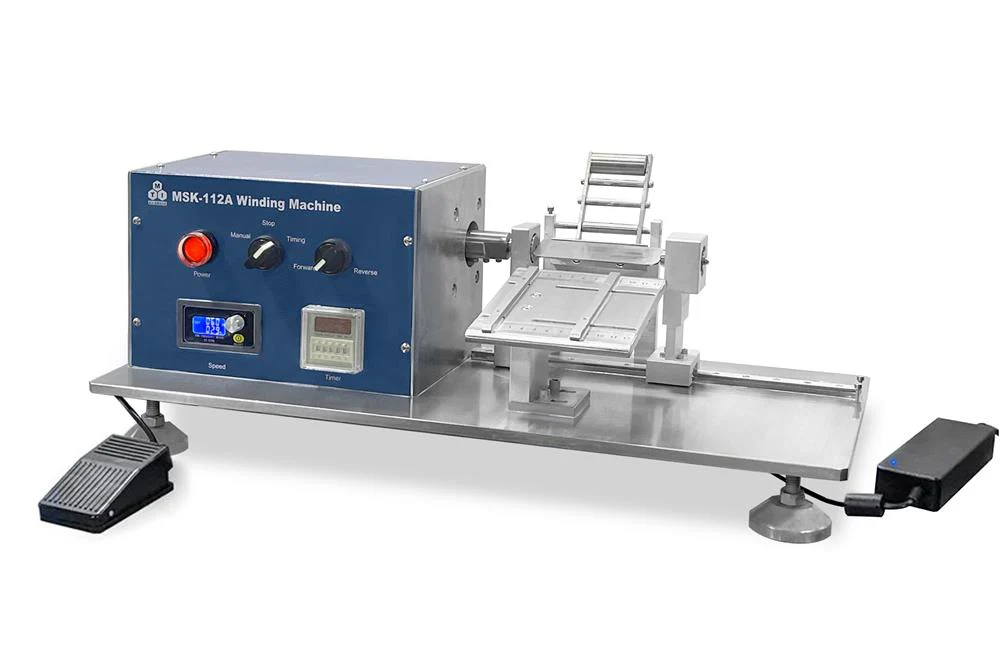

Manual Winding Machine for Electrodes of Pouch Cell - MSK112A-P
HomeStore

Manual Winding Machine for Electrodes of Pouch Cell - MSK112A-P

Manual Winding Machine for Electrodes of Pouch Cell - MSK112A-P

MSK-112A-P is aĀ CE Certified semi-automatic winder for winding electrodes and separators together in the research of Li-ion pouch batteries.

SPECIFICATIONS:

Winding Speed
  • 0-250 RPM Adjustable
Winding Blade
  • Dimensions: 110 mm(L) x 43mm(W), specially designed for winding pouch cells
  • The winding width depends on the width of the winding blade. Customized width and length is available upon request at the extra cost
  • Ā  Ā  Ā  Ā  Ā Ā
Voltage
  • Power input for the winding machine: 24VDC
  • 100 - 240VAC (50/60Hz) to 24VDC NRTL certified power adapter is included for worldwide use
Power
  • 25W
Winding mode
  • Switchable between clockwise and counterclockwise
Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at the extra cost
Application Notes

1.Ā If you need a machine for pouch cells only, please choose option 1 from the Personalization above
2. If you need a machine for both cylinder cells and pouch cells, please choose option 2 from Personalization above. (Please click the pictures below for cylinder cell winding blade)
3. You may also chooseĀ MSK-112A-CĀ for cylindrical battery core winding


STANDARD PACKAGE:

Item Description Qty
1 Winding machine (main machine) with two control pedals and power cord 1
2 43mm width winding flat center plate 1 sets
$3,798.00
Manual Winding Machine for Electrodes of Pouch Cell - MSK112A-Pā€”
$3,798.00

More Images

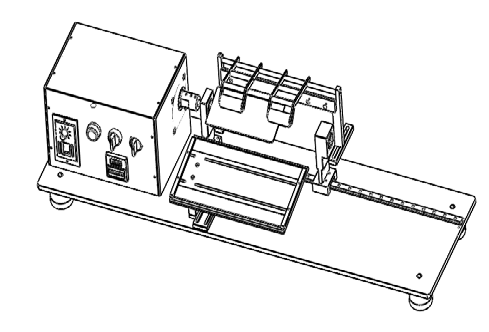

Manual Winding Machine for Electrodes of Pouch Cell - MSK112A-P - Image 2

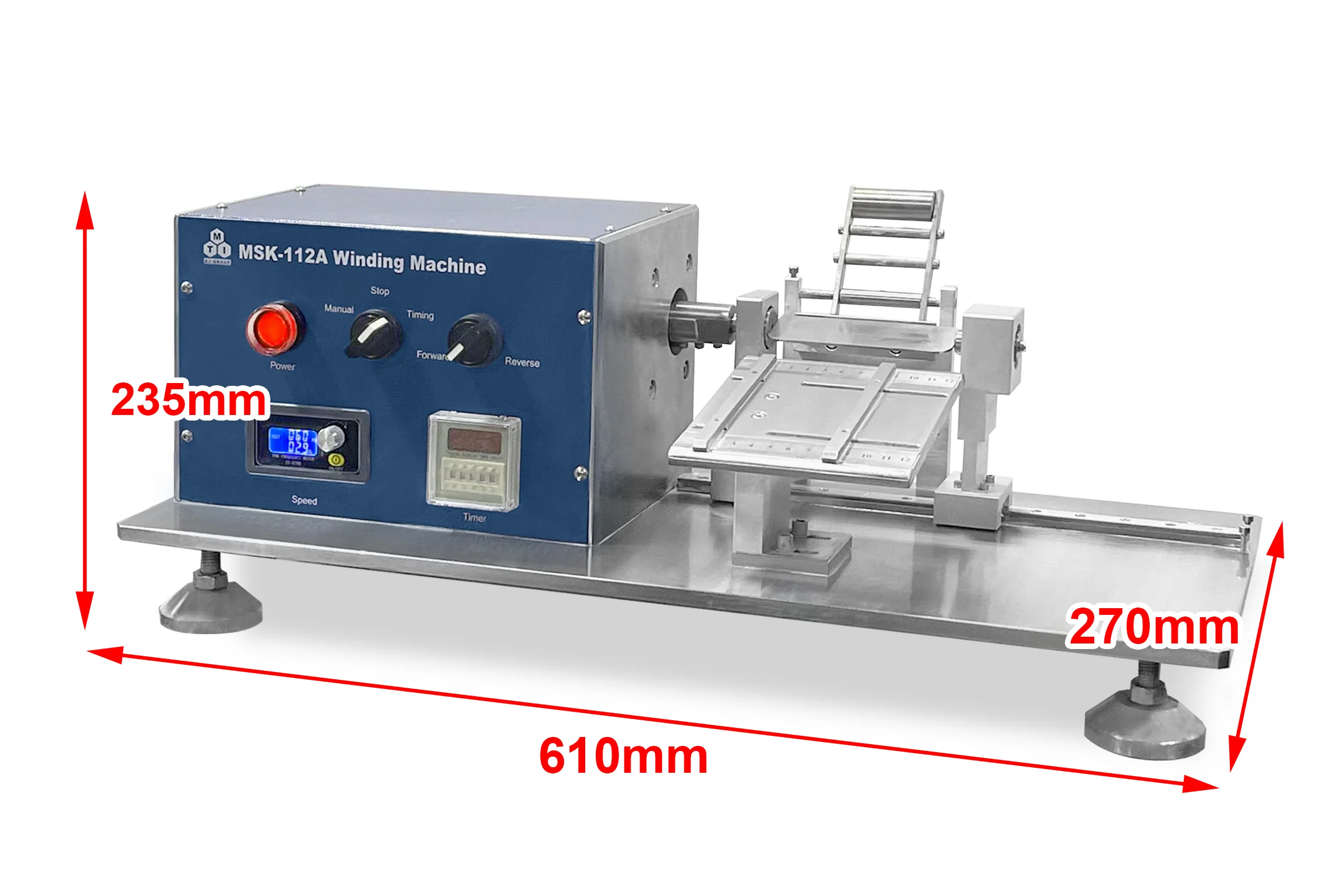

Manual Winding Machine for Electrodes of Pouch Cell - MSK112A-P - Image 3
