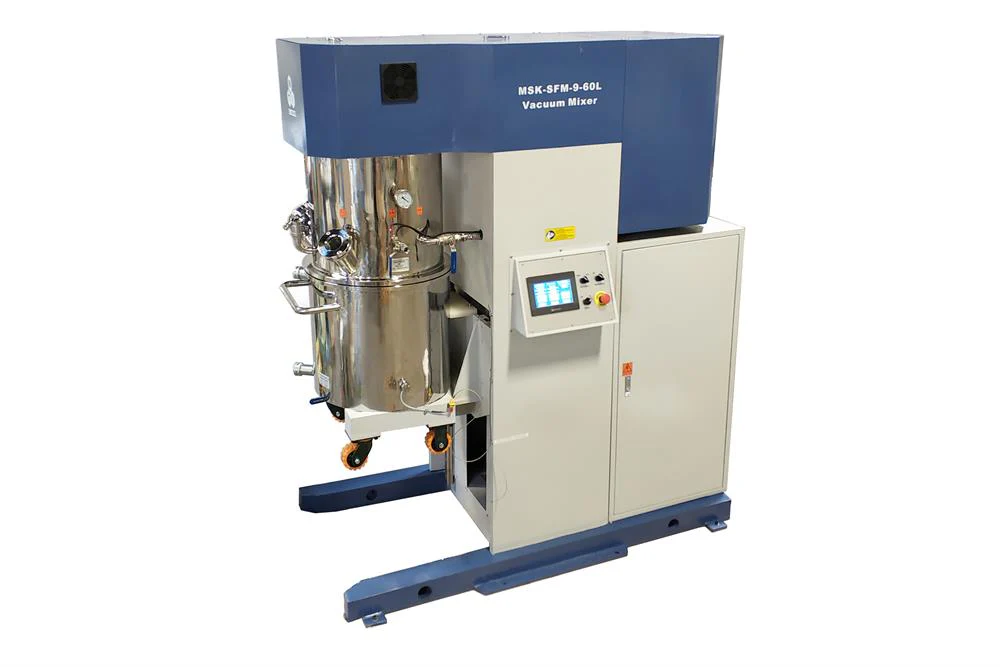

60L or 200L Planetary Vacuum Mixer with Vacuum Pump and Water Chiller - MSK-SFM-60L
HomeStore

60L or 200L Planetary Vacuum Mixer with Vacuum Pump and Water Chiller - MSK-SFM-60L

60L or 200L Planetary Vacuum Mixer with Vacuum Pump and Water Chiller - MSK-SFM-60L

MSK-SFM-60L is a large Vacuum Planetary Mixer with an effective 60-liter container, MSK-SFM-200L with a 200-liter container. The vacuum mixer produces multi-movements during stirring, including, revolution and rotation, double stirring shafts, single scattered shafts & scraping the walls to make slurry gas-bubble free and with extreme uniformity under vacuum. A temperature-controlled liquid chiller is included to liquid cool the stainless steel mixing tank for high efficiency in mixing. It is excellent for preparing LiCoO3, LiFePO4, phosphors, and ceramic slurry with excellent results in dispersion and uniformity.

SPECIFICATIONS
Model MSK-SFM-60L MSK-SFM-200L

Power Input
  • 220VAC+/- 10% 50/60Hz, Three-phases
  • 460 or 380VAC is available via a transformer
  • Total power: 16 kW
  • The power plug is not included.
  • AC380V+/- 10%, 50Hz, Three-phases
  • 460 is available upon request
  • Total power: 45kW
  • The power plug is not included.
Speeds
  • Stirring speed: 0 - 80 rpm, motor: 6.3 kW
  • Dispersing speed: 0 - 3400 rpm, motor: 7.5 kW
  • Stirring speed: 0 - 42 rpm
  • Dispersing speed: 0 - 2400 rpm
Viscosity
  • 1k - 100k mPa.s
  • 1k - 100k mPa.s
Mixing Barrel
Optional: 100 L mixing container is available upon request.
  • Material: SS304
  • Dimensions: Dia.500mm x H.450mm
  • Nominal Capacity: 88 Liter
  • Effective Capacity: 60 Liter
  • Water cooling jacket
  • Temperature monitor and over-temperature alarm
  • Material: SS304
  • Dimensions: Ø 750mm I.D. x 650mm Inside Depth
  • Nominal Capacity: 287 Liter
  • Effective Capacity: 200 Liter
  • Water cooling jacket
  • Temperature monitor and over-temperature alarm
Mixing Blades
  • Two mixing shafts
  • Two dispersing shafts
  • One Spatula
  • Clearance between blades and bottom: 2-4 mm
  • Clearance between blades and barrel wall: 2-5mm
  • Clearance between two blades: 3-8mm
  • Made of SS304
  • Two mixing shafts
  • Two dispersing shafts
  • One Spatula
  • Clearance between blades and bottom: 2-4 mm
  • Clearance between blades and barrel wall: 3-9mm
  • Clearance between two blades: 5-10mm
  • Made of SS304
Lift Motor
  • Lifting Motor is a built-in (750W)
  • Lifting Motor is a built-in (3kW)
Vacuum
  • The heavy-duty double-stage vacuum pump: included
  • The vacuum level: -0.098MPa
  • Power: 750 W



Water Recirculating Chiller


  • One Digital Temperature Controlled Recirculating Water Chiller with 6 Liters Tank, 16L / min Flow - KJ5000 is included
  • Recirculating oil heater is available as an option for heated mixing or CO2 capture of cement slurry up to 300oC


Connected Accessories & Fittings
  • DN100 feed hole
  • Three-piece type ball valve outlet
  • Two DN100 sight glasses
  • One G1/2" vacuum connector with the vacuum pump
  • One G1/2" air outlet
  • One vacuum meter
  • 12mm O.D. water inlet and outlet fittings
Compliance
  • CE Certifi20
  • NRTL certification is available upon request at an extra cost
Operation Instructions



Select Model
From $24,464.30

Original: $69,898.00

-65%
60L or 200L Planetary Vacuum Mixer with Vacuum Pump and Water Chiller - MSK-SFM-60L—

$69,898.00

$24,464.30

More Images

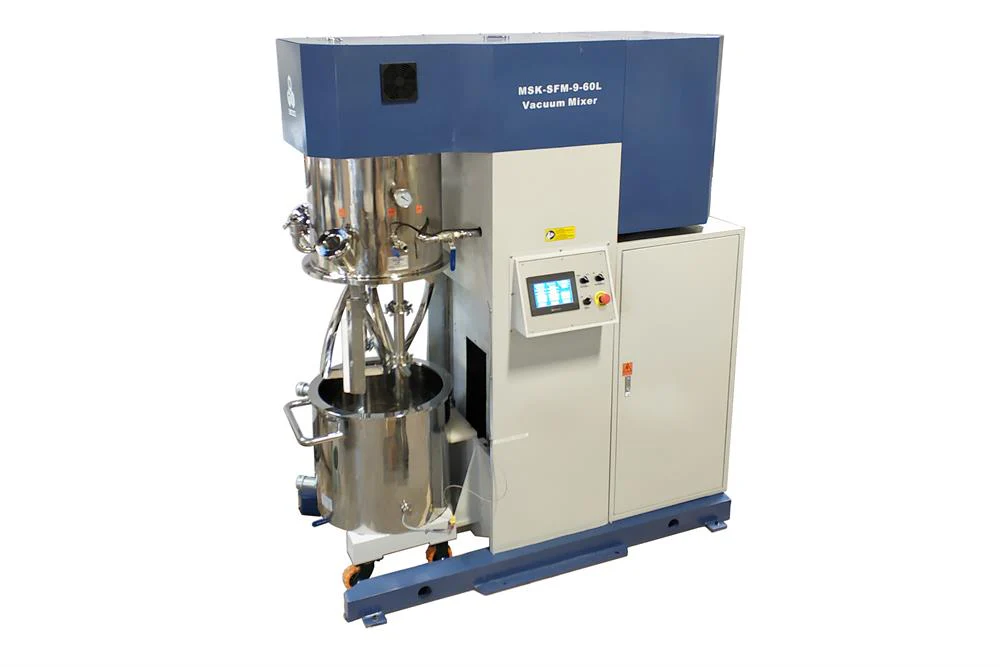

60L or 200L Planetary Vacuum Mixer with Vacuum Pump and Water Chiller - MSK-SFM-60L - Image 2

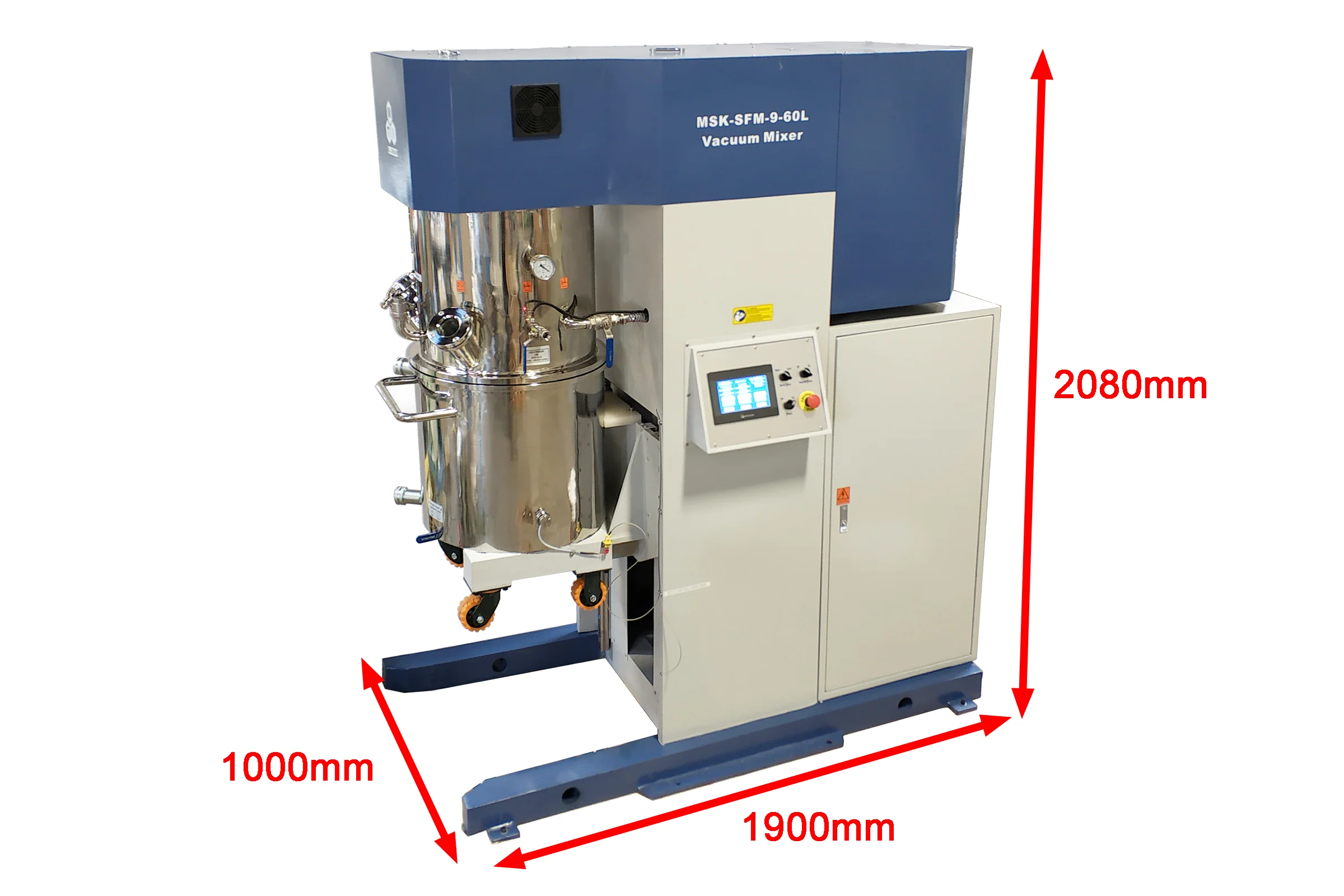

60L or 200L Planetary Vacuum Mixer with Vacuum Pump and Water Chiller - MSK-SFM-60L - Image 3

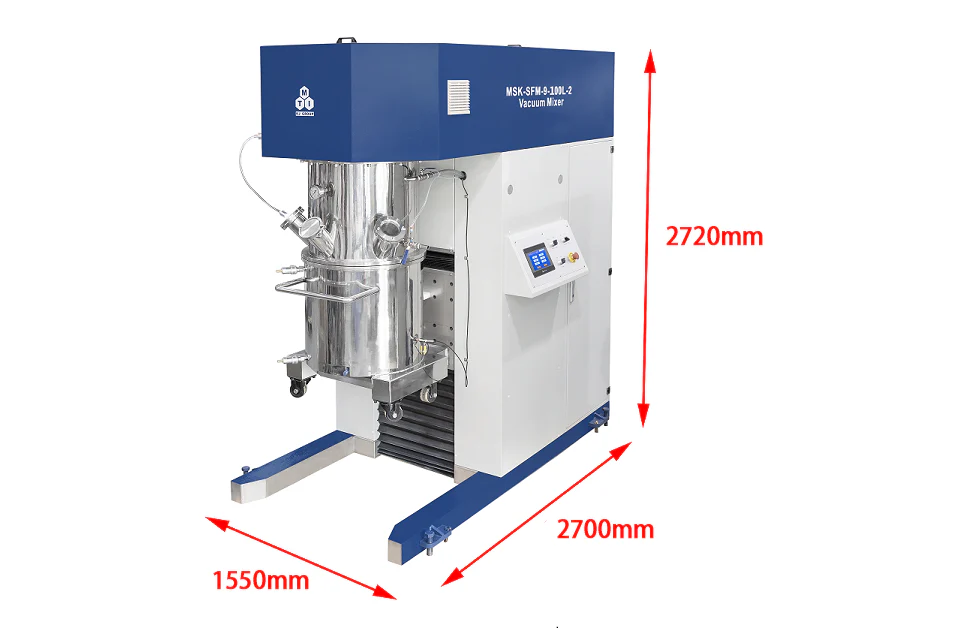

60L or 200L Planetary Vacuum Mixer with Vacuum Pump and Water Chiller - MSK-SFM-60L - Image 4
