Programmable 1500 RPM High Energy Ball Mill (Glovebox compatible) - MSK-SFM-3-F
HomeStore

Programmable 1500 RPM High Energy Ball Mill (Glovebox compatible) - MSK-SFM-3-F

Programmable 1500 RPM High Energy Ball Mill (Glovebox compatible) - MSK-SFM-3-F

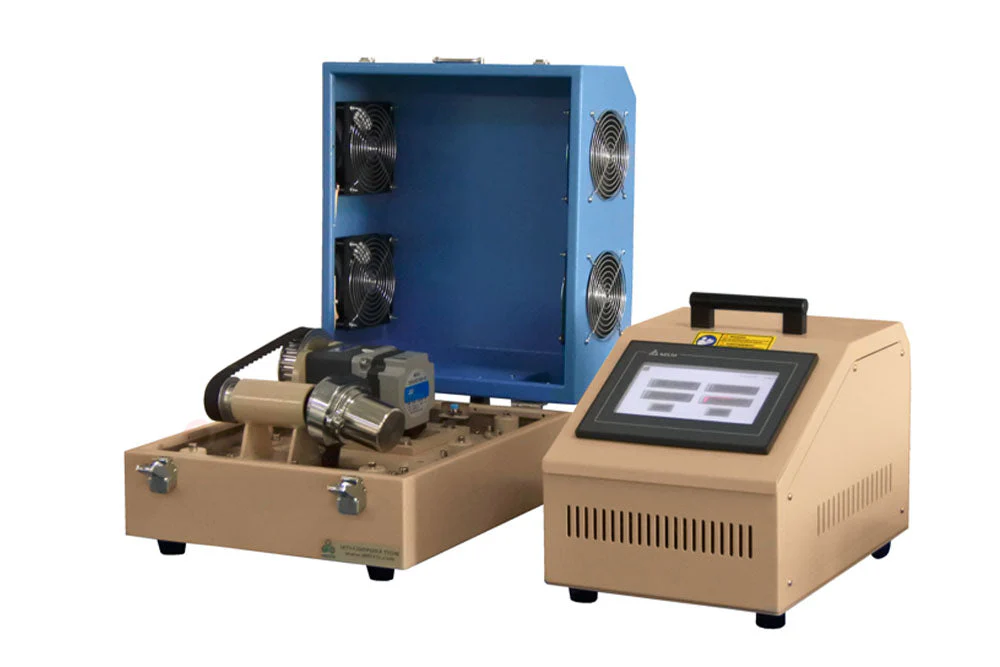

MSK-SFM-3-F is a high-energy 3D movement ball (rotation, vibration, and swing) mill with an adjustable speed of up to 1500 RPM and a maximum 75G centrifugal acceleration. This ball mill is driven by a DC motor and the control unit (program control) is separated from the main machine. (Glove box and Argon compatible

SPECIFICATIONS:

Features
  • The 24VDC motor allows use in an Ar gas environment with the separated control unit

Standard Milling Jars & Media
  • Two sets of the milling jars ( nylon & SS ) are included ( total 4 jars)
    • One 80 ml nylon jar with Zirconia milling balls (5 pcs of Φ10mm, 10 pcs of Φ8mm, and 10 pcs of Φ5mm) is included. ( click Pic. 1&2 to order spare )
    • One 80 ml Stainless Steel Jar with SS milling balls (5 pcs of Φ10mm, 10 pcs of Φ8mm, and 10 pcs of Φ5mm) is included. ( Pic. 3 &4)
  • Option: High Throughput 4 Milling Cavities SS Mixing Jar is available as an option( click Pic. 5 to order)
  • WC, Si3N4, and Zirconia Jars are also available at an extra cost (Pic. 6 - 7 )



Pic. 1  Pic. 2  Pic. 3Pic. 4 Pic. 5Pic. 6 Pic. 7
  • Attention: Max. feeding capacity shall be: < 1/3 jar's volume, around 15 g for grinding sample
Power Input
  • Single-phase 110VAC or 240VAC 50/60Hz with the USA plug ( Change switch inside power supply )
  • Power consumption: 200 W
Control Unit
  • The separated control box for remote operation in a glove box or fume hood.
  • ( If using inside the glove box, you need to order KF40 feedthrough at an extra cost)
  • Speed control: 0 - 1500 rpm adjustable; operation below 250 rpm may result in strong resonance.
  • Time control: 0 - 30 minutes adjustable
  • Five segments programmable via color touch screen for forwarding, backward rotation, and running time



  •  The estimated acceleration gravity: ~ 75G
Feeding Granularity
  • ≦ 1mm
Discharging Granularity
 0.1um minimum for oxide materials ( Mainly Al2O3 based on ceramic material )( See pic. left)
Note: To achieve finer or desired particles via ball mill is a research project, which is dependent on the material to be milled, grinding time and speed, combination of grinding jar and milling ball, etc. It is the user's responsibility to find the best milling procedure based on the material. Buyers are welcome to the MTI laboratory in California for testing before purchase.
Noise Level 87dBA
Optional
  •  Optional jars and grinding balls are available in the product options bar (click Pic below to order spares )
  • For a small amount of milling ( 1- 5 ml), pls use a 4-cavity jar for high-throughput milling (Pic. 2)

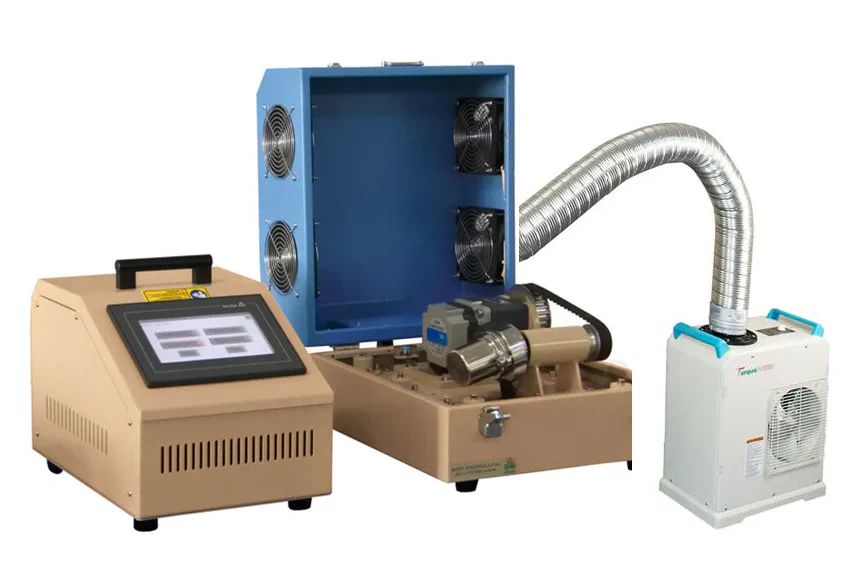

  • For temperature-sensitive material, a forced are cooling is available at an extra cost ( Pic. 6) to keep temperature 20oC lower
Compliance CE Certified
NRTI certification is available upon request at an extra cost



Accessories
Item No. Descriptions Qty Picture
MSK-SFM-3-F Main Machine 1 unit
 MJ-80NL 80 ml Nylon Jar 2 ea
ZMball Zirconia Mixing Balls (4 pcs of 11.5 mm, 10 pcs of 10 mm and 10 pcs of 8mm) 2 set
MJ-3-80SS 80 ml SS jar 2 ea
SS ball SS balls (2pcs 20mm; 2pcs 15mm; 2pcs 12mm; 2pcs 10mm; 4pcs 8mm; 8pcs 6mm) 2 set
MTI-PJ-ACC#03 Sealing Gasket: OD 55mm, T 2.5mm 2 set

Connection Cable with Feedthrough 1 ea
M6 Hex Key  1 ea



Consumables & Accessories (Click to view recommended spare parts list)

AJ-50 Al2O3 Jar with SS Jacket (50 ml) Option
ALOball-3 Alumina Milling Ball Option
MJ-3-80VSS Vacuum Stainless Steel Jar (80ml) Option
MJ-3-80AC Acrylic Jar (80ml) Option
MTI-PD-Z500 Motor driving belt Option
MTI-SFM3-SPRG Base Cushion Springs Option
$4,598.00
Programmable 1500 RPM High Energy Ball Mill (Glovebox compatible) - MSK-SFM-3-F—
$4,598.00

More Images

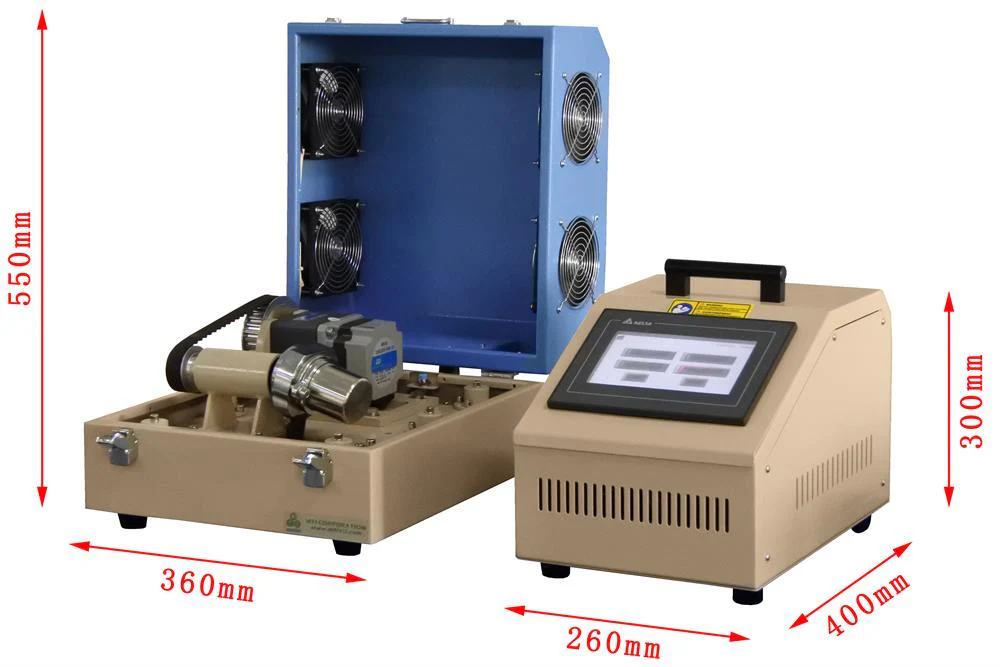

Programmable 1500 RPM High Energy Ball Mill (Glovebox compatible) - MSK-SFM-3-F - Image 2

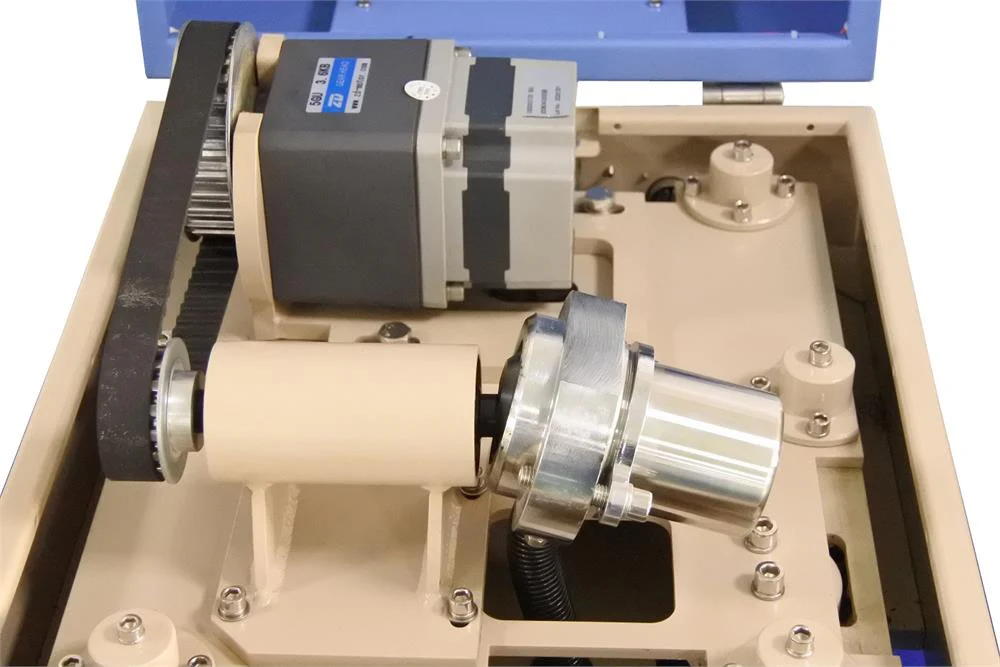

Programmable 1500 RPM High Energy Ball Mill (Glovebox compatible) - MSK-SFM-3-F - Image 3
