High Energy 3D Ball Mill with Optional Jars, (2 Yrs Warranty) - MSK-SFM-3

High Energy 3D Ball Mill with Optional Jars, (2 Yrs Warranty) - MSK-SFM-3

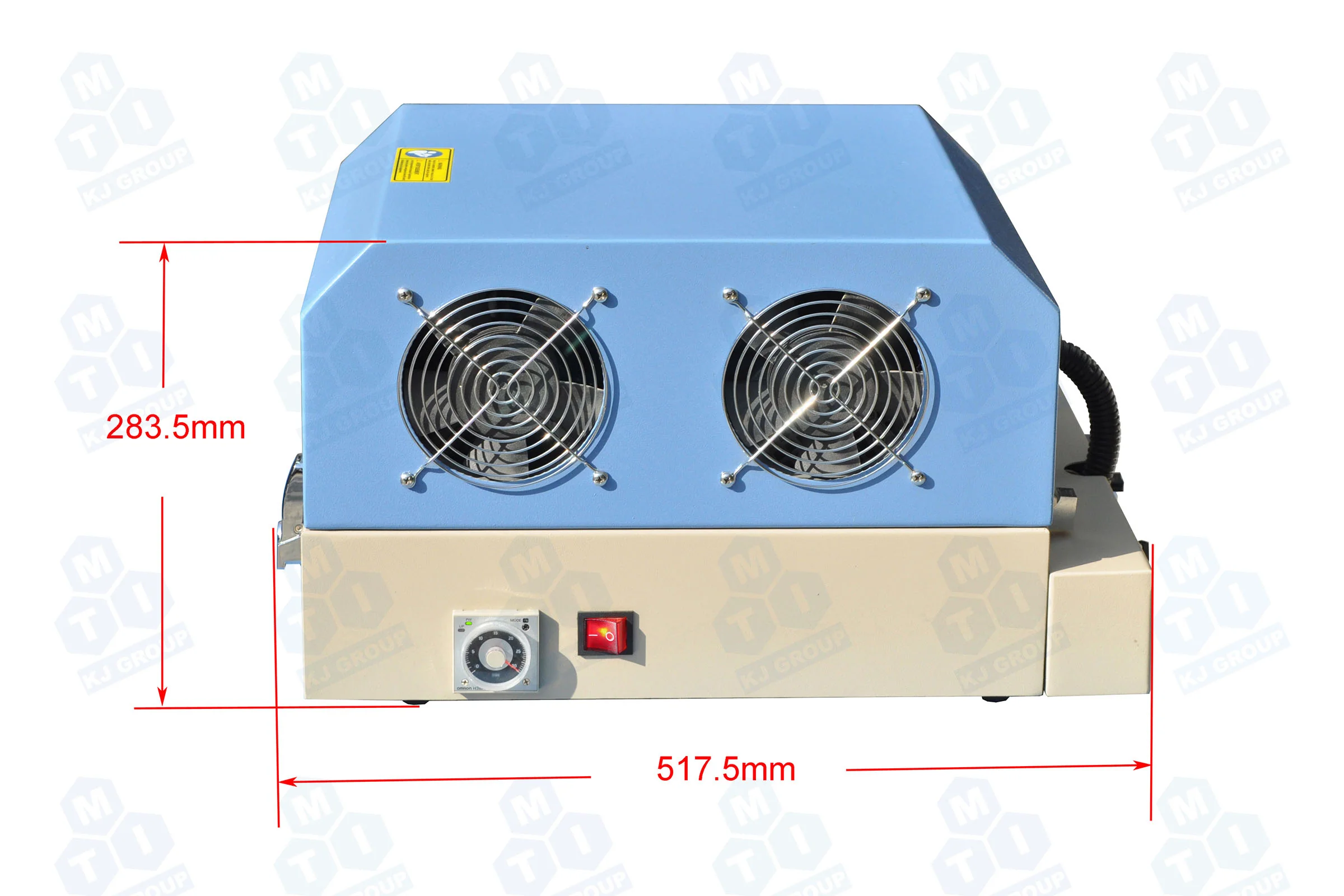

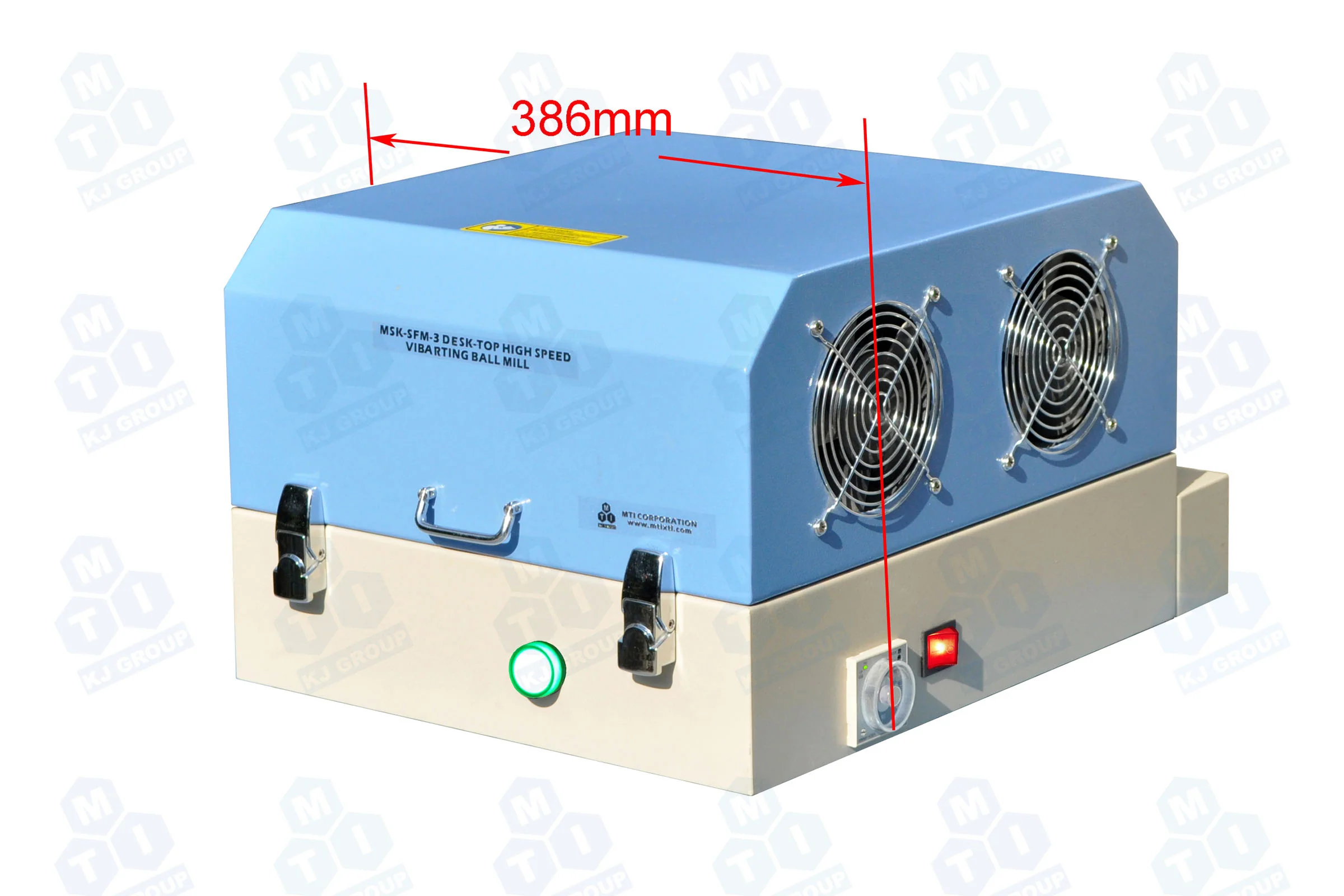

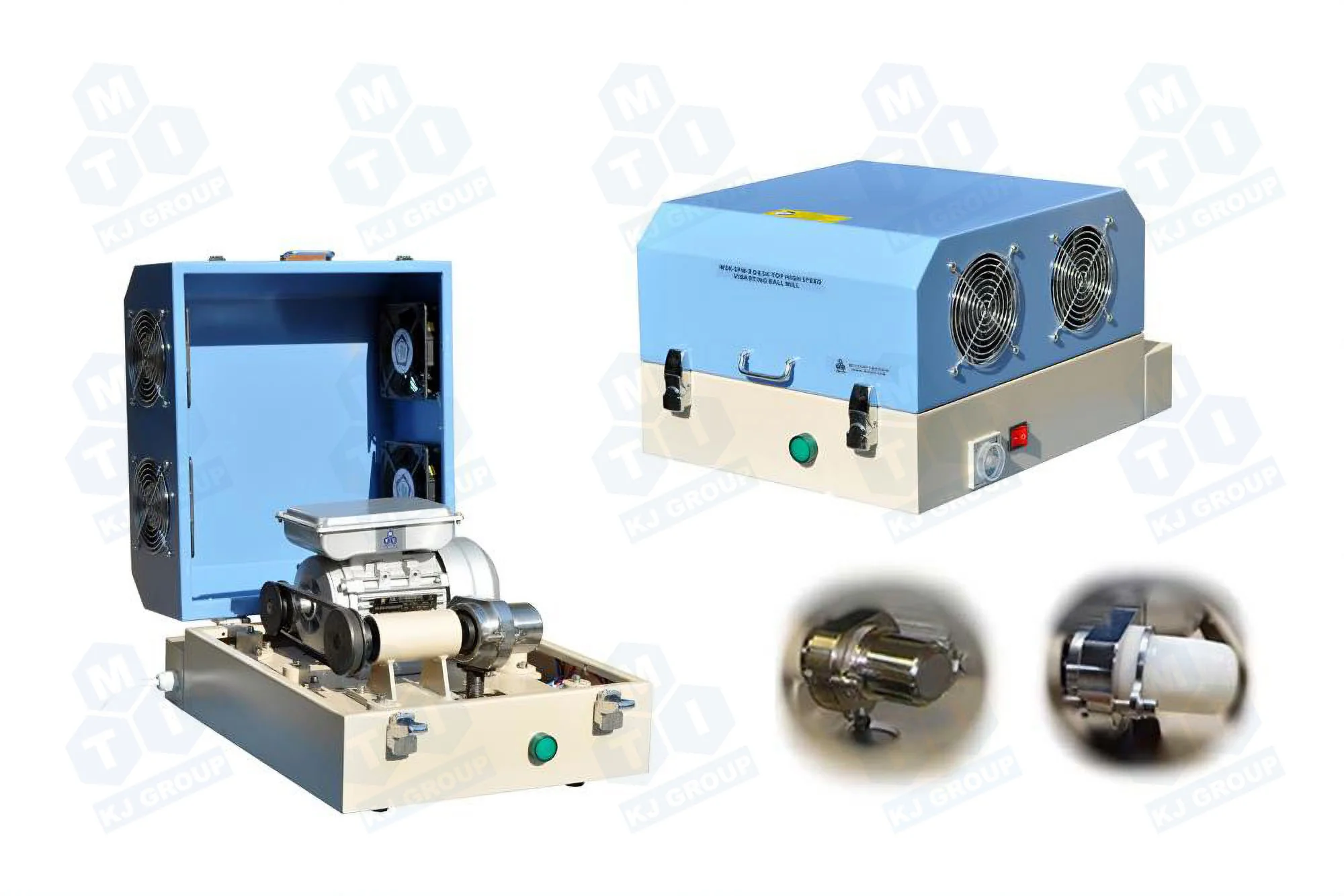

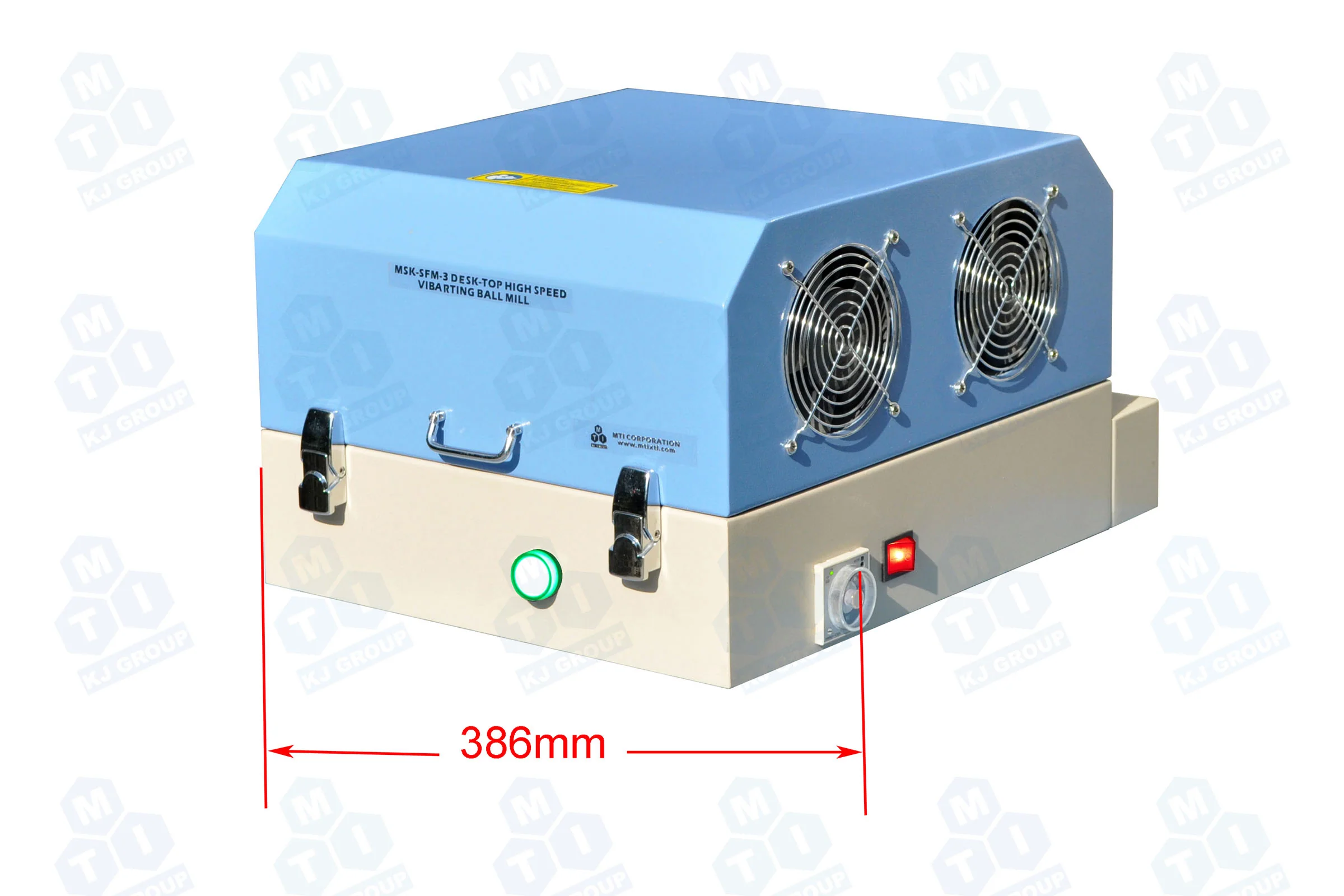

MSK-SFM-3 is a compact high-speed ball mill with a 3D movement for making a small amount of samples. It has higher impact energy created by rotation, vibration, and oscillation with frequencies up to 1200 rpm with a two-year warranty. The MSK-SFM-3 can be used either dry or wet to mill materials of solids, suspension liquids, and pastes. It is an ideal choice to make small quantity samples in materials research.


SPECIFICATIONS:

Features
  • 1200 max. RPM fixed speed allows efficient pulverization and homogenization
  • Choice of milling jar materials: Nylon, Alumina, SS, WC and Agate
  • Please kindly review MSK-SFM-3-F for programmable milling speed and time,


Choice of Milling Jars
  • 80 ml Stainless Steel Jar with a set of SS balls
  • 80 ml Nylon Jar with a set of Zirconia milling balls
  • High Throughput 4 Milling Cavities (9ml each) SS Jar
  • Al2O3 Jar with SS Jacket (75 ml) - AJ-50
  • Tungsten carbide jar is available at extra cost
  • Attention: Don't use an SS jar with ceramic balls.

    Power Input
    • 208- 240VAC 50/60Hz, 300 W
    • A 750W transformer can be used for 110V.
    • The transformer is not included, please order at extra cost.
    Oscillation Frequency
    • <1,200 RPM, fixed
    Timing Range
    • 0 to 30 minutes for built-in mechanical timer
    • Warning: running time for the mill should be less than 30 minutes, otherwise, the mill may overheat.
    Feeding
    • Feeding Granularity: <1mm

    Discharging Granularity

    		 D50 0.1 micron minimum for oxide ceramic materials ( see pic. left )
    Note: To achieve finer or desired particles via ball mill is a research project, which is dependent on the material to be milled, grinding time and speed, combination of grinding jar and milling ball, etc. It is the user's responsibility to find the best milling procedure based on the material. Buyers are welcome to the MTI laboratory in California to test before purchase.
    Noise Level 87dBA (standing at 1ft with the machine lid open and SS milling balls in the jar)
    Compliance
    • CE Certified only
    • For NRTL or CSA certification, please choose MSK-SFM-3-II or MSK-SFM-3-F
    Optional Air Cooling


     Forced cold air
    • If the user needs to force conditional air cooling for some ductile materials, please click to order a Portable Spot Air Cooling Conditioner, which will keep the milling jar temperature low. ( click picture left ). It is a cost-effective way to achieve the required particle sizes and production rates for heat-sensitive or tough-to-mill materials.
    Air Cooling Conditioner Test with Nylon Jar Zirconia Balls Milling 30 mins Milling 60mins
    The temperature of the jar without Air Cooling  45°C 65°C
    The temperature of the jar with Air Cooling 35°C 45°C



    Application Notes
    • Attention: To achieve the best grinding effects, it is suggested to use milling balls with a diameter of less than 10mm for a 50ml alumina jar
    • Tips for choosing proper jars and milling media for milling and grinding application:
      • SS mixing jar is suitable for grinding various metal materials
      • For milling the oxide material, please choose Nylon or alumina/zirconia jar and media
    • Please consider our SYU-3 Ultrasonic Filtration System for filtering the product.
    • DO NOT USE stainless steel balls in Alumina jars or vice versa to avoid contamination.
    • Please use N2 gas if it operates inside of the glove-box, do not use Ar gas
    • Bulk samples must be crushed before grinding. Please consider MTI Jaw crusher ( click pic below right )






    CONSUMABLES
    Item No. Descriptions QTY Picture
    MJ-3-80SS 80 ml SS jar 1 piece
    SSball SS balls (2pcs 20mm; 2pcs 15mm; 2pcs 12mm; 2pcs 10mm; 4pcs 8mm; 8pcs 6mm) 1 set
    SFM-ACC#02 O.D 55mm, Dia 2.5 Sealing Gasket 1 set
    SFM-ACC#03 Motor driving belt 1 unit
    SFM-ACC#04 Open-end wrench 1 unit
    SFM-ACC#05 Hex-wrench (5mm & 6mm) 1 set
    SFM-ACC#06 Power cord (without plug) 1 unit
    MTI-SFM3-SPRG Base Cushion Springs 6 pieces
    AJ-50 Al2O3 Jar with SS Jacket (50 ml)
    ALOball-3 Alumina Milling Ball
    MJ-3-80VSS Vacuum Stainless Steel Jar (80ml)
    MJ-3-80AC Acrylic Jar (80ml)
    Replacement Part
    MTI-SFM3-Gearbox Gearbox and Container Mount 1 unit



    Select Optional Jar
    From $1,049.30

    Original: $2,998.00

    -65%
    High Energy 3D Ball Mill with Optional Jars, (2 Yrs Warranty) - MSK-SFM-3—

    $2,998.00

    $1,049.30

    More Images

    High Energy 3D Ball Mill with Optional Jars, (2 Yrs Warranty) - MSK-SFM-3 - Image 2
    High Energy 3D Ball Mill with Optional Jars, (2 Yrs Warranty) - MSK-SFM-3 - Image 3
    High Energy 3D Ball Mill with Optional Jars, (2 Yrs Warranty) - MSK-SFM-3 - Image 4

    High Energy 3D Ball Mill with Optional Jars, (2 Yrs Warranty) - MSK-SFM-3

    MSK-SFM-3 is a compact high-speed ball mill with a 3D movement for making a small amount of samples. It has higher impact energy created by rotation, vibration, and oscillation with frequencies up to 1200 rpm with a two-year warranty. The MSK-SFM-3 can be used either dry or wet to mill materials of solids, suspension liquids, and pastes. It is an ideal choice to make small quantity samples in materials research.


    SPECIFICATIONS:

    Features
    • 1200 max. RPM fixed speed allows efficient pulverization and homogenization
    • Choice of milling jar materials: Nylon, Alumina, SS, WC and Agate
    • Please kindly review MSK-SFM-3-F for programmable milling speed and time,


    Choice of Milling Jars
    • 80 ml Stainless Steel Jar with a set of SS balls
    • 80 ml Nylon Jar with a set of Zirconia milling balls
    • High Throughput 4 Milling Cavities (9ml each) SS Jar
    • Al2O3 Jar with SS Jacket (75 ml) - AJ-50
    • Tungsten carbide jar is available at extra cost
    • Attention: Don't use an SS jar with ceramic balls.

      Power Input
      • 208- 240VAC 50/60Hz, 300 W
      • A 750W transformer can be used for 110V.
      • The transformer is not included, please order at extra cost.
      Oscillation Frequency
      • <1,200 RPM, fixed
      Timing Range
      • 0 to 30 minutes for built-in mechanical timer
      • Warning: running time for the mill should be less than 30 minutes, otherwise, the mill may overheat.
      Feeding
      • Feeding Granularity: <1mm

      Discharging Granularity

      		 D50 0.1 micron minimum for oxide ceramic materials ( see pic. left )
      Note: To achieve finer or desired particles via ball mill is a research project, which is dependent on the material to be milled, grinding time and speed, combination of grinding jar and milling ball, etc. It is the user's responsibility to find the best milling procedure based on the material. Buyers are welcome to the MTI laboratory in California to test before purchase.
      Noise Level 87dBA (standing at 1ft with the machine lid open and SS milling balls in the jar)
      Compliance
      • CE Certified only
      • For NRTL or CSA certification, please choose MSK-SFM-3-II or MSK-SFM-3-F
      Optional Air Cooling


       Forced cold air
      • If the user needs to force conditional air cooling for some ductile materials, please click to order a Portable Spot Air Cooling Conditioner, which will keep the milling jar temperature low. ( click picture left ). It is a cost-effective way to achieve the required particle sizes and production rates for heat-sensitive or tough-to-mill materials.
      Air Cooling Conditioner Test with Nylon Jar Zirconia Balls Milling 30 mins Milling 60mins
      The temperature of the jar without Air Cooling  45°C 65°C
      The temperature of the jar with Air Cooling 35°C 45°C



      Application Notes
      • Attention: To achieve the best grinding effects, it is suggested to use milling balls with a diameter of less than 10mm for a 50ml alumina jar
      • Tips for choosing proper jars and milling media for milling and grinding application:
        • SS mixing jar is suitable for grinding various metal materials
        • For milling the oxide material, please choose Nylon or alumina/zirconia jar and media
      • Please consider our SYU-3 Ultrasonic Filtration System for filtering the product.
      • DO NOT USE stainless steel balls in Alumina jars or vice versa to avoid contamination.
      • Please use N2 gas if it operates inside of the glove-box, do not use Ar gas
      • Bulk samples must be crushed before grinding. Please consider MTI Jaw crusher ( click pic below right )






      CONSUMABLES
      Item No. Descriptions QTY Picture
      MJ-3-80SS 80 ml SS jar 1 piece
      SSball SS balls (2pcs 20mm; 2pcs 15mm; 2pcs 12mm; 2pcs 10mm; 4pcs 8mm; 8pcs 6mm) 1 set
      SFM-ACC#02 O.D 55mm, Dia 2.5 Sealing Gasket 1 set
      SFM-ACC#03 Motor driving belt 1 unit
      SFM-ACC#04 Open-end wrench 1 unit
      SFM-ACC#05 Hex-wrench (5mm & 6mm) 1 set
      SFM-ACC#06 Power cord (without plug) 1 unit
      MTI-SFM3-SPRG Base Cushion Springs 6 pieces
      AJ-50 Al2O3 Jar with SS Jacket (50 ml)
      ALOball-3 Alumina Milling Ball
      MJ-3-80VSS Vacuum Stainless Steel Jar (80ml)
      MJ-3-80AC Acrylic Jar (80ml)
      Replacement Part
      MTI-SFM3-Gearbox Gearbox and Container Mount 1 unit



      Product Information

      Shipping & Returns

      Description

      MSK-SFM-3 is a compact high-speed ball mill with a 3D movement for making a small amount of samples. It has higher impact energy created by rotation, vibration, and oscillation with frequencies up to 1200 rpm with a two-year warranty. The MSK-SFM-3 can be used either dry or wet to mill materials of solids, suspension liquids, and pastes. It is an ideal choice to make small quantity samples in materials research.


      SPECIFICATIONS:

      Features
      • 1200 max. RPM fixed speed allows efficient pulverization and homogenization
      • Choice of milling jar materials: Nylon, Alumina, SS, WC and Agate
      • Please kindly review MSK-SFM-3-F for programmable milling speed and time,


      Choice of Milling Jars
      • 80 ml Stainless Steel Jar with a set of SS balls
      • 80 ml Nylon Jar with a set of Zirconia milling balls
      • High Throughput 4 Milling Cavities (9ml each) SS Jar
      • Al2O3 Jar with SS Jacket (75 ml) - AJ-50
      • Tungsten carbide jar is available at extra cost
      • Attention: Don't use an SS jar with ceramic balls.

        Power Input
        • 208- 240VAC 50/60Hz, 300 W
        • A 750W transformer can be used for 110V.
        • The transformer is not included, please order at extra cost.
        Oscillation Frequency
        • <1,200 RPM, fixed
        Timing Range
        • 0 to 30 minutes for built-in mechanical timer
        • Warning: running time for the mill should be less than 30 minutes, otherwise, the mill may overheat.
        Feeding
        • Feeding Granularity: <1mm

        Discharging Granularity

        		 D50 0.1 micron minimum for oxide ceramic materials ( see pic. left )
        Note: To achieve finer or desired particles via ball mill is a research project, which is dependent on the material to be milled, grinding time and speed, combination of grinding jar and milling ball, etc. It is the user's responsibility to find the best milling procedure based on the material. Buyers are welcome to the MTI laboratory in California to test before purchase.
        Noise Level 87dBA (standing at 1ft with the machine lid open and SS milling balls in the jar)
        Compliance
        • CE Certified only
        • For NRTL or CSA certification, please choose MSK-SFM-3-II or MSK-SFM-3-F
        Optional Air Cooling


         Forced cold air
        • If the user needs to force conditional air cooling for some ductile materials, please click to order a Portable Spot Air Cooling Conditioner, which will keep the milling jar temperature low. ( click picture left ). It is a cost-effective way to achieve the required particle sizes and production rates for heat-sensitive or tough-to-mill materials.
        Air Cooling Conditioner Test with Nylon Jar Zirconia Balls Milling 30 mins Milling 60mins
        The temperature of the jar without Air Cooling  45°C 65°C
        The temperature of the jar with Air Cooling 35°C 45°C



        Application Notes
        • Attention: To achieve the best grinding effects, it is suggested to use milling balls with a diameter of less than 10mm for a 50ml alumina jar
        • Tips for choosing proper jars and milling media for milling and grinding application:
          • SS mixing jar is suitable for grinding various metal materials
          • For milling the oxide material, please choose Nylon or alumina/zirconia jar and media
        • Please consider our SYU-3 Ultrasonic Filtration System for filtering the product.
        • DO NOT USE stainless steel balls in Alumina jars or vice versa to avoid contamination.
        • Please use N2 gas if it operates inside of the glove-box, do not use Ar gas
        • Bulk samples must be crushed before grinding. Please consider MTI Jaw crusher ( click pic below right )






        CONSUMABLES
        Item No. Descriptions QTY Picture
        MJ-3-80SS 80 ml SS jar 1 piece
        SSball SS balls (2pcs 20mm; 2pcs 15mm; 2pcs 12mm; 2pcs 10mm; 4pcs 8mm; 8pcs 6mm) 1 set
        SFM-ACC#02 O.D 55mm, Dia 2.5 Sealing Gasket 1 set
        SFM-ACC#03 Motor driving belt 1 unit
        SFM-ACC#04 Open-end wrench 1 unit
        SFM-ACC#05 Hex-wrench (5mm & 6mm) 1 set
        SFM-ACC#06 Power cord (without plug) 1 unit
        MTI-SFM3-SPRG Base Cushion Springs 6 pieces
        AJ-50 Al2O3 Jar with SS Jacket (50 ml)
        ALOball-3 Alumina Milling Ball
        MJ-3-80VSS Vacuum Stainless Steel Jar (80ml)
        MJ-3-80AC Acrylic Jar (80ml)
        Replacement Part
        MTI-SFM3-Gearbox Gearbox and Container Mount 1 unit



        You may also like

        -65%
        Thumbnail 1Thumbnail 2

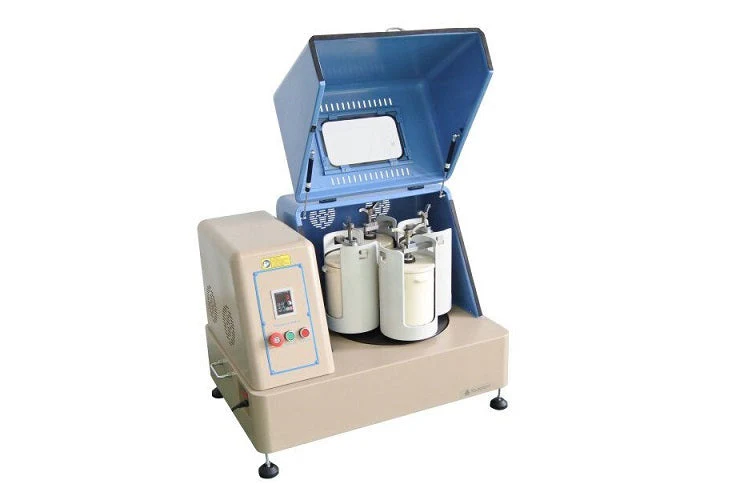

        2L Capacity Programmable Planetary Ball Mill (4x500 ml capacity) with Optional Jars - MSK-SFM-1-TS

        $5,986.00

        $2,095.10

        Thumbnail 1Thumbnail 2

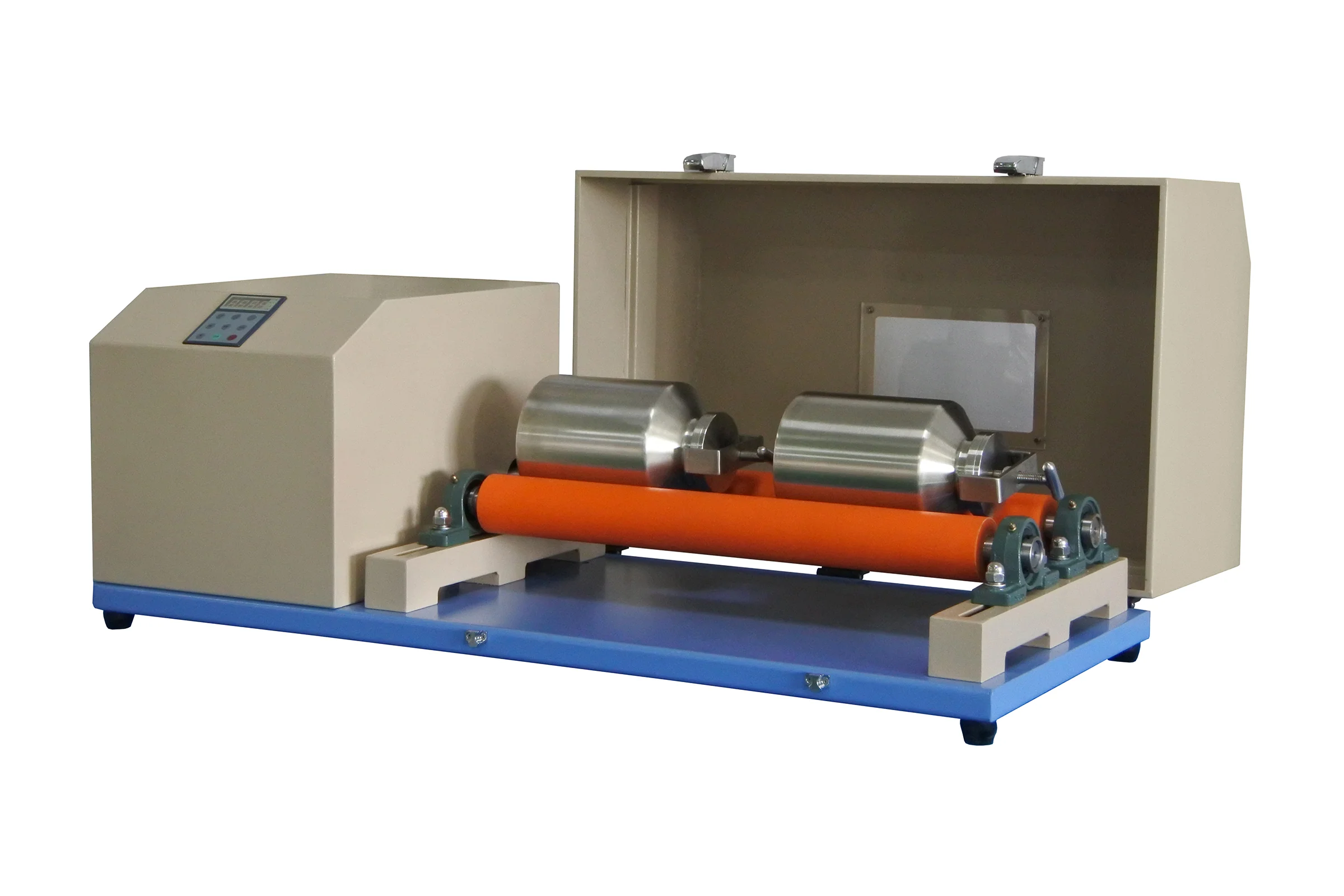

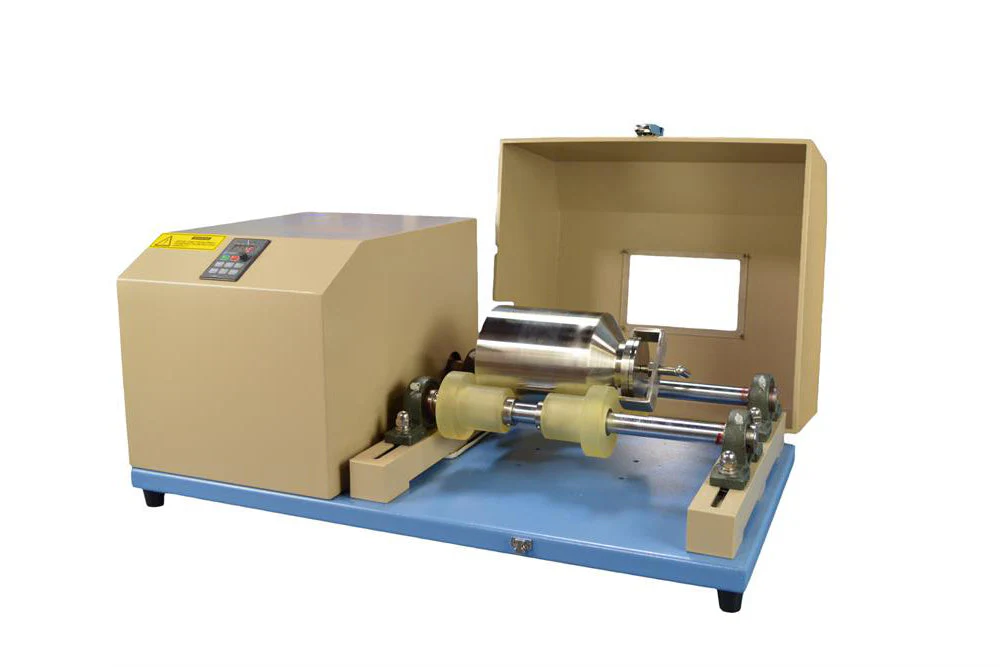

        Benchtop Lab Roller Mill with Optional 1 or 2 Airtight 2L Milling Jars - MSK-SFM-14

        $3,998.00

        Thumbnail 1Thumbnail 2

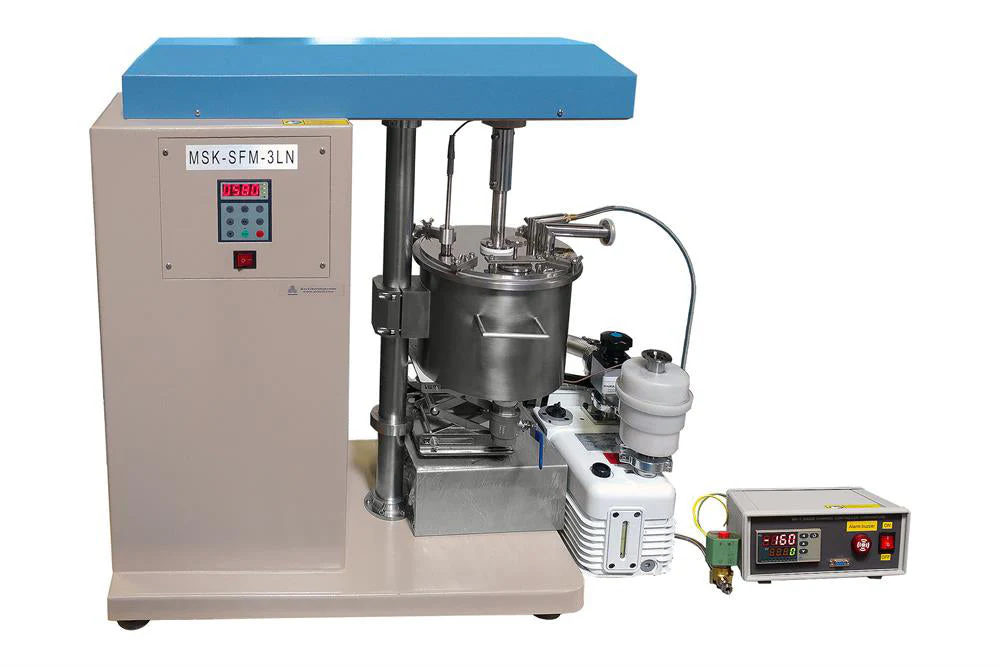

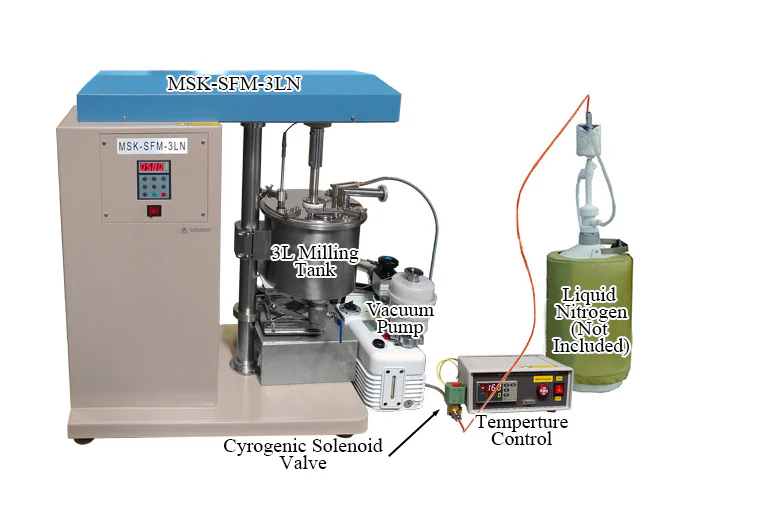

        Liquid Nitrogen Cryogenic Rotor Mill with a 5 Liter Vacuum Thermal Insulated Tank - MSK-SFM-3LN

        $21,995.00

        Thumbnail 1Thumbnail 2

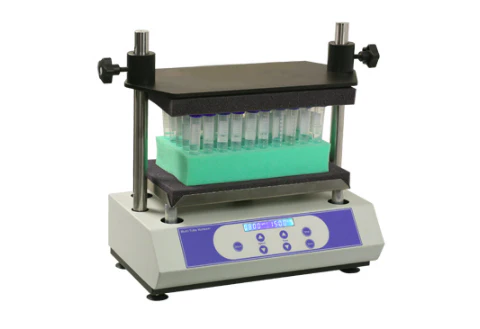

        50 Cavities Vortex Vibration Ball Mill w/ YSZ Balls for High-Throughput Research - MSK-SFM-50

        $2,998.00

        -65%
        Thumbnail 1Thumbnail 2

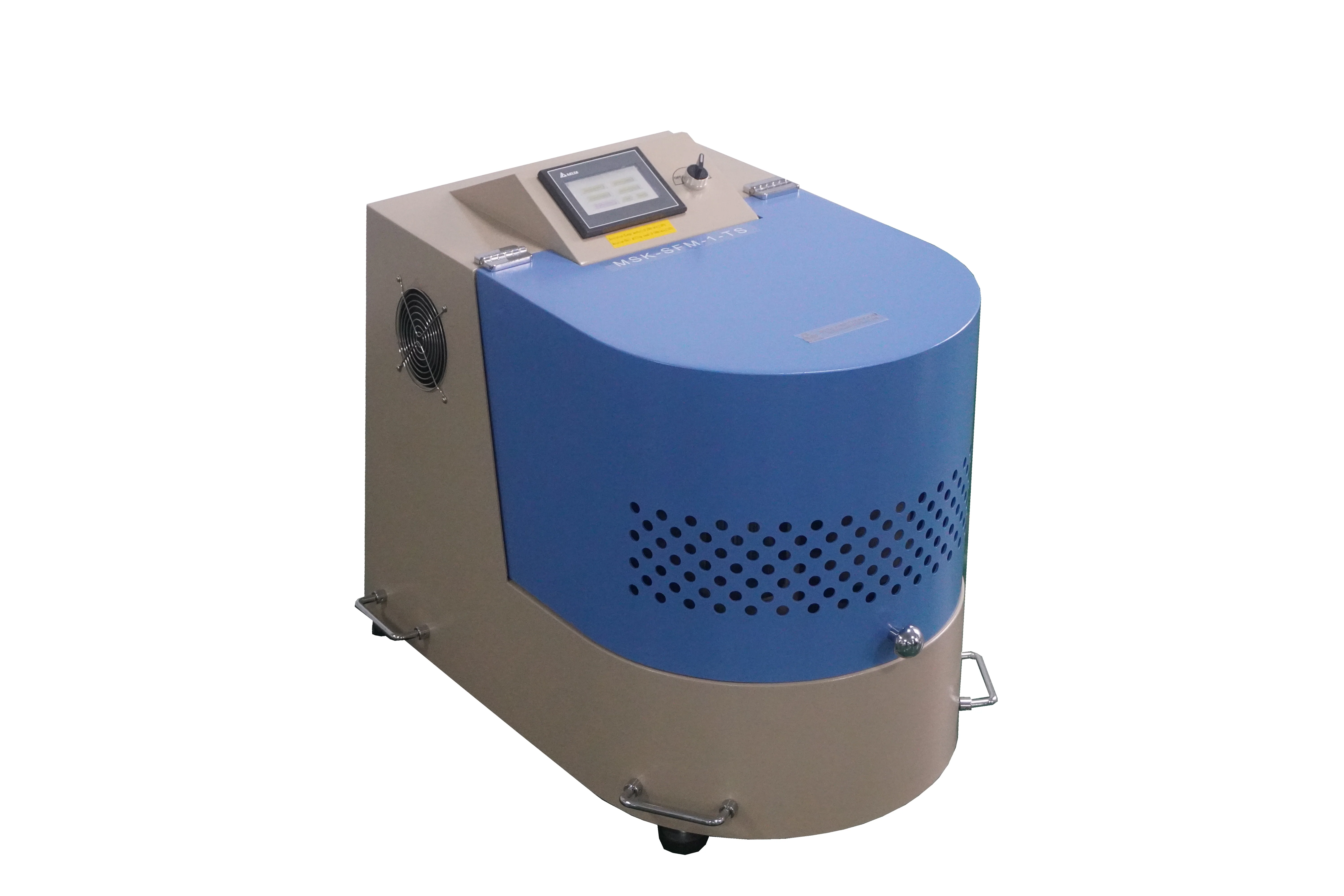

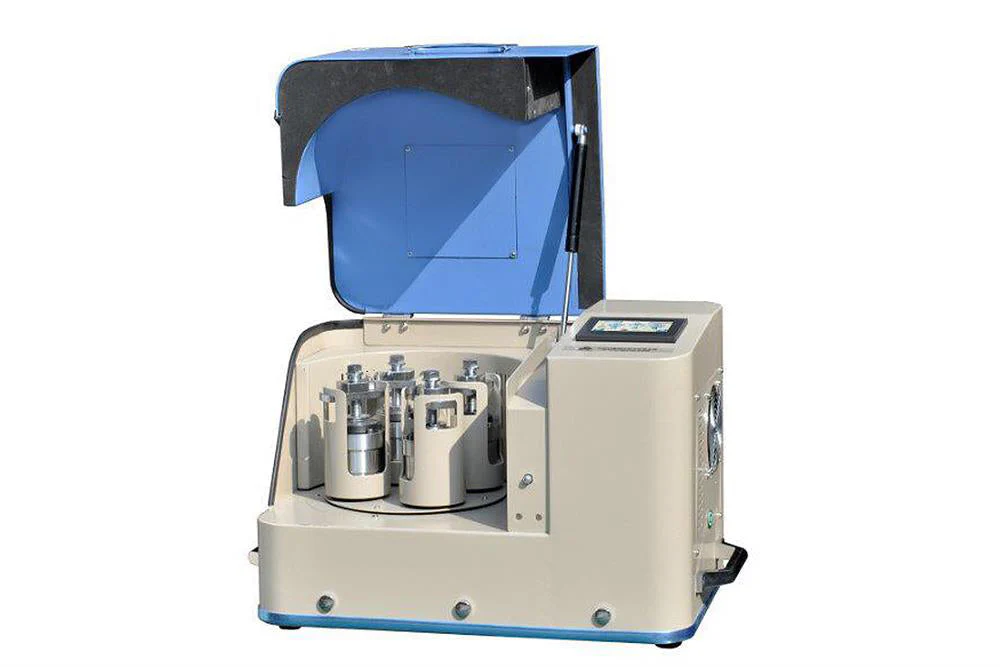

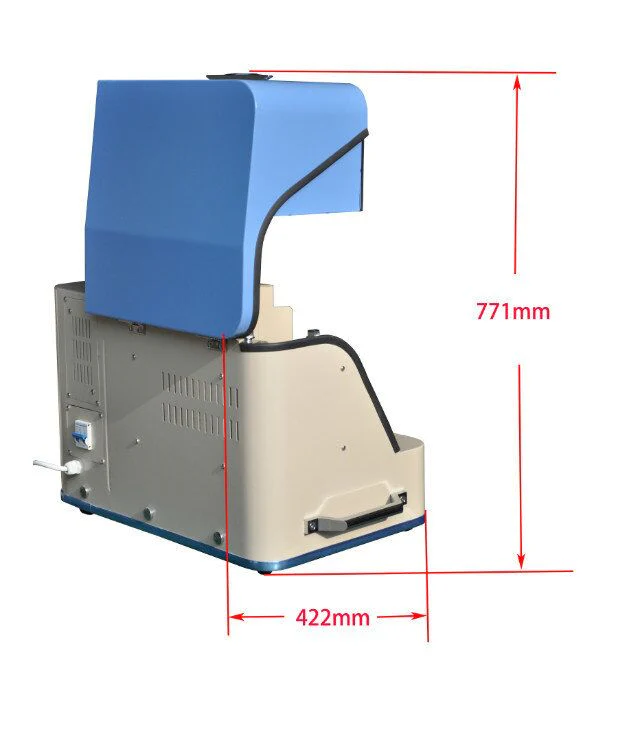

        Touchscreen Programmable Planetary Ball Mill w/ Optional Milling Jars (4x100ml) - MSK-SFM-1S

        $5,998.00

        $2,099.30

        -65%
        Thumbnail 1Thumbnail 2

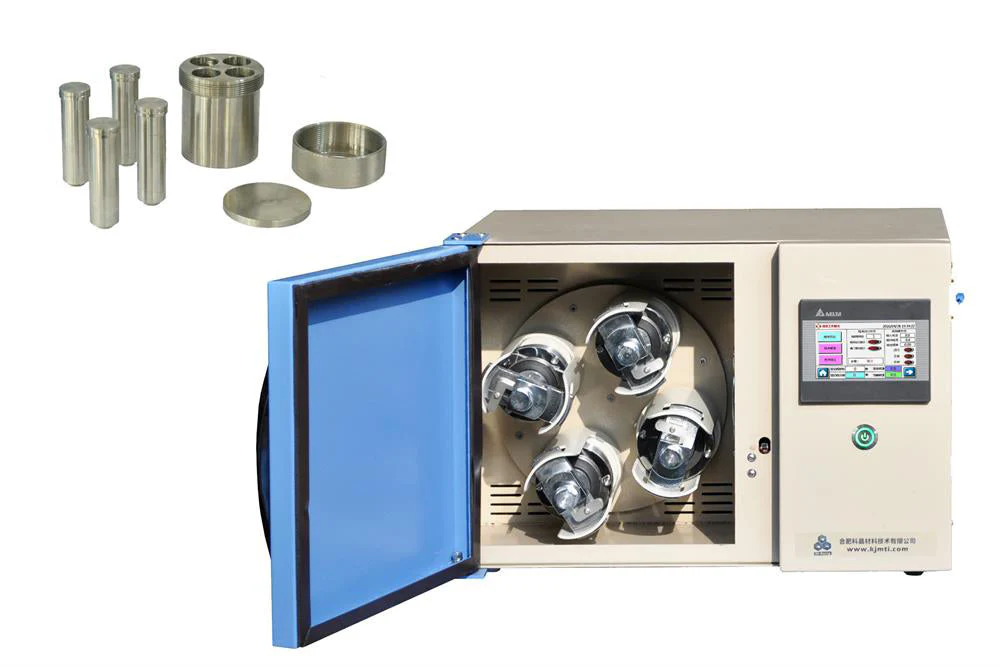

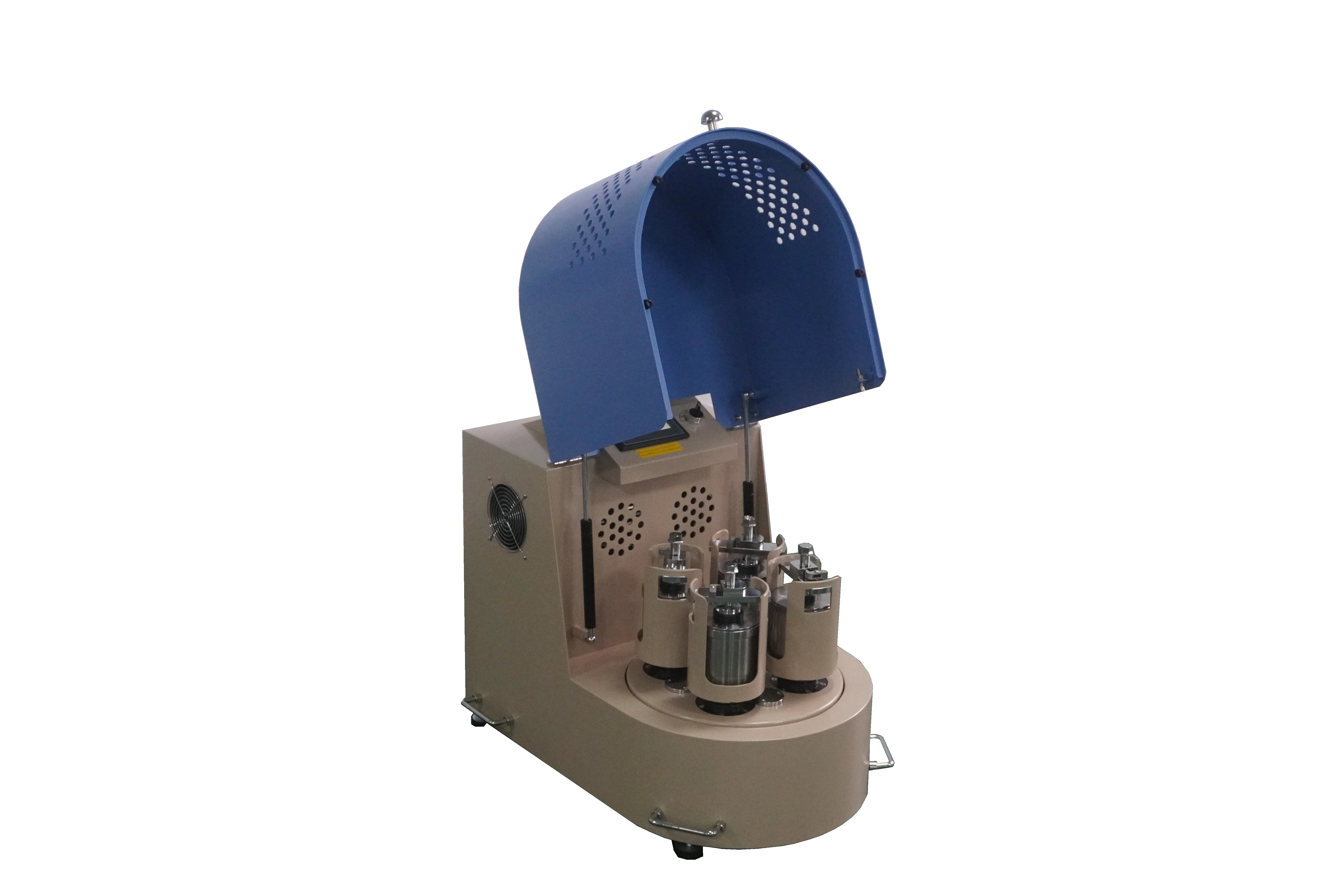

        High Throughput Planetary Ball Mill w/ 4 -16 SS Milling Jars (10 -100ml Per Jar) - MSK-SFM-13S

        $9,995.00

        $3,498.25

        Thumbnail 1Thumbnail 2

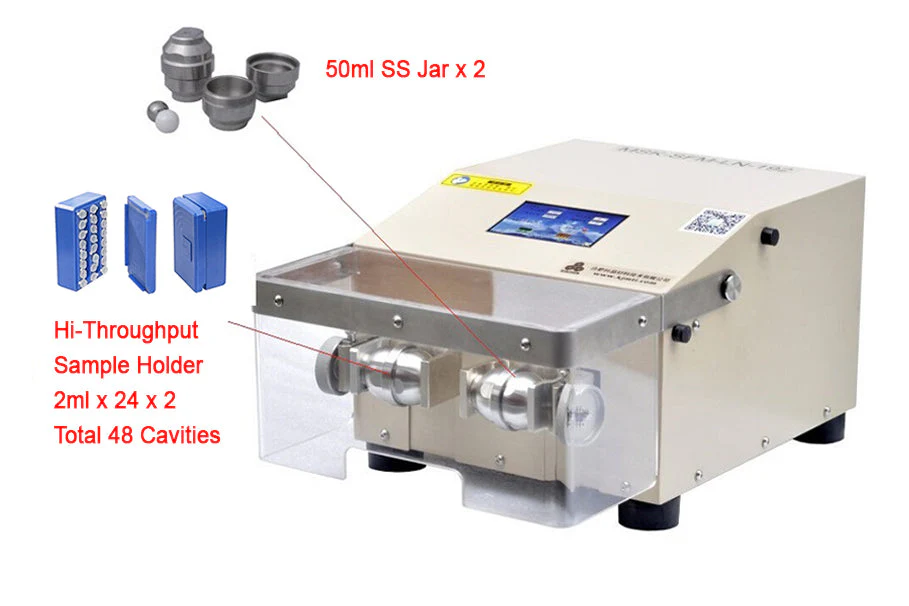

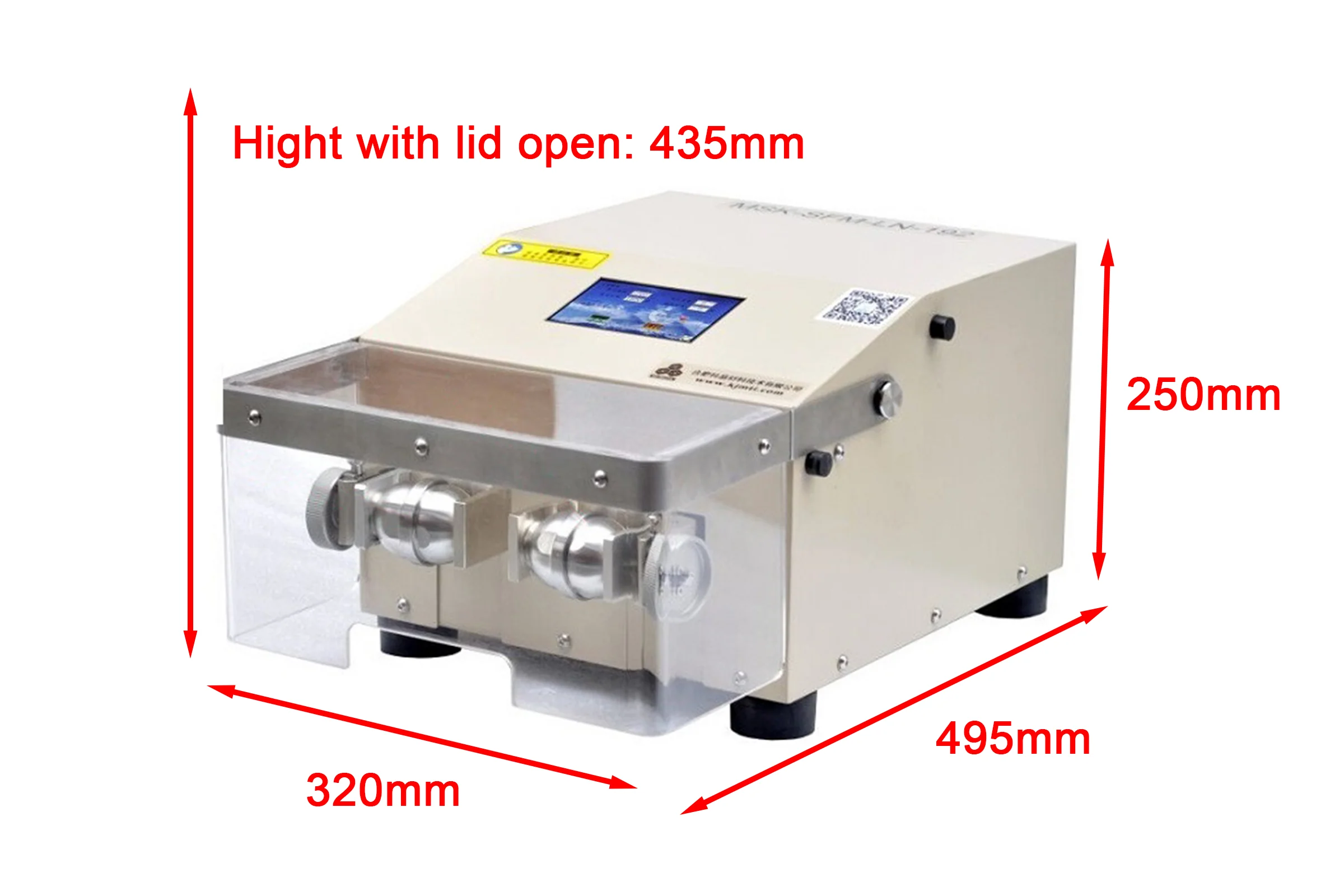

        High Energy Impact Mill w/ Dual 50 ml Jars & 48 Tubes Adaptors -MSKSFM192LN

        $12,998.00

        -65%
        Thumbnail 1Thumbnail 2

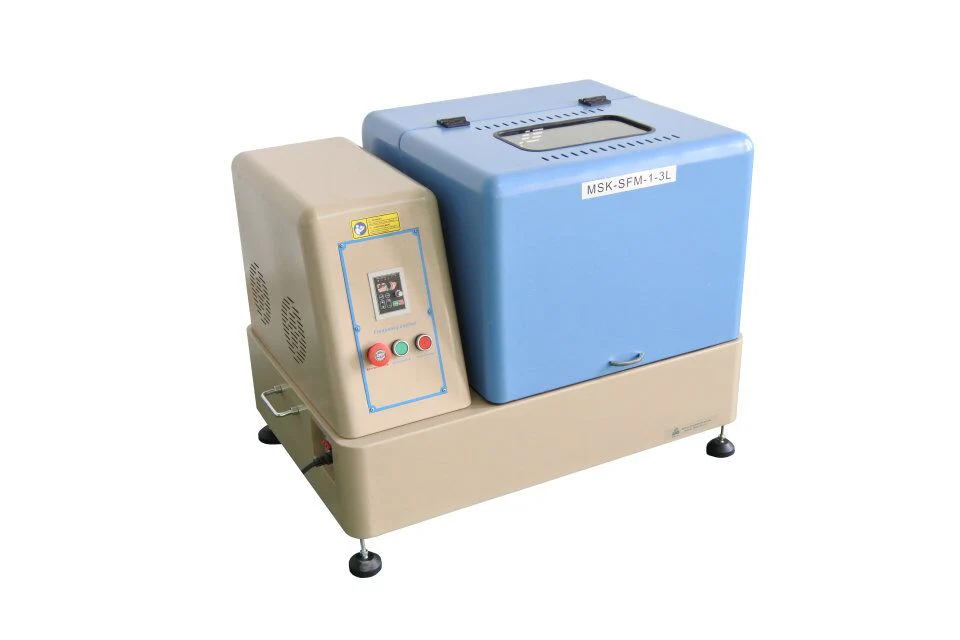

        12 Liter Planetary Ball Mill (4x3L Capacity) with optional Four Milling Jars - MSK-SFM-13

        $650.00

        $227.50

        -65%
        Thumbnail 1Thumbnail 2

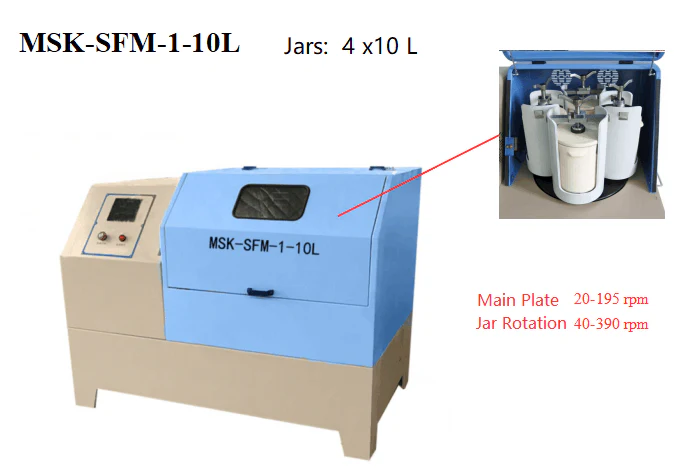

        40 L Capacity Planetary Ball Mill (4x10L) with Optional Milling Jars - MSK-SFM-1-10

        $1,396.00

        $488.60

        -65%
        Thumbnail 1Thumbnail 2

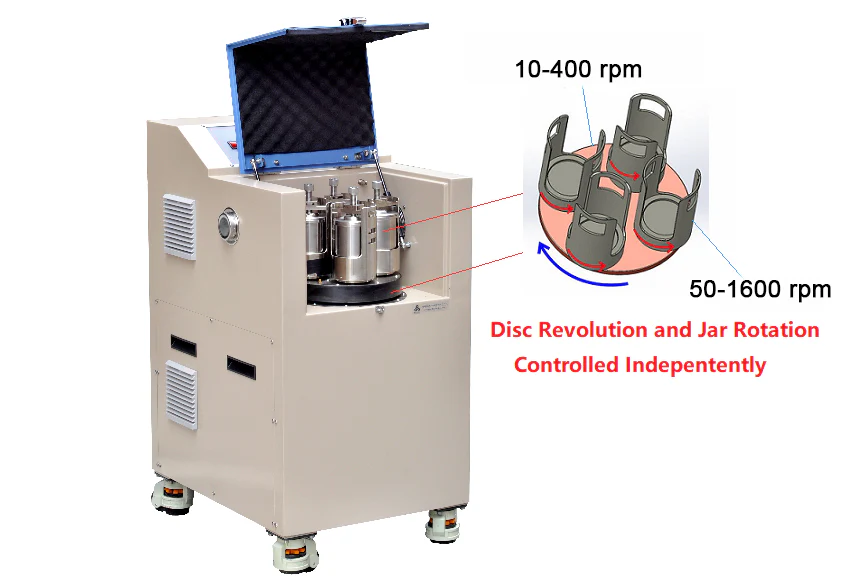

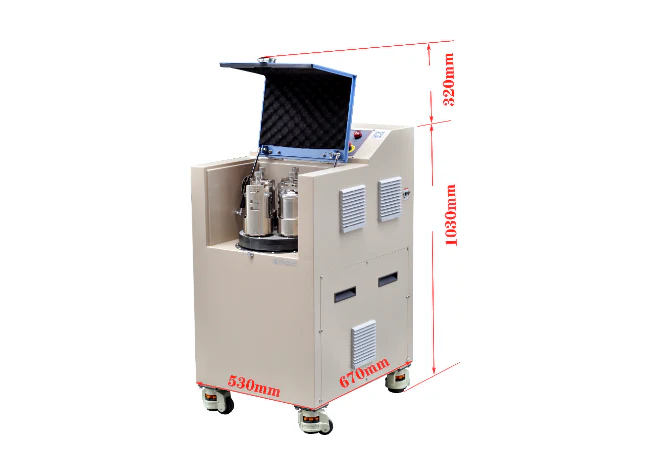

        Advanced Planetary Ball Mill w/ Independent Speed Control and Optional Milling Jars up to 2L - MSK-SFM-15

        $41,996.00

        $14,698.60

        Thumbnail 1Thumbnail 2

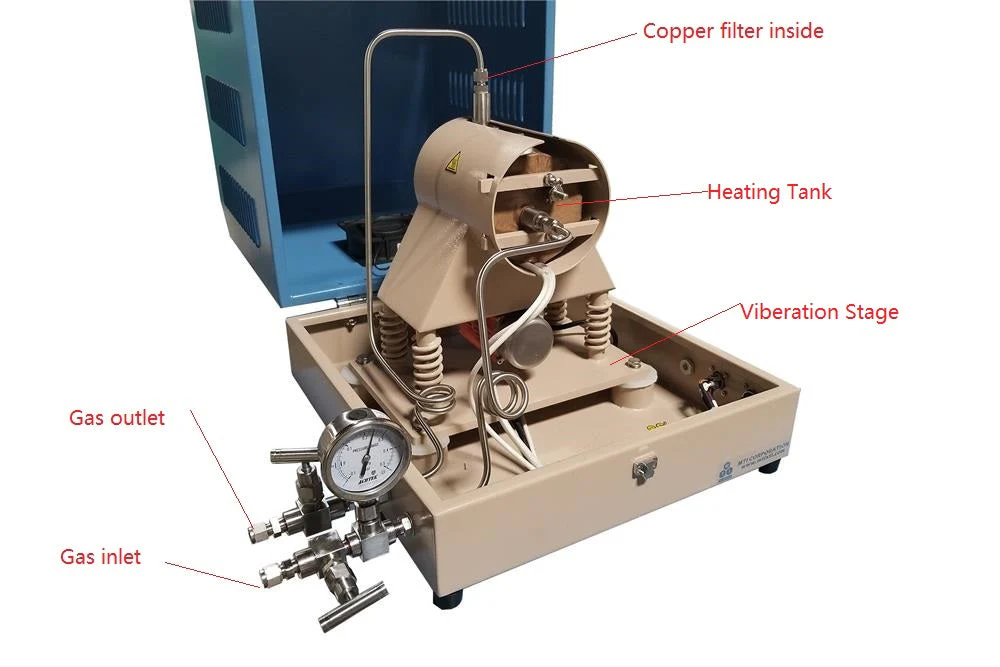

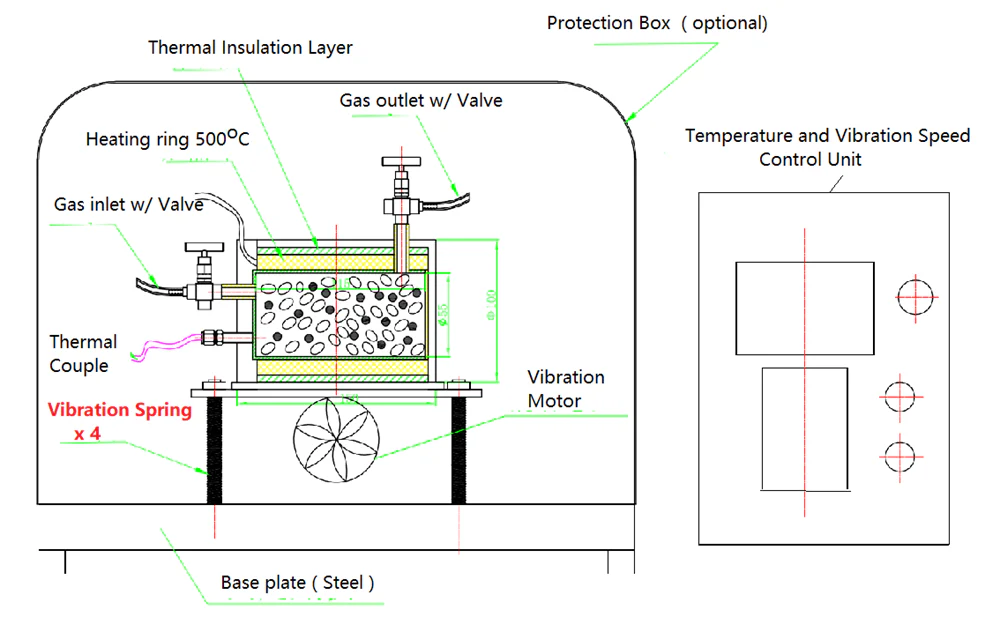

        Converting CO2 to Methane Atmosphere Controlled Vibration Ball Milling Reactor (500C @3 bar)- HTVB-50

        $12,998.00

        -65%
        Thumbnail 1

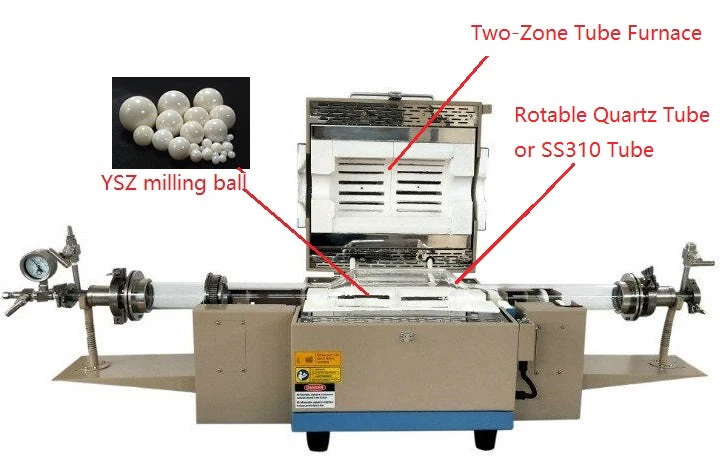

        1100°C Max. Rotary Ball Milling with Gas Flow Function - OTF-1200X-R5-BM
