Magnetic De-ironing Filtration System for Battery Electrode Slurry - MSK-FT03

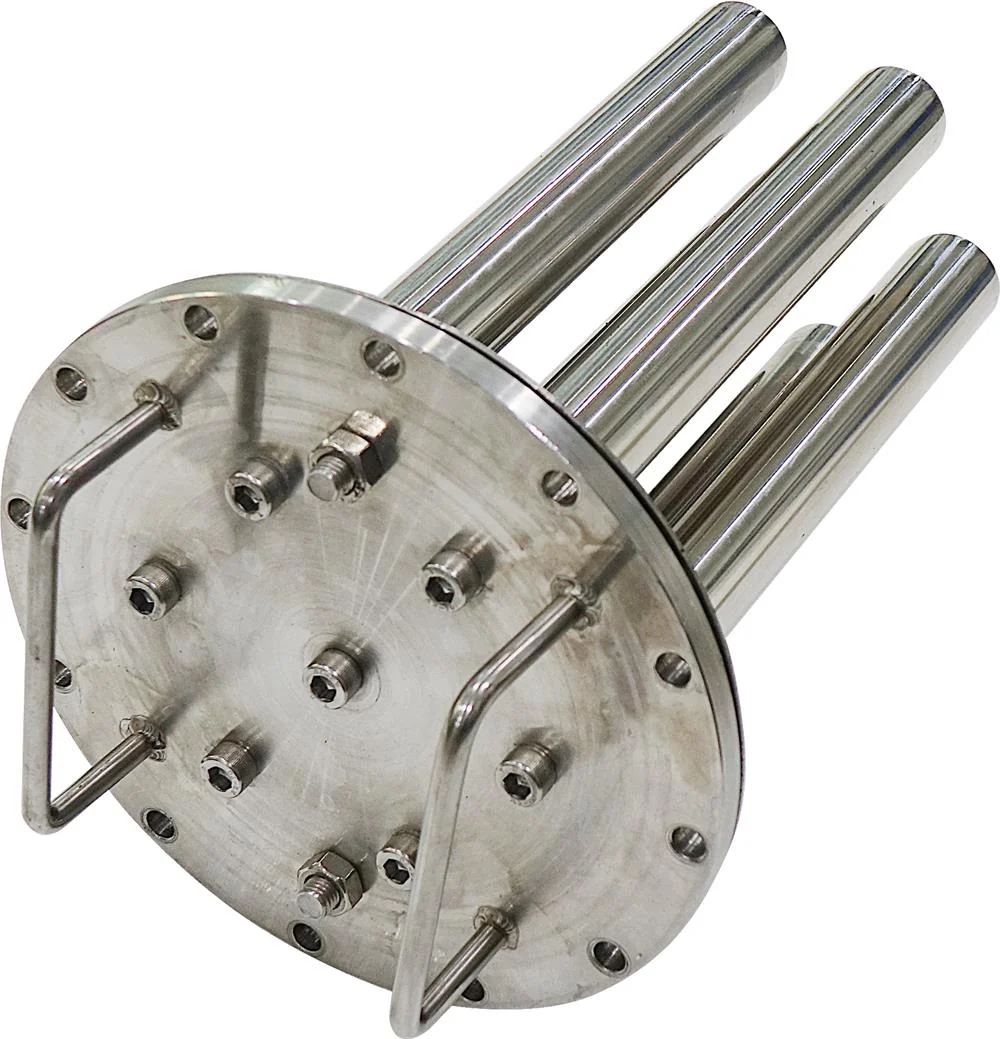

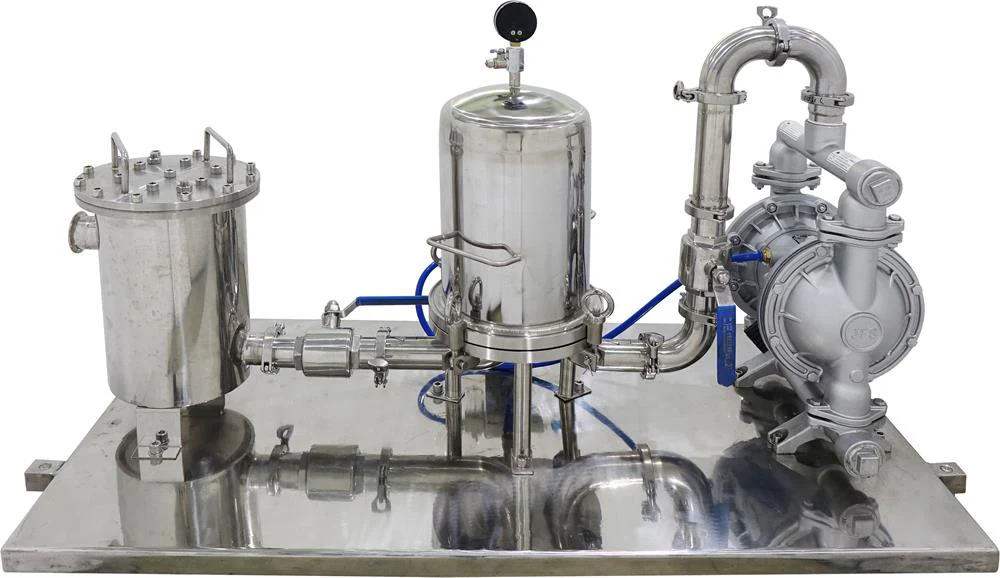

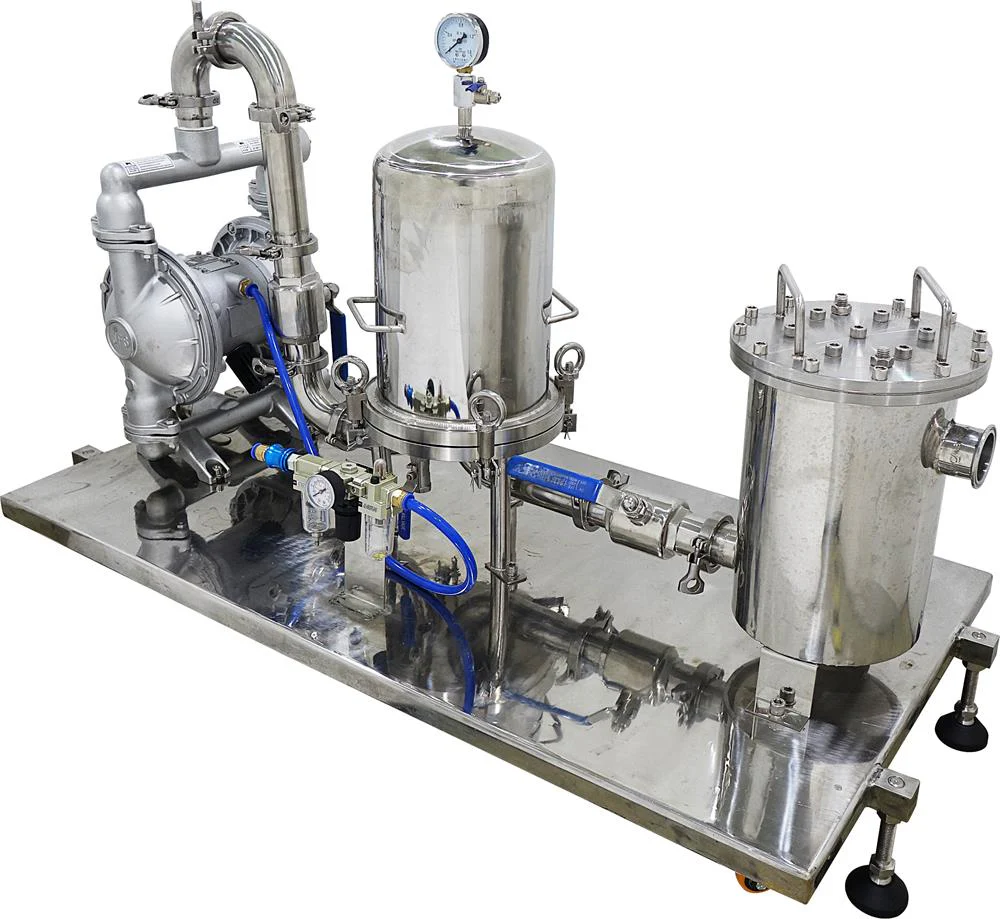

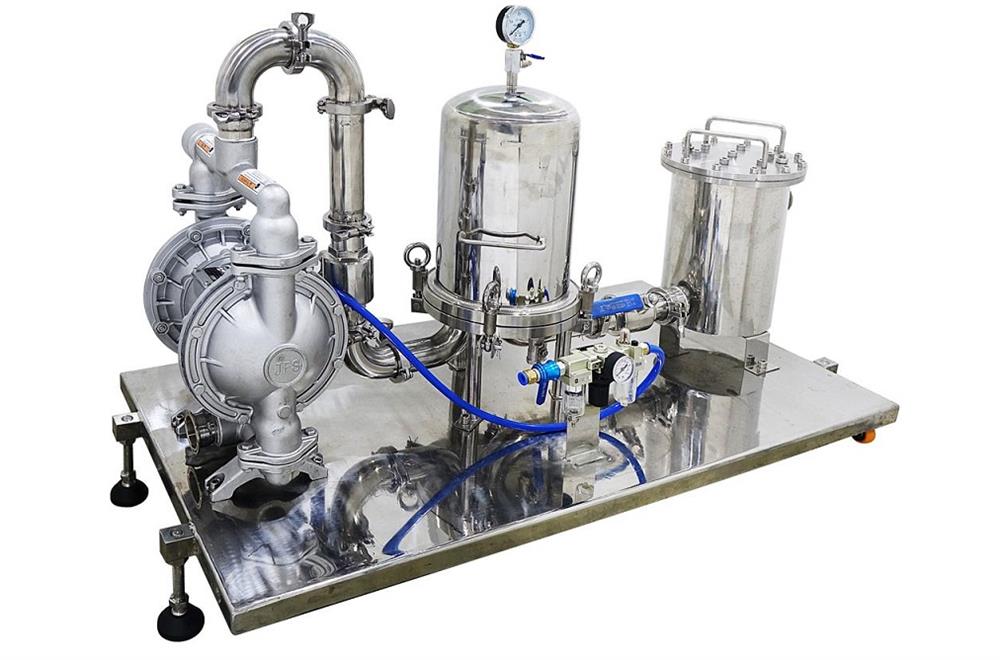

MSK-FT03Ā is a magnetic de-ironing filtration system. It is designed for optimizing the condition of slurry forĀ Li-ion battery before the coating process. The slurry will pass through a set ofĀ strong permanent magnetic rodsĀ and then a mesh filter to remove large particles and iron impurity. Such a system is not only able to filter out the large particles but also remove iron to improve the quality and stability of the electrode slurry.
SPECIFICATIONS
| Air Source |
0.5 - 0.8MPa
|
| Deironing Function |
10000 G per magnetic rod, 7 rods in total
|
| Filtration Mode |
Vacuum filtration, magnet deiron, continuous process
|
| Filtration Mesh |
10"150mesh filtration core. The mesh number of filter can be customized.
|
| Deiron Capacity |
4 magnetic bar with Ļ25*200mmļ¼each rold with 10000 Gs
|
| Filtration Container | Stainless steel, customization availableĀ |
| Single-Pass Remaining Slurry | 0.4 L |
| Slurry Viscidity | <=20000CP |
$5,249.30
Original: $14,998.00
-65%Magnetic De-ironing Filtration System for Battery Electrode Slurry - MSK-FT03ā
$14,998.00
$5,249.30More Images
Magnetic De-ironing Filtration System for Battery Electrode Slurry - MSK-FT03
MSK-FT03Ā is a magnetic de-ironing filtration system. It is designed for optimizing the condition of slurry forĀ Li-ion battery before the coating process. The slurry will pass through a set ofĀ strong permanent magnetic rodsĀ and then a mesh filter to remove large particles and iron impurity. Such a system is not only able to filter out the large particles but also remove iron to improve the quality and stability of the electrode slurry.
SPECIFICATIONS
| Air Source |
0.5 - 0.8MPa
|
| Deironing Function |
10000 G per magnetic rod, 7 rods in total
|
| Filtration Mode |
Vacuum filtration, magnet deiron, continuous process
|
| Filtration Mesh |
10"150mesh filtration core. The mesh number of filter can be customized.
|
| Deiron Capacity |
4 magnetic bar with Ļ25*200mmļ¼each rold with 10000 Gs
|
| Filtration Container | Stainless steel, customization availableĀ |
| Single-Pass Remaining Slurry | 0.4 L |
| Slurry Viscidity | <=20000CP |
