Slot Die Sheet Coater w/ Vacuum Chunck (W200XL300 mm) and Optional Heating - MSK-AFA-PD200

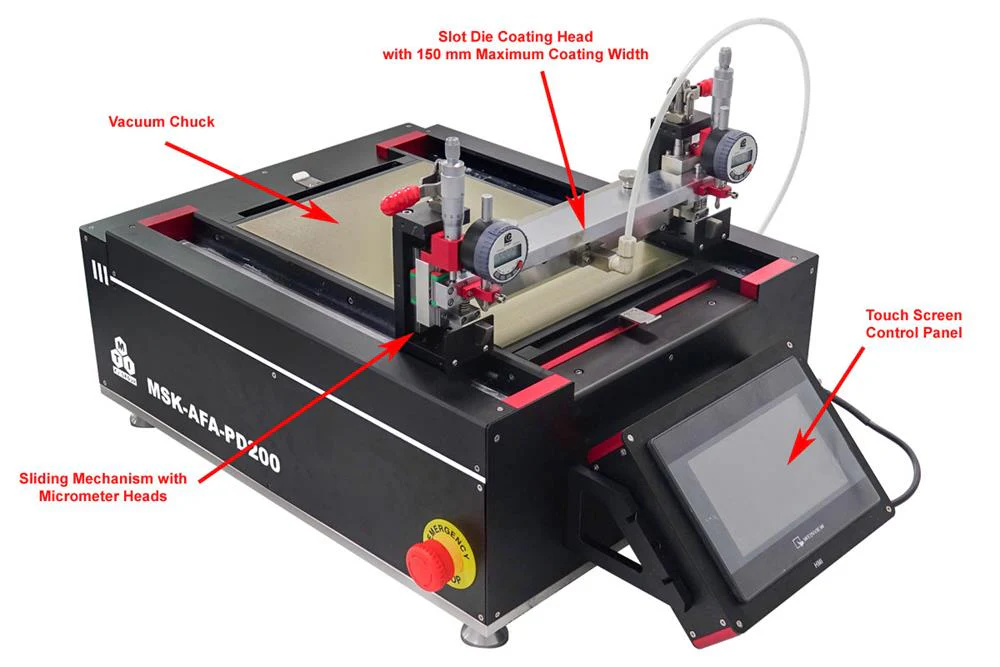

• High-precision slot die coating with 150 mm maximum coating width

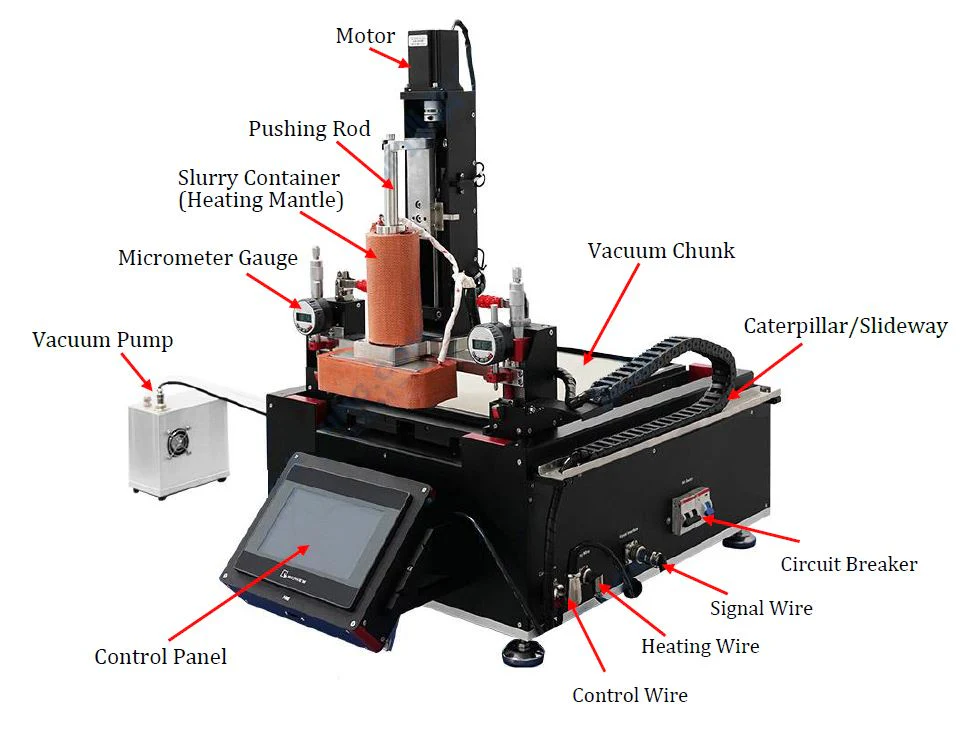

• The syringe pump is integrated into the coater. The slurry feeding is completely sealed.
• The vacuum chuck and pump are also integrated into the coater
• The coater with a 24V DC motor is able to be used in the glovebox with Argon atmosphere

• 110V - 240V AC 50/60Hz for worldwide use
• 500W
• UL /CSA certified power supply (110~ 240VAC - 24VDC) is separated from the coating unit
• The coating unit has 24VDC input and is driven by a 24VDC motor, which can be used under Ar atmosphere glovebox to avoid NRTL certification

• Area: 360 mm length x 250 mm width

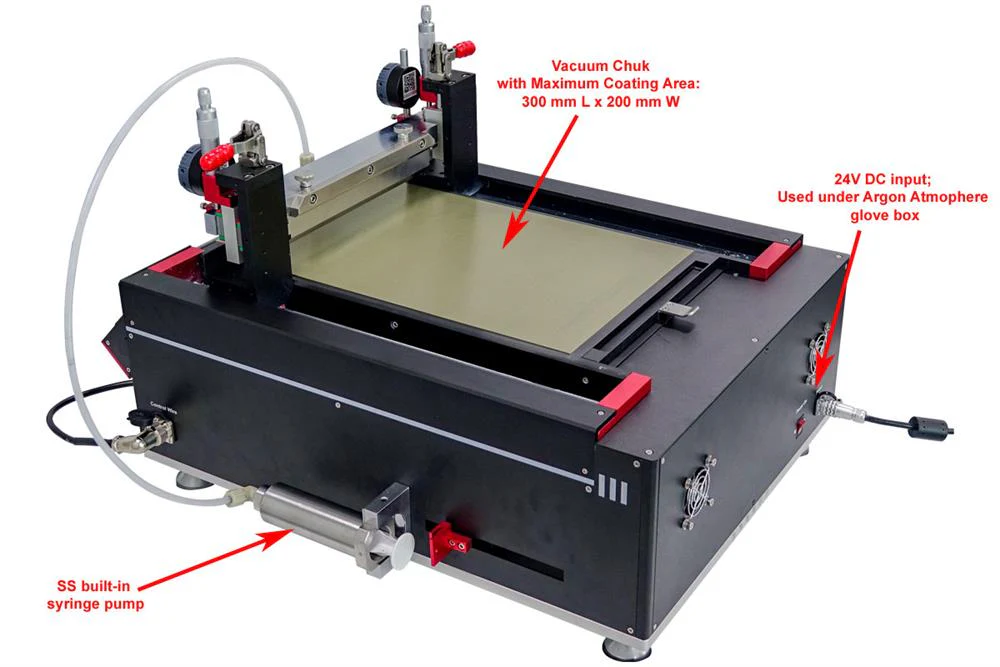

• Maximum Coating Area: 300 mm length x 200 mm width
• A vacuum pump is included
• Hold a flexible substrate firmly up to 5 mm thick
• The heating function is available and the maximum temperature is up to 100 °C

• Material: SUS630
• Size: L 150mm x W 50mm x H 24mm
• Coating width: 200 mm (standard) (150 mm, 100 mm or 50mm slot die are available upon request)
• Standard Shim Thickness: 0.04, 0.05, 0.06, 0.1, 0.2, 0.3, 0.4, 0.6 mm. (other shim thickness is available upon request)
• Cavity shape: May change according to hot melt viscosity (need to know before order)
• Viscosity: ≤8000 cps
• Solid content: 55%±20%
• Optional Heatable slot-die up to 100 °C ( together with a heatable syringe pump)
• The precise digital thickness gauge (EQ-DTG) can be used to measure the electrode sheet thickness

• Capacity: 60 ml made of Stainless steel
• Feed speed: 0.05 - 5 mm/s (Piston moving speed)
• Optional Heated Syringe Pump Temperature: 100 ºC Max. ( order together with heatable slot-die )

Gap Control

• Two-micrometer heads are built into the travel rod of the coater to adjust the gap between the slot die and the substrate
• Two digital drop indicators are provided to move with the slot die

• Travel Speed: 0.05 - 20 mm/s adjustable via touch screen control panel
• Maximum coating area: 120 mm W x 300 mm L

• 6" color touchscreen panel to set coating speed, heating temperature, and syringe pump speed

• CE certified
• NRTL or CSA certification is available upon request at an extra cost
