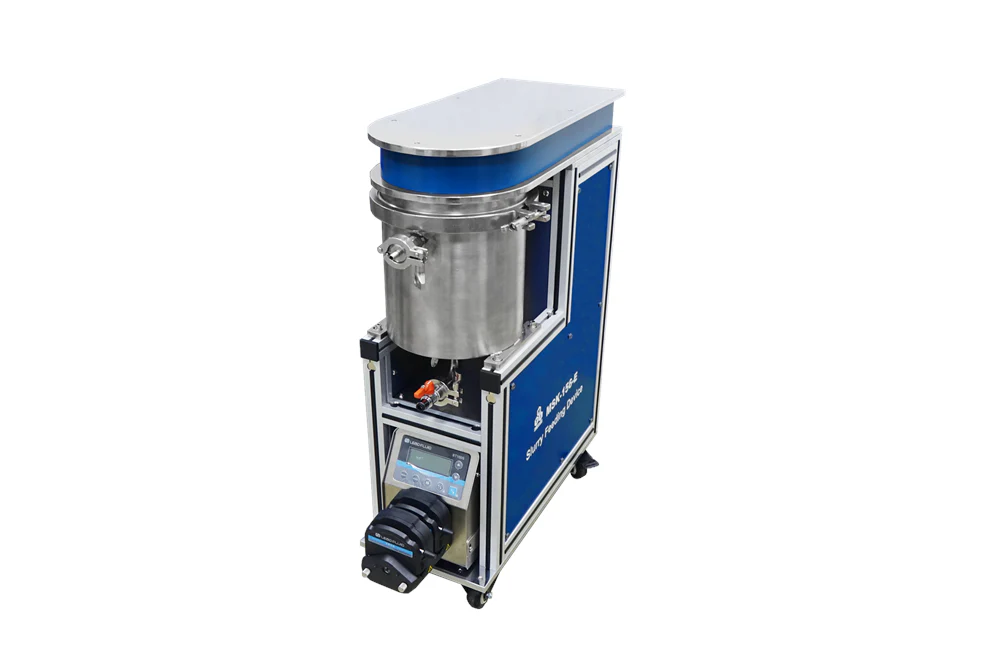

5L Slurry Feeder with Peristaltic Pump for R2R Blade & Microgravure Coating-MSK-156-E

5L Slurry Feeder with Peristaltic Pump for R2R Blade & Microgravure Coating-MSK-156-E

5L Slurry Feeder with Peristaltic Pump for R2R Blade & Microgravure Coating-MSK-156-E

MSK-156-E is an automatic slurry feeder with a peristalic pump and stainless steel reservoir. It is designed for use with MTI Roll-to-Roll web coating system MSK-AFA-DS300, MSK-AFA-200 or MSK-AFA-MC200-LD for the Li-ion battery electrode coating process.

Features	Peristalic pump for various low-to-high viscosity slurry feeding. Pneumatic airtight slurry reservoir. Corrosion-resistant pipeline compatible with mild acidic and alkaline slurries
Power Requirement	AC 220V +/- 10% Single phase 500W Max.
Compressed Gas Requirement	0.5~0.8MPa compress gas is required.
Feeding rate	0.001 to 720 mL/min, adjustable Feeding Rotation Speed: 0.1-150 r/min
Slurry Reservoir	5L effective volume, 304 stainless steel
NMP Compatible	It is compatible with NMP
Warranty	One-Year limited warranty with lifetime support Rusting and damage due to improper storage condition or maintenance are not covered by warranty
Application Note	This slurry feeder is meant to be used with roll-to-roll web coaters MSK-AFA-DS300, MSK-AFA-200 or MSK-AFA-MC200-LD. Please contact us to check its compatibility with other products. Please click pic 1 below to see the vacuum mixing for roll to roll coating flow chart

$11,985.00

5L Slurry Feeder with Peristaltic Pump for R2R Blade & Microgravure Coating-MSK-156-E—

$11,985.00

More Images

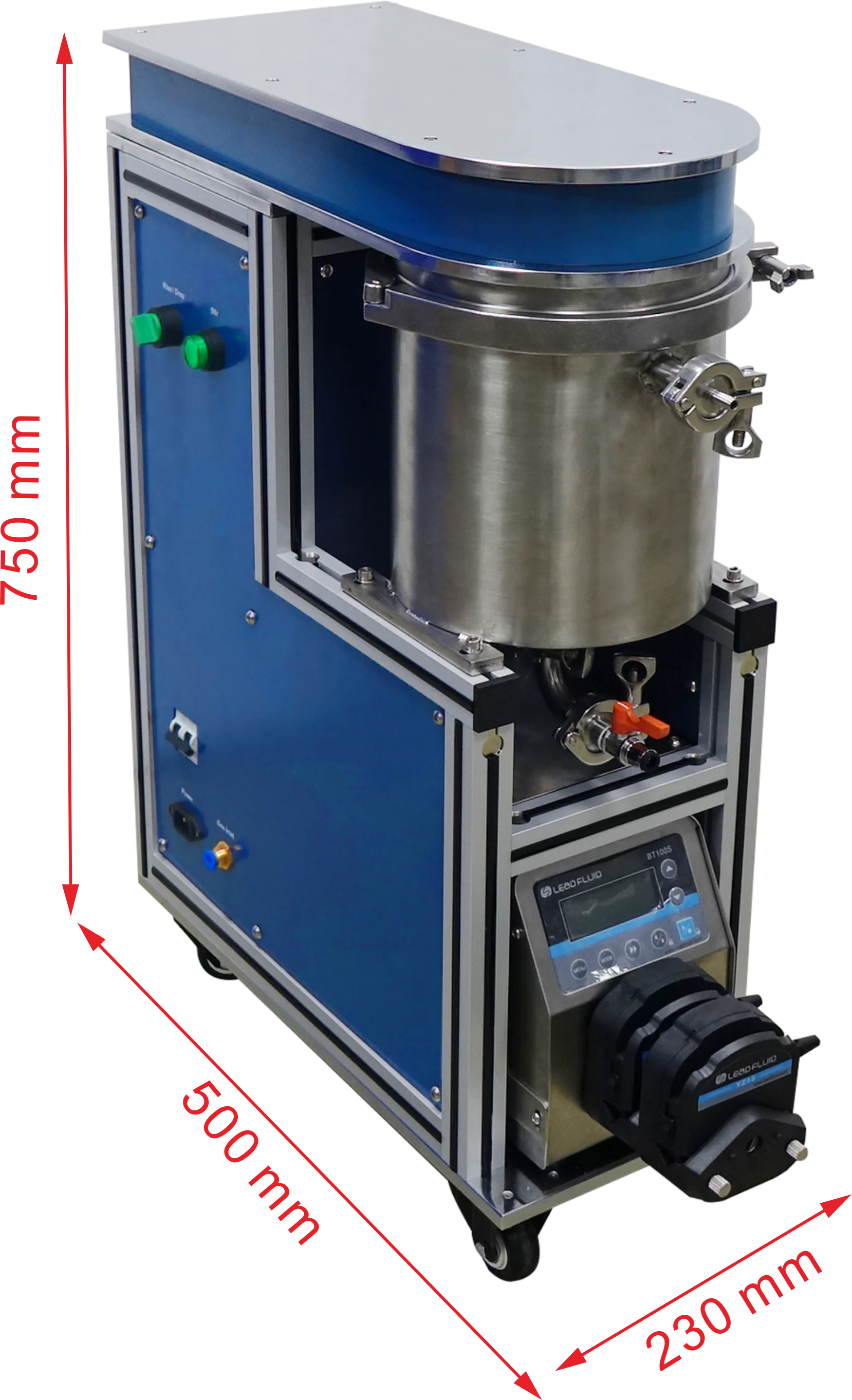

5L Slurry Feeder with Peristaltic Pump for R2R Blade & Microgravure Coating-MSK-156-E - Image 2

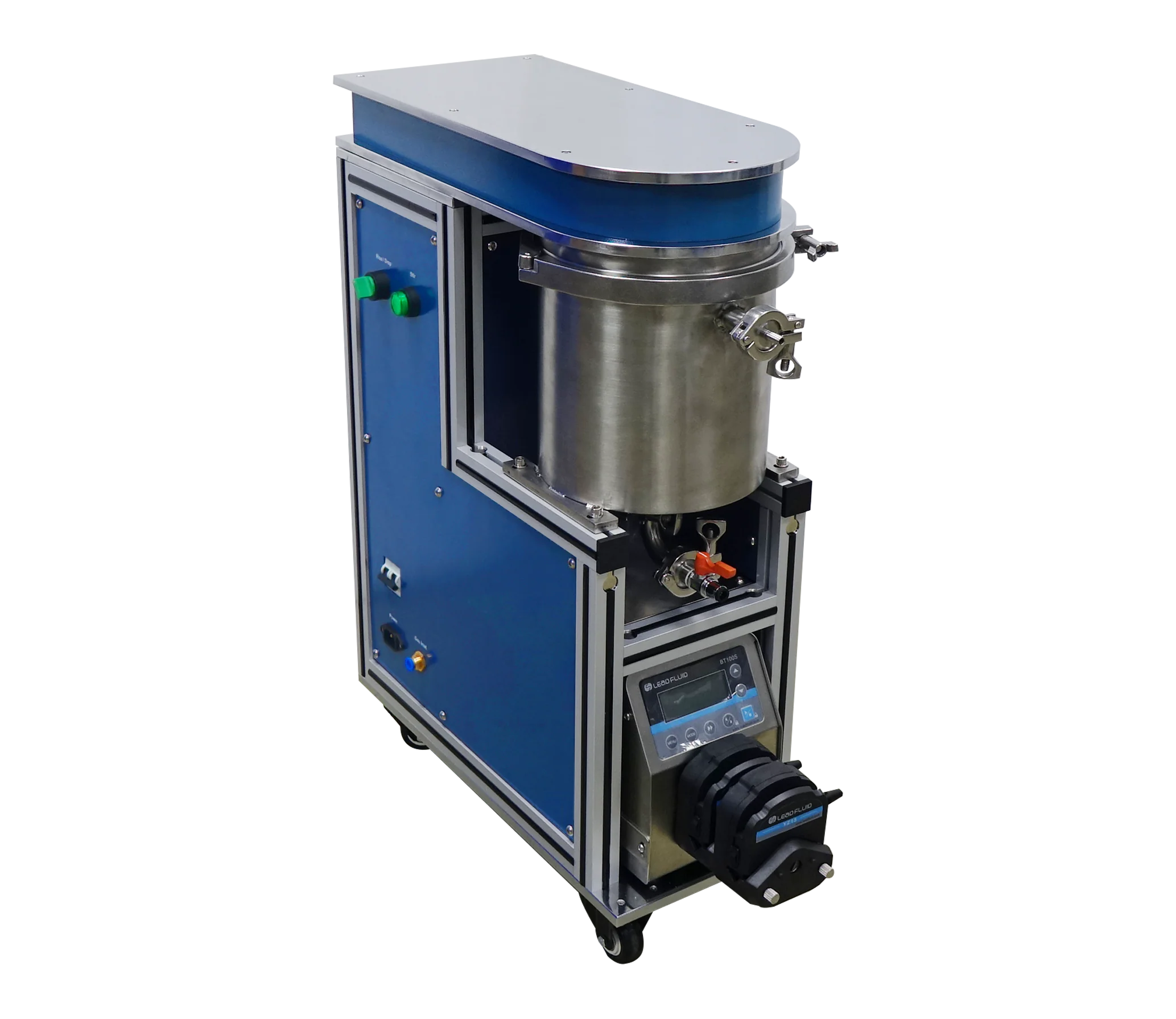

5L Slurry Feeder with Peristaltic Pump for R2R Blade & Microgravure Coating-MSK-156-E - Image 3

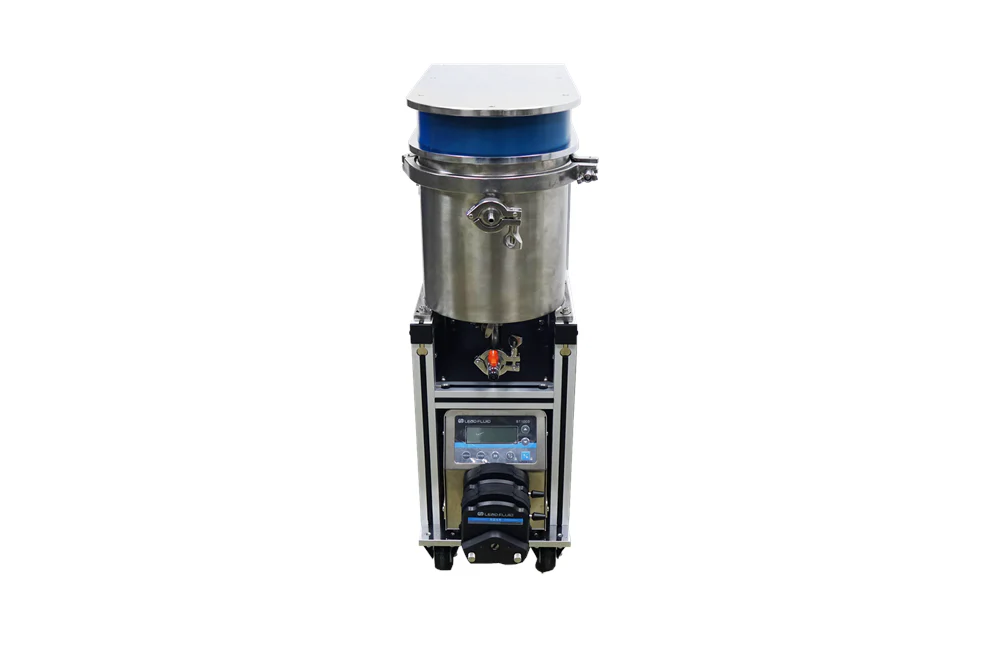

5L Slurry Feeder with Peristaltic Pump for R2R Blade & Microgravure Coating-MSK-156-E - Image 4

5L Slurry Feeder with Peristaltic Pump for R2R Blade & Microgravure Coating-MSK-156-E - Image 5

5L Slurry Feeder with Peristaltic Pump for R2R Blade & Microgravure Coating-MSK-156-E

MSK-156-E is an automatic slurry feeder with a peristalic pump and stainless steel reservoir. It is designed for use with MTI Roll-to-Roll web coating system MSK-AFA-DS300, MSK-AFA-200 or MSK-AFA-MC200-LD for the Li-ion battery electrode coating process.

Features	Peristalic pump for various low-to-high viscosity slurry feeding. Pneumatic airtight slurry reservoir. Corrosion-resistant pipeline compatible with mild acidic and alkaline slurries
Power Requirement	AC 220V +/- 10% Single phase 500W Max.
Compressed Gas Requirement	0.5~0.8MPa compress gas is required.
Feeding rate	0.001 to 720 mL/min, adjustable Feeding Rotation Speed: 0.1-150 r/min
Slurry Reservoir	5L effective volume, 304 stainless steel
NMP Compatible	It is compatible with NMP
Warranty	One-Year limited warranty with lifetime support Rusting and damage due to improper storage condition or maintenance are not covered by warranty
Application Note	This slurry feeder is meant to be used with roll-to-roll web coaters MSK-AFA-DS300, MSK-AFA-200 or MSK-AFA-MC200-LD. Please contact us to check its compatibility with other products. Please click pic 1 below to see the vacuum mixing for roll to roll coating flow chart

Product Information

Shipping & Returns

Description

MSK-156-E is an automatic slurry feeder with a peristalic pump and stainless steel reservoir. It is designed for use with MTI Roll-to-Roll web coating system MSK-AFA-DS300, MSK-AFA-200 or MSK-AFA-MC200-LD for the Li-ion battery electrode coating process.

Features	Peristalic pump for various low-to-high viscosity slurry feeding. Pneumatic airtight slurry reservoir. Corrosion-resistant pipeline compatible with mild acidic and alkaline slurries
Power Requirement	AC 220V +/- 10% Single phase 500W Max.
Compressed Gas Requirement	0.5~0.8MPa compress gas is required.
Feeding rate	0.001 to 720 mL/min, adjustable Feeding Rotation Speed: 0.1-150 r/min
Slurry Reservoir	5L effective volume, 304 stainless steel
NMP Compatible	It is compatible with NMP
Warranty	One-Year limited warranty with lifetime support Rusting and damage due to improper storage condition or maintenance are not covered by warranty
Application Note	This slurry feeder is meant to be used with roll-to-roll web coaters MSK-AFA-DS300, MSK-AFA-200 or MSK-AFA-MC200-LD. Please contact us to check its compatibility with other products. Please click pic 1 below to see the vacuum mixing for roll to roll coating flow chart
