Auto Slurry Feeder w/ Two 2L Tanks and Optional Heating Function for Roll-to-Roll Coater - MSK-155

Auto Slurry Feeder w/ Two 2L Tanks and Optional Heating Function for Roll-to-Roll Coater - MSK-155

Auto Slurry Feeder w/ Two 2L Tanks and Optional Heating Function for Roll-to-Roll Coater - MSK-155

MSK-155 is an automatic slurry feeder with peristaltic pump and stainless steel reservoir. It is designed for use with MTI Roll-to-Roll web coaters such as MSK-AFA-E200 and MSK-AFA-EI300 for Li-ion battery electrode coating process.

Features	Peristaltic pump for precise slurry feeding rate control. Compact design with two sets of stainless steel reservoirs and peristaltic pumps prevent cross contaminations between cathode and anode slurries. Corrosion resistant pipeline is compatible with any acidic, alkaline slurries
Power Requirement	110~240VAC +/-10%, 50/60Hz 100W Max.
peristaltic pump	Two sets of peristaltic pumps can delivery
Feeding rate	1965ml/min, adjustable
Slurry Reservoir	2L Volume, 304 stainless steel
Temperature Controller (Optional)	The controller uses PID via SSR power control Single-point setting controller Over-temperature protection and alarm allow for operation without attendant(s). +/- 1 ºC temperature accuracy.
Application Note	Such a slurry feeder can be used with roll-to-roll web coaters such as MSK-AFA-E200 and MSK-AFA-EI300 to achieve higher product efficiency.

Select With Heating Function

From $2,986.00

Auto Slurry Feeder w/ Two 2L Tanks and Optional Heating Function for Roll-to-Roll Coater - MSK-155—

$2,986.00

More Images

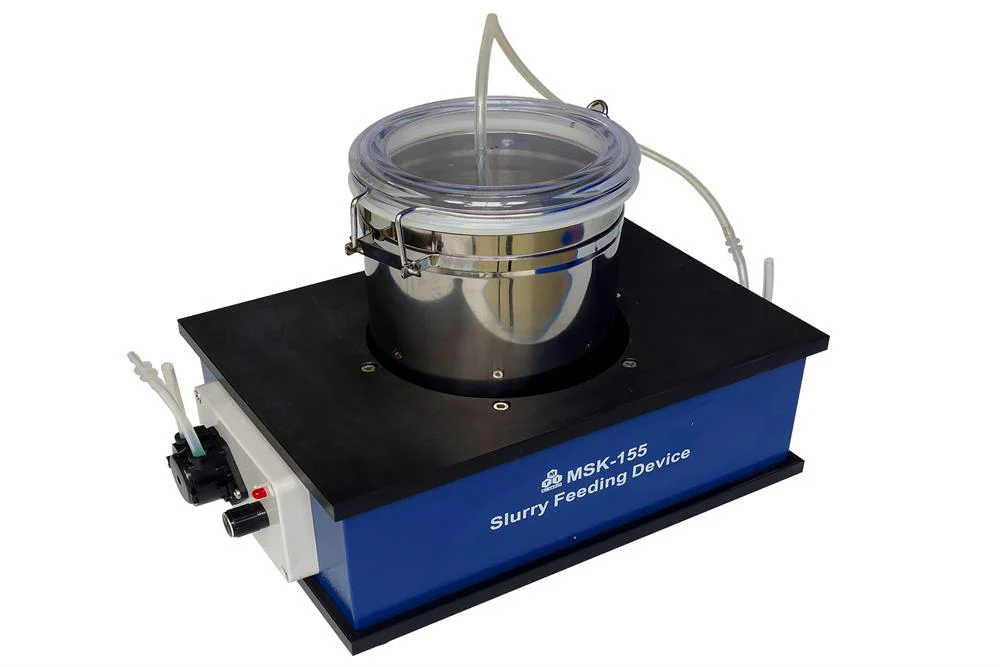

Auto Slurry Feeder w/ Two 2L Tanks and Optional Heating Function for Roll-to-Roll Coater - MSK-155 - Image 2

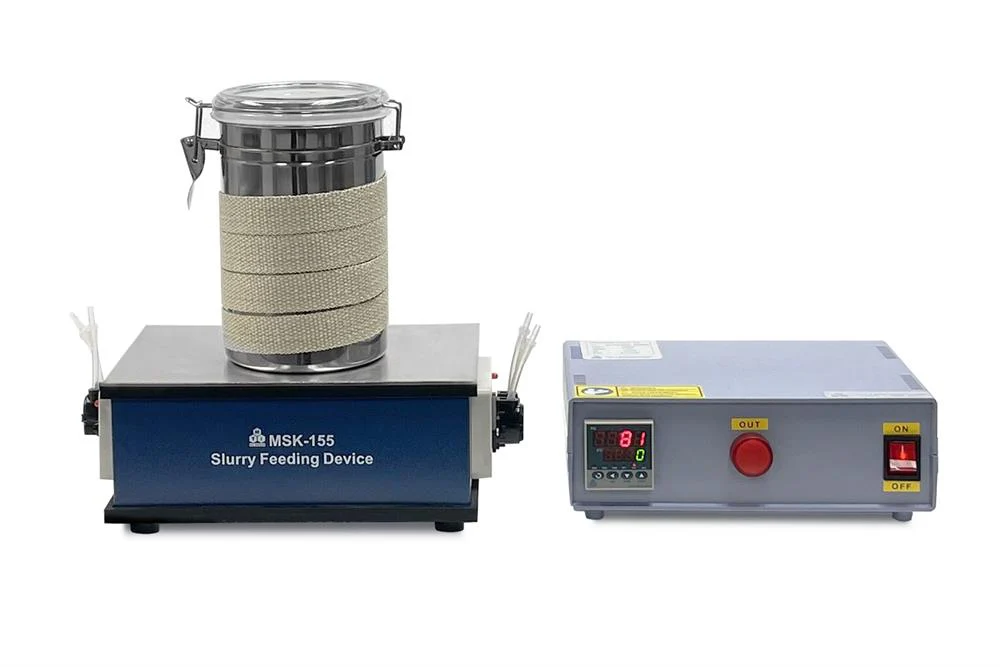

Auto Slurry Feeder w/ Two 2L Tanks and Optional Heating Function for Roll-to-Roll Coater - MSK-155 - Image 3

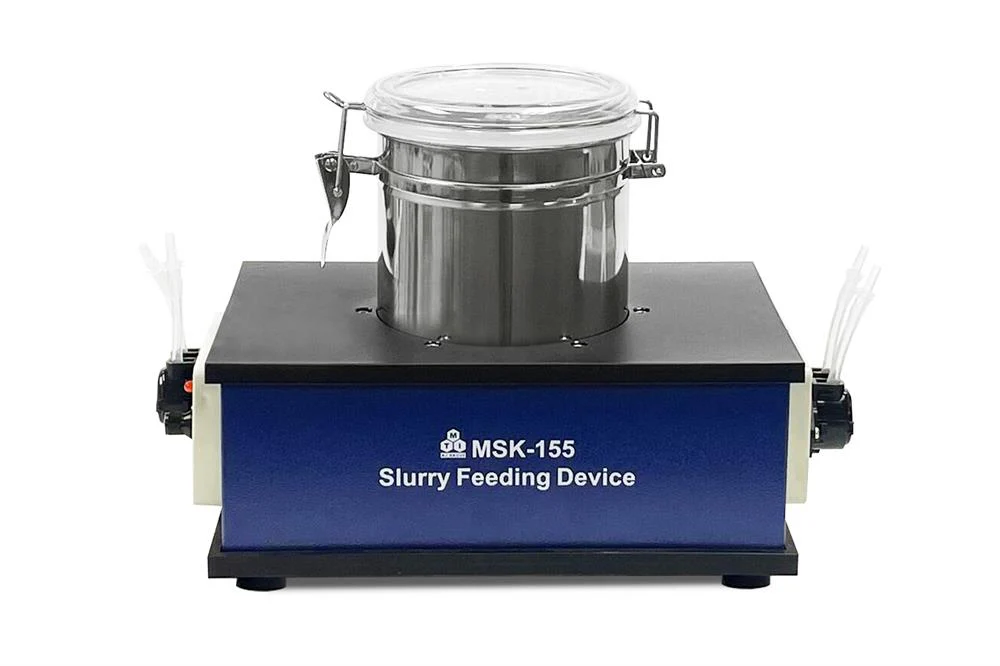

Auto Slurry Feeder w/ Two 2L Tanks and Optional Heating Function for Roll-to-Roll Coater - MSK-155

MSK-155 is an automatic slurry feeder with peristaltic pump and stainless steel reservoir. It is designed for use with MTI Roll-to-Roll web coaters such as MSK-AFA-E200 and MSK-AFA-EI300 for Li-ion battery electrode coating process.

Features	Peristaltic pump for precise slurry feeding rate control. Compact design with two sets of stainless steel reservoirs and peristaltic pumps prevent cross contaminations between cathode and anode slurries. Corrosion resistant pipeline is compatible with any acidic, alkaline slurries
Power Requirement	110~240VAC +/-10%, 50/60Hz 100W Max.
peristaltic pump	Two sets of peristaltic pumps can delivery
Feeding rate	1965ml/min, adjustable
Slurry Reservoir	2L Volume, 304 stainless steel
Temperature Controller (Optional)	The controller uses PID via SSR power control Single-point setting controller Over-temperature protection and alarm allow for operation without attendant(s). +/- 1 ºC temperature accuracy.
Application Note	Such a slurry feeder can be used with roll-to-roll web coaters such as MSK-AFA-E200 and MSK-AFA-EI300 to achieve higher product efficiency.
