Manual Stacking Holder for Single-Layer or Multiple-Layer Pouch Cells (L 62 x W 46 mm) - MSK-111A-PF4662

Manual Stacking Holder for Single-Layer or Multiple-Layer Pouch Cells (L 62 x W 46 mm) - MSK-111A-PF4662

Manual Stacking Holder for Single-Layer or Multiple-Layer Pouch Cells (L 62 x W 46 mm) - MSK-111A-PF4662

MSK-111A-PF4662 is a compact manual stacking holder designed for single-layer or multiple-layers pouch cells (L 62 x W 46 mm).

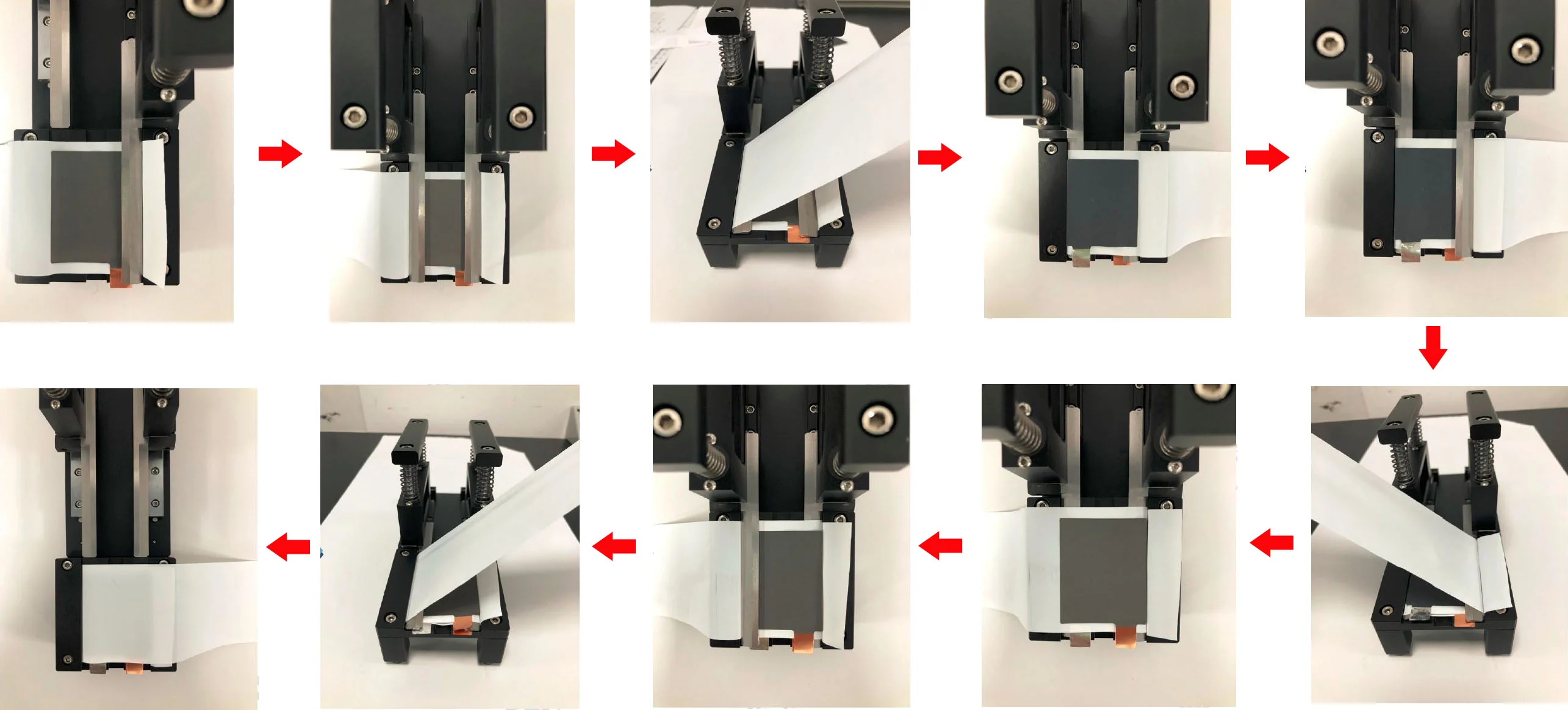

The stacking procedures are shown below:

SPECIFICATIONS:

Feature	Z-shaped stacking Auxiliary positioning for the position of the separator Manual placement of the electrodes and separator Auxiliary clamping by the fixture Dedicated fixtures can be customized according to battery size Desktop design with simple operation and easy maintenance
Stacking Accuracy	± 0.5 mm
Stacking Blade	Length: 30 - 80 mm Width: 45 mm Thickness: Max. 3 mm Customized widths and lengths are available upon request at an extra cost.
Pouch Cell Electrode Size	62 mm L x 46 mm W
Product Size	L 250 mm × W 83 mm × H 129 mm
Net Weight	1.3kg (~3 lbs)

$1,998.00

Manual Stacking Holder for Single-Layer or Multiple-Layer Pouch Cells (L 62 x W 46 mm) - MSK-111A-PF4662—

$1,998.00

More Images

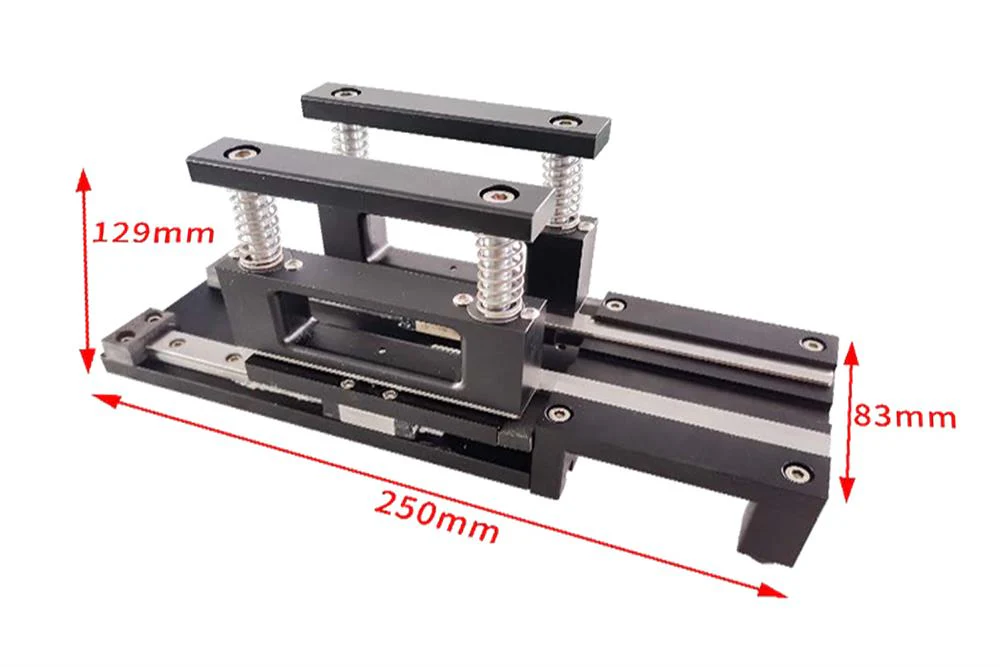

Manual Stacking Holder for Single-Layer or Multiple-Layer Pouch Cells (L 62 x W 46 mm) - MSK-111A-PF4662 - Image 2
