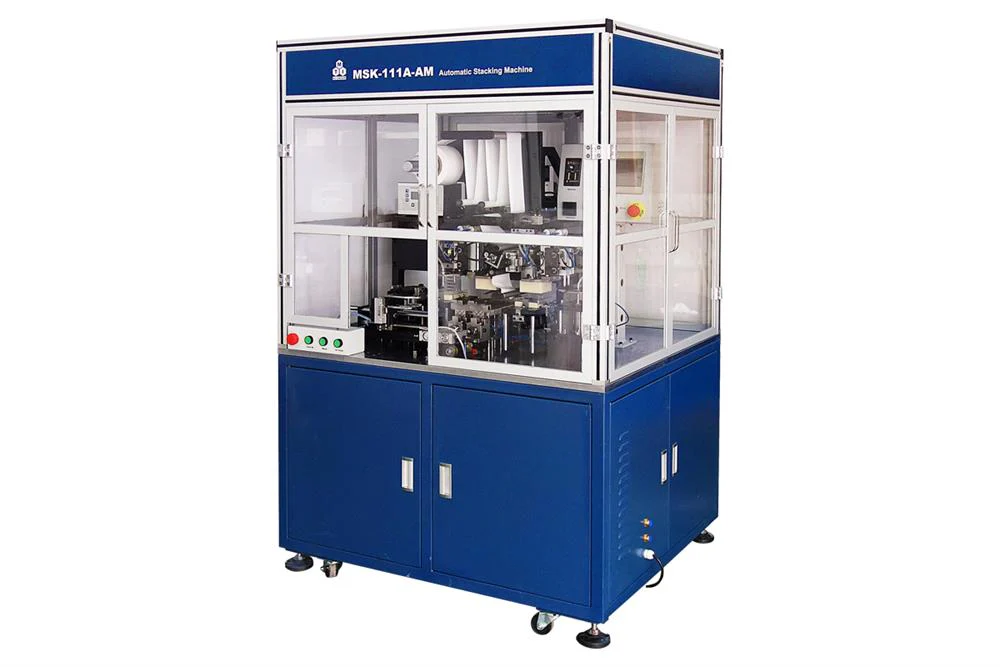

Full Automatic Layer by Layer Stacking Machine for Pouch Cell up to 160L x 100W (mm) - MSK-111A-AM
HomeStore

Full Automatic Layer by Layer Stacking Machine for Pouch Cell up to 160L x 100W (mm) - MSK-111A-AM

Full Automatic Layer by Layer Stacking Machine for Pouch Cell up to 160L x 100W (mm) - MSK-111A-AM

SPECIFICATIONS:

Working Voltage
  • AC220V 50/60Hz
Power
  • 1.4 KW
Stackable Size
  • Min 50mm x 40mm (L x W), electrode without tabs
  • Max 160 mm L x 160 mm W, electrode without tabs
Stacking Speed
  • Up to 1 layer per 2 seconds
Max. Electrode Thickness
  • Piled up thickness < 20 mm
Aligning Accuracy
  • ±0.30 mm for stacked electrodes
Suggested Air Pressure
  • 0.5 - 0.8 MPa (Air compressor is not included in the standard package. Please click here to order)
  • Attention: If a gas cylinder is used instead of air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
     pic1      pic2

Compliance
  • CE Certified
  • NRTL certificate is available upon request at extra cost



$34,994.75

Original: $99,985.00

-65%
Full Automatic Layer by Layer Stacking Machine for Pouch Cell up to 160L x 100W (mm) - MSK-111A-AM—

$99,985.00

$34,994.75

More Images

Full Automatic Layer by Layer Stacking Machine for Pouch Cell up to 160L x 100W (mm) - MSK-111A-AM - Image 2

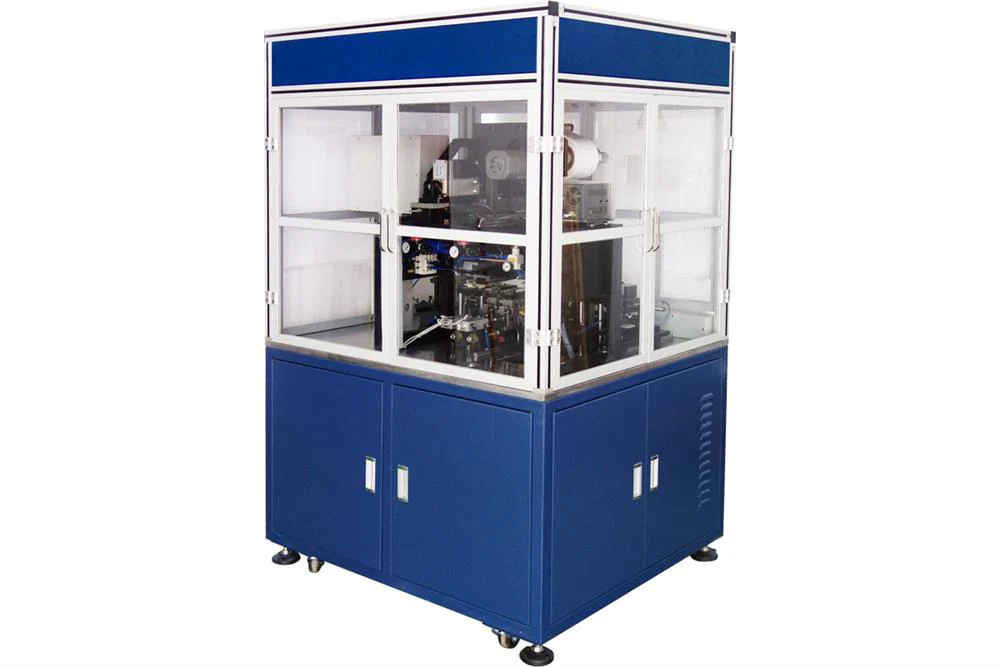

Full Automatic Layer by Layer Stacking Machine for Pouch Cell up to 160L x 100W (mm) - MSK-111A-AM - Image 3
Full Automatic Layer by Layer Stacking Machine for Pouch Cell up to 160L x 100W (mm) - MSK-111A-AM - Image 4

Full Automatic Layer by Layer Stacking Machine for Pouch Cell up to 160L x 100W (mm) - MSK-111A-AM

SPECIFICATIONS:

Working Voltage
  • AC220V 50/60Hz
Power
  • 1.4 KW
Stackable Size
  • Min 50mm x 40mm (L x W), electrode without tabs
  • Max 160 mm L x 160 mm W, electrode without tabs
Stacking Speed
  • Up to 1 layer per 2 seconds
Max. Electrode Thickness
  • Piled up thickness < 20 mm
Aligning Accuracy
  • ±0.30 mm for stacked electrodes
Suggested Air Pressure
  • 0.5 - 0.8 MPa (Air compressor is not included in the standard package. Please click here to order)
  • Attention: If a gas cylinder is used instead of air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
     pic1      pic2

Compliance
  • CE Certified
  • NRTL certificate is available upon request at extra cost
