Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
Labview Temperature Control System enables a user to edit temperature profile, manage heat-treatment recipes, and record and plot data for MTI furnaces.
file, manage heat-treatment recipes, and record and plot data for MTI furnaces.
A wireless remote control provides up to 300 meters of operating range.
Compliance
CE Certified
NRTL (UL61010) or CSA certification is available upon request at extra cost.
Application Notes
In order to obtain accurate temperature inside the tube furnace, you shall calibrate the temperature before use, please click here to learn how.
$46,498.00
1700°C Box Furnace with a Sliding Platform for Fast Heating & Cooling - KSL-1700X-RTP—
$46,498.00
More Images

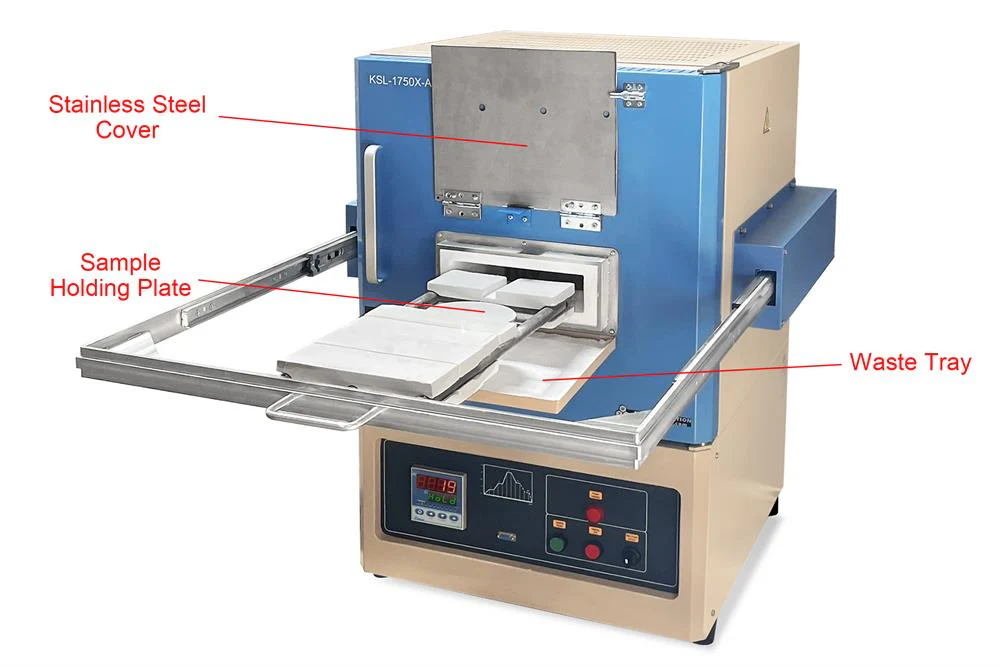

1700°C Box Furnace with a Sliding Platform for Fast Heating & Cooling - KSL-1700X-RTP
SPECIFICATIONS
Furnace Features
A sample stages for quick loading and retrieving on the bottom of the furnace
Rapid thermal heating and cooling process.
Stages are slid on the rails for easy operation. and Time-saving
High-purity thermal insulation material for better energy-saving
Air-cold steel case for safe operation
Working Temperature
1650 °C, continuously
1700 °C, < 1 hr
Heating Chamber
KSL-1700X-A3
10" × 10" × 12"
Capacity: ~ 19 L
Power
208-240 VAC, 50/60 Hz
Max. Power: 9 kW
Heating Element
MoSi2 ( 1750 grade )
Max. Heating Rate
≤ 10 °C/min (Recommended)
Thermocouple
Type B
Temperature Control
Touchscreen display unit for easy control.
Max. 30 programmable segments.
± 1 ºC precise temperature control during the dwelling
Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
Labview Temperature Control System enables a user to edit temperature profile, manage heat-treatment recipes, and record and plot data for MTI furnaces.
file, manage heat-treatment recipes, and record and plot data for MTI furnaces.
A wireless remote control provides up to 300 meters of operating range.
Compliance
CE Certified
NRTL (UL61010) or CSA certification is available upon request at extra cost.
Application Notes
In order to obtain accurate temperature inside the tube furnace, you shall calibrate the temperature before use, please click here to learn how.
Product Information
Shipping & Returns
Description
SPECIFICATIONS
Furnace Features
A sample stages for quick loading and retrieving on the bottom of the furnace
Rapid thermal heating and cooling process.
Stages are slid on the rails for easy operation. and Time-saving
High-purity thermal insulation material for better energy-saving
Air-cold steel case for safe operation
Working Temperature
1650 °C, continuously
1700 °C, < 1 hr
Heating Chamber
KSL-1700X-A3
10" × 10" × 12"
Capacity: ~ 19 L
Power
208-240 VAC, 50/60 Hz
Max. Power: 9 kW
Heating Element
MoSi2 ( 1750 grade )
Max. Heating Rate
≤ 10 °C/min (Recommended)
Thermocouple
Type B
Temperature Control
Touchscreen display unit for easy control.
Max. 30 programmable segments.
± 1 ºC precise temperature control during the dwelling
Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
Labview Temperature Control System enables a user to edit temperature profile, manage heat-treatment recipes, and record and plot data for MTI furnaces.
file, manage heat-treatment recipes, and record and plot data for MTI furnaces.
A wireless remote control provides up to 300 meters of operating range.
Compliance
CE Certified
NRTL (UL61010) or CSA certification is available upon request at extra cost.
Application Notes
In order to obtain accurate temperature inside the tube furnace, you shall calibrate the temperature before use, please click here to learn how.
