1750°C Kanthal Super-1800 MoSi2 Heating Element -270mm L- for MTI 1750°C Compact Furnace - KSKSL-1800-S-LD

1750°C Kanthal Super-1800 MoSi2 Heating Element -270mm L- for MTI 1750°C Compact Furnace - KSKSL-1800-S-LD

1750°C Kanthal Super-1800 MoSi2 Heating Element -270mm L- for MTI 1750°C Compact Furnace - KSKSL-1800-S-LD

Specifications		Materials: MoSi2 Max Surface Temperature: 1800°C Max working temperature for furnace: 1750 °C A (Distance between two shanks) : 30 mm (1.18") D1 (Terminal Diameter) : 12 mm (0.47") D2 (Heating Zone Diameter): 6 mm (0.23") L1 (Terminal Length): 160 mm (6.30") L2 (Heating Zone Length): 110 mm (4.33")
Applications	Replace heating elements for MTI's KSL-1700X-KA3 muffle furnace. Please click here to review detail specification
Installation		When installing a heating element into furnaces, a separator should be placed between the two shanks of the heating element before hanging the element inside the furnace chamber. The proper separator width should be selected to fit the shanks smoothly and avoid damage to the element.
Warning	Exercise extreme caution to not apply any stress on the elements during installation. Heating elements are very brittle and could break if the separator is too wide or if too much pressure is applied on them. No warranty will be issued for damage caused by improper installation.
	Inspect your delivery: Please check the package for damages before accepting delivery. Should damages be found, please keep all packaging materials, take pictures, and report immediately to the carrier/MTI.
	No Warranty: Kindly note this item is a consumable part, and not covered by a warranty. Make sure to inspect for defect(s) thoroughly before use.

$998.86

1750°C Kanthal Super-1800 MoSi2 Heating Element -270mm L- for MTI 1750°C Compact Furnace - KSKSL-1800-S-LD—

$998.86

More Images

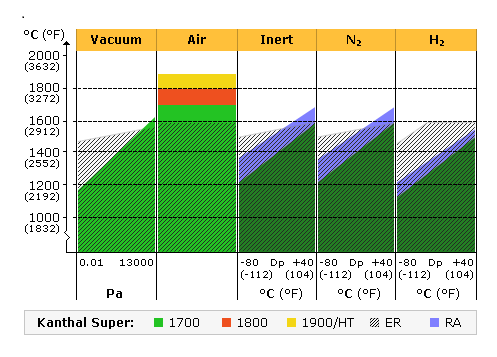

1750°C Kanthal Super-1800 MoSi2 Heating Element -270mm L- for MTI 1750°C Compact Furnace - KSKSL-1800-S-LD - Image 2

1750°C Kanthal Super-1800 MoSi2 Heating Element -270mm L- for MTI 1750°C Compact Furnace - KSKSL-1800-S-LD

Specifications		Materials: MoSi2 Max Surface Temperature: 1800°C Max working temperature for furnace: 1750 °C A (Distance between two shanks) : 30 mm (1.18") D1 (Terminal Diameter) : 12 mm (0.47") D2 (Heating Zone Diameter): 6 mm (0.23") L1 (Terminal Length): 160 mm (6.30") L2 (Heating Zone Length): 110 mm (4.33")
Applications	Replace heating elements for MTI's KSL-1700X-KA3 muffle furnace. Please click here to review detail specification
Installation		When installing a heating element into furnaces, a separator should be placed between the two shanks of the heating element before hanging the element inside the furnace chamber. The proper separator width should be selected to fit the shanks smoothly and avoid damage to the element.
Warning	Exercise extreme caution to not apply any stress on the elements during installation. Heating elements are very brittle and could break if the separator is too wide or if too much pressure is applied on them. No warranty will be issued for damage caused by improper installation.
	Inspect your delivery: Please check the package for damages before accepting delivery. Should damages be found, please keep all packaging materials, take pictures, and report immediately to the carrier/MTI.
	No Warranty: Kindly note this item is a consumable part, and not covered by a warranty. Make sure to inspect for defect(s) thoroughly before use.
