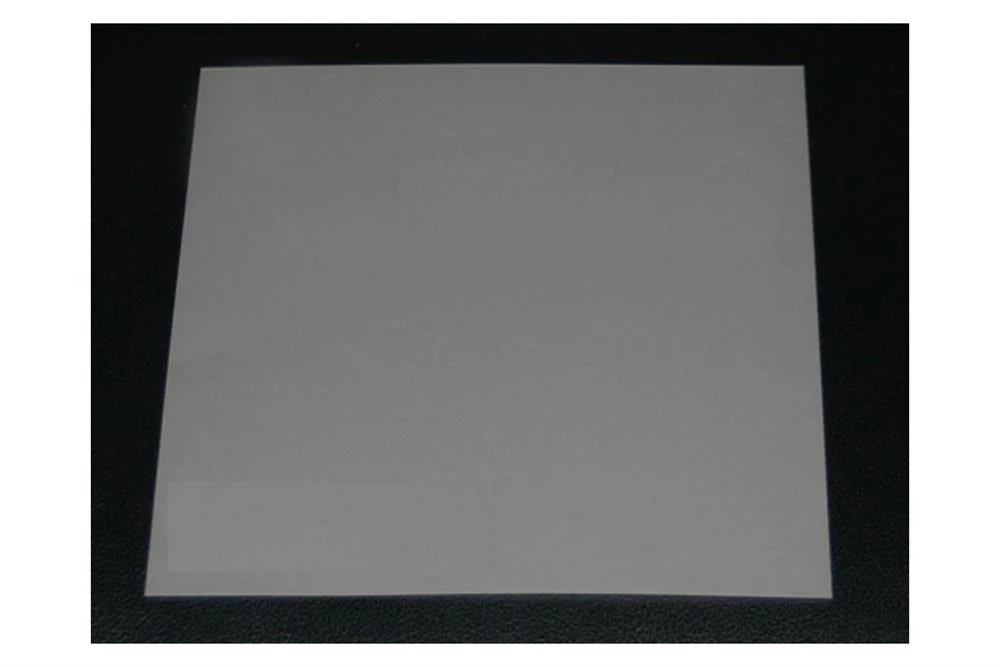

One Sided Thermal Graphene Transfer Tape 5 pieces - GTT-LD
HomeStore

One Sided Thermal Graphene Transfer Tape 5 pieces - GTT-LD

One Sided Thermal Graphene Transfer Tape 5 pieces - GTT-LD

Graphene can be grown by chemical vapor deposition (CVD). After CVD, the graphene must be transferred from the metal catalyst to another substrate for most applications. EQ-GTT-LD is a one-sided thermal graphene transfer tape. The package includes 5 pieces. The thermal release tape is designed for the graphene transferring. By using graphene transfer tape, the residue can be low.

SPECIFICATIONS:

Size for one piece

200 mm x 200 mm

Coating

One Sided

Maximum Working Temperature

100ÂșC Release Temperature

Steps
  • Peel off the protective layer from the thermal release tape
  • Put the adhesive layer of the tape on top of the layer of graphene
  • Apply firm pressure to the tape with a rubber roll or a spatula

Application Notes
  • Low-residue Graphene by using thermal release tape
  • It is difficult to obtain continuous coverage. If continuous coverage is required,please consider using PMMA.
  • The metal catalyst should then be etched away.
  • The adhesion of the surface of the target substrate to graphene plays an important role in successful graphene transfer.
  • The substrate becomes very hydrophilic when the plasma treatments have been done properly.
  • The tape with graphene should be pressed firmly to the substrate.
