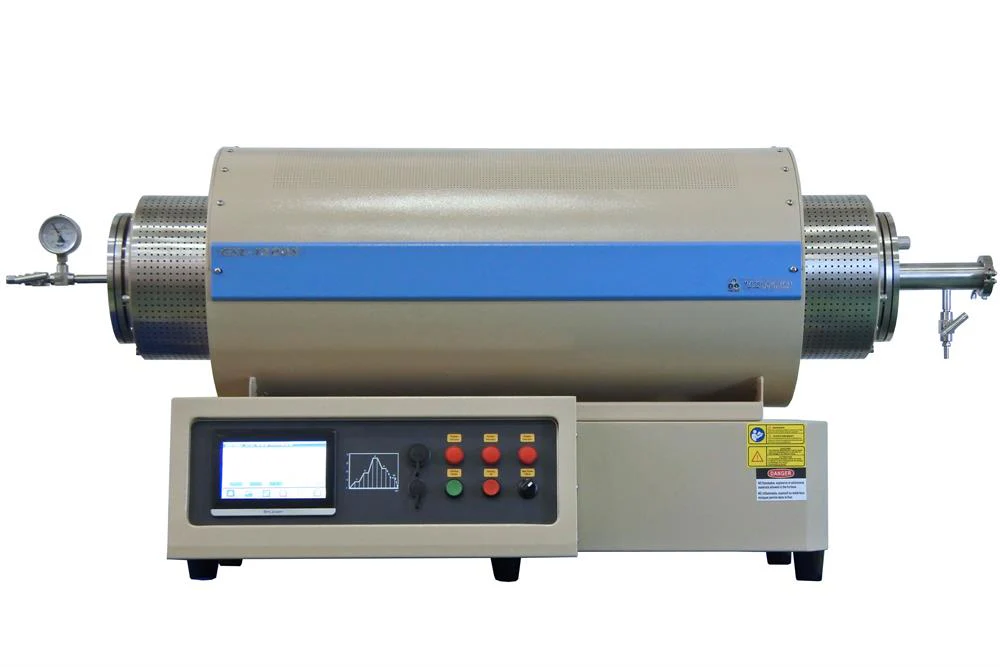

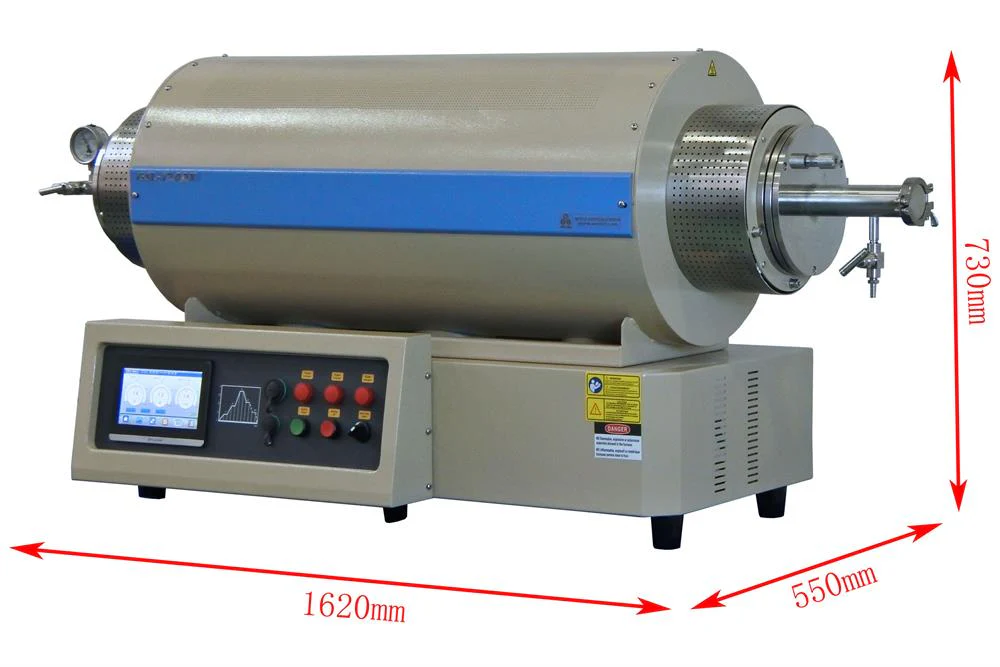

1200°C max. 3-Zone Tube Furnace( 6" OD Max) with Tube & Flange - GSL1200XIII6

Furnace Structure

• AC220V 50/60HZ, single phase
• 12kW
• Power cable is included without plug ( The plug may be available upon request )

Working Temperature

• Max. Temperature: 1200 °C (< 30 min)
• Continuous working temperature: 1100 °C
• Max. Heating Rate: 10°C /min

• Heating Zone Length: 700mm (total)
• ZONE 1: 152.5mm6”
• Spacing: 40mm
• ZONE 2:315mm(12.4”)
• Spacing: 40mm
• ZONE 3: 152.5mm6”
• ±2 Constant Temperature Zone: ~ 420 mm ( if set 3 zones at the same temperature)
  ±5 Constant Temperature Zone: ~ 620 mm ( if set 3 zones at same temperature)

Temperature Controller

• 7" touch screen control panel
• PID automatic control and auto-tune function.
• 50 programmable segments for the precise process
• Built-in protection for overheated and broken Thermal couple
• Temperature Accuracy: +/- 0.2 °C
• K-type thermal couple
• Slope or Time mode for the temperature curve function
• Optional Computer Software(controlling TEMP curve and exporting data) at extra cost

Temperature Calibrator Kit
(Optional at extra cost)

• Portable Digital Temperature Calibrator with PC Software - TC-calibrator-LD
• 1200mm K type Thermocouple for Calibration - TC-K-Cali-48S-LD



Vacuum Pressure
(Sold Separately)

• 50 m-torr can be achieved by a mechanical pump
• 10^-5 torr and 10-6 torr can be reached by turbopump



• Tube furnaces with quartz tubes are designed for use under vacuum and low pressure < 0.2 bars
• Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn about the installation of a gas regulator.
• The vacuum limit for all quartz tube furnaces is < 1000oC.
• The flow rate for gases should be limited to< 200ml/min)for reducing thermal shocks to the tube
• Please click here to see our typical temperature profile calibration results at various temperatures.
• In order to obtain accurate temperature inside a tube furnace, please click here to learn how to calibrate the temperature on your own.
• How to set up a ceramic tube and vacuum flange for MTI tube furnaces.

• If the end-user has to close the valve to heat the sample, ALWAYS pay attention to the pressure gauge indicator. BE SURE the pressure is lower than 0.02 MPA(use a relief valve) to prevent accidents. The end user is responsible for taking the relevant protection and explosion-proof measures, and all the consequences when processing any flammable, explosive, or toxic gases.  MTI DO NOT recommend processing within any flammable, explosive, or toxic gases.
• The equipment must work under the independent power supply network, and the voltage range of the power supply network should be within ± 8%
• DON'T share the power supply with the equipment of high magnetic fields such as intermediate frequency and high frequency, stay away from the equipment of intermediate frequency, and prevent the space electromagnetic radiation
• Keep away from liquid spatter
• Keep away from conductive powder
