Anti-Corrosive Electrolyte Tanks with Jig and Tube Connectors for Redox Flow Cell - FCT-LD
HomeStore

Anti-Corrosive Electrolyte Tanks with Jig and Tube Connectors for Redox Flow Cell - FCT-LD

Anti-Corrosive Electrolyte Tanks with Jig and Tube Connectors for Redox Flow Cell - FCT-LD

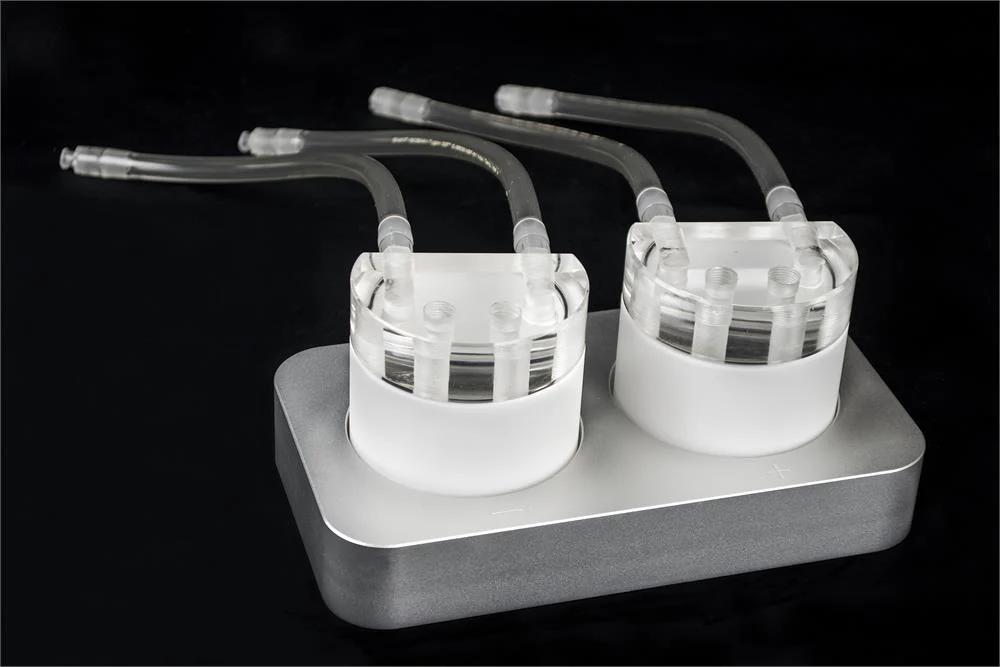

The EQ-FCT-LD Electrolyte Tank System with Jig and Tube Connectors provides a convenient "Plug-In" connection & setup for testing the EQ-VRB-C-LD Redox Flow Cell. Both tanks are made out of anti-corrosive PTFE materials to minimize electrolyte corrosion and can be seated on the included aluminum jig to prevent them from falling over. A series of tube connectors provide easy and fast connection to the flow cell and the tank lids are designed to release the build up of by-product gases during charging & discharging in order to prevent electrolyte leakage.

SPECIFICATIONS
  Features

  • Easy and fast plug-in connection to the back of flow cell
  • Twist & Turn type tube connectors allows for easy connection and disconnection of tubes
  • Aluminum jig provides stable support to the tanks to prevent them from turning over during testing
  • Tank lids have built-in tube connectors and openings for releasing build up of by-products gases that could cause electrolyte leakage
  • Made of high quality PTFE materials for minimizing electrolyte corrosion and allowing easy clean ups for repeated use

 Tank Capacity
  •  Can hold up to 120ml of electrolyte in each tank

 Overall Dimensions

  110 L × 200 W × 90 H (mm)








$1,260.00
Anti-Corrosive Electrolyte Tanks with Jig and Tube Connectors for Redox Flow Cell - FCT-LD—
$1,260.00

Anti-Corrosive Electrolyte Tanks with Jig and Tube Connectors for Redox Flow Cell - FCT-LD

The EQ-FCT-LD Electrolyte Tank System with Jig and Tube Connectors provides a convenient "Plug-In" connection & setup for testing the EQ-VRB-C-LD Redox Flow Cell. Both tanks are made out of anti-corrosive PTFE materials to minimize electrolyte corrosion and can be seated on the included aluminum jig to prevent them from falling over. A series of tube connectors provide easy and fast connection to the flow cell and the tank lids are designed to release the build up of by-product gases during charging & discharging in order to prevent electrolyte leakage.

SPECIFICATIONS
  Features

  • Easy and fast plug-in connection to the back of flow cell
  • Twist & Turn type tube connectors allows for easy connection and disconnection of tubes
  • Aluminum jig provides stable support to the tanks to prevent them from turning over during testing
  • Tank lids have built-in tube connectors and openings for releasing build up of by-products gases that could cause electrolyte leakage
  • Made of high quality PTFE materials for minimizing electrolyte corrosion and allowing easy clean ups for repeated use

 Tank Capacity
  •  Can hold up to 120ml of electrolyte in each tank

 Overall Dimensions

  110 L × 200 W × 90 H (mm)








Product Information

Shipping & Returns

Description

The EQ-FCT-LD Electrolyte Tank System with Jig and Tube Connectors provides a convenient "Plug-In" connection & setup for testing the EQ-VRB-C-LD Redox Flow Cell. Both tanks are made out of anti-corrosive PTFE materials to minimize electrolyte corrosion and can be seated on the included aluminum jig to prevent them from falling over. A series of tube connectors provide easy and fast connection to the flow cell and the tank lids are designed to release the build up of by-product gases during charging & discharging in order to prevent electrolyte leakage.

SPECIFICATIONS
  Features

  • Easy and fast plug-in connection to the back of flow cell
  • Twist & Turn type tube connectors allows for easy connection and disconnection of tubes
  • Aluminum jig provides stable support to the tanks to prevent them from turning over during testing
  • Tank lids have built-in tube connectors and openings for releasing build up of by-products gases that could cause electrolyte leakage
  • Made of high quality PTFE materials for minimizing electrolyte corrosion and allowing easy clean ups for repeated use

 Tank Capacity
  •  Can hold up to 120ml of electrolyte in each tank

 Overall Dimensions

  110 L × 200 W × 90 H (mm)
