Explosion-Proof Temperature & Humidity Test Chamber (0 - 100 °C, 20% - 98% RH, 80L) - MSK-TE906-H80L
HomeStore

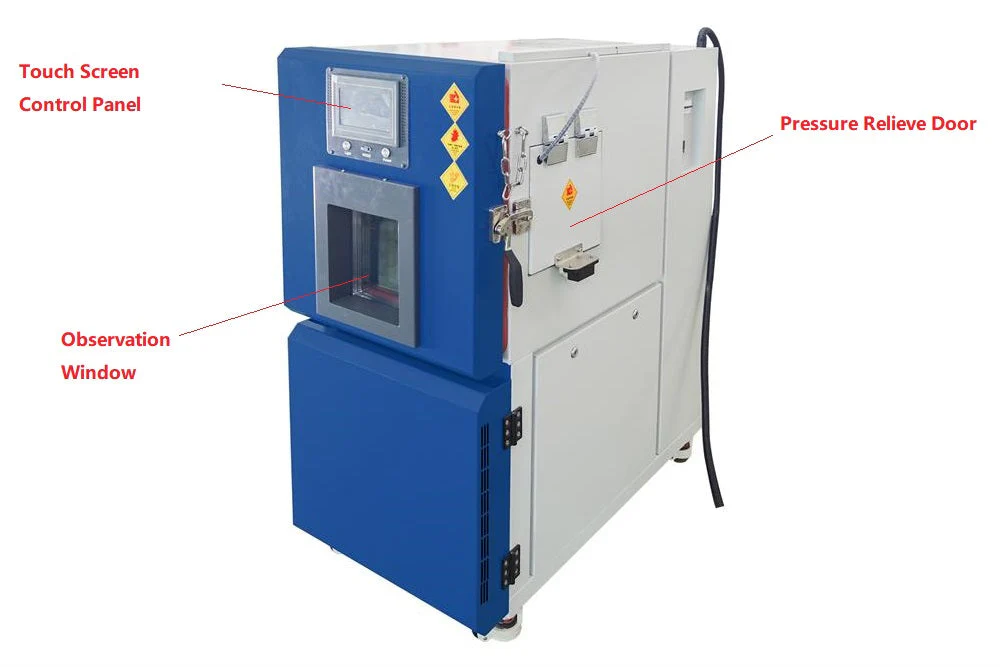

Explosion-Proof Temperature & Humidity Test Chamber (0 - 100 °C, 20% - 98% RH, 80L) - MSK-TE906-H80L

Explosion-Proof Temperature & Humidity Test Chamber (0 - 100 °C, 20% - 98% RH, 80L) - MSK-TE906-H80L

MSK-TE906-H80L is an 80L Environmental Chamber for Temperature and Humidity (HTHH) test of rechargeable battery & battery packs and other thermal tests from 0ºC to +100ºC and from 20% to 98% relative humidity.



SPECIFICATIONS
Power
  • Voltage: 208 - 240VAC, single phase, 50/60 Hz) [A 5000W transformer can be used with input AC110V]
  • Operation Power: 2.5 kW
Test Chamber Features
  • Made of SS304 stainless steel with thermal insulation of foam polyurethane and fiberglass
  • Inside Dimensions: 400 mm W x 500 mm H x 400 mm D
  • Pressure Relief Door: 310 mm x 302 mm
  • Window: 420 mm x 270 mm, vacuum sealed
  • Capacity: 80 Liters
  • Testing Hole: 2 holes with 100 mm diameter
Heating & Cooling System
  • Range: 0ºC to +100ºC
  • Resolution: +/- 0.5 ºC
  • Accuracy: +/- 1 ºC
  • Heating rate: 4 - 5 ºC/min (nonlinear)
  • Cooling rate: 1 - 1.2 ºC/min (nonlinear)
Humidity Control
  • Range: 20% - 98% RH
  • Accuracy: +/- 2.5 RH
Compliance
  • CE certified
  • NRTL or CDSA certification is available upon request at the extra cost
Operation Environment
  • Temperature: 25 ± 3 ºC
  • Humidity: 30% - 90% RH
  • No vibration or electromagnetic interference





$19,998.00
Explosion-Proof Temperature & Humidity Test Chamber (0 - 100 °C, 20% - 98% RH, 80L) - MSK-TE906-H80L—
$19,998.00

More Images

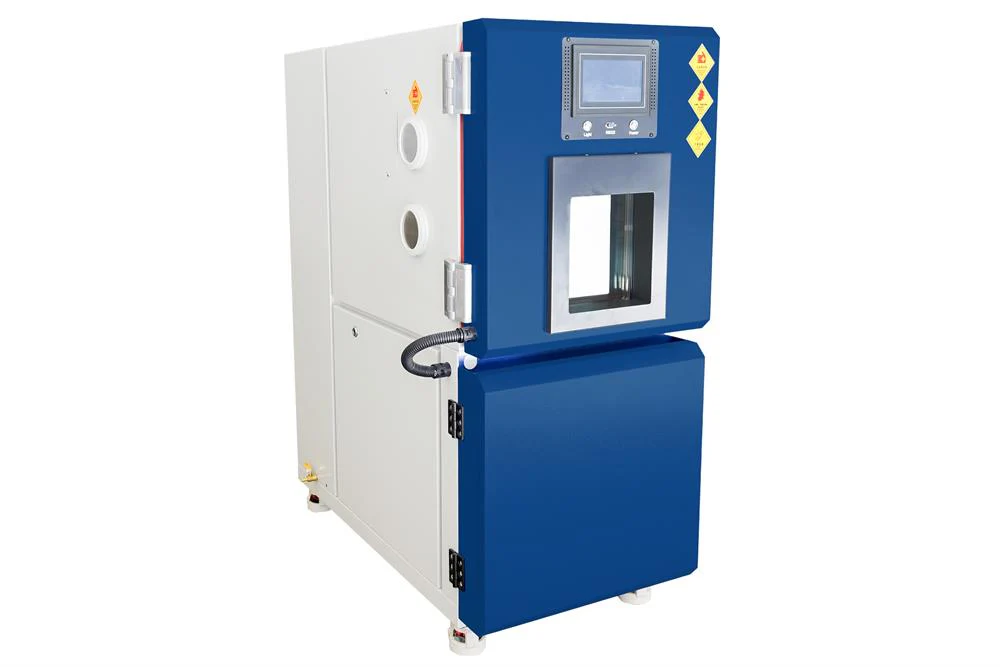

Explosion-Proof Temperature & Humidity Test Chamber (0 - 100 °C, 20% - 98% RH, 80L) - MSK-TE906-H80L - Image 2
Explosion-Proof Temperature & Humidity Test Chamber (0 - 100 °C, 20% - 98% RH, 80L) - MSK-TE906-H80L - Image 3

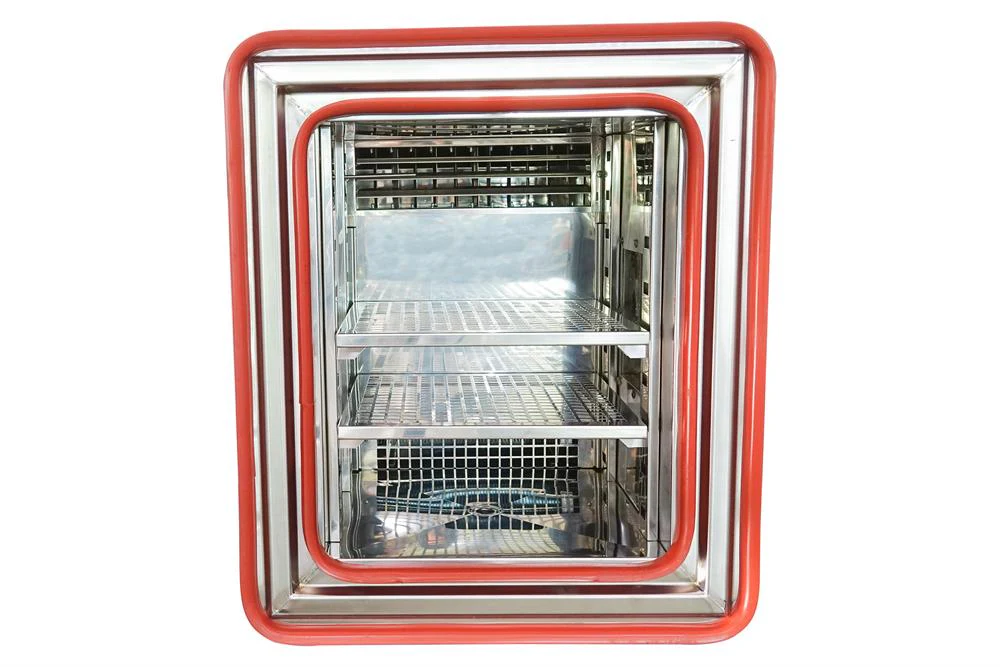

Explosion-Proof Temperature & Humidity Test Chamber (0 - 100 °C, 20% - 98% RH, 80L) - MSK-TE906-H80L - Image 4
Explosion-Proof Temperature & Humidity Test Chamber (0 - 100 °C, 20% - 98% RH, 80L) - MSK-TE906-H80L - Image 5

Explosion-Proof Temperature & Humidity Test Chamber (0 - 100 °C, 20% - 98% RH, 80L) - MSK-TE906-H80L

MSK-TE906-H80L is an 80L Environmental Chamber for Temperature and Humidity (HTHH) test of rechargeable battery & battery packs and other thermal tests from 0ºC to +100ºC and from 20% to 98% relative humidity.



SPECIFICATIONS
Power
  • Voltage: 208 - 240VAC, single phase, 50/60 Hz) [A 5000W transformer can be used with input AC110V]
  • Operation Power: 2.5 kW
Test Chamber Features
  • Made of SS304 stainless steel with thermal insulation of foam polyurethane and fiberglass
  • Inside Dimensions: 400 mm W x 500 mm H x 400 mm D
  • Pressure Relief Door: 310 mm x 302 mm
  • Window: 420 mm x 270 mm, vacuum sealed
  • Capacity: 80 Liters
  • Testing Hole: 2 holes with 100 mm diameter
Heating & Cooling System
  • Range: 0ºC to +100ºC
  • Resolution: +/- 0.5 ºC
  • Accuracy: +/- 1 ºC
  • Heating rate: 4 - 5 ºC/min (nonlinear)
  • Cooling rate: 1 - 1.2 ºC/min (nonlinear)
Humidity Control
  • Range: 20% - 98% RH
  • Accuracy: +/- 2.5 RH
Compliance
  • CE certified
  • NRTL or CDSA certification is available upon request at the extra cost
Operation Environment
  • Temperature: 25 ± 3 ºC
  • Humidity: 30% - 90% RH
  • No vibration or electromagnetic interference





Product Information

Shipping & Returns

Description

MSK-TE906-H80L is an 80L Environmental Chamber for Temperature and Humidity (HTHH) test of rechargeable battery & battery packs and other thermal tests from 0ºC to +100ºC and from 20% to 98% relative humidity.



SPECIFICATIONS
Power
  • Voltage: 208 - 240VAC, single phase, 50/60 Hz) [A 5000W transformer can be used with input AC110V]
  • Operation Power: 2.5 kW
Test Chamber Features
  • Made of SS304 stainless steel with thermal insulation of foam polyurethane and fiberglass
  • Inside Dimensions: 400 mm W x 500 mm H x 400 mm D
  • Pressure Relief Door: 310 mm x 302 mm
  • Window: 420 mm x 270 mm, vacuum sealed
  • Capacity: 80 Liters
  • Testing Hole: 2 holes with 100 mm diameter
Heating & Cooling System
  • Range: 0ºC to +100ºC
  • Resolution: +/- 0.5 ºC
  • Accuracy: +/- 1 ºC
  • Heating rate: 4 - 5 ºC/min (nonlinear)
  • Cooling rate: 1 - 1.2 ºC/min (nonlinear)
Humidity Control
  • Range: 20% - 98% RH
  • Accuracy: +/- 2.5 RH
Compliance
  • CE certified
  • NRTL or CDSA certification is available upon request at the extra cost
Operation Environment
  • Temperature: 25 ± 3 ºC
  • Humidity: 30% - 90% RH
  • No vibration or electromagnetic interference
