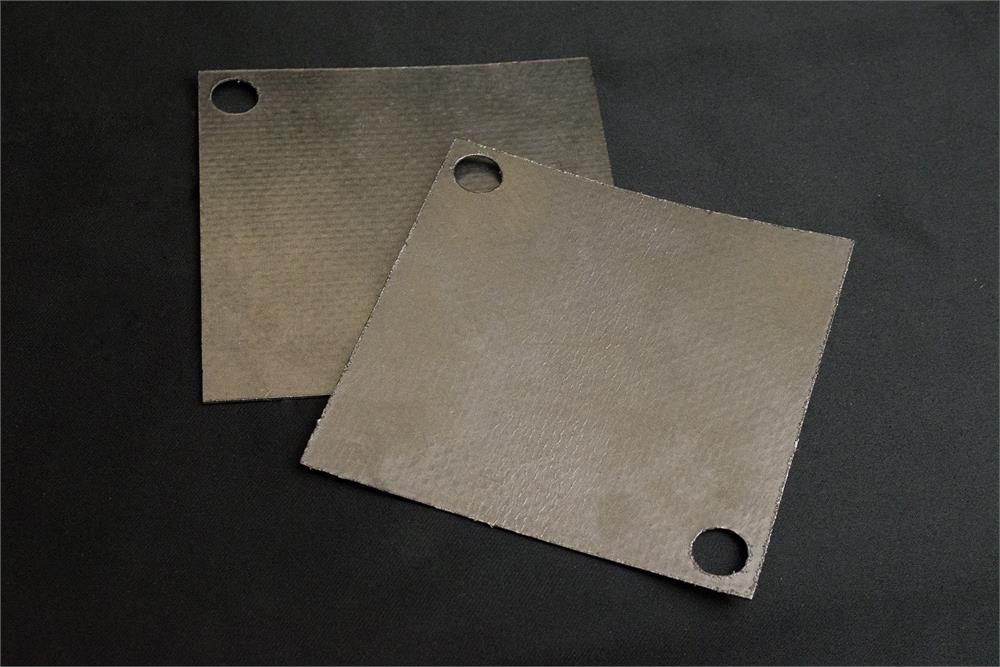

Polymer Composite Replacement Bipolar Plates for Redox Flow Cell, Pack of 2pcs - EQ-VRB

Polymer Composite Replacement Bipolar Plates for Redox Flow Cell, Pack of 2pcs - EQ-VRB

Polymer Composite Replacement Bipolar Plates for Redox Flow Cell, Pack of 2pcs - EQ-VRB

Replacement bipolar plates (2pcs per pack) for the EQ-VRB-C splitable single unit flow cell.

Used for collecting current produced from the flow cell to enable conduction at the current plates. These polymer composite plates are flexible and tough -- useful for withstanding the fluid pressure of Vanadium electrolyte that a flow cell will be subjected to internally. The thinness (~0.7mm) of the plates also help minimize the volume and weight of each cell when assembled and stacked together.

Corresponding Parts highlighted in red, please click for enlarged view.

SPECIFICATIONS

Features	High electrical conductivity, chemical resistance, and high mechanical strength for toughness required when cells are clamped and stacked. These highly flexible plates (polymer composite based) have similar performance compared to conventional graphite plates BUT offer excellent resistance to breakage and have less defects. Only ~0.7mm in thickness, this helps minimize the volume and weight of cells when stacked (compared to graphite plates which are porous and brittle in nature; hence needs to be thick structurally).
Size	Two sizes are available (Please choose the correct plate size from product options above)
	100mm x 100mm -- for flow cells that use 7x7 cm, 5x5 cm, and 3x3 cm reactive areas (please click right picture to verify)	60mm x 60mm -- for flow cells that use ONLY 3x3 cm reactive area (please click right picture to verify)
Application Note	Replacement of plates is recommended for every 5 tests or 50 hours of test time ( with immediate replacement if physical damage is present).

Select Plate Size

From $22.75

Original: $65.00

-65%

Polymer Composite Replacement Bipolar Plates for Redox Flow Cell, Pack of 2pcs - EQ-VRB—

$65.00

$22.75

Polymer Composite Replacement Bipolar Plates for Redox Flow Cell, Pack of 2pcs - EQ-VRB

Replacement bipolar plates (2pcs per pack) for the EQ-VRB-C splitable single unit flow cell.

Used for collecting current produced from the flow cell to enable conduction at the current plates. These polymer composite plates are flexible and tough -- useful for withstanding the fluid pressure of Vanadium electrolyte that a flow cell will be subjected to internally. The thinness (~0.7mm) of the plates also help minimize the volume and weight of each cell when assembled and stacked together.

Corresponding Parts highlighted in red, please click for enlarged view.

SPECIFICATIONS

Features	High electrical conductivity, chemical resistance, and high mechanical strength for toughness required when cells are clamped and stacked. These highly flexible plates (polymer composite based) have similar performance compared to conventional graphite plates BUT offer excellent resistance to breakage and have less defects. Only ~0.7mm in thickness, this helps minimize the volume and weight of cells when stacked (compared to graphite plates which are porous and brittle in nature; hence needs to be thick structurally).
Size	Two sizes are available (Please choose the correct plate size from product options above)
	100mm x 100mm -- for flow cells that use 7x7 cm, 5x5 cm, and 3x3 cm reactive areas (please click right picture to verify)	60mm x 60mm -- for flow cells that use ONLY 3x3 cm reactive area (please click right picture to verify)
Application Note	Replacement of plates is recommended for every 5 tests or 50 hours of test time ( with immediate replacement if physical damage is present).
