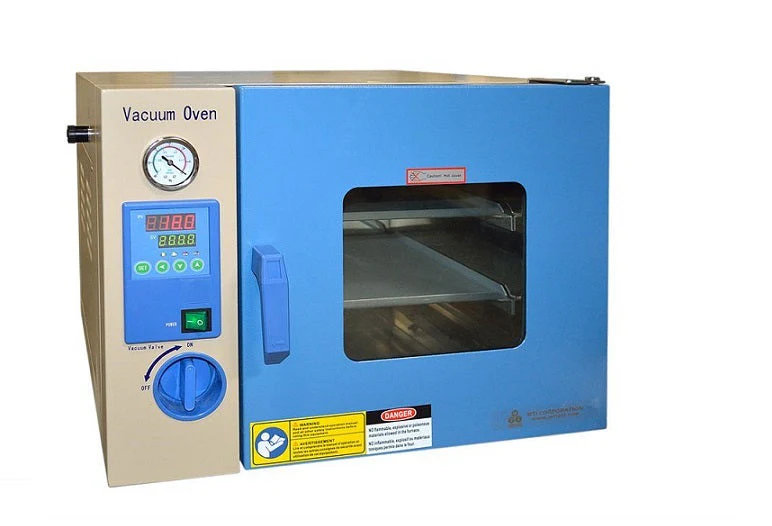

NRTL Certified 53L 200C Vacuum Oven (16x14x15") with Digital Temperature Controller - DZF-6050
HomeStore

NRTL Certified 53L 200C Vacuum Oven (16x14x15") with Digital Temperature Controller - DZF-6050

NRTL Certified 53L 200C Vacuum Oven (16x14x15") with Digital Temperature Controller - DZF-6050

DZF-6050-Series is a vacuum oven with a KF25 adapter and a manual leak valve for venting. The maximum working temperature is 200 °C. Max vacuum level can reach 10^-2 torr at room temperature

SPECIFICATIONS:

Features
  • Stainless steel chamber with two layers of sample rack.
  • Inner chamber size: 415 x 345 x 373 mm, 53 Liter, (L×H×D)
  • A good vacuum sealing is achieved by the silicone gasket and the positive latch door.
  • The double-layer window consists of 1/2" tempered glass and a transparent polycarbonate shield.
  • An adjustable leak valve for venting
  • KF25 Port connection with a vacuum pump.
Power
  • AC 110 - 120 V 50/60 Hz (ETL Certified)-- power cable and plug are included
  • AC 208-240 VAC, power cable is included without a plug.
  • 1400 VA
    Working Temperature

    • RT+10 ~ 200°C, continuously

    • +/- 1 ºC accuracy
    Temperature Controller
    • Single-point PID temperature controller
    • Built-in over-temperature protection
    • Temperature control accuracy: +/-1°C
    • Temperature uniformity: +/-5°C @ 100°C, 25" Hg at center 8" x 6.5" area only
    Vacuum Port
    • KF-25 Port
    Ultimate Vacuum
    • < 50 mTorr (at 200 °C), <8 mTorr at R.T. after bake-out with a 240 L/m mechanical pumps
    • Mechanical pump is not included.
    Standard Package
    • Barbed fitting to KF-25 Adapter, EQ-BARB-KF25, 1 set
    • KF-25 Quick Clamp with Rubber O-Ring, 1 set
    Optional accessories
    • KF-D25 Flexible Stainless Steel Vacuum Bellows, 1 meter
    • Spare Silicone gasket for door seal

    Compliance
    • NTRL (ETL) Certificated for 110V version only
    • CE Certificated for the 220V version

    Application Notes
    • For more information on how to calibrate the oven temperature, please review How to calibrate the oven.
    • An optional 4-pin electric feedthrough  could be installed from side the oven at an extra cost
    •
    Attention
    • It's normal that the SS chamber wall will be slightly deformed and dulled at the surface during high-temperature operation under a vacuum. However, this would not affect any performance.
    • Please do not place the sample at the bottom of the chamber directly due to temperature uniformity issue.



    Select Voltage
    From $2,698.00
    NRTL Certified 53L 200C Vacuum Oven (16x14x15") with Digital Temperature Controller - DZF-6050—
    $2,698.00

    More Images

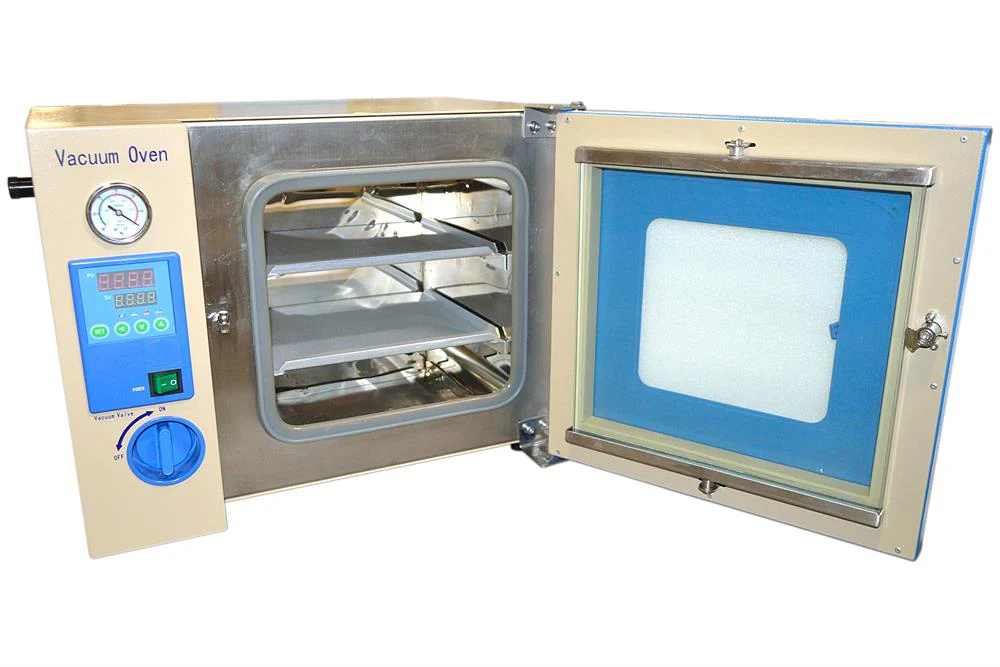

    NRTL Certified 53L 200C Vacuum Oven (16x14x15") with Digital Temperature Controller - DZF-6050 - Image 2

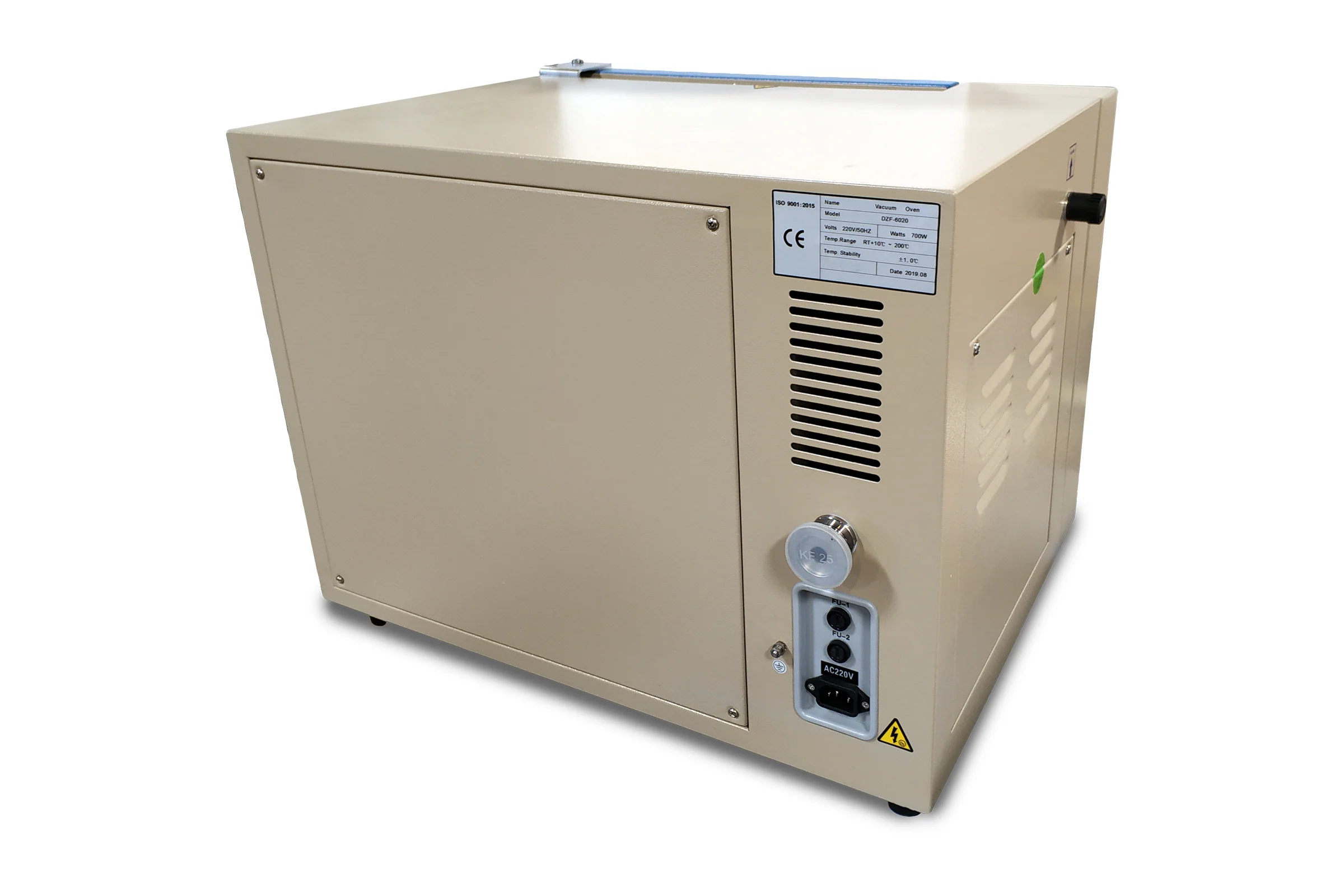

    NRTL Certified 53L 200C Vacuum Oven (16x14x15") with Digital Temperature Controller - DZF-6050 - Image 3
